New Holland CX Series Quick Reference Card

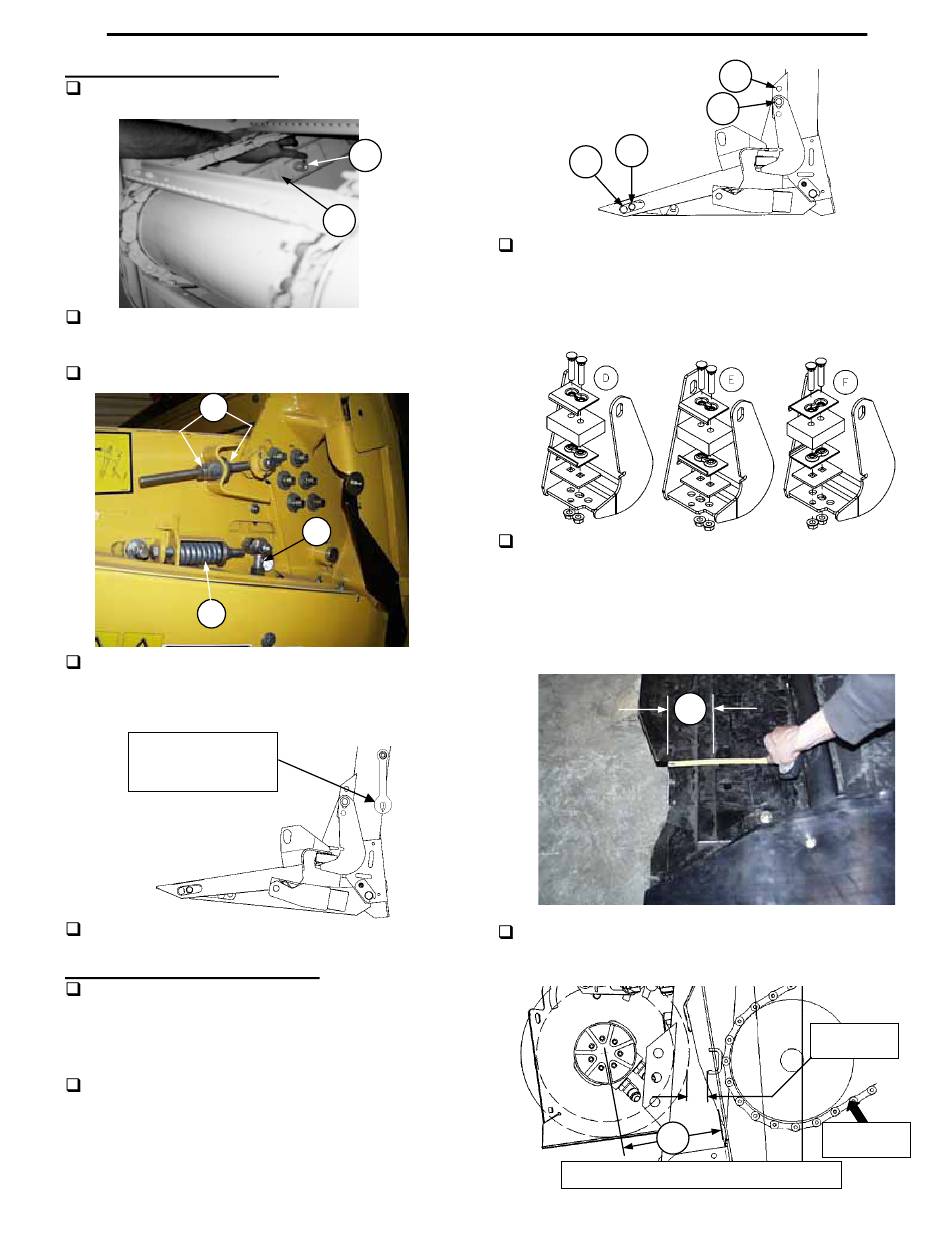

QUICK REFERENCE CARD – NEW HOLLAND CX COMBINES
Combine Initial Settings
Install feeder plate extension (G). Move feeder bottom
shaft to the front hole (Cereal Position) (H).
Adjust the bottom shaft float to 3-1/2" (90mm) at (A).
Adjust the feeder chain tension according to the gauge
on the spring (B).
Ensure feeder house output shaft speed is 575 rpm.
J
B
Fully retract header tilt cylinder and lower header until it
slightly contacts the ground. At this point adjust feeder
faceplate angle to align pendulum with rear face of
adapter (if applicable).
Pendulum must line
up with rear face of
adapter frame.
Remove all feeder house dust shields, enclosure panels, etc.
873 Adapter Initial Settings
Place adapter leg pin in proper hole for your header
model as follows:
•
963/972/973/974/84C headers in hole (B), (factory set)
with dust shields and hole (A) with dust shields
removed.
Place adapter down stop pin in proper hole for your
header model as follows:
•
973/974/84C headers in hole (2), (factory set).
•
963/972 headers in hole (3).
Form 147074
H
G
A
Rev. E (E27025)
B
A
If mounting adapter to a header, ensure down stop pads are
orientated properly.
•
963/972/973 header with dust shields removed and 973
with dust shields on, orientation is correct as shipped (D).
•
963/972 with dust shields on, orient pads to position (F).
•
974/84C headers, orient pads to position (E).
For 972/973/974/84C - Install skid plate on adapter feed pan so
dim. D = 4-11/32" (110 mm) in Hole B (dust shields installed). For
963 - Slide transition plate forward until feed pan bolts hit front of
slot.
For 972/973/974/84C – Install skid plate on adapter pan so
dim. D = 3-1/2" (90 mm) in Hole A (dust shields removed). For
963 - Slide transition plate rearward until feed pan bolts hit rear
of slot.
•
Refer to 873 Operators Manual for adjustment details.
Adjust RTD position to achieve 1" to 2" dimension.
Note: To achieve this feed chain on combine may need to
.
be fully extended
X
X = 225 mm (factory setting).
3
2
D
1" to 2"
(25 to 50 mm)
DRUM
FLOATED UP
Page 1 of 4
