Summary of Contents for Jabra PanaCast VSU010

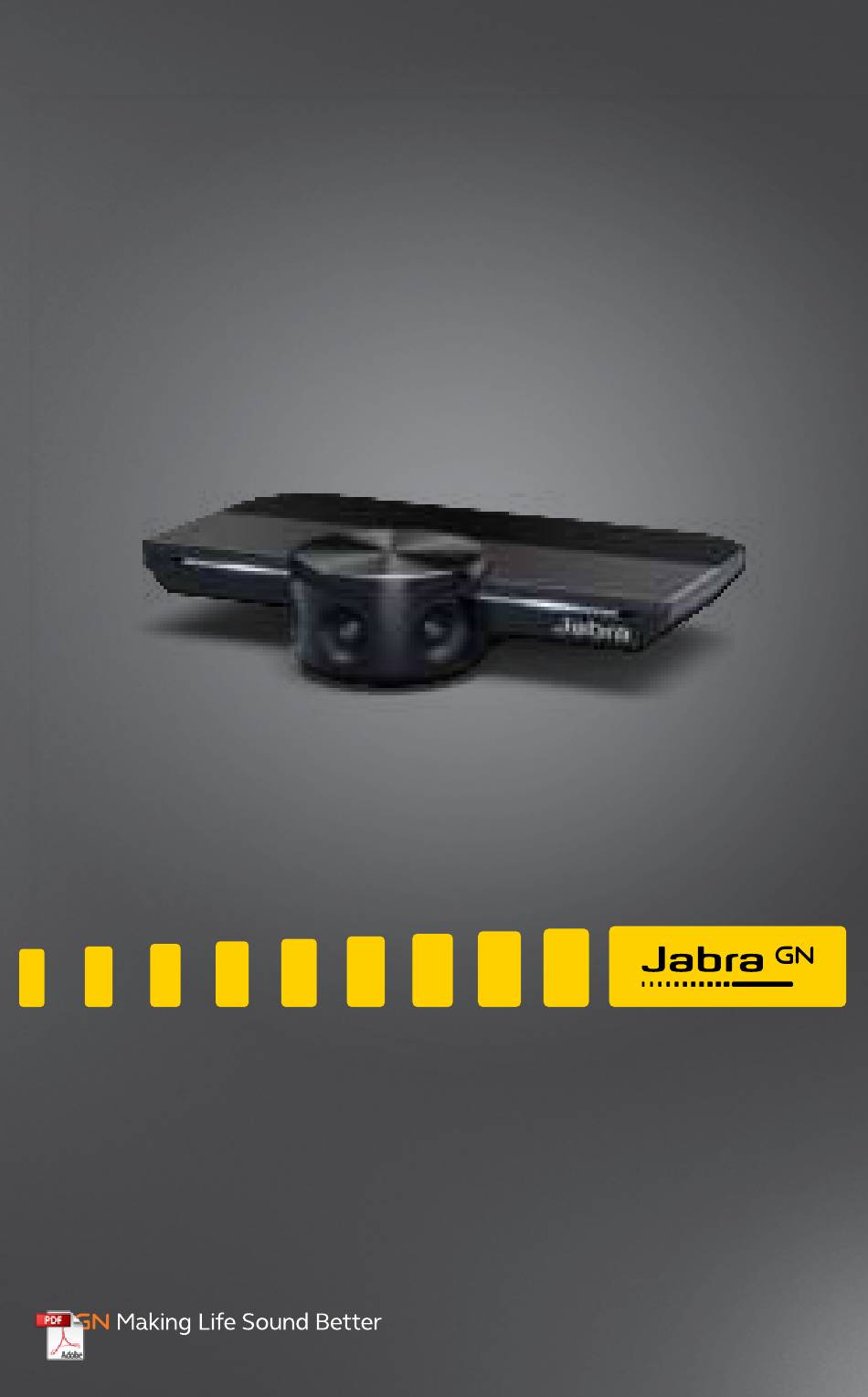

- Page 1 Jabra PanaCast User manual...
- Page 2 ® © 2019 GN Audio A /S. All rights reserved. Jabra is a trademark of GN Audio A/S. Made in China MODEL: VSU010 Declaration of Conformity can be found on www.jabra.com/doc...
- Page 3 (using the optional Jabra PanaCast Hub) 4. How to use ........13 4.1 Supported operating systems 4.2 Compatible video conferencing applications 4.3 Connect your computer to the Jabra PanaCast camera 4.4 Connect your computer to the optional Jabra PanaCast Hub 4.5 What the camera LEDs mean...
- Page 4 5.4 Field of view 5.5 Camera orientation 5.6 Built-in microphones 6. Software ........22 6.1 Jabra Direct (Windows or macOS) 6.2 Update firmware 7. Support ........23 7.1 FAQ and technical specifications 7.2 How to care for your Jabra device...
- Page 5 1. Welcome Thank you for using the Jabra PanaCast. We hope you will enjoy it! Jabra PanaCast features • Inclusive meetings. Panoramic-4K video using three 13-megapixel cameras and patented real-time video stitching to give 180° coverage, for a more natural view of the huddle room.
- Page 6 2. Overview 2.1 Jabra PanaCast overview PanaCast features three cameras, which stream continuously, and patented real-time video stitching technology to create a full 180° view of the huddle room in Panoramic-4K. LEDs Microphone Microphone Cameras USB-C 3.0 port Adjustable mounting...
- Page 7 2.2 Accessories Accessories can be purchased at jabra.com/ accessories. 1m/3ft USB cable 1.8m/6ft USB cable (optional) Table stand with three cable clips Wall mount (optional) (optional) Jabra PanaCast Hub with built-in USB-C cable (optional accessory)
-
Page 8: Camera Setup
3. Camera setup 3.1 Wall mount The Jabra PanaCast camera can be mounted to the wall using the optional wall mount accessory. A screwdriver and two 1/4 inch screws are required (not supplied). Optimally, the camera should be mounted at eye-level of the participants. - Page 9 3.2 Table stand The Jabra PanaCast camera can be attached to the optional table stand using the mounting bracket on the camera. Ideally, the camera should be positioned 0.5m to 3.5m from participants (1.5ft to 11.5ft). Any further and the camera may pixelate the image of the participants.
-
Page 10: Powering The Camera
USB 3.0 port on your computer using the supplied USB cable. If your computer only has USB 2.0 ports, an external powered USB hub is required to power the camera. For a list of approved USB hubs, visit jabra.com/help/panacast. - Page 11 3.4 Typical room configuration HDMI (4K) HDMI (4K)
- Page 12 3.5 Typical room configuration (using the optional Jabra PanaCast Hub) Ideally, it is recommended to install the Jabra PanaCast Hub out of sight. HDMI (4K) HDMI (4K)
-
Page 13: How To Use
10.9 or later, and does not require extra drivers. It is recommended to download and install Jabra Direct to customize camera settings and to update the firmware. Jabra Direct can be downloaded from jabra.com/direct. 4.2 Compatible video conferencing applications... - Page 14 4.3 Connect your computer to the Jabra PanaCast camera Connect your computer directly to the Jabra PanaCast camera using the supplied 1m/3ft USB cable. Optionally, a longer 1.8m/6ft USB cable can be purchased from Jabra.com/ accessories.
- Page 15 Jabra PanaCast Hub Connect your computer to the Jabra PanaCast Hub using the built-in 1m/3ft USB-C cable. The Jabra PanaCast Hub can also be connected to a Jabra speakerphone, HDMI monitor (4K), VGA monitor (1080p), and an ethernet connection. Connect the Jabra PanaCast Hub to a USB-C PD power adaptor with a minimum power output of 45W.
- Page 16 Microsoft Teams. 3. Select Settings to open the settings menu. 4. Select the Devices tab in the menu list. 5. Under Camera, select Jabra PanaCast as the camera. Select your preferred speaker or headset as the speaker and microphone under Audio Devices.
- Page 17 4.7 Using the camera with Skype for Business When using Skype for Business, the Jabra PanaCast may need to be manually set as the default video device in the video settings. 1. Launch Skype for Business. 2. Click the Options icon in Skype for Business to open the Options menu.
- Page 18 4.8 Using the camera with other compatible video conferencing applications Ensure the Jabra PanaCast has been set as the default video device in the video settings for your video conferencing application. For more information about compatible video conferencing applications, visit jabra.com/...
-
Page 19: Camera Features
Intelligent Zoom is on by default and can be turned on or off using Jabra Direct. 5.2 Vivid HDR Vivid HDR automatically optimizes the video quality under a wide range of lighting conditions. -
Page 20: Video Adjustments
Jabra Direct. To access video adjustments: 1. Click the Jabra Direct icon located in the Windows system tray or the macOS menu bar to open the Jabra Direct window. 2. Click the settings icon next to Jabra... -
Page 21: Camera Orientation
Jabra PanaCast Hub. 5.4 Field of view The viewing angle of the camera can be adjusted to 90°, 120°, 140° or 180° using Jabra Direct. By default the field of view is set to 180°. 5.5 Camera orientation If the camera is mounted upside down, the video feed can be inverted using Jabra Direct. -
Page 22: Update Firmware
Download the latest free version from jabra.com/direct 6.2 Update firmware Firmware updates improve performance or add new functionality to Jabra devices. When your computer is connected to the Jabra PanaCast, Jabra Direct will notify you when an update is available. - Page 23 View the FAQ, certifications, and technical specifications at jabra.com/help/panacast. 7.2 How to care for your Jabra device • The Jabra PanaCast is for indoor use only. • Avoid direct sunlight and temperatures above 40°C/104°F or below 0°C/32°F. • Do not expose the camera, hub or cables to rain or other liquids.
