GE Spacemaker JVM1430WD Dimensions And Installation Information

GE Appliances

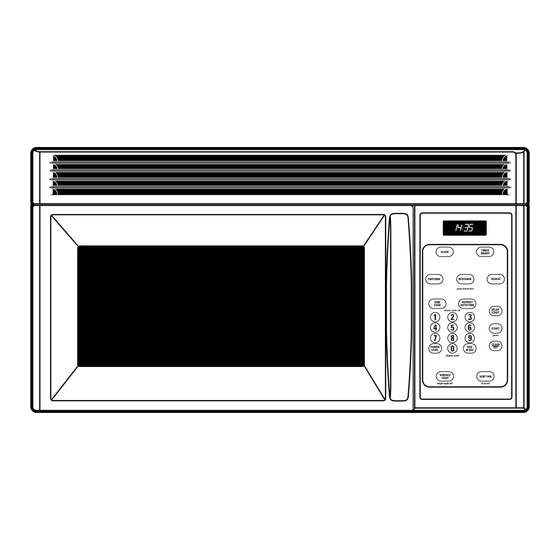

JVM1430BD/WD – GE Spacemaker 1.4 Cu. Ft. Capacity Over-the-Range Microwave OVen
Dimensions (in inches)
Mounting
21-3/4"
Door open
Important Information: When installing the Spacemaker microwave oven
over a range, allow minimum of 2" from bottom of Spacemaker microwave
oven to top of range backguard to allow for removal of light covers.
Installation Information: This information is not intended to be used for
installing unit described. Before installing, consult installation instructions
packed with product/kit for current dimensional data.
Specification Created 9/02
30"
66" MIN.
MIN.
width
height
Exhaust outlet
from required
floor
3-1/4" X 10" duct
12"
MAX.
14
16-1/2
15-3/4
Optional Accessories (Available at additional cost)
JX41/JX46BL–Black Filler Panel Kit
JX40WH/JX46WH–White Filler Panel Kit
connects to
When replacing a 36" range hood, this
kit fills in the additional width to provide
a custom, built-in appearance. For
installation between cabinets only;
not for end-of-cabinet installation. Each
kit contains two, 3"-wide filler panels.
Ventilation Options: The Spacemaker microwave oven is designed for adaptation for the following
three types of ventilation:
Outside Exhaust (Vertical)
Outside Exhaust (Horizontal)
Recirculating (Non-vented ductless–see Filter Kit Drawing)
Listed by
Underwriters
Laboratories
R
For answers to your Monogram,
GE appliance questions, visit our website at
GEAppliances.com or call
GE Answer Center ® service, 800.626.2000.
® GE Profile ™ or
JX81A–Recirculating
Charcoal Filter Kit
To be used when the
microwave oven cannot
be vented to the outside.
