GE Spacemaker WSM2420D Dimensions

GE Appliances

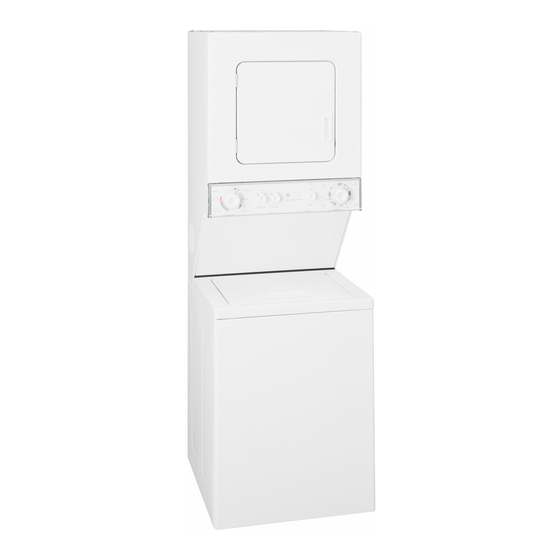

WSM2420/80D – GE 24" Unitized Spacemaker
®
Dimensions (in inches)
27-5/8
Distance from
vent to back 4-1/2
71-3/4
32-1/2
27-1/4
23-7/8
Power Cord Location
Power
Cord Hole
9-1/2''
41-1/2''
Back View
Specification Created 6/03
Washer/Dryer
®
21-5/16
8
27-5/8
71-3/4
1-1/2
38
32-1/8
27-1/2
28-5/8
Drain Water
inlet-
cold
Floor line
27-1/4
23-7/8
1" For leveling legs
Electrical Requirements:
WSM2420D:
Electric Dryer –This appliance should be connected to an individual, properly ground-
ed branch circuit with 120/240V single-phase 60Hz electrical service and should be
protected by 30-amp time-delay fuses or circuit breakers. This appliance is
manufactured with the neutral connected to the frame. Power cord should be
purchased separately.
Note: These appliances are not approved for 120-volt operation.
WSM2480D:
Gas Dryer – This appliance should be connected to an individual,
properly grounded branch circuit with a three-prong grounding-type receptacle and
120-volt single-phase 60 Hz electrical service and should be protected by 15- or
20-amp time-delay fuses or circuit breakers. This appliance is equipped with a 6-foot
long flexible U.L. listed 20-amp power cord to match a 15-amp receptacle.
Gas Rated input 10,500 BTU/HR. Factory equipped for natural gas. Tested for LP gas.
Exhaust Information:
Exhausting the dryer to the outside is strongly recommended to prevent large amounts of
moisture and lint from being blown into the room. Closet installations must be exhausted
to the outside.
Installation Information:
For complete information, see installation instructions packed with the product.
