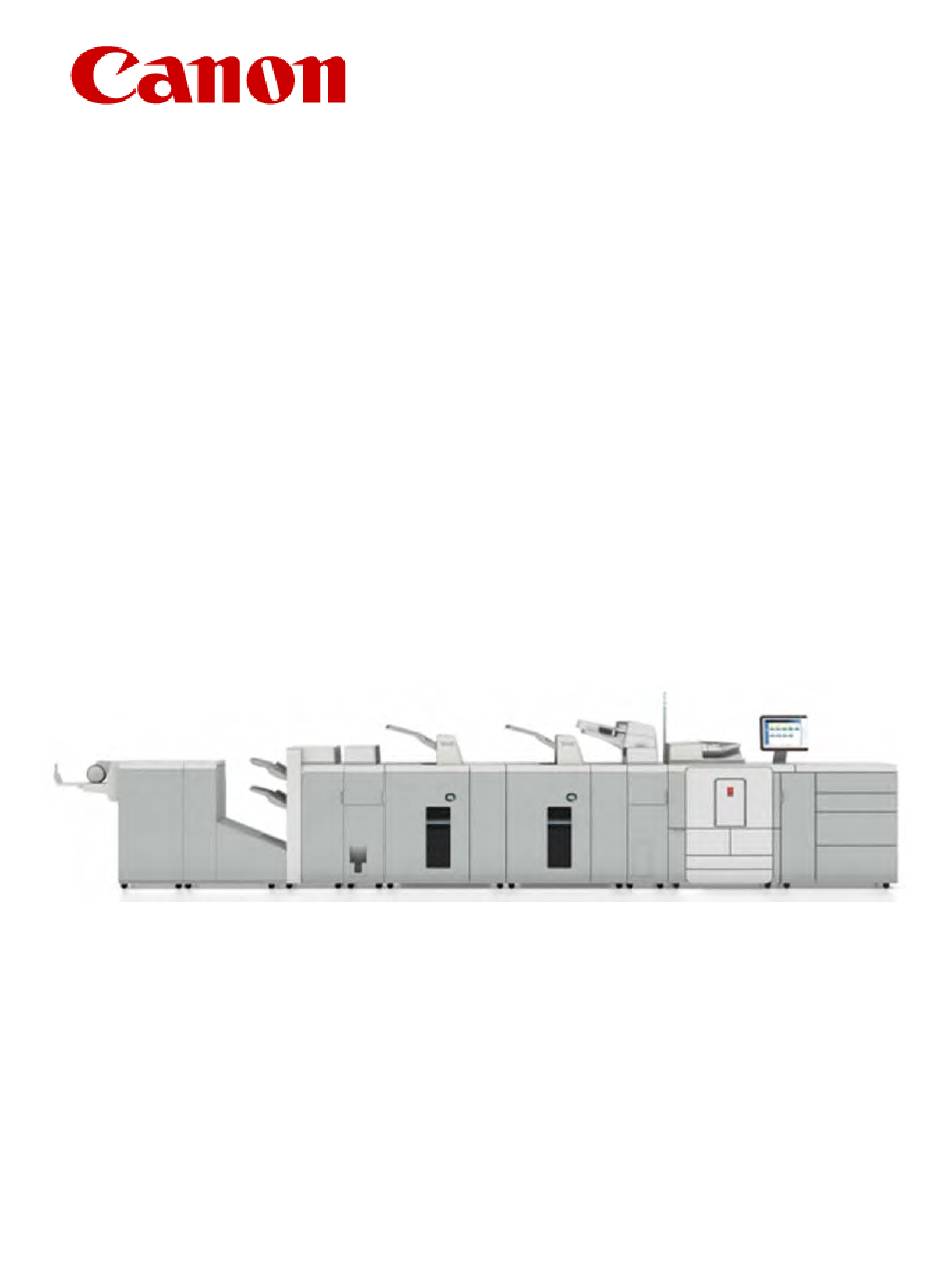

- Page 1 Océ VarioPrint 110 Customer Expectations Document Version 7 Engineering Services and Solutions Division Business Imaging Systems Group, Canon U.S.A., Inc.
-
Page 2: Table Of Contents
Contents 1. Introduction ......................5 2. Product Overview ....................5 Summary of Functions ..................6 Offset Press vs. Océ DirectPress ..............7 Standard Configuration ................... 7 PRISMAsync Controller................... 8 2.4.1 PRISMAsync System Backup ............8 2.4.2 PRISMAsync Firmware Updates ............9 Professional Input/Output Accessories ............ - Page 3 7. System Options and Software ................36 Remote User Interface-C1 ................36 Removable HD Kit-C1 ................... 36 Océ PRISMAaccess ..................36 Océ PRISMAprepare ..................36 Other Océ VarioPrint 110 Software Optional Licenses ......... 37 8. Installation Review ....................38 Installation Time .................... 38 Customer Responsibilities ................
- Page 4 Accordingly, the latest specifications for the machine may not be found in this document. As new information becomes available, this document will be revised. Canon authorized dealers can access the latest revision of this document from the Download Center page on the e-Support Web site (support.cusa.canon.com).
-
Page 5: Introduction
Océ VarioPrint 110 have, and familiarize themselves with, the information in this document prior to making their purchase. Product Overview The Océ VarioPrint 110 is a co-development product of Canon and Océ. This machine integrates Canon’s accessories with Océ’s engine, PRISMAsync controller, and operation management. -
Page 6: Summary Of Functions
2.1 Summary of Functions Function Océ VarioPrint 110 Print Speed (LTR) B&W 110 ipm Simplex, B&W and Scan Speed Color 120 ipm (300 dpi, LTR) Duplex, B&W and Color Simplex, B&W and 100 ipm Scan Speed Color (600 dpi, LTR) Duplex, B&W and 25 ipm... -
Page 7: Offset Press Vs. Océ Directpress
2.2 Offset Press vs. Océ DirectPress Offset printing is a technique that transfers (or “offsets”) an inked image from a plate to a rubber blanket, and then to the printing surface. This enables the offset press to maintain a consistent and high-image quality over long print runs because the plate never touches the paper. -
Page 8: Prismasync Controller
2.4 PRISMAsync Controller The Océ VarioPrint 110 is powered by Océ’s PRISMAsync Print Controller. The PRISMAsync controller seamlessly enables the customer to streamline their workflow and turn out more work in less time with the following features: • Scheduler - Plan-ahead functionality for multiple jobs simultaneously. The scheduler only shows an estimated job completion time, not the actual time it may take to complete a job. -
Page 9: Prismasync Firmware Updates
2.4.2 PRISMAsync Firmware Updates It is recommended that a technician use a specific kind of USB stick to upgrade or restore the PRISMAsync controller firmware. The USB stick is NOT included in the PRISMAsync box. The USB stick used for upgrading the controller firmware must adhere to specific technical requirements. -
Page 10: Professional Input/Output Accessories
2.5 Professional Input/Output Accessories The Océ VarioPrint 110 features many input and output accessories that allow customers working in office environments to complete large jobs directly from the machine. For more information on the input and output accessories that can be attached to the machine, see “Specifications,”... -
Page 11: Machine Dimensions And Space Requirements
Machine Dimensions and Space Requirements 3.1 Dimensions The following table includes the width, height, and depth dimensions (in inches and millimeters) of the main unit and optional accessories. Unit Width Depth Height Main Unit without 44.5” 1,130 mm 30.1” 765 mm 40.9”... -
Page 12: Weight
3.2 Weight The weights of the main unit, feeding and finishing options (in pounds and kilograms) are listed in the table below. Unit Weight Main Unit 580 lb 263 kg Operator Panel 7.5 lb 3.4 kg Operator Attention Light-C1 3 lb 1.4 kg Duplex Color Image Reader-D1 59 lb... -
Page 13: Dimensions Diagrams
3.3 Dimensions Diagrams The installation site must provide enough space for unrestricted operation, maintenance work, and proper ventilation. Every attempt should be made to install the equipment in a room that is large enough for the proper servicing and maintenance of the equipment, and ensure that issues, such as ventilation, odors, and dust accumulation are not a concern. -
Page 14: Floor Structure Requirements
IMPORTANT • The Océ VarioPrint 110 was created to be modular in design. Floor space, budget, monthly copy/print volume, and applications will determine which configuration works best. • The maximum configuration (fully configured machine) includes the Main Unit, Duplex Color Image Reader-D1, ePIM-C1, Document Insertion Unit-F1, High Capacity Stacker-E1 (x 2) or High Capacity Stacker-F1 (x 2), Paper Folding Unit-F1, Saddle Finisher-AF2, Booklet Trimmer-D1, and Two Knife Booklet Trimmer-A1. -
Page 15: Power/Electrical Requirements
Power/Electrical Requirements The Océ VarioPrint 110 requires a NEMA 6-20R receptacle for the main unit and proper operation. NEMA 6-20R Receptacle 4.1 Power Requirements for the Main Unit and Optional Accessories Power Supply Cord/ Length of Power Part or Accessory Power Supply Plug Specifications Cord... -
Page 16: Environmental Factors And Requirements
Environmental Factors and Requirements This section describes the necessary environmental factors and requirements in which the machine should be operated to achieve the best image quality and print results. 5.1 Temperature and Humidity Conditions The optimal humidity range is 20% to 80% RH (Relative Humidity) with a room temperature of 62.6°F to 82.4°F (17°C to 28°C). -
Page 17: Ventilation
5.3 Ventilation Ensure that there is at least 1,236 ft (35 m ) of space in the location where the machine will be installed. The machine does not emit any ozone. 5.4 Lighting We recommend installing the machine in a location with at least 500 lux (29 1/2”... -
Page 18: Specifications
Specifications This chapter explains the specifications of the main unit and optional accessories. The specifications provided are approximate values for the user’s reference only, and are subject to change without notice for product improvement or future release. 6.1 Main Unit Item Specifications Name... - Page 19 Main Unit Table Continued Item Specifications Paper Weight Less than 31 lb bond to Greater than Mode Size 31 lb bond 80 lb cover 80 lb cover (120 g/m (120-220 g/m (220 g/m LTR-Tab EXEC EXECR Simplex LTRR 11” x 17” 12”...
-
Page 20: Prismasync Controller
Main Unit Table Continued Item Specifications Ozone Emissions None Altitude 3,280.8’ (less than 1,000 m) maximum Temperature while in 62.6°F to 82.4°F (17°C to 28°C) Humidity 20 to 80% RH 6.2 PRISMAsync Controller Item Specifications • Embedded with optional removable hard disk Server Type •... -
Page 21: Usb Stick
6.2.1 USB Stick Item Specifications USB Connection Speed USB 2.0 High-Speed certified, USB 1.1 backward compatible ≥ 2 GB, 4 GB is recommended USB Stick Size Bootable Media Support Yes (Mandatory) File System Support Bootable NTFS and FAT32 (Intel) Windows generic drivers for USB mass storage. Drivers No specific drivers or specific setup. -
Page 22: Duplex Color Image Reader-D1 With Feeder
6.3 Duplex Color Image Reader-D1 with Feeder Item Specifications Feeder Original Feeding Single Pass Duplex Automatic Document Feeder Mechanism 11” x 17”, LGL, LTR, LTRR, STMT, or STMTR Size and Weight of Originals 1-Sided Original: 10 lb bond to 80 lb cover (38 to 220 g/m 2-Sided Original: 13 lb bond to 80 lb cover (50 to 220 g/m Original Tray Capacity 300 sheets (20 lb bond (80 g/m... -
Page 23: Epim-C1
6.4 ePIM-C1 Item Specifications Size: 12” x 19.2”, 12” x 18”, 11” x 17”, LGL, LTRR, LTR-Tab, LTR, and Irregular Size (8.0” x 8.0” to 12.6” x 19.2” (203 mm x 203 mm to 320 mm x 488 mm)) Paper Size/Weight/Type Weight: 13 lb bond to 110 lb cover (50 to 300 g/m Type:... -
Page 24: Document Insertion Unit-F1
6.5 Document Insertion Unit-F1 Item Specifications Size: 13” x 19”, 12” x 18”, 12 5/8” x 17 3/4”, 11”x 17”, LGL, LTR, LTRR, EXEC, EXECR, and Irregular Size (7 1/8” x 7 1/8” to 13” x 19 13/64” (182 mm x 182 mm to 330.2 mm x 487.7 mm)) Weight: Plain: 13 lb bond to 110 lb cover (50 to 300 g/m Coated: 24 lb bond to 90 lb cover (80 to 240 g/m... -
Page 25: High Capacity Stacker-F1
6.7 High Capacity Stacker-F1 Item Specifications 13” x 19”, 12” x 18”, 11” x 17”, LGL, LTR, LTRR, STMTR, EXEC, EXECR, Paper Size and Irregular Size (5.5” x 7.2” to 13” x 19.2” (140 mm x 182 mm to 330.2 mm x 487.7 mm)) Paper Weight 13 lb bond to 110 lb cover (50 to 300 g/m Plain, Offset, Coated, Transparency, Pre-punched, Pre-printed, Tab, Labels,... -
Page 26: Finisher-Af1
6.9 Finisher-AF1 Item Specifications Size: 13” x 19”, 12” x 18”, 12 5/8” x 17 3/4”, 11” x 17”, LGL, LTR, LTRR, EXEC, EXECR, and Irregular Size (7 1/8” x 7 1/8” to 13” x 19 13/64” (182 mm x 182 mm to 330.2 mm x 487.7 mm)) Weight: Plain: 13 lb bond to 110 lb cover (50 to 300 g/m Paper Size/Weight/Type... - Page 27 Finisher-AF1 Table Continued Item Specifications No Collating, Collate, or Group Mode Tray A: If the High Volume Stack Mode is set to ‘Off’: 13” x 19”, 12” x 18”, 12 5/8” x 17 3/4”, 11” x 17”, LGL, LTR, LTRR, EXEC, EXECR: 1,000 sheets (or 5 3/4”...
- Page 28 Finisher-AF1 Table Continued Item Specifications When the Standard Staple Cartridge Is Attached: (The maximum stapling capacity may vary, depending on the paper type and weight.) LTR, EXEC: 100 sheets (20 lb bond (80 g/m )) or Heavy paper stacked less than 1/2”...
-
Page 29: Saddle Finisher-Af2
6.10 Saddle Finisher-AF2 Item Specifications Size: 13” x 19”, 12” x 18”, 12 5/8” x 17 3/4”, 11” x 17”, LGL, LTR, LTRR, EXEC, EXECR, and Irregular Size (7 1/8” x 7 1/8” to 13” x 19 13/64” (182 mm x 182 mm to 330.2 mm x 487.7 mm)) Weight: Plain: 13 lb bond to 110 lb cover (50 to 300 g/m Paper Size/Weight/Type... - Page 30 Saddle Finisher-AF2 Table Continued Item Specifications No Collating, Collate, or Group Mode Tray A: If the High Volume Stack Mode is set to ‘Off’: 13” x 19”, 12” x 18”, 12 5/8” x 17 3/4”, 11” x 17”, LGL, LTR, LTRR, EXEC, EXECR: 1,000 sheets (or 5 3/4”...
- Page 31 Saddle Finisher-AF2 Table Continued Item Specifications When the Standard Staple Cartridge Is Attached: (The maximum stapling capacity may vary, depending on the paper type and weight.) LTR, EXEC: 100 sheets (20 lb bond (80 g/m )) or Heavy paper stacked less than 1/2”...
-
Page 32: Puncher Unit-Bq1
6.11 Puncher Unit-BQ1 Item Specifications Size: 11” x 17”, LGL, LTR, LTRR, EXEC, EXECR Weight: 13 lb bond to 73 lb cover (50 to 200 g/m Paper Size/Weight/Type Type: Thin, Plain, Heavy, Recycled, Color, Bond, Tab, Coated, Textured, Offset, Pre-printed, Die cuts, NCR (No Carbon Required) Punch Hole Quantity, Two holes: 1/4”... -
Page 33: Two-Knife Booklet Trimmer-A1
6.13 Two-Knife Booklet Trimmer-A1 Item Specifications Description Upper knife, reciprocating top-bottom trimmer Maximum Number of 100 sheets (20 lb bond (80 g/m Sheets 98 sheets (20 lb bond (80 g/m )) + 2 sheets (110 lb cover (300 g/m Acceptable Paper Sizes 13”... -
Page 34: Sdd Square Fold Booklet-Maker With Two-Knife Trimmer
6.14 SDD Square Fold Booklet-Maker with Two-Knife Trimmer Item Specifications Input Accessory Booklet Trimmer-D1 is required. Pass Through Width Approximately 8.27” (210 mm) to 12.60” (320 mm) (No Trimming) Input Width Approximately 8.27” (210 mm) to 12.60” (320 mm) Booklet Trimming Output Width: Approximately 7.87”... -
Page 35: Sdd Square Fold Booklet-Maker
6.15 SDD Square Fold Booklet-Maker Item Specifications Input Accessory Booklet Trimmer-D1 is required. Input Width Approximately 5.51” (140 mm) to 12.60” (320 mm) Booklet Trimming Output Width: Approximately 5.51” (140 mm) to 12.60” (320 mm) Input/Output Length: Approximately 4.88” (124 mm) to 9.60” (244 mm) Acceptable Paper 16 lb bond to 110 lb cover (60 to 300 g/m Weights... -
Page 36: System Options And Software
System Options and Software The functionality of the Océ VarioPrint 110 can be expanded by installing system related optional software. This section describes the system related optional software and their functions. 7.1 Remote User Interface-C1 The Remote User Interface-C1 license enables users to access the status window of the machine remotely from any computer on the same network. -
Page 37: Other Océ Varioprint 110 Software Optional Licenses
7.5 Other Océ VarioPrint 110 Software Optional Licenses • DocBox-C1 • Color Scan to File/E-Mail-C1 • Multiple Queue-C1 • Streaming-C1 • DP Link-C1 • Accounting-C1 • E-Shredding-C1 • KDK Link-C1 • Microsoft XPS Standard Speed-C1 • Microsoft XPS High Speed-C1 •... -
Page 38: Installation Review
Installation Review This chapter describes the necessary number of technicians required to install the machine properly, the time required to install the main unit and optional equipment, and customer installation responsibilities. 8.1 Installation Time The time required to install the Océ VarioPrint 110 depends on the options and accessories to be installed, and the number of technicians performing the installation. -
Page 39: Printer Operation Care
Printer Operation Care POC (Printer Operation Care) enables an owner of the Océ VarioPrint 110 to perform self-service on the machine. If an owner wants to perform POC, the VarioPrint 110 Base License V2 with POC should be purchased, along with the VarioPrint DP LINE POC Kit-A1. The VarioPrint DP LINE POC Kit-A1 contains the necessary parts and tools that the owner needs to perform self-service on their machine at the estimated time of replacement (shown in the table below). -
Page 40: Consumables
10. Consumables Consumables are all products and materials that are consumed with regular use and cannot be reused. Such consumables include, but are not limited to, paper, chemicals, and toner. A number of factors go into the approximate life expectancy of a consumable item, including paper size and the amount of coverage per page. -
Page 41: Consumable Parts
Therefore, consumable parts do not have a warranty, and Canon U.S.A., Inc. cannot guarantee a minimum life. 10.1.1 Estimated Life of Consumables The tables below state the estimated life expectancy yields based on LTR size paper. -
Page 42: Toner Container And Toner Supply Unit Yields
• If the machine is maintained and serviced by a Canon authorized service technician • If only Genuine Canon service parts for the accessories and Océ consumable... -
Page 43: Optimum Monthly Product Performance
13. Optimum Monthly Product Performance The table below describes the differences between the optimum PCV (Print Copy Volume) and maximum PCV. Please note that the numbers in the table are for reference purposes only, and depend strongly on the type of media selected and environmental conditions. -
Page 44: Machine Reliability And Productivity
14. Machine Reliability and Productivity This chapter describes the reliability and productivity of the Océ VarioPrint 110. 14.1 Machine Reliability and Service Call Ratio The service call ratio varies, depending on the total print volume, installation environment, image ratio, paper size, and paper type. Monthly Print Volume 200,000 Print Volume Over a 5... -
Page 45: Print Speed
14.2 Print Speed The table below describes the printing speeds one should expect when printing simplex or duplex documents on the indicated paper size and type. This applies to both the main unit and the ePIM-C1. Paper Weight Less than 31 lb bond to Greater than Mode... -
Page 46: Paper And Toner
14.4 Paper and Toner The operator can maintain productivity by removing, replacing, and refilling the paper and toner while the machine is running. The paper trays can also be opened and refilled during operation. The tray that is used by the machine during production, however, will be locked. Once the job completes, or the machine switches to another tray, the empty tray unlocks, allowing the operator to prepare for the next job, and add more paper. -
Page 47: Media Usage/Compatibility
15. Media Usage/Compatibility The Océ VarioPrint 110 maintains reliable, predictable, and high-quality output. Consistency of the output is dependent on knowing and compensating for the variables of a print job. The Océ VarioPrint 110 incorporates many control systems which compensate for environmental and print process conditions. Another variable is the print media. -
Page 48: Media Specific Adjustments
15.2 Media Specific Adjustments The media specific adjustments are for customers who want to precisely adjust the image quality per paper type that is registered in the machine. The following settings can be manually adjusted through the Settings Editor > Media >... -
Page 49: Advanced Media Settings
15.3 Advanced Media Settings The Advanced media settings are for customers who want to use advanced print settings to avoid certain print quality issues. The following settings can be adjusted from the operator panel through System > Setup > Advanced media settings. The table below describes the Advanced media settings and each setting’s description. -
Page 50: Paper Handling And Storage
15.4 Paper Handling and Storage • The permissible humidity range for paper storage is 20% to 80% (with a room temperature of 62.6°F to 82.4°F (17°C to 28°C)). Storing paper in a location that does not meet these specifications may affect paper feeding and image quality. •... -
Page 51: Selecting The Correct Media
15.5 Selecting the Correct Media A media guide is available that provides detailed information on the recommended media, such as acceptable paper, paper specifications, and acceptable storage and print conditions. For more information, contact your servicing dealer. IMPORTANT If non-recommended ink or drying powder, not suitable for digital printing, were used to create the preprinted media, damage to important parts of the printing system may occur, or the digital printing performance can seriously deteriorate. -
Page 52: Paper Sizes And Feed Location Chart
15.7 Paper Sizes and Feed Location Chart The table below represents the available paper sizes and feed locations. The ePIM-C1 and Document Insertion Unit-F1 are optional. : Available : Unavailable — Paper Source Paper Size Width x Length Paper Decks of the Document ePIM-C1 Main Unit... -
Page 53: Responsibility Matrix
16. Responsibility Matrix Please discuss this Responsibility Matrix with your customer and check off who owns each action in the table below. Responsibility Action Customer Dealer Ensure adequate space and power to properly install machine. Verify floor strength and level. Ensure that the equipment can be delivered to the site, and that the path is clear and unobstructed.
