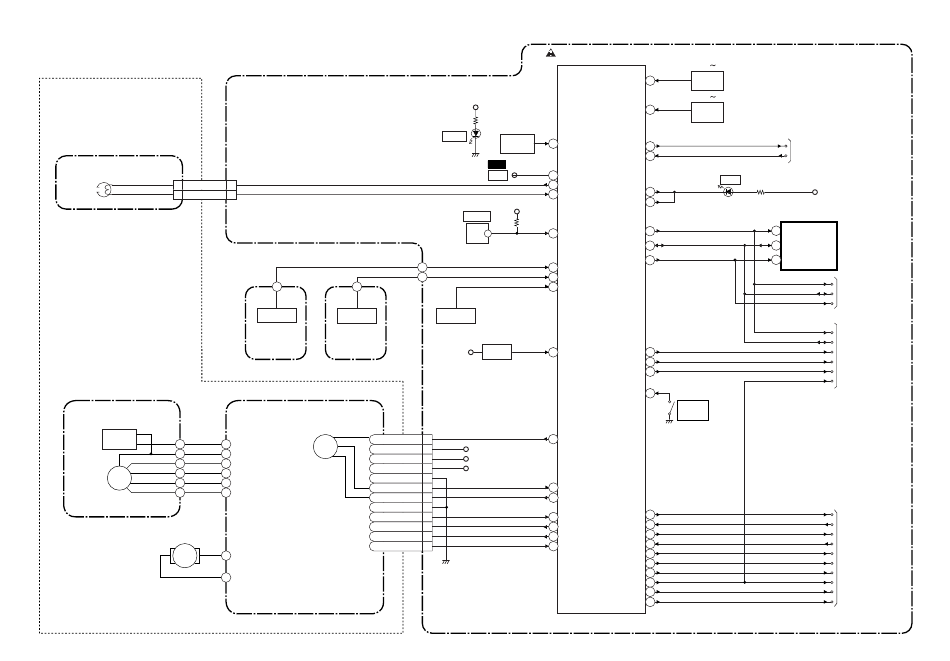

Servo/System Control Block Diagram
(DECK
ASSEMBLY
)
AC HEAD ASSEMBLY
CONTROL
5
CTL(+)
HEAD
6
CTL(-)
CYLINDER ASSEMBLY
PG
SENSOR
DRUM
M
MOTOR
M
LOADING
MOTOR
MAIN CBA
CL402
5
6
Q202
Q201
ST-SENS.
END-SENS.
SENSOR CBA
SENSOR CBA
(ST-SENSOR)
(END-SENSOR)
CAPSTAN MOTOR
C-F/R
CAPSTAN
M
AL+12V
MOTOR
D/L+12V
P-ON+5V
GND
C-FG
C-CONT
GND
D-FG
LD-CONT
D-CONT
D-PG
1-8-1
BLOCK DIAGRAMS
IC201
(SERVO/SYSTEM CONTROL)
AL+5V
D203
RS201
S-LED
REMOTE
14
REMOTE
SENSOR
WF3
J116
CTL
97
CTL AMP-OUT
95
CTL(+)
94
CTL(-)
SW212
AL+5V
LD-SW
1
LD-SW
9
ST-SENS.
7
END-SENS.
80
T-REEL
Q206
T-REEL
Q205
TIMER+5V
RESET
34
RESET
CN201
66
C-F/R
1
2
AL+12V
3
D/L+12V
P-ON+5V
4
5
6
87
C-FG
7
76
C-CONT
8
9
89
D-FG
10
82
LD-CONT
11
77
D-CONT
12
90
D-PG
SW201
SW205
KEY
KEY 0
5
SWITCH
SW206
SW210
KEY
KEY 1
6
SWITCH
P-ON-H
P-ON-H
31
P-DOWN
P-DOWN
84
D204 REC
REC LED
23
REC LED
22
SCL
71
6
SDA
72
5
2
I
C-OPEN
45
7
SP-MUTE
12
A-MUTE
65
D-REC-H
44
EXT-H/INSEL
REC-SAFETY
33
SW211
REC
SAFETY
REC/EE/PB
27
C-SYNC
74
DV-SYNC
13
V-ENV
10
ROTA
15
RF-SW
18
TAPE-SPEED
TAPE-SPEED
28
EXT-H/INSEL
EXT-H/INSEL
29
RENTAL
30
SPL-PLAY
32
1-8-2
TO POWER
SUPPLY BLOCK
AL+5V
IC202
(MEMORY)
SCL
SDA
CS
SCL
TO CHROMA
SDA
/TUNER
2
I
C-OPEN
BLOCK
SCL
SDA
SP-MUTE
TO AUDIO
A-MUTE
BLOCK
D-REC-H
REC/EE/PB
C-SYNC
DV-SYNC
V-ENV
ROTA
TO VIDEO
RF-SW
BLOCK
RENTAL
SPL-PLAY
T7300BLS
