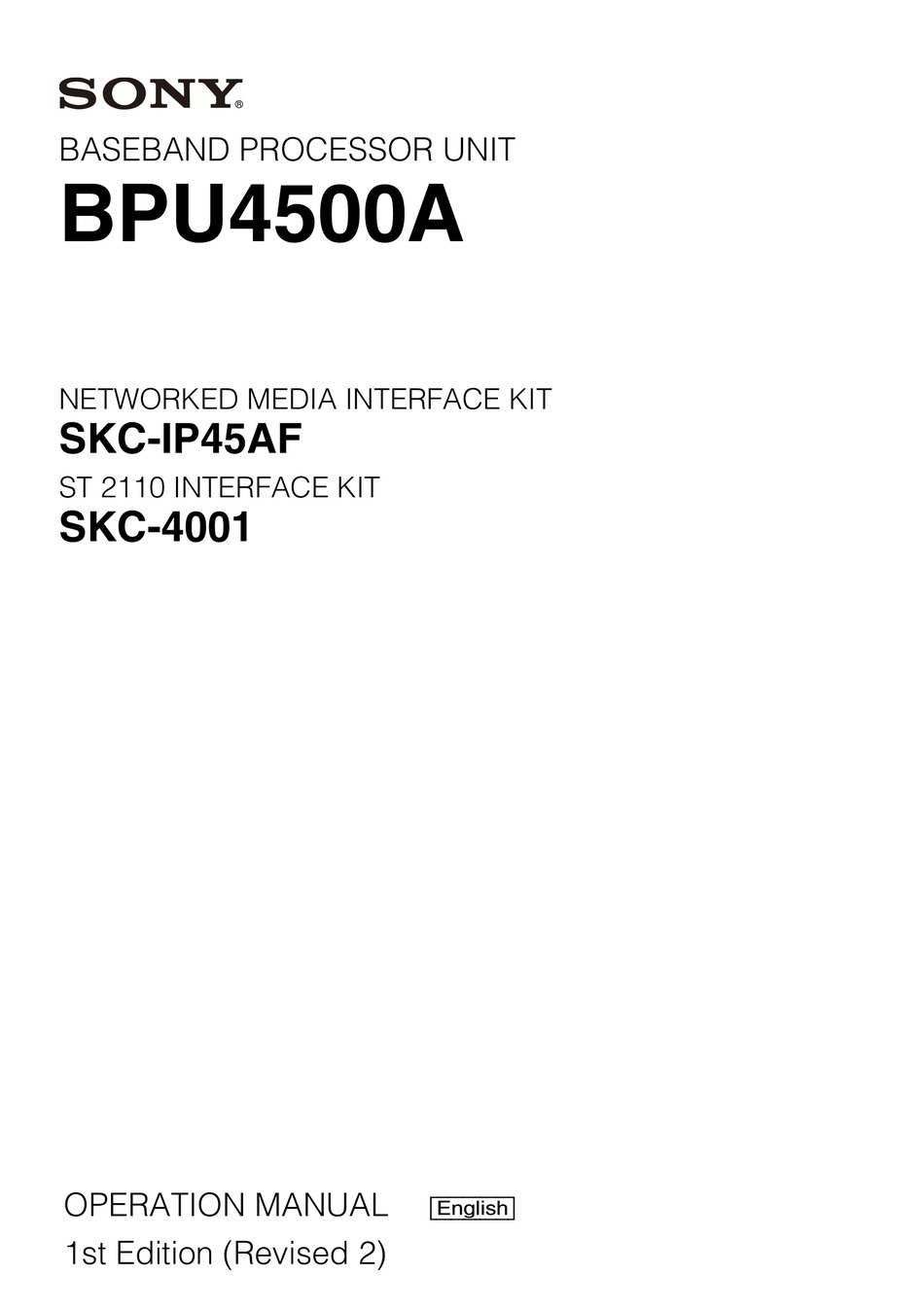

- Page 1 BASEBAND PROCESSOR UNIT BPU4500A NETWORKED MEDIA INTERFACE KIT SKC-IP45AF ST 2110 INTERFACE KIT SKC-4001 OPERATION MANUAL [English] 1st Edition (Revised 2)
-
Page 2: Table Of Contents
Displaying the Status Screen ........31 Status Display Screen ...........31 Menu Settings ............31 Changing Settings using the Menu .......31 Menu Tree ..............33 Menu List ...............37 Appendix ..............52 Precautions ..............52 Error Messages .............52 Specifications ............53 BPU4500A ..............53 SKC-IP45AF (Option) ............54 SKC-4001 (Option) ............54... -
Page 3: Overview
SDI but also as IP. 1) Requires PMW-F55 software version 2.10 or later. 2) Requires the SKC-4065 F65 Adaptor. 3) If using a HDCU1000-series unit, please contact your Sony representative. 4) To connect to SMPTE ST 2110 standard compatible devices using... -
Page 4: System Configuration
Note Production of some of the peripherals and related devices shown in the figures may have been discontinued. For advice on choosing devices, please contact your Sony representative. PMW-F55 connection example Connection example of PMW-F55 and HDCU2000/2500 for operation as a system camera. - Page 5 CA4000 Camera DVF-L350 Network Switch System Adaptor Viewfinder Optical fiber cable Optical fiber cable CCA-5 BPU4500A Lens RCP-3000/1000 series PMW-F55 Solid-state Remote Control Panel Memory Camcorder DC power supply input Sync signal input Return video input a) Install NXLK-IP40F SDI-IP converter board (option).
- Page 6 Viewfinder Monitor Monitor Network Switch SKC-4065+CA4000 +SKC-PB40 Optical fiber cable Lens Optical fiber cable USB flash drive BPU4500A CAC-6 Return Video Digital Motion Picture Selector Camera Sync signal input BP-8 Bridge Plate Intercom Headset (ARRIFLEX) Return video input Intercom microphone...
- Page 7 Monitor Monitor Optical fiber cable Network Switch USB flash drive Optical fiber cable CAC-6 Return Video VCT-14 Tripod Selector Adaptor Intercom Headset BPU4500A CAC-12 Tripod Sync signal input Microphone Microphone Return video input Holder Intercom microphone input HDC4300 Color CCA-5...
- Page 8 HDC-P43 Multi Purpose Single-mode fiber Camera Lens cable (ST Optical fiber (for ENG/EFP) connector, 1 pair) cable HKCU-SM100 BPU4500A CCU Extension Adapter V shoe USB flash drive VCT-14 Tripod Attachment Sync signal input Dual HD-SDI video outputs Return video input...
- Page 9 IP transmission connection example Connection with devices that are SMPTE ST 2110 compliant is supported by installing an SKC-4001 ST 2110 Interface Kit in the BPU4500A. To use IP-related functions, connect with an HDCU3100/HDCU3500/HDCU5000, and use PTP synchronization on the CCU device.
-
Page 10: Name And Function Of Parts
Name and Function of Parts Front Panel NETWORK REF IN UNLOCK RCP/MSU MENU COM ERROR DISP CANCEL FAN STOP POWER MENU LOCK OPTICAL CONDITION MENU ENTER USB connector (for service personnel) a Red tally light Pushing the control knob has the same function as setting Turns on when a red tally signal is received. -
Page 11: Rear Panel
For details, see “<CNS SETTINGS>” (page 44). BPUTCCU: Signal level from the CCU to the unit BPUtCCU: Signal level from the unit to the CCU COM ERROR (red): Indicates a communications error with the video camera, CCU, or external control device (such as Indicates the receive signal status according to the following an RCP-3000/1000 series Remote Control Panel). -
Page 12: Skc-Ip45Af Networked Media Interface Kit (Option)
To avoid danger, operation inside the unit should only be performed by a technician who has received service training. The following diagram shows the rear panel of the BPU4500A with the SKC-IP45AF installed. The BPU4500A can support 2-system 4K or 1-system HD over IP output by installing the SKC-IP45AF in the BPU4500A. -
Page 13: Skc-4001 St 2110 Interface Kit (Option)
For safety, only a qualified technician with service training to use IP output. should perform tasks inside the unit. The following diagram shows the rear panel of the BPU4500A Connection with devices that are SMPTE ST 2110 compliant with the SKC-4001 installed. -
Page 14: Connection And Setup
SDI OUT 1 SDI OUT 2 SDI OUT 3 SDI OUT 4 SDI OUT 5 SDI OUT 6 SDI OUT 7 SDI OUT 8 BPU4500A HD SDI OUT Reference signal input OUT 1 OUT 2 OUT 4 OUT 6 OUT 8... -
Page 15: Extension Mode Connection
Settings Device Setting Menu/Page Item Set value BPU4500A Image format settings CONFIGURATION/<SYSTEM SYSTEM RESOLUTION 4096×2160 SETTINGS> FORMAT FREQUENCY Displays value set on CCU. Video output connector CONFIGURATION/<OUTPUT FORMAT> SLOT1 to Video output format of settings Can also be set using the control panel. -
Page 16: Hd Cutout Video System
Also, a wire frame indicating the cut-out region can be the optional SZC-2001/2001M/2001W HD CUTOUT Software displayed on the signal from SLOT3, SLOT4. in the BPU4500A. Note The region that is cut out can be controlled using a mouse or 12G/6G-SDI signal output is supported only from the following other device connected to the HD CUTOUT Controller. - Page 17 SDI OUT 2 SDI OUT 3 SDI OUT 4 SDI OUT 5 SDI OUT 6 SDI OUT 7 SDI OUT 8 HD SDI OUT BPU4500A Reference signal input OUT 1 OUT 2 OUT 4 OUT 6 OUT 8 Optical fiber cable...
-
Page 18: Hfr Video System
MAINTENANCE/<PROMPTER2 OUT> OUTPUT PROMPTER2 HFR Video System The BPU4500A can transfer HFR video and perform signal Optional SZC-4002/4002M/4002W HFR Software must be processing for the following formats according to the installed to support formats other than 2× and 3× HD. - Page 19 SDI OUT 2 SDI OUT 3 SDI OUT 4 SDI OUT 5 SDI OUT 6 SDI OUT 7 SDI OUT 8 BPU4500A HD SDI OUT Reference signal input Optical fiber cable HD SDI Monitor Prompter signal input HD PROMPTER IN...
- Page 20 SDI OUT 1 SDI OUT 2 SDI OUT 3 SDI OUT 4 SDI OUT 5 SDI OUT 6 SDI OUT 7 SDI OUT 8 HD SDI OUT BPU4500A Reference LINK-5 LINK-6 LINK-7 LINK-8 signal input Optical fiber cable HD SDI Monitor...
-
Page 21: Hdr Video System
SDI OUT 1 SDI OUT 2 SDI OUT 3 SDI OUT 4 SDI OUT 5 SDI OUT 6 SDI OUT 7 SDI OUT 8 BPU4500A Reference signal input HD SDI OUT OUT 1 OUT 2 OUT 4 OUT 6 OUT 8... -
Page 22: Relationship Between Operation Mode And Output Format
Settings Set value Device Setting Menu/Page Item BPU4500A Transfer to HDR mode CONFIGURATION/<SYSTEM HDR MODE LIVE HDR (Live HDR shooting, SR Live SETTINGS> setting) CINEMA (HDR output for recording) HDR LOOK Live Mild Natural (Enabled only when HDR MODE is set to LIVE HDR) CONFIGURATION/<OUTPUT... - Page 23 Operation Frame rate Slot1/Slot2 Slot3 Slot4 mode Output format Output format Output format 1) 3) 23.98 4K/23.98P Dual-Link-2 1080/23.98PsF (1.5G) 1080/23.98PsF (1.5G) 1) 3) 4K/23.98PsF 1) 3) 4K/23.98P Quad-Link-1 1.5G 1) 3) 4K/23.98PsF 4K/23.98P Single-Link 1080/23.98PsF 1.5G 4K HFR 59.94 (2×) 3840×2160/59.94P Octa-Link 1080/59.94P (3G), 1080/59.94i (1.5G),...
- Page 24 Operation Frame rate Slot1/Slot2 Slot3 Slot4 mode Output format Output format Output format HD CUTOUT 59.94 1080/59.94P Perspective 1080/59.94P (3G), 1080/59.94i (1.5G), 1080/59.94i (1.5G), 720/59.94P (1.5G) 720/59.94P (1.5G) 1080/59.94i, 1.5G 720/59.94P 1080/59.94P Simple HD 1080/59.94i, 1.5G 720/59.94P 4K/59.94P 4K (Quad- Link-1) 4K/59.94P 4K (Single-...
- Page 25 Table 2: Relationship between output interface and BNC connector/NMI-LAN connector assignment The format of the signals output from the NMI-LAN connectors is the same as that for the SDI connectors. MAIN Output 4K / HD HFR / HD CUTOUT SLOT1 SLOT2 Operation Output...
-
Page 26: Paint Functions In Hdr Mode And Bt.2020 Color Mode
Some paint functions are disabled, depending on the HDR MODE and BT.2020 COLOR MODE settings on the BPU4500A. Disabled items can still be adjusted from the PAINT menu on the camera or RCP/MSU, but the settings are not applied to the HDR video that is output from SLOT1 and SLOT2. - Page 27 Paint function HDR MODE setting LIVE HDR CINEMA (HDR output) (HDR output) Skin Detail ON/OFF (Fixed OFF) Gate ON/OFF Zoom Link ON/OFF Natural Skin DTL ON/OFF Level Phase Width Saturation Y Limit Saturation ON/OFF Saturation Matrix ON/OFF User Matrix ON/OFF User Matrix R-G/G-B/B-R/R-B/G-R/B-G Multi Matrix ON/OFF Multi Matrix Phase...
- Page 28 Paint function HDR MODE setting LIVE HDR CINEMA (HDR output) (HDR output) Black Set Black Set OHB Matrix ON/OFF User Matrix R-G/G-B/B-R/R-B/G-R/B-G Multi Matrix Phase Multi Matrix Hue/Saturation ON/OFF Speed ALAC ON/OFF Paint functions that can be adjusted when BT.2020 COLOR MODE is selected Paint function BT.2020 COLOR MODE setting BT.709...
- Page 29 Paint function BT.2020 COLOR MODE setting BT.709 WIDE-F WIDE-BC Skin Detail ON/OFF Gate ON/OFF Zoom Link ON/OFF Natural Skin DTL ON/OFF Level Phase Width Saturation Y Limit Saturation ON/OFF Saturation Matrix ON/OFF (Fixed OFF) User Matrix ON/OFF User Matrix R-G/G-B/B-R/R-B/G-R/B-G Multi Matrix ON/OFF Multi Matrix Phase Multi Matrix Hue/Saturation...
-
Page 30: Pws-100Nm1 Connection Settings
Paint function BT.2020 COLOR MODE setting BT.709 WIDE-F WIDE-BC OHB Matrix ON/OFF User Matrix R-G/G-B/B-R/R-B/G-R/B-G Multi Matrix Phase Multi Matrix Hue/Saturation ON/OFF Speed ALAC ON/OFF PWS-100NM1 Connection Settings When a PWS-100NM1 IP Live System Manager station is connected, settings on the NETWORKED MEDIA INTERFACE page and IP LIVE SYSTEM MANAGER page must be configured in the CONFIGURATION menu and also on the PWS-100NM1. -
Page 31: Status Display
Status Display Menu Settings The device and system status can be monitored using text The device and system status can be monitored and settings characters superimposed on the output signal configured for can be modified using the menu displayed in the video output the monitor output (M). - Page 32 Turn the control knob to change the setting. Flashing To cancel a changed setting in an input field Set the CANCEL/ENTER lever to CANCEL before < O U T P U T F O RM A T > ? C 0 3 T O P pushing the control knob to restore the original setting of the input field.
-
Page 33: Menu Tree
OTHERS ASSIGNABLE SWITCH Menu Tree (C09) HD DOWNCONV FILTER CHARACTER LEVEL CONFIGURATION menu 2× MODE(HD) CLEAR BPU SETTINGS RETURN VF BARS BARS TYPE CHANNEL MARKER (C01) HDR NORMAL SPEED OUT HDR LOOK SELECTION MOVING SYMBOL OPTION KEY READ(USBtCAM) TYPE (C10) INSTALLED OPTION SIZE HD CUTOUT... - Page 34 NETWORK menu MULTICAST MULTICAST ADDRESS ADDRESS 1 VIDEO OUT (N07) MAIN IP ADDRESS IP ADDRESS SETTINGS SUBNET MASK (N01) DEFAULT GATEWAY MAC ADDRESS CNS SETTINGS CNS MODE (N02) NETWORKED MEDIA NETWORK INTERFACE INTERFACE MULTICAST MULTICAST ADDRESS DHCP (N03) ADDRESS 2 AUDIO OUT IP ADDRESS (N08)
- Page 35 MULTICAST MULTICAST ADDRESS IP AUDIO AUDIO OUT ADDRESS 7 (N18) META OUT FORMAT (N13) MAIN CH ORDER HDHFR1 HDHFR2 a) Not displayed when a CCU is connected. HDHFR3 b) Displayed only when the SKC-IP45AF Networked Media Interface Kit is installed. HDHFR4 c) Displayed only when the SKC-4001 ST 2110 Interface Kit is HDHFR5...
- Page 36 DIAGNOSIS menu OPTICAL LEVEL OPTICAL LEVEL (D01) CABLE LENGTH BOARD STATUS (D02) DPR1 DPR2 CONNECTION STATUS DOCKING (D03) POWER CABLE COMM CABLE COMM CABLE COMM ROM VERSION CAMERA APP (D04) UPDATER DPR1 DPR2 4K-POST 2K-POST ROM VERSION 2 DPR1 (SUB) (D05) DPR2 (SUB) NMI LSI...
-
Page 37: Menu List
Menu List Legend The following conventions are used in the menu tables. Settings ON, OFF, 0, etc.: Factory default settings shown underlined. ENTER to execute: Execute by pushing the control knob or setting the CANCEL/ENTER lever to the ENTER position. CONFIGURATION menu Page name Item... - Page 38 Page name Item Set value Description Page No. <SYSTEM SETTINGS> HDR MODE OFF, LIVE HDR, CINEMA OFF: Normal SDR shooting mode. LIVE HDR: Enhances the video dynamic range on the camera, and outputs adjusted HDR video. CINEMA: Enhances the dynamic range on the camera, and outputs video for recording.
- Page 39 Page name Item Set value Description Page No. <OUTPUT FORMAT> SLOT1 SLOT1 output format settings 3840×2160, 4096×2160, SLOT1 output video resolution setting 1920×1080, 1280×720 HD-SDI, 3G(Lv-B), 3G(Lv-A), SLOT1 video output system setting 6G, 12G 59i, 59P, 50i, 50P SLOT1 output frequency and scanning method setting in HFR mode (displayed only for HD HFR format) (8×), (6×), (4×), (3×), (2×)
- Page 40 Page name Item Set value Description Page No. <OUTPUT FORMAT> SLOT2 SLOT2 output format settings 3840×2160, 4096×2160, SLOT2 output video resolution setting 1920×1080, 1280×720 HD-SDI, 3G(Lv-B), 3G(Lv-A), SLOT2 video output system setting 6G, 12G 59i, 59P, 50i, 50P SLOT2 output frequency and scanning method setting in HFR mode (displayed only for HD HFR format) (8×), (6×), (4×), (3×), (2×)
- Page 41 Page name Item Set value Description Page No. <OUTPUT FORMAT> SLOT4 SLOT4 output format settings 1920×1080, 1280×720 SLOT4 output video resolution setting (display only) 59i, 50i SLOT4 output frequency and scanning method setting in HFR mode (displayed only for HD HFR and 4K HFR formats) EC, LB Edge Crop (EC) and Letter Box (LB) setting.
- Page 42 Page name Item Set value Description Page No. <CHU MODE> CURRENT PMW-F55, F65(1×), F65(2×), Currently selected camera head setting HDC4300/HDC-P43 PMW-F55 ENTER to execute Sets camera head setting to PMW-F55. F65(1×) ENTER to execute Sets camera head setting to F65 (normal speed). F65(2×) ENTER to execute Sets camera head setting to F65 (2×...
- Page 43 Page name Item Set value Description Page No. <HD CUTOUT> HD CUTOUT OFF, ON HD CUTOUT function on/off setting (available only when the SZC-2001/2001M/2001W is installed) MODE SIMPLE HD, HD CUTOUT mode selection ZOOM&PERSPECTIVE SIMPLE HD: HD image cut out as-is from 4K image. ZOOM&PERSPECTIVE: When HD image is cut out from 4K image, distortion is corrected.
- Page 44 Page name Item Set value Description Page No. <CNS SETTINGS> CNS MODE LEGACY, BRIDGE Sets the communication mode. ENTER to execute. (Not available when a CCU is connected.) <NETWORKED MEDIA NETWORK SLOT1 NMI LAN1, SLOT1 NMI Selects the network interface to configure/display. INTERFACE>...
- Page 45 Page name Item Set value Description Page No. <IP ADDRESS 2> PORT LAN1, LAN2, LAN3, LAN4 Selects the network interface to configure/display. DHCP Sets DHCP operation. Fixed to OFF in the current version. (When the SKC-4001 is installed) IP ADDRESS 0.0.0.0 to 255.255.255.255 Sets and displays the IP address for the selected network interface.
- Page 46 Page name Item Set value Description Page No. <PTP STATUS> PTP NIC LAN1, LAN2 Displays the port on which PTP is running, and the status. PORT SEL LAN1, LAN2 Selects the port for which to display the status. (When the SKC-4001 is installed) UTC TIME Displays the PTP master time.
- Page 47 Page name Item Set value Description Page No. <MULTICAST ADDRESS 2> MULTICAST AUTO, MANUAL Displays the mode of the multicast address setting of ADDRESS the IP stream. AUDIO OUT Settings for the IP AUDIO OUT audio output (When the SKC-4001 is installed) MAIN 224.0.0.1 to 239.255.255.255,...
- Page 48 Page name Item Set value Description Page No. <MULTICAST ADDRESS 6> MULTICAST AUTO, MANUAL Displays the mode of the multicast address setting of ADDRESS the IP stream. META OUT Settings for the IP 4K OUT metadata output (When the SKC-4001 is installed) MAIN 224.0.0.1 to 239.255.255.255,...
- Page 49 Page name Item Set value Description Page No. <NETWORK> Displays the link status of LAN1, LAN2, LAN3, LAN4. LINK DOWN, LINK UP (When the SKC-4001 is LINK DOWN, LINK UP installed) LINK DOWN, LINK UP LINK DOWN, LINK UP Displays the link speed of LAN1, LAN2, LAN3, LAN4. 25G, ----- 25G, ----- 25G, -----...
- Page 50 Page name Item Set value Description Page No. <IP AUDIO> AUDIO OUT FORMAT L24/48kHz/0.125ms/2ch, Sets the audio format. L24/48kHz/0.125ms/4ch, (When the SKC-4001 is L24/48kHz/0.125ms/8ch, installed) L24/48kHz/0.125ms/16ch, L24/48kHz/1ms/2ch, L24/48kHz/1ms/4ch, L24/48kHz/1ms/8ch, L24/48kHz/1ms/16ch, CH ORDER MIC1, MIC2, AES/EBU1, Displays the channel order. AES/EBU2 DIAGNOSIS menu Page name Item...
- Page 51 Page name Item Display Description Page No. <ROM VERSION> CAMERA APP Version number, date, device ROM version information installed on each device name OS version UPDATER Version of software updater Vx.xx ROM version of SY board Vx.xx ROM version of TX board Vx.xx ROM version of DVP board DPR1...
-
Page 52: Appendix
For details on parts replacement, contact PLEASE CONFIRM CHU MODE The CSA camera head setting your Sony representative. ON CSA does not match the connected camera head. -
Page 53: Specifications
Specifications HD: SMPTE ST274, tri-level sync, 0.6 Vp-p, 75 ohms SD: Composite sync, 0.3 Vp-p, 75 ohms HD SYNC/SD SYNC selectable Supplied accessories BPU4500A Number plates (1 set) Operation Guide (1) General Operation Manual (CD-ROM) (1) Power requirement 100 V to 240 V AC, 50/60 Hz... -
Page 54: Skc-Ip45Af (Option)
Operating Instructions (1) EXPIRATION OF THE WARRANTY, OR FOR ANY OTHER REASON WHATSOEVER. Related equipment • SONY WILL NOT BE LIABLE FOR CLAIMS OF ANY KIND OTM-10GSR1 SFP+ Transceiver Module MADE BY USERS OF THIS UNIT OR MADE BY THIRD PARTIES. - Page 55 BPU4500A (SY) Sony Corporation 4-739-700-13 (2) © 2018...
