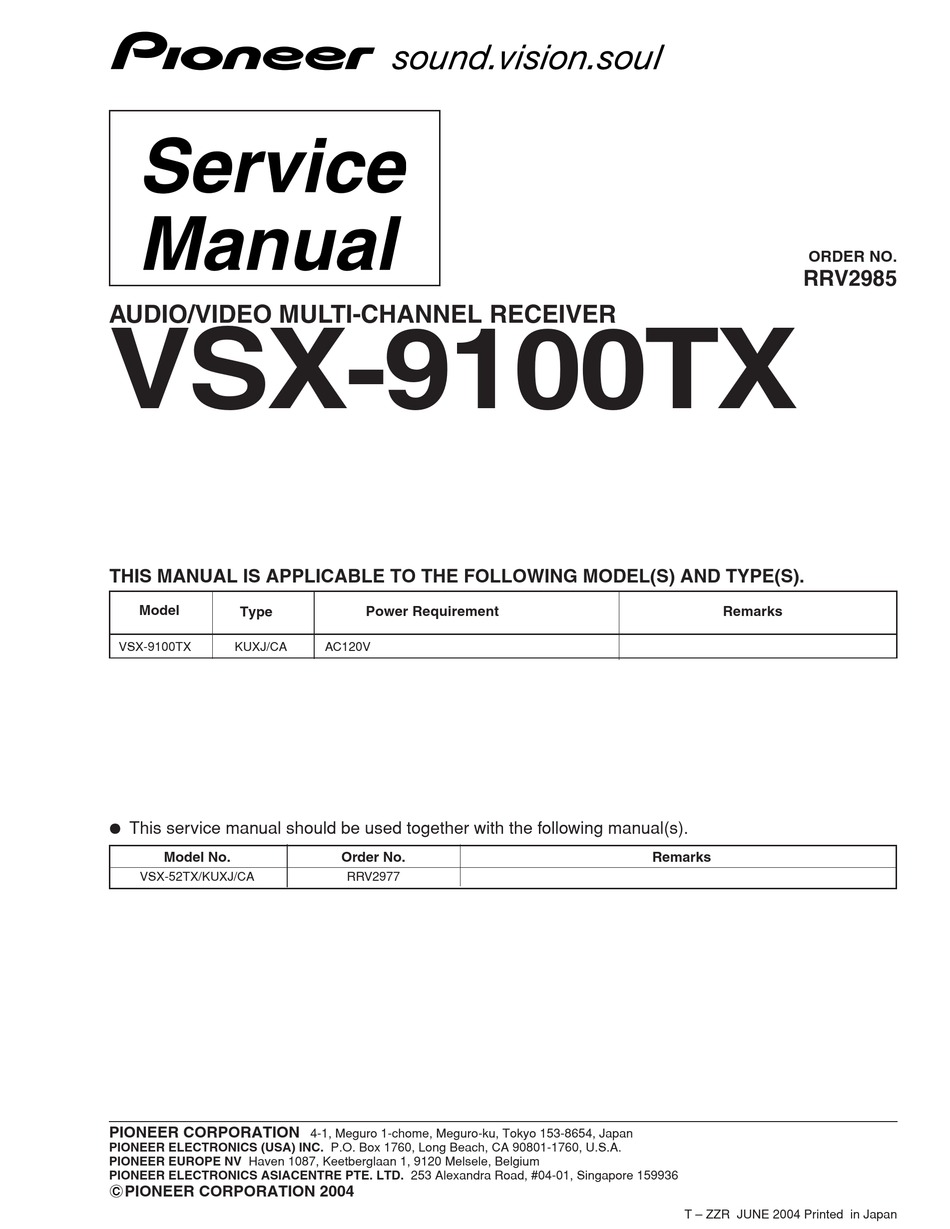

AUDIO/VIDEO MULTI-CHANNEL RECEIVER
VSX-9100TX
THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).
Model
Type
VSX-9100TX
KUXJ/CA
¶ This service manual should be used together with the following manual(s).
Model No.
VSX-52TX/KUXJ/CA
PIONEER CORPORATION
PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
PIONEER CORPORATION 2004
Power Requirement
AC120V
Order No.
RRV2977
4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
ORDER NO.
RRV2985
Remarks
Remarks
T – ZZR JUNE 2004 Printed in Japan
