- Page 1 OKI BVX-200 System user manual http://www.manuallib.com/file/73175 From ManualLib.com ManualLib.com collects and classifies the global product instrunction manuals to help users access anytime and anywhere, helping users make better use of products. Home: http://www.manuallib.com/ Chinese: http://www.shuomingshuku.com/ This Manual: http://www.manuallib.com/file/73175...
- Page 2 BVX-200 Fume Extraction System BVX-200 System User Guide……………………… page 3 Guide de l'utilisateur du système BVX-200……….. page BVX-200 Benutzerhandbuch……………….……….. page Sistema BVX-200 – Guida per l’utente……..……... page Guía del Usuario del Sistema BVX-200……….…… page BVX-200 系统使用说明……….…………………………page www.okinternational.com...
-
Page 3: Table Of Contents
Operations Manual & User Guide Congratulations on your purchase of the BVX-200 Fume Extraction System. It is designed to protect your health from hazardous and irritating air pollution you may have at your work area. It has been designed and manufactured to the highest quality standards. -
Page 4: Please Observe The Following
1.0 Please Observe The Following 1.1 Emphasized Sections Warning! Refers to safety regulations and requires safety measures that protect the operator or other persons from injury. Caution! Emphasizes what must be done or avoided so that the unit or other property is not damaged. -
Page 5: Unpacking And Inspection
1.3 Unpacking and Inspection Carefully unpack the Fume Extraction System and examine the items contained in the Carton. Inspect the unit for any damage that might have occurred in transit. If such damage is present, notify the carrier immediately. Claims for damage must be made by the consignee to the carrier and should be reported to the manufacturer. -
Page 6: Usage
1.6 Usage The Fume Extraction System is a portable, two-station filtration system for the removal of fumes, light dust or vapors at the work place. The filter set supplied with the filter unit depends on the model ordered. Model BVX-201 supplied with a pre-filter and a main filter. The main-filter is a combo-filter consisting of a HEPA filter with an efficiency of 99.95% at 0.3 micron and an activated carbon filter. -
Page 7: Description

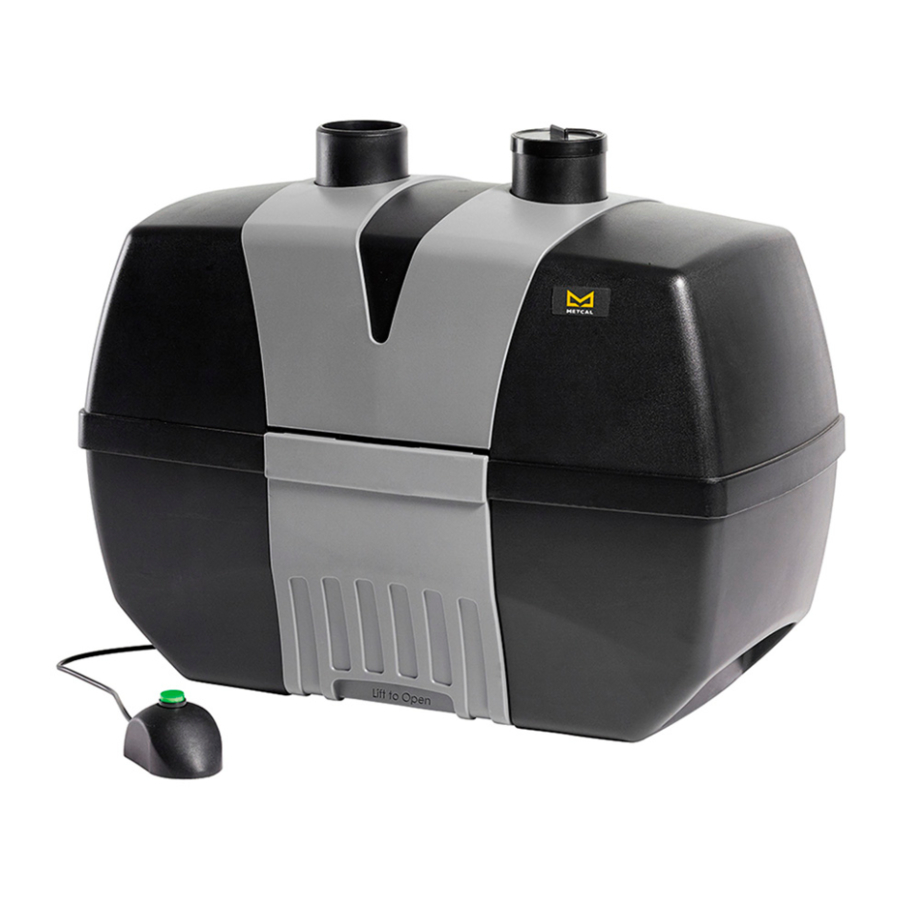

2.0 Description 2.1 Operating Elements and Construction Filter-blocked Air Inlets: ESD Safe alarm sounder 63mm OD Housing 50mm ID Mains Input Filter Cover Latch Remote switch (front and back). Remote switch Pull from bottom jack socket Main On/Off Switch to open. 2.2 Theory of Operation The efficient removal of hazardous fumes at your workplace is a two-step process: fume capture and filtration. -
Page 8: Technical Data
If utilized, connect the supplied remote Start/Stop switch to the system and site the switch in a convenient position on the workbench. We recommend that this switch be used for your convenience; the ‘On’ light will indicate the BVX-200 motors’ On/Off state and will ease switching without the need to bend under the workbench. -
Page 9: Maintenance And Cleaning
5.0 Maintenance and Cleaning 5.1 Filter Unit - Maintenance and Safety The BVX-200 Fume Extraction System is designed with low maintenance in mind. The housing is ESD safe plastic. Here are a few tips to keep your system running in top shape: To clean, use a light wipe with a gentle cleaner to prevent build up of particulate and flux residue (be sure unit is turned off while cleaning). - Page 10 Warning! Do not attempt to clean filters. Attempted cleaning can damage filters and cause potential risk to health and equipment. Note: OK International recommends replacement of filters annually as a minimum. Use only original replacement filters. Model BVX-203 This model features a deep-bed gas filter, which generally does not clog and reduce airflow as common with HEPA filters.
- Page 11 5.4 Filter Replacement Procedure: 1. Turn unit off and disconnect the power cord. 2. Unlatch both filter cover catches and remove the filter cover. (see below) 3. Replace the filters. (Pre-filter/main filter). Ensure the main filter is placed inside the alignment pins so that the interlock switch is depressed. 4.
-
Page 12: Ambient Temperature Alarm Calibration
Details are available from your local OK International representative. 1 Assemble the BVX-200 as per the User Guide. Both the remote switch the main power switch should be in the ‘Off’ position. 2 Switch On the main unit and press the remote switch. The remote switch LED will light when powered. -
Page 13: Troubleshooting
7.0 Troubleshooting Problem Possible Cause Check No air flow No Power Check On/Off Switch Check power outlet Check power cord Check filter is present Check safety interlock switch Poor Air leak Check hose/arm for leaks performance Check hose/arm for proper installation Check hose/arm for partial clogging 8.0 Part Numbers 8.1 Filter Units... -
Page 14: Warranty
You may also contact your local representative for pricing and availability. OK International warrants the BVX-200 Series against any defects in materials or workmanship for one (1) year from the date of purchase by the original owner. This Warranty excludes normal maintenance and shall not apply to any opened, misused, abused, altered or damaged items. -
Page 15: Contact Information
10.0 CONTACT INFORMATION For Sales & Customer Care North America OK International 12151 Monarch Street Garden Grove, CA 92841 Tel: +1 714-799-9910 Fax: +1 714-799-9533 www.okinternational.com China Europe OK International Ltd. OK International Eagle Close, Chandlers Ford 4 Floor West, 1st Building, Hampshire, SO53 4NF Tingwe Industrial Park, 6 Liufang Road U.K.
