Sonance ARCHITECTURAL Series Quick Start Manual

S O N A N C E A R C H I T E C T U R A L S E R I E S
AS BANDPASS STEREO SUBWOOFER QUICKSTART GUIDE
BPS6
Box Contents
(1) Quickstart guide

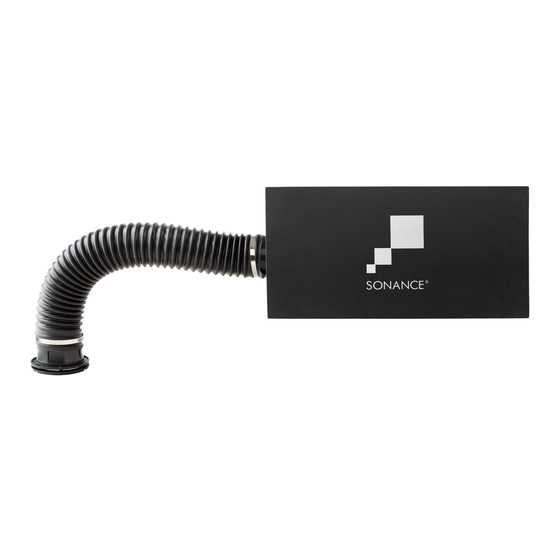

(1) Bandpass subwoofer w/ port tube
(1) Cardboard mounting template

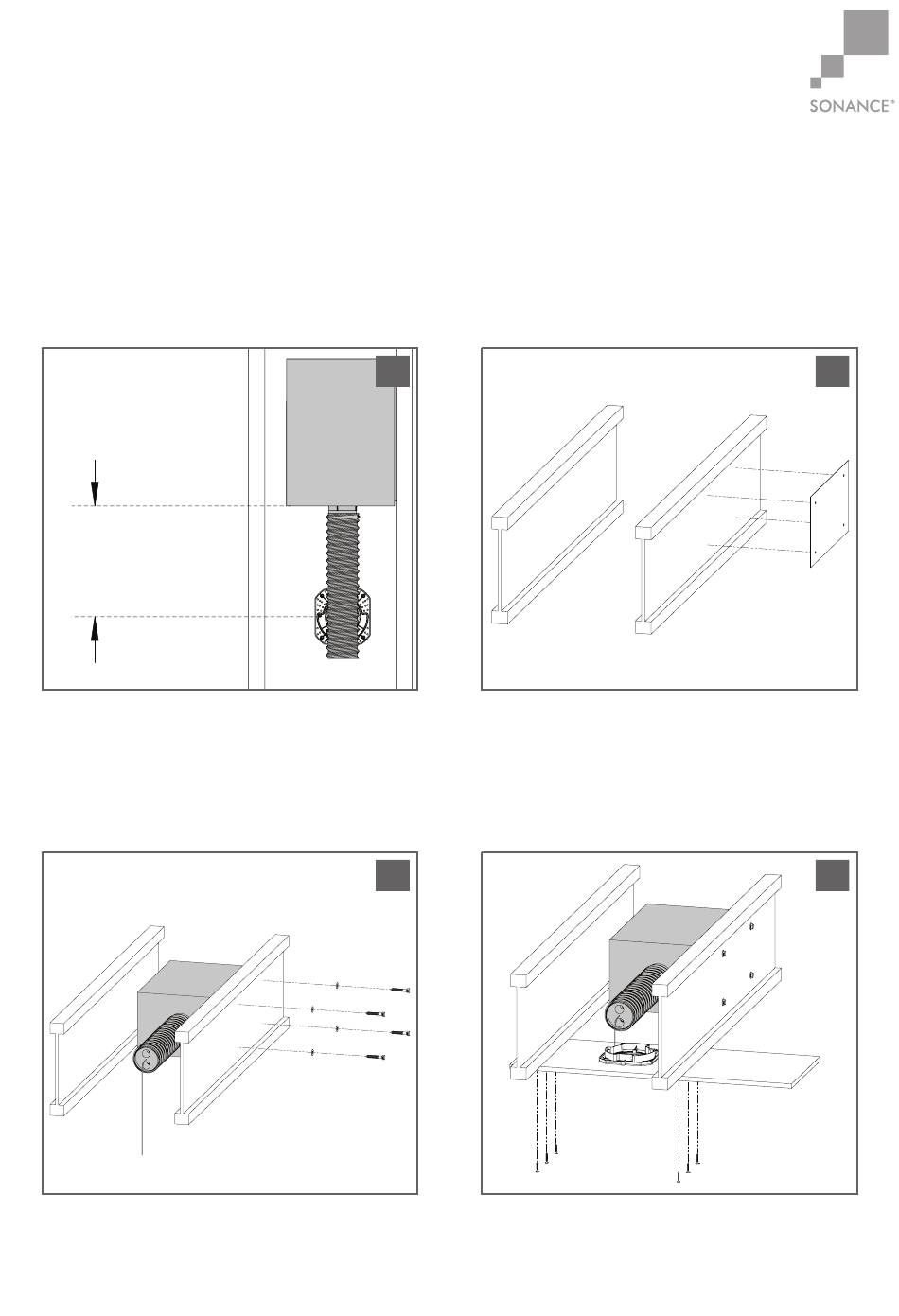

Bandpass subwoofer can be installed in joists spaced 16" on center or greater.
12" (305mm)
Determine the location for the mounting platform.
Ensure there is adequate room for the BPS6
subwoofer at the location of the platform.
The speaker opening must be located within
12" (305mm) of the BPS6 to allow the port
tube to reach through the platform.
Hold the side of the BPS6 with the rubber
damping pad up against the side of the joist
and install the four lag screws and washers to
secure the BPS6 in place.
Mounting screws & washers:
(4) 5/16" x 2" lag screws (for thinner beams)
(4) 5/16" x 3" lag screws (for thicker beams)
(4) 5/16" washers
1
BPS6
Port tube
Place the mounting template on the side of
the joist and drill four 1/2" (12.7mm) holes
through the joist at the locations shown on
the mounting template.
3
Attach the mounting platform to the joists.
See mounting platform quickstart guide or visit
www.sonance.com/in-wall-in-ceiling/
architectural-series for detailed
installation manual.
®
2
4
