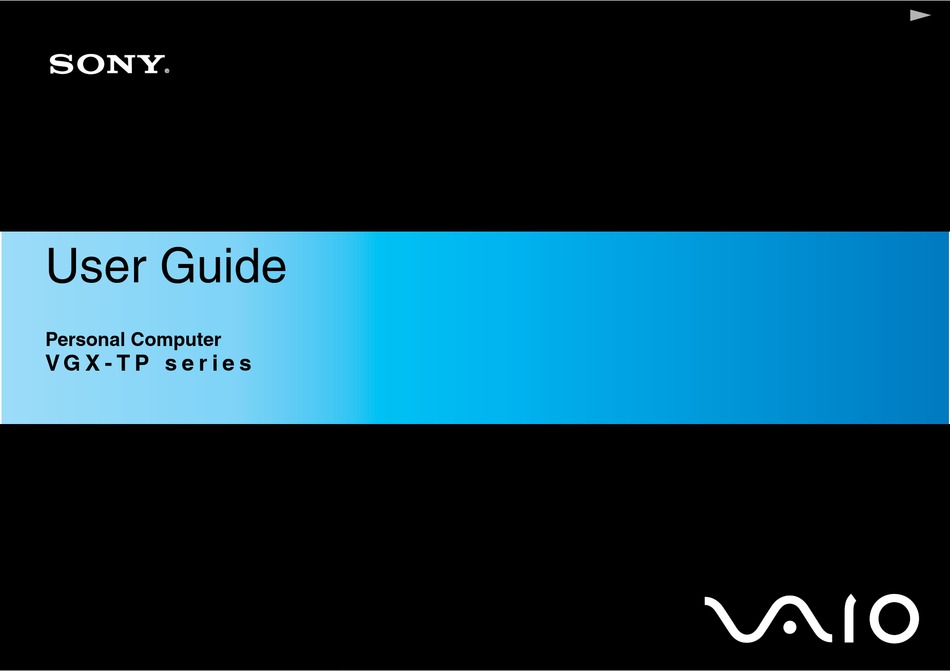

Page 1: User Guide
User Guide Personal Computer V G X - T P s e r i e s...
Page 2: Table Of Contents
Contents Before Use ...5 Notice ...5 Documentation ...6 Getting Started ...10 Locating Controls and Ports...11 About the Indicator Lights ...16 Setting Up Your Computer ...17 Shutting Down Your Computer Safely ...28 Using Your VAIO Computer ...29 Using the Keyboard ...30 Using the Touch Pad ...34 Using the Optical Disc Drive ...35 Using the TV Function ...44...
Page 3 Using Peripheral Devices...73 Selecting Display Modes...74 Using the Multiple Monitors Function ...75 Connecting a Universal Serial Bus (USB) Device...77 Connecting a Printer ...80 Connecting an i.LINK Device ...81 Connecting to a Network (LAN) ...83 Customizing Your VAIO Computer ...85 Setting the Password ...86 Setting Up Your Computer with VAIO Control Center...89 Using the Power Saving Mode...90 Upgrading Your VAIO Computer...93...
Page 4 System Security ...119 Networking ...120 Optical Discs ...123 Display ...127 Printing ...130 Microphone ...131 Speakers ...132 Keyboard...133 Touch Pad...134 Floppy Disks ...135 Audio/Video...136 Memory Stick Media ...138 Peripherals ...139 Support Options ...140 Sony Support Information ...140 e-Support ...141 Trademarks ...143...
Page 5: Before Use
In the manual, the ™ or ® marks are not specified. Sony Corporation reserves the right to make any modification to this manual or the information contained herein at any time without notice. The software described herein is governed by the terms of a separate user license agreement.
Page 6: Documentation
❑ Regulations, Warranty, EULA and Service Support — Contains Sony GUARANTEE conditions, Safety / Regulations, Modem Regulations, Wireless LAN Regulations, Wireless WAN Regulations, Bluetooth Regulations, End User Software License Agreement, and Sony Support services information.
Page 7 ❑ Specifications — The online Specifications describe the hardware and software configurations of your VAIO computer. To view the online Specifications: Connect to the Internet. Go to the Sony online support Web site at http://support.vaio.sony.eu. ✍ You may have a separate disc for the documentation of bundled accessories.
Page 8: Windows Help And Support
Click this icon and check out our most popular Sony and Club VAIO wallpapers. ❑ Links Click this icon and check out our most popular Sony and Club VAIO Web sites. Windows Help and Support Windows Help and Support is a comprehensive resource for practical advice, tutorials, and demonstrations to help you learn to use your computer.
Page 9 Before Use Further Sources ❑ Consult the help files on the software you are using for detailed information on features and troubleshooting. ❑ Go to http://www.club-vaio.com to find online tutorials about your favorite VAIO software.
Page 10: Getting Started
Getting Started This section describes how to get started using your VAIO computer. ❑ Locating Controls and Ports (page 11) ❑ About the Indicator Lights (page 16) ❑ Setting Up Your Computer (page 17) ❑ Shutting Down Your Computer Safely (page 28) Getting Started...
Page 11: Locating Controls And Ports
Locating Controls and Ports Take a moment to identify the controls and ports shown on the following pages. The appearance of your computer may be different from those illustrated in this manual due to variations in specifications. It may also vary in some countries or areas.
Page 12 Hard disk drive/Optical disc drive indicator Power button/Power indicator (page 16) WLAN (Wireless LAN) indicator (page 16) Getting Started (page 16)
Page 13 Front SD memory card slot (page 59) WLAN (Wireless LAN) switch (page 64) Remote sensor/Remote sensor indicator Point the supplied remote commander to this sensor for operations. Optical disc drive (page 35) Memory Stick slot (page 53) Air vent Media Access indicator (page 16) Hi-Speed USB (USB 2.0) ports (page 77)
Page 14 Back The area around the air vent (1) becomes hot while your computer is on. Be sure to wait until the computer cools down before you touch it. Air vent VHF/UHF input port (page 44) WIRELESS LAN ANTENNA port (page 66) Hi-Speed USB (USB 2.0) ports (page 77) Headphones jack...
Page 15 Bottom Air vents Security slot Getting Started...
Page 16: About The Indicator Lights
About the Indicator Lights Your computer is equipped with the following indicator lights. Indicator Functions Power 1 The indication behavior varies depending on the state of your computer: Green lit: the computer is on. Orange lit: the computer is in Sleep mode. Off: the computer is off.
Page 17: Setting Up Your Computer
Getting Started Setting Up Your Computer Connecting a Display Connect a display (not supplied) to your computer. When connecting it, see the manual that came with your display as well.
Page 18 To connect a display (HDMI-compatible TV) ✍ If your TV is equipped with a DVI-D port, you can use the HDMI cable and the HDMI to DVI-D adapter (both supplied) for connection. To use them for connection, however, you also need an audio cable (not supplied) since no audio signals are carried through the DVI-D port. Plug one end of the HDMI cable (supplied) (1) to the HDMI OUT port (2) on the computer.
Page 19 The HDMI cable carries both video and audio signals. If a device driver other than the one provided by Sony is used, the image will not be displayed and the audio will not be heard. Always use the device driver provided by Sony for updates.
Page 20 To connect a display (monitor) If you want to connect a VGA monitor, connect the display cable (1) (not supplied) into the monitor (VGA) port (2) on the back of the computer. If necessary, plug the display cable into the display. Getting Started...
Page 21: Connecting A Power Source
Connecting a Power Source You need an AC adapter to connect to an AC power source and it must be plugged into the power source before you can establish communication with your wireless keyboard. ✍ Use your computer only with the supplied AC adapter. To connect the AC adapter Plug one end of the power cord (1) into the AC adapter (3).
Page 22 Getting Started...
Page 23 Getting Started ✍ To disconnect your computer completely from AC power, unplug the power cord. Make sure that the AC outlets are easily accessible. If you unplug the AC adapter from your computer while the computer is on or in Sleep mode, you may lose all unsaved data.
Page 24 Attaching the Rear Cover An exclusively designed rear cover is supplied with your computer for port protection and tidy cabling. Once you have set up your computer, attach the rear cover. Be sure to hold the cover with your both hands when attaching it. You may not be able to attach the rear cover depending on the shape or size of connected cable plugs.
Page 25: Connecting The Wireless Keyboard
Connecting the Wireless Keyboard A wireless keyboard and four AA alkaline batteries for use in the keyboard are supplied with your computer. Before attempting to use the wireless keyboard, you must install the batteries and establish communication between the computer and the keyboard.
Page 26 Insert the supplied four AA batteries into the battery compartment as illustrated below: Turn on the computer. Slide the power switch (2) on the keyboard to the ON position. Press the CONNECT button (3) on the front of the computer. Press the CONNECT button (4) on the bottom of the keyboard.
Page 27 Getting Started ✍ You can check the battery indicator ( ) in the LCD window on the wireless keyboard for its battery power level. If the wireless keyboard does not operate properly, the batteries may need to be replaced. If the wireless keyboard is not being used for an extended period of time, remove the batteries to avoid possible damage from battery leakage.
Page 28: Shutting Down Your Computer Safely
Shutting Down Your Computer Safely To avoid losing unsaved data, be sure to shut down your computer properly, as described below. To shut down your computer Turn off any peripherals connected to the computer. Click Start, the arrow next to the Lock button, and Shut Down. Respond to any prompts warning you to save documents or to consider other users and wait for the computer to turn off automatically.
Page 29: Using Your Vaio Computer
Using Your VAIO Computer Using Your VAIO Computer This section describes how to get the most out of using your VAIO computer. ❑ Using the Keyboard (page 30) ❑ Using the Touch Pad (page 34) ❑ Using the Optical Disc Drive (page 35) ❑...
Page 30: Using The Keyboard
Using the Keyboard A wireless keyboard is supplied with your computer. The wireless keyboard uses a standard key arrangement with additional keys that perform specific functions. The VAIO-Link Web site (http://www.vaio-link.com) also contains glossary information to help you use the keyboard. Using the Wireless Keyboard To maintain good communication, operate the wireless keyboard within the distance limitations of keyboard: 10 m from your computer.
Page 31 ✍ Illustrated above is the English keyboard as an example. Using Your VAIO Computer Security slot Function keys Perform certain tasks. The task associated with each function key varies among software applications. Shortcut buttons Perform the pre-assigned tasks. The default tasks are as follows: : Launches VAIO Living Browser.
Page 32 Indicators (Num lock): Turns on while in the Num Lock state. (Caps lock): Turns on while in the Caps Lock state. (Scroll lock): Turns on while in the Scroll Lock state. (Connect): Turns on while connection between the computer and the wireless keyboard is in place to indicate that the keyboard is ready for use (page...
Page 33 Using Your VAIO Computer Battery compartment Storage compartment for the AA batteries. CONNECT button (page 25) Press to enable the wireless keyboard to communicate with the computer.
Page 34: Using The Touch Pad
Using the Touch Pad You can point to, select, drag, and scroll objects on the screen using the touch pad. Action Description Point Slide your finger on the touch pad (1) to place the pointer (2) on an item or object. Click Press the left button (3) once.
Page 35: Using The Optical Disc Drive
Using the Optical Disc Drive Your computer is equipped with an optical disc drive. To insert a disc Turn on the computer. Push in the optical disc drive tray with your fingertip to eject it. Grasp the tray and gently pull it out. Using Your VAIO Computer...
Page 36 Place a disc in the middle of the tray with the label side facing upward; and gently push it until the disc clicks into place while holding the bottom of the tray with the other hand. When the optical disc drive tray is out, be sure not to exert pressure on the tray as it may damage the tray or the disc drive. Close the tray by pushing it in gently.
Page 37 Using Your VAIO Computer Reading and Writing Optical Discs ™ Your computer plays and records CDs, DVDs, and Blu-ray Discs , depending on the model you purchased. Check your specifications for the type of optical disc drive installed on your model. Use the table below to see which types of media your optical disc drive supports.
Page 38 Video Music Extra DVD±RW/ ±R DL/RAM CD-RW/ DVD-ROM DVD-ROM Blu-ray Disc P Blu-ray Disc Combo Supports writing data to DVD-R discs compliant with DVD-R for General Version 2.0/2.1. Supports writing data to DVD-RW discs compliant with DVD-RW Version 1.1/1.2. The DVD±RW/RAM disc drive on your computer does not support the DVD-RAM cartridge. Use non-cartridge discs or discs with removable cartridge. Writing data to single-sided DVD-RAM discs (2.6 GB) compliant with DVD-RAM Version 1.0 is not supported.
Page 39 Due to the multiple formats of discs now available, when buying pre-recorded or blank discs for use with a VAIO computer, be sure to read the notices on the disc packaging carefully to check both playback and recording compatibility with your computer's optical disc drives. Sony does NOT guarantee the compatibility of VAIO CD drives with discs that are not compliant with the official "CD"...
Page 40 Notes on writing data to a disc ❑ Use only Sony recommended software, which is preinstalled on your computer, to write data to a disc. Other software programs may not be fully compatible and errors may result. ❑ To make data on a disc readable on the optical disc drive, you need to close the session before you eject it. To complete this process, follow the instructions included with your software.
Page 41 Notes on playing discs To achieve optimum performance when playing discs, you should follow these recommendations. ❑ Some CD players and computers' optical disc drives may not be able to play audio CDs created with the CD-R or CD-RW disc media. ❑...
Page 42: Playing Cds
Playing CDs To play an audio CD Insert a disc into the optical disc drive. If nothing appears on the desktop, then click Start, All Programs, and the desired CD software to play the CD. If the Audio CD window appears, click to select an option. Copying Files to CDs To copy files to a disc Do not strike or shake your computer while writing data to a disc.
Page 43: Playing Dvds
Playing DVDs To play a DVD Close all running software applications. Insert a DVD into the optical disc drive. If nothing appears on the desktop, then click Start, All Programs, and the desired DVD software to play the DVD. For instructions on how to use the software, see the help file on your DVD software. Copying Files to DVDs To copy files to a disc Insert a disc into the optical disc drive.
Page 44: Using The Tv Function
Using the TV Function Your computer may have a hybrid TV tuner board installed along with the Microsoft Windows Vista Home Premium operating system which includes Windows Media Center that enables TV program viewing, recording, and playback. The hybrid TV-tuner supports the following broadcasts: ❑...
Page 45 To connect your computer to terrestrial or cable TV services The appearance of the antenna/cable-TV cable and the VHF/UHF input port may vary in some countries or areas. Connect one end of an antenna/cable-TV cable (supplied) (1) to the VHF/UHF input port (3) on the computer. Connect the other end of the cable to your TV wall outlet/cable service access (2).
Page 46: Using The Remote Commander
Using Your VAIO Computer Using the Remote Commander A remote commander is supplied with your computer for using Media Center features, including TV channel selection.
Page 47 Using Your VAIO Computer Pause X button Press to pause media playback. Press again to resume playback. Stop x button Press to stop media playback or TV recording session. Forward M button Press to fast-forward media at three speeds. Skip B? button Press to move media forward, for example, one audio track, one DVD chapter, and 30 seconds of recorded TV or video.
Page 48 Guide button Press to view the TV program guide for your area. Alphanumeric buttons Press to select specific channels or enter text. (Press ENTER or OK to activate the channel selection.) CLEAR button Press to backspace and delete entered text. Teletext TV program mode buttons Red button Press to jump to the red shortcut link in teletext TV program mode.
Page 49 In such a case, try another code. Changes to this signal setting for the TV volume control may not work on some TVs. Sony assumes no liability for the controllability.
Page 50 Before you use the remote commander Before using the remote commander, you need to insert the supplied AA manganese batteries to enable communication between the computer and the remote commander. To insert batteries Turn the remote commander over. Slightly push down the dented area (1), slide the battery cover in the direction of the arrow, and remove the cover. Using Your VAIO Computer...
Page 51 Insert the supplied two AA batteries into the remote commander. Put the battery cover back on the remote commander and slide it in the reverse direction of the arrow illustrated above until the cover clicks into place. ✍ If the remote commander does not operate properly, you may need to replace the batteries. When the remote commander is not going to be used for an extended period of time, remove the batteries to avoid possible damage from battery leakage.
Page 52: Setting Up Windows Media Center
Using Your VAIO Computer Setting up Windows Media Center The first time you launch Windows Media Center, the setup wizard will pop up. To configure the TV tuner, click Custom setup and follow the on-screen instructions. In the Optional Setup window, click Configure tuners, TV signal, and Guide, and follow the on-screen instructions.
Page 53: Using The Memory Stick Media
Using the Memory Stick Media Memory Stick media is a compact, portable, and versatile IC recording media especially designed for exchanging and sharing digital data with compatible products, such as digital cameras, mobile phones and other devices. Because it is removable, it can be used for external data storage.
Page 54 For the latest information about the Memory Stick media, visit the Memory Stick Web site at http://www.memorystick.com/en/. Your computer has been tested and found compatible with the Sony branded Memory Stick media with capacity of up to 8 GB that are available as of May 2007.
Page 55 Inserting a Memory Stick Media To insert a Memory Stick media Slide open the front panel door with your fingertip. Locate the Memory Stick slot (page Hold the Memory Stick media with the arrow facing upward and pointing toward the Memory Stick slot. Carefully slide the Memory Stick media into the slot until it clicks into place.
Page 56 To view the contents of the Memory Stick media Click Start and Computer to open the Computer window. Double-click the Memory Stick media icon to view the list of data files saved in the Memory Stick media. To format a Memory Stick media The Memory Stick media has been formatted in the factory default setting and is ready for use.
Page 57 Click Start. At the confirmation prompt, click OK. The formatting process starts. It may take time to format the Memory Stick media depending on the media. Once completed, click OK. Click Close. Using Your VAIO Computer...
Page 58 Removing a Memory Stick Media To remove a Memory Stick media Check that the Media Access indicator light is off. Firmly grasp the extended part of the Memory Stick media. Carefully pull it out of the slot. Always remove the Memory Stick media gently, or it may pop out unexpectedly. Do not remove the Memory Stick media while the Media Access indicator light is on.
Page 59: Using Other Memory Cards
Using Other Memory Cards In addition to the Memory Stick slot, your computer is equipped with an SD memory card slot. You can use this slot to transfer data among digital cameras, camcorders, music players, and other audio/video devices. ✍ The SD memory card slot is located behind the front panel door.
Page 60: Sd Memory Card
❑ SDHC memory card ❑ MultiMediaCard (MMC) For the latest information on compatible memory cards, see Sony Support Information support Web site. Your computer has been tested and found compatible only with major memory card media available as of May 2007. However, not all memory card media that meet the same conditions as the compatible media are guaranteed of compatibility.
Page 61: Inserting A Memory Card
Inserting a Memory Card To insert a memory card Slide open the front panel door with your fingertip. Locate the SD memory card slot Hold the memory card with the arrow facing upward and pointing toward the memory card slot. Carefully slide the memory card into the slot until it clicks into place.
Page 62: Removing A Memory Card
Removing a Memory Card Do not remove a memory card while the To remove a memory card Check that the Media Access indicator light is off. Firmly grasp the extended part of the memory card. Carefully pull it out of the slot. indicator light is on.
Page 63: Using The Internet
Using Your VAIO Computer Using the Internet To use the Internet, you need to connect an external modem device, for example a USB telephone modem, an xDSL modem, or a cable modem, to your computer. For the detailed instructions on connection setups and modem configuration, see the manual that came with your modem.
Page 64: Using Wireless Lan (Wlan)
Using Wireless LAN (WLAN) Using the Sony Wireless LAN (WLAN), all your digital devices with built-in WLAN functionality communicate freely with each other through a network. A WLAN is a network in which a user can connect to a Local Area Network (LAN) through a wireless (radio) connection.
Page 65 Using Your VAIO Computer IEEE 802.11b/g is a wireless LAN standard, using the 2.4 GHz bandwidth. The IEEE 802.11g standard provides high-speed communications, faster than the IEEE 802.11b standard. IEEE 802.11a is a wireless LAN standard, using the 5 GHz bandwidth, and provides high-speed communications of up to 54 Mbps. IEEE 802.11n is a wireless LAN standard, using the 2.4 or 5 GHz bandwidth, and provides high-speed communications of up to 300 Mbps * Actual communication speed varies depending on your access point settings and so on.
Page 66 Using Your VAIO Computer Connecting the Wireless LAN Antenna To use the wireless LAN functionality on your computer, you must connect the supplied wireless LAN antenna to your computer. To connect the wireless LAN antenna Screw the wireless LAN antenna cable (1) counterclockwise into the WIRELESS LAN ANTENNA port (2) on the back of your computer.
Page 67 Using Your VAIO Computer ✍ For better reception, if needed, you may mount the wireless LAN antenna to a wall using the supplied screw.
Page 68: Communicating Without An Access Point (Ad-Hoc)
Using Your VAIO Computer Communicating without an Access Point (Ad-hoc) An ad-hoc network is a network in which a LAN is created only by the wireless devices themselves, with no other central controller or access point. Each device communicates directly with other devices in the network. You can set up an ad-hoc network easily at home.
Page 69 To communicate without an access point (ad-hoc) The IEEE 802.11n standard, using the 2.4 or 5 GHz bandwidth, is not available on ad-hoc networks. Turn on the WLAN switch. The Wireless LAN indicator lights up. Click Start and Control Panel. Click View network status and tasks under Network and Internet.
Page 70 An infrastructure network is a network that extends an existing wired local network to wireless devices by providing an access point (not supplied), for example the Sony Access Point. The access point bridges the wireless and wired LAN and acts as a central controller for the wireless LAN.
Page 71 To connect to a wireless network Make sure an access point is set up. See the manual that came with your access point for more information. Turn on the WLAN switch. The Wireless LAN indicator lights up. Click Start and Control Panel. Click View network status and tasks under Network and Internet.
Page 72 Stopping Wireless LAN Communication To stop wireless LAN communication Turn off the WLAN switch. Turning off the wireless LAN functionality while accessing remote documents, files, or resources may result in data loss. ✍ For WPA-PSK or WPA2-PSK authentication, you must enter a passphrase. The passphrase is case sensitive and must be between 8 and 63 alphanumeric characters long or up to 64 characters long using numbers from 0 to 9 and letters from A to F.
Page 73: Using Peripheral Devices
Using Peripheral Devices Using Peripheral Devices You can add functionality to your VAIO computer by using the various ports on the computer. ❑ Selecting Display Modes (page 74) ❑ Using the Multiple Monitors Function (page 75) ❑ Connecting a Universal Serial Bus (USB) Device (page 77) ❑...
Page 74: Selecting Display Modes
Selecting Display Modes You can select which display to be used as the primary monitor when two displays (TV, desktop monitor, etc.) are connected to your computer. If you want to work on both displays at the same time, see Using the Multiple Monitors Function information.
Page 75: Using The Multiple Monitors Function
Using the Multiple Monitors Function The Multiple Monitors function allows you to distribute portions of your desktop across separate displays. For example, if you have a display connected to the HDMI OUT port and another connected to the monitor (VGA) port, two displays can function as a single desktop.
Page 76 To select the Multiple Monitors mode Right-click on the desktop and select Personalize. Click Display Settings. The Display Settings window appears. Follow the on-screen instructions to change the settings. ✍ Additionally, you can set the display colors and resolution for each display and customize the Multiple Monitors mode. Using Peripheral Devices...
Page 77: Connecting A Universal Serial Bus (Usb) Device
Connecting a Universal Serial Bus (USB) Device ✍ You need to slide open the front panel door to access the USB ports on the front. Connecting a USB Mouse To connect a USB mouse Choose the USB port (1) you prefer to use. Plug the USB mouse cable (2) into the USB port.
Page 78: Connecting A Usb Floppy Disk Drive
Connecting a USB Floppy Disk Drive You can purchase a USB floppy disk drive and connect it to your computer. To connect a USB floppy disk drive Choose the USB port (1) you prefer to use. Plug the USB floppy disk drive cable (2) into the USB port. Your USB floppy disk drive (3) is now ready for use.
Page 79: Disconnecting A Usb Floppy Disk Drive
Disconnecting a USB floppy disk drive You can disconnect a USB floppy disk drive when your computer is on or off. Disconnecting the drive when the computer is in Sleep mode may cause the computer to malfunction. To disconnect a USB floppy disk drive ✍...
Page 80: Connecting A Printer
Connecting a Printer You can connect a Windows-compatible printer to your computer to print documents. Connecting a Printer Using the USB Port You can connect a USB printer compatible with your version of Windows to the computer. ✍ You need to slide open the front panel door to access the USB ports on the front. To connect a printer using the USB port Plug the power cord (1) of your printer into an AC outlet.
Page 81: Connecting An I.link Device
Connecting an i.LINK Device Notes on connecting i.LINK devices ❑ Your computer is equipped with an i.LINK port, which you can use to connect to an i.LINK device such as a digital video camcorder. ❑ The i.LINK port on your computer does not supply power to external devices generally powered by i.LINK ports. ❑...
Page 82: Connecting A Digital Video Camcorder
On Sony digital video cameras, ports labeled DV Out, DV In/Out, or i.LINK are i.LINK-compatible. The Sony digital video camcorder shown here is an example; your digital video camcorder may need to be connected differently. You cannot access the pictures stored on a Memory Stick media when using an i.LINK connection.
Page 83: Connecting To A Network (Lan)
Connecting to a Network (LAN) You can connect your computer to 100BASE-TX/10BASE-T-type networks with an Ethernet network cable. Connect one end of a network cable (not supplied) to the network (Ethernet) port on the back of the computer and the other end to your network. For detailed settings and devices needed to connect to the network, ask your network administrator.
Page 84 Using Peripheral Devices Telephone lines cannot be connected to the network (LAN) connector on your computer. If the network (LAN) connector is connected to the telephone lines mentioned below, high electric current to the connector may cause damage, overheating, or fire. - Home (intercom speakerphone) or business-use telephone lines (multi-line business telephone) - Public telephone subscriber line - PBX (private branch exchange)
Page 85: Customizing Your Vaio Computer
Customizing Your VAIO Computer This section briefly describes how to change the main settings of your VAIO computer. Among other things, you will learn how to use and customize the look of your Sony software and utilities, etc. ❑ Setting the Password (page 86) ❑...
Page 86: Setting The Password
Customizing Your VAIO Computer Setting the Password Use one of the BIOS functions to set the password. Once you have set the password, you will be prompted to enter the password after the VAIO logo appears to start your computer. The power-on password allows you to protect your computer from unauthorized access.
Page 87: Adding The Power-On Password
Adding the Power-on Password The power-on password is provided to protect your computer from unauthorized access. Once you have set the power-on password, you cannot start your computer without entering the password. Make sure not to forget the password. Write down your password and keep it safe and private from other people.
Page 88: Changing/Removing The Power-On Password
Changing/Removing the Power-on Password To change or remove the power-on password Turn on the computer. Press the F2 key when the VAIO logo appears. The BIOS setup screen appears. If not, restart the computer and press the F2 key several times when the VAIO logo appears.
Page 89: Setting Up Your Computer With Vaio Control Center
Setting Up Your Computer with VAIO Control Center The VAIO Control Center utility allows you to access system information and to specify preferences for system behavior. To use VAIO Control Center Click Start, All Programs, and VAIO Control Center. The VAIO Control Center window appears. Select the desired control item and change the settings.
Page 90: Using The Power Saving Mode
Customizing Your VAIO Computer Using the Power Saving Mode In addition to the normal operating mode, which allows you to turn off specific devices, your computer has a distinct power saving mode called Sleep mode. Using Normal Mode This is the normal state of the computer when it is in use. To save power while not working, you can turn off a specific device such as the connected display or the hard disk drive.
Page 91: Using Sleep Mode
Using Sleep Mode Sleep mode temporarily suspends the entire system operations for lower power consumption. The orange power light is on during this mode. Turn off your computer if you do not intend to use it for a long period of time. To activate Sleep mode Click Start, the arrow next to the Lock button, and Sleep.
Page 92 If the computer is not used for a certain period of time, it will enter Sleep mode. To modify this, you can change the Sleep mode settings. To change the Sleep mode settings Right-click the power status icon on the taskbar and select Power Options. Click Change plan settings under the current power plan.
Page 93: Upgrading Your Vaio Computer
Upgrading Your VAIO Computer Upgrading Your VAIO Computer Your VAIO computer and memory modules use high precision components and electronic connectors technology. To avoid invalidation of the warranty during your product warranty period, we recommend that: ❑ You should contact your dealer to install a new component. ❑...
Page 94: Adding And Removing Memory
Adding and Removing Memory If you want to expand the functionality of your computer, you can increase the memory by installing optional memory modules. Before you upgrade your computer's memory, read the notes and procedures in this section. Notes on adding/removing memory modules ❑...
Page 95 ❑ Use the special bag delivered with the memory module or wrap the module in aluminum foil to protect it from ESD. ❑ Introducing any liquids, foreign substances, or objects into the memory module slots or other internal components of your computer will result in damage to the computer and any repair costs will not be covered by the warranty.
Page 96: Removing And Installing A Memory Module
Removing and Installing a Memory Module To change or add a memory module Shut down the computer and disconnect all peripheral devices. Unplug the computer and wait until the computer cools down. Unscrew the screws (indicated by the arrows below) on the bottom of the computer and remove the memory module compartment cover.
Page 97 Remove the currently installed memory module as follows: ❑ Pull the latches in the direction of the arrows (1). The memory module is released. ❑ Make sure that the memory module tilts up and then pull it out in the direction of the arrow (2). Remove the new memory module from its packaging.
Page 98 Upgrading Your VAIO Computer Slide the memory module into the memory module slot and push it in until it clicks into place. Do not touch any other components on the motherboard. Be sure to insert the connector edge of the memory module into the slot while aligning the notch on the module with the small projection in the open slot.
Page 99 Replace the memory module compartment cover and tighten the screws on the bottom of the computer. Connect a power source and turn on the computer. Upgrading Your VAIO Computer...
Page 100: Viewing The Amount Of Memory
Viewing the Amount of Memory To view the amount of memory Turn on the computer. Click Start, All Programs, and VAIO Control Center. Double-click the System Information folder in the VAIO Control Center window. Double-click the System Information icon in the System Information folder. You can view the amount of system memory.
Page 101: Precautions
Precautions Precautions This section describes safety guidelines and precautions to help you protect your VAIO computer from potential damage. ❑ On Using the Power Source (page 102) ❑ On Handling Your Computer (page 103) ❑ On Handling Floppy Disks (page 106) ❑...
Page 102: On Using The Power Source
❑ Unplug your computer from the AC outlet if you are not planning to use the computer for a long period of time. ❑ Make sure that the AC outlet is easily accessible. ❑ Use the AC adapter supplied with your computer or genuine Sony products. Do not use any other AC adapter as it may cause a malfunction.
Page 103: On Handling Your Computer
On Handling Your Computer ❑ Clean the cabinet with a soft cloth, which is dry or lightly moistened with a mild detergent solution. Do not use any type of abrasive pad, scouring powder, or solvent such as alcohol or benzine, as these may damage the finish of your computer.
Page 104 ❑ Be sure to place your computer in the flat position as it is not designed for upright placement. ❑ Provide adequate air circulation to prevent internal heat from building up. The internal heat will cause your computer to malfunction. ❑...
Page 105 ❑ If your computer is brought directly from a cold location to a warm one, moisture may condense inside the computer. In this case, allow at least one hour before turning on the computer. If any problems occur, unplug the computer and contact VAIO-Link.
Page 106: On Handling Floppy Disks
On Handling Floppy Disks ❑ Do not open the shutter manually or touch the surface of the floppy disk. ❑ Keep floppy disks away from magnets. ❑ Keep floppy disks away from direct sunlight and other sources of heat. ❑ Keep floppy disks away from any liquid. Do not let them get wet. When you are not using your floppy disk, always remove it from the floppy disk drive and use a storage case.
Page 107: On Handling Discs
On Handling Discs ❑ Do not touch the surface of the disc. ❑ Do not drop or bend the disc. ❑ Fingerprints and dust on the surface of a disc may cause read errors. Always hold the disc by its edges and central hole, as shown below: ❑...
Page 108: On Using Headphones
Precautions On Using Headphones Preventing hearing damage – Avoid using headphones at high volume. Hearing experts advise against continuous, loud and extended play. If you experience a ringing in your ears, reduce the volume or discontinue use.
Page 109: On Handling Memory Stick Media
On Handling Memory Stick Media ❑ Do not touch the Memory Stick media connector with your finger or metallic objects. ❑ Use only the adhesive label supplied with the Memory Stick media as a label. ❑ Do not bend, drop, or apply strong shock to the Memory Stick media. ❑...
Page 110: On Handling The Hard Disk
On Handling the Hard Disk The hard disk drive has a high storage density and reads or writes data in a short time. However, it can be easily damaged by mechanical vibration, shock, or dust. Although the hard disk drive has the internal safety device to prevent losing data due to mechanical vibration, shock or dust, you should be careful when handling your computer.
Page 111: On Updating Your Computer
On Updating Your Computer Confirm that the latest updates have been installed on your computer using the following software applications so that the computer can run more efficiently. To confirm that they have been installed on the computer, follow these steps for each software application: ❑...
Page 112: Troubleshooting
Troubleshooting Troubleshooting This section describes how to solve common problems you might encounter when using your VAIO computer. Many problems have simple solutions. Try these suggestions before contacting VAIO-Link. ❑ Computer (page 113) ❑ System Security (page 119) ❑ Networking (page 120) ❑...
Page 113: Computer
❑ Remove any extra memory modules you may have installed since purchase. ❑ Check that you are using the supplied Sony AC adapter. For your safety, use only the genuine Sony AC adapter, which is supplied by Sony for your VAIO computer.
Page 114 What should I do if a BIOS error appears when I turn on my computer? If the message "Press <F1> to resume, <F2> to setup" appears at the bottom of the screen, follow these steps: Press the F2 key. The BIOS setup screen appears. If not, restart the computer and press the F2 key several times when the VAIO logo appears.
Page 115 What should I do if the power indicator lights but my screen stays blank? ❑ Make sure the proper input for your display (VGA, DVI-D monitor) is selected. ❑ Make sure your display (VGA, DVI-D monitor) is turned on. ❑ If your display is still blank, follow these steps: Press the power button on your computer for more than four seconds to check that the power indicator goes out.
Page 116 What should I do if my computer or software stops responding? ❑ If your computer stops responding while a software application is running, press the Alt+F4 keys to close the application window. ❑ If the Alt+F4 keys do not work, click Start, the arrow next to the Lock button, and Shut Down to turn off your computer. ❑...
Page 117: Why Doesn't My Computer Enter Sleep Mode
Why doesn't my computer enter Sleep mode? Your computer may become unstable if the operating mode is changed before the computer completely enters Sleep mode. To restore your computer to normal operating stability Close all open programs. Click Start, the arrow next to the Lock button, and Restart. If your computer does not restart, press the Ctrl+Alt+Delete keys and click the arrow next to the Shut down button and Restart.
Page 118 Troubleshooting What should I do if my game software does not work or it keeps crashing? ❑ Check the Web site of the game if there are any patches or updates to download. ❑ Make sure you have installed the latest video driver. ❑...
Page 119: System Security
System Security How can I protect my computer against security threats, such as viruses? The Microsoft Windows operating system is preinstalled on your computer. The best way to protect your computer against security threats, such as viruses, is to download and install the latest Windows updates regularly. You can get important Windows updates by doing the following: Your computer must be connected to the Internet before you can receive updates.
Page 120: Networking
Networking What should I do if my computer cannot connect to a wireless LAN access point? ❑ Connection availability is affected by distance and obstructions. You may need to move your computer away from obstructions or closer to any access point you may be using. ❑...
Page 121: Why Is The Data Transfer Speed Slow
Why is the data transfer speed slow? ❑ The wireless LAN data transfer speed is affected by distance and obstructions between devices and access points. Other factors include device configurations, radio conditions, and software compatibility. To maximize the data transfer speed, move your computer away from obstructions or closer to any access point you may be using.
Page 122 ❑ Wireless LAN communication occurs on divided frequency bands known as channels. Third-party wireless LAN access point channels may be preset to different channels from Sony devices. ❑ If you are using a wireless LAN access point, see connectivity information contained in the manual that came with your access point.
Page 123: Optical Discs
Optical Discs Why does my computer freeze when I try to read a disc? The disc that your computer is trying to read may be dirty or damaged. Follow these steps: Press the Ctrl+Alt+Delete keys and click the arrow next to the Shut down button and Restart to restart the computer. Remove the disc from the optical disc drive.
Page 124 What should I do if I cannot play a disc properly on my computer? ❑ Make sure the disc is inserted into the optical disc drive with the label facing upward. ❑ Make sure the necessary program(s) is installed according to the manufacturer's instructions. ❑...
Page 125 Double-click the desired drive. You can confirm the driver software by selecting the Driver tab, and clicking Driver Details. Click OK to close the window. ❑ Make sure an adhesive label is not affixed to a disc. Adhesive labels can come off while the disc is in the optical disc drive and damage the drive or cause it to malfunction.
Page 126 What should I do if I cannot write data to CD media? ❑ Make sure you neither launch any software application nor allow any to launch automatically, not even a screen saver. ❑ Stop using the keyboard. ❑ If you are using a CD-R/RW disc with an adhesive label affixed, replace it with one with no affixed adhesive label. Using a disc with an affixed adhesive label could cause a write error or other damage.
Page 127: Display
Display What should I do if my TV screen stays blank? ❑ Make sure that both power cords of your computer and TV are securely plugged into power sources. ❑ Make sure that your computer and TV are properly connected. ❑...
Page 128 Troubleshooting What should I do if the screen of my TV that is connected to the HDMI OUT port stays blank? ❑ Unplug the HDMI cable once and plug it back. ❑ Your TV may not be HDCP compliant. Be sure to use an HDCP compliant TV. ❑...
Page 129: How Do I Run Windows Aero
How do I run Windows Aero? This Q & A entry applies to selected models only. To run Windows Aero, follow these steps: Click Start and Control Panel. Click Customize colors under Appearance and Personalization. Click Open classic appearance properties for more color options. The Appearance Settings window appears.
Page 130: Printing
Printing What should I do if I cannot print a document? ❑ Make sure your printer is on, and the printer cable is securely connected to the ports on the printer and computer. ❑ Make sure your printer is compatible with the Windows operating system installed on your computer. ❑...
Page 131: Microphone
Troubleshooting Microphone What should I do if my microphone does not work? Make sure your external microphone is turned on and is properly plugged into the microphone jack on your computer. How can I prevent microphone feedback? Microphone feedback occurs when the microphone receives the sound from a sound output device, such as a speaker. To prevent this problem: ❑...
Page 132: Speakers
Speakers What should I do if my external speakers do not work? ❑ If you are using a program that has its own volume control, make sure the volume control is properly set. See the program's help file for more information. ❑...
Page 133: Keyboard
Keyboard What should I do if the keyboard configuration is wrong? The language layout of your wireless keyboard is labeled on the packaging box. If you choose a different regional keyboard when you complete the Windows setup, the key configuration will be mismatched. To change the keyboard configuration, follow these steps: Click Start and Control Panel Click Clock, Language, and Region, and click Regional and Language Options.
Page 134: Touch Pad
Touch Pad What should I do if the touch pad does not work? ❑ Make sure that a mouse is not connected to your computer. ❑ If the pointer does not move while a software application is running, press the Alt+F4 keys to close the application window. ❑...
Page 135: Floppy Disks
Floppy Disks Why doesn't the Safely Remove Hardware icon appear on the taskbar when the drive is connected? Your computer does not recognize the floppy disk drive. First, make sure the USB cable is properly connected to the USB port. If you need to secure the connection, wait a few moments for the computer to recognize the drive. If the icon still does not appear, follow these steps: Close all programs that are accessing the floppy disk drive.
Page 136: Audio/Video
✍ i.LINK is a trademark of Sony used only to designate that a product contains an IEEE 1394 connection. The procedure to establish an i.LINK connection may vary, depending on a software application, an operating system, and a compatible i.LINK device. Not all products with an i.LINK connection can communicate with each other.
Page 137 What should I do if I do not hear the sound from the sound output device connected to the HDMI OUT or OPTICAL OUT port? ❑ Once you have connected a device to the HDMI OUT or OPTICAL OUT port, you need to change the device for sound output if you want to hear sound from the device.
Page 138: Memory Stick Media
Use of recorded music requires permission from the copyright holders. Sony is not responsible for music files that cannot be recorded from a CD or downloaded from other sources. Can I copy images from a digital camera using Memory Stick media? Yes, and you can view video clips that you have recorded with Memory Stick media-compatible digital cameras.
Page 139: Peripherals
Peripherals What should I do if I cannot connect a USB device? ❑ If applicable, check the USB device is turned on and using its own power supply. For example, if you are using a digital camera, check if the battery is charged. If you are using a printer, check if the power cable is connected properly to the AC outlet.
Page 140: Support Options
Internet. Using a personalized account, you can log your technical queries with ease. ❑ VAIO-Link help lines: Before contacting VAIO-Link by telephone, try to solve the problem by reading the printed and non- printed documentation. ❑ Visit the other Sony Web sites: ❑ http://www.club-vaio.com if you want to know more about VAIO and become part of the growing VAIO community.
Page 141: E-Support
What is e-Support? You have searched our user guides and Web site (http://support.vaio.sony.eu) but have not found an answer to your question/ issue? e-Support is the ideal solution for you! Our e-Support Web Portal is an interactive Web site on which you can submit any technical query you may have regarding your computer and receive answers from our dedicated support team.
Page 142 Support Options Can I submit my questions at any time? Yes, you can submit your questions 24/7, but keep in mind that our e-Support Team can only treat your queries from Monday till Friday between 8am and 6pm. Is there a cost involved for using e-Support? No, this is a complete free of charge service offered to all registered VAIO customers! How do I know when the e-Support Team has handled my query/case? As soon as your case has been dealt with by our e-Support Team, you will receive an e-mail, notifying you that your case has...
Page 143: Trademarks
Support Options Trademarks Sony, Battery Checker, Click to DVD, Click to DVD BD, DVgate Plus, SonicStage Mastering Studio, VAIO Control Center, VAIO Edit Components, VAIO Media, VAIO Power Management, VAIO Power Management Viewer, My Club VAIO, VAIO Update are trademarks or registered trademarks of Sony Corporation.
Page 144 Support Options ™ My Club VAIO uses Macromedia Flash Player software by Macromedia, Inc., Copyright © 1995-2003 Macromedia, Inc. All rights reserved. Macromedia and Flash are trademarks of Macromedia, Inc. SD Logo is a trademark. SDHC Logo is a trademark. ™...
