Generac Power Systems 004810-0 Owner's Manual page 37

REMOVE FACTORY
LIFTING EYE
30
26
31
ITEM PART NO. QTY.
1 064075A 1
2 0A4256 1
3 059999G 1
4 064094 1
5 064096B 1
6 042561 1
7 039253 4
8 022129 7
9 0C4351 8
10 063508 1
11 0C4159 1
12 0C4158 1
13 064417 1
14 0C4347 1
15 022097 2
16 047411 2
17 035685 1
18 064085 1
Section 7 — Exploded Views and Parts Lists
12
29
27
REMOVE & REPLACE
2 FACTORY BOLTS
25
2
32
34
DESCRIPTION
ASSY TURBO 3.0LHA KIA
INDICATOR FILTER MINDR
CON TURBO 2.12 X 1.69
ELBOW 1/8" NPT x 1/2"-20 x 37 DEG.
OIL SUPPLY LINE
CLAMP HOSE #36 1.88 - 2.75
SCREW HHC M8-1.25 X 20 G8.8
LOCK WASHER, 5/16"-M8
SCREW SHC 3/8-24 X 3/4 G8.8 NZ
ADAPTER UPPER TURBOCHARGER
ADAPTER LOWER TURBOCHARGER
TUBE TURBO INTK 3LHA
GASKET TURBOCHARGER
OIL RETURN TUBE
LOCK WASHER 1/4-M6
SCREW HHC M6-1.0 X 16 G8.8
CLAMP HOSE SIZE: #28
REDUCER COUPLING, RED RUBBER
2" TO 1-3/4"
Generac Standby Generator Sets

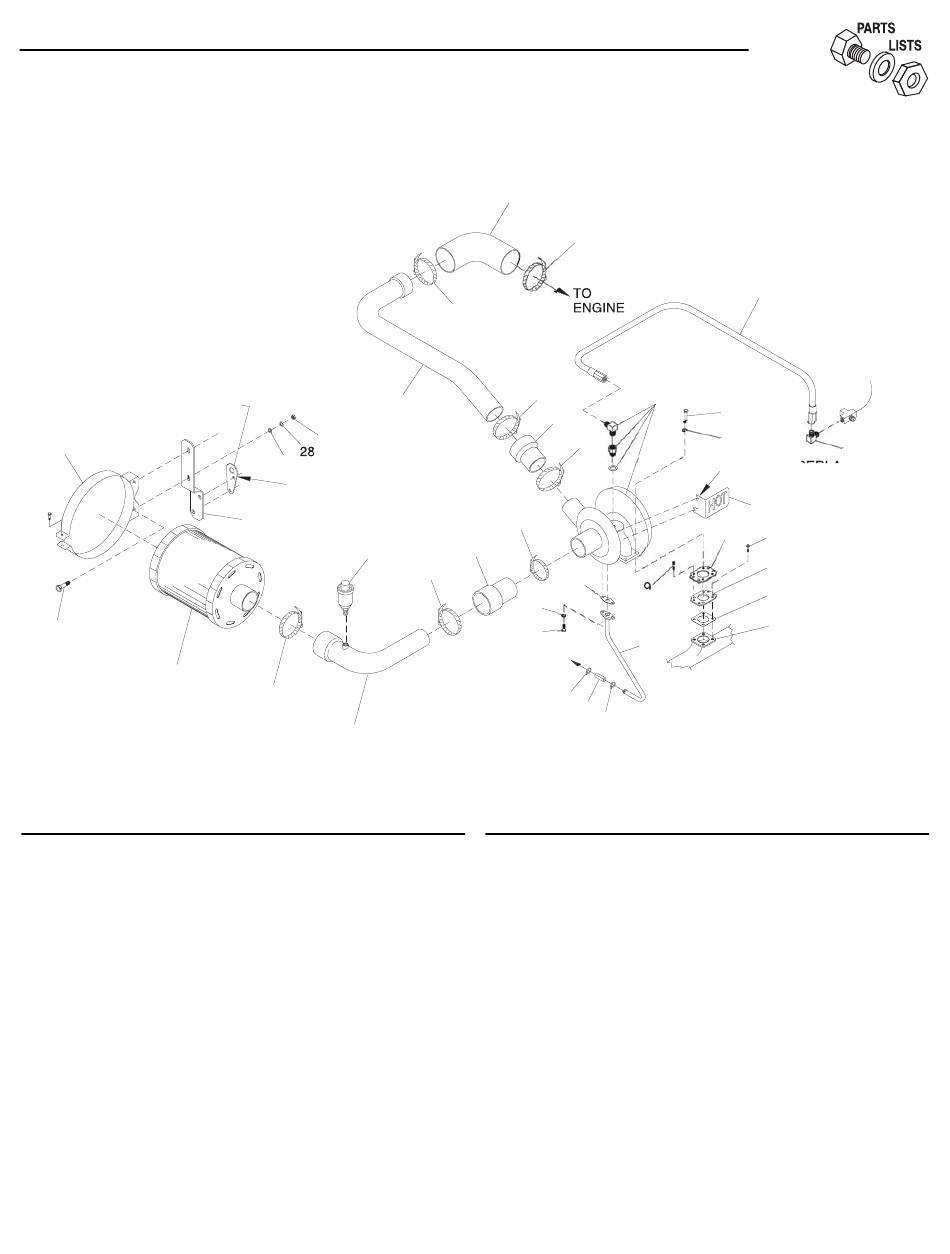

Turbo – Drawing No. 0E5033
19
23
23
20
18
17
33
3
6
13
15
16
TO OIL
PAN
21
22
21
ITEM PART NO. QTY.
19 057759
20 042561
21 057822
22 064948
23 039294
24 0D2324
25 0C4195
26 051756
27 022131
28 046526
29 045772
30 073354
31 0C3427
32 039294
33 035685
34 0E5034
5
1
7
8
REMOVE & REPLACE
2 FACTORY BOLTS
24
10
9
11
9
GASKET
REMOVE
FACTORY STUDS
14
EXHAUST
MANIFOLD
DESCRIPTION
1 ELBOW RUBBER 90 2.5 ID
1 CLAMP, HOSE SIZE: #36
2 CLAMP HOSE SIZE: #8
1 REDUCER, RUBBER 5/8" TO 1/2"
2 CLAMP HOSE #44 2.31 - 3.25
1 LABEL HOT TURBO 4.0L UL 2200
1 BRACKET, AIR CLEANER
2 SCREW HHC M10-1.5 X 20 G8.8
2 FLAT WASHER 5/8-M10
2 LOCK WASHER 5/8-M10
2 NUT HEX M10-1.5 G8 YEL CHR
1 STRAP AIR CLEANER
1 AIR CLEANER 3.0L HA
1 CLAMP HOSE #44 2.31 - 3.25
1 CLAMP HOSE #28 1.32 - 2.25
1 TUBE INTAKE W/ 1/8" NPT VERIZON
Generac ® Power Systems, Inc. 35
1/8" NPT
CROSS ON
OIL PUMP
4
