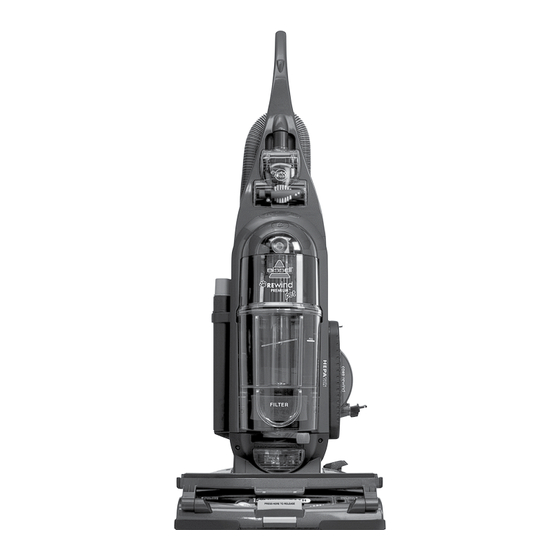

Bissell 44M3 User Manual

Bissell vacuum cleaner user manual
Hide thumbs Also See for 44M3:

Advertisement

Table of Contents

USER'S GUIDE
44M3, 67F8 SERIES
Thank You
2
Safety instructions
3
4
Product view
5
Assembly
Operations
6-9
Maintenance and care
10-15
16-17
Troubleshooting
17
Replacement parts
18
Accessories
19
Warranty
20
Product registration
Consumer services
20
Earn BISSELL Rewards!
Earn BISSELL Rewards!
R
R
egister your
egister your
product today!
product today!
See details on
See details on
back page
back page

Advertisement

Table of Contents
loading

Related Manuals for Bissell 44M3

Summary of Contents for Bissell 44M3

  • Page 1 USER'S GUIDE 44M3, 67F8 SERIES Thank You Safety instructions Product view Assembly Operations Maintenance and care 10-15 16-17 Troubleshooting Replacement parts Accessories Warranty Product registration Consumer services Earn BISSELL Rewards! Earn BISSELL Rewards! egister your egister your product today! product today!
  • Page 2 Your BISSELL vacuum is well made, and we back it with a limited three year warranty. We also stand behind it with a knowledgeable, dedicated Consumer Services department, so, should you ever have a problem, you’ll receive fast, considerate assistance.

  • Page 3: Important Safety Instructions

    ■ Use only on dry, indoor surfaces. ■ Keep appliance on a level surface. ■ Do not carry the vacuum cleaner while it ■ is running. Hold plug when rewinding onto cord ■ reel. Do not allow plug to whip when rewinding.

  • Page 4: Product View

    roduct view Stretch Hose Pet TurboBrush Tool ® Pet TurboEraser Tool ™ (67F8 series) Clean Filter Indicator Crevice Tool Extension Wand Dirt Container Filter Cup Lock'n Seal™ Lever Headlight Pet Hair Lifter Powerfoot caution: Do not plug in your vacuum cleaner until you are famil- iar with all instructions and operating procedures.

  • Page 5: Attach Handle To Vacuum

    ssembly you need: phillips head screwdriver. attach handle to vacuum 1. Locate the vacuum handle and remove the screw packet (1 screw) taped to the base of the handle. 2. Stand the vacuum upright and slide the base of the handle firmly into the grooves at the top of the vacuum body.

  • Page 6: Power Switch

    perations automatic power cord rewind Gently pull out power cord and stop when yellow line is visible. Do not pull power cord beyond the red line. Plug cord into electrical outlet. To return cord, with vacuum power button OFF, remove plug from outlet. Hold plug and press automatic cord button to wind cord into reel.

  • Page 7: Height Adjustment

    perations height adjustment turn dial on powerfoot to adjust to one of five height adjustments. if dial is dif- ficult to turn, tilt the cleaner back slightly to take the weight off the foot while turning. lowest setting – For low pile carpet or bare floors.
  • Page 8 perations clean filter indicator the indicator tells you when air flow in the vacuum is reduced due to dirty filters or a clog in the hose. the indicator will remain green until the air flow is reduced – and then will change to red. When fully red, the air flow is greatly reduced or clogged by a dirty filter;...
  • Page 9 Never place your fingers under the cleaner when it is running. Never place powerfoot on furniture or uneven sur- faces. Do not place vacuum cleaner close enough to objects to pull them into rotating brush. w w w . b i s s e l l . c o m ®...

  • Page 10: Maintenance And Care

    aintenance and care to maximize performance and extend life of your vacuum it is very important to perform the following maintenance steps: empty dirt container empty when dirt reaches the "full" line on the container. 1. Turn power OFF. Unplug vacuum cord from electrical outlet.

  • Page 11: Cleaning The Pre-Motor Filter

    aintenance and care cleaning the inner & outer circular filters 1. Turn power off. Unplug the cleaner from electrical outlet. 2. Remove the dirt container as described in the previous section. Grasp the filter cup located below the dirt container, lift up and out.

  • Page 12: Replacing The Post-Motor Filter

    1. Turn power OFF. Unplug vacuum cord from electrical outlet. 2. Place handle in low position and turn vacuum cleaner over so bottom side is up. 3. Remove the seven screws with a Phillips head screwdriver. Lift the brush cover off.

  • Page 13: Replace Drive Belt

    1. Turn power OFF. Unplug vacuum cord from electrical outlet. 2. With rotating floor brush removed from vacuum cleaner (steps 1-4 of Check rotat- ing floor brush and drive belt), grasp old drive belt and remove from motor pulley. Discard old drive belt.
  • Page 14 aintenance and care pet turbobrush tool Maintenance ® note: 67f8 models include the pet turboeraser™ tool that follows the same maintenance steps as the pet ® turbobrush tool. 1. Turn power OFF. Unplug vacuum cord from electrical outlet. 2. Turn tool so bottom side faces up and remove the two screws.

  • Page 15: Clearing Clogs

    1. Turn power OFF. Unplug vacuum cord from electrical outlet.

  • Page 16: Troubleshooting

    . b i s s e l l . c o m Remedies 1. Check electrical plug 2. Check/replace fuse or reset breaker 3. Refer to a BISSELL authorized service center for repair or replacement Remedies 1. Adjust powerfoot to correct height setting 2.

  • Page 17: Please Do Not Return This Product To The Store

    1-800-237-7691. eplacement parts - BISSELL vacuum Item Part No.
  • Page 18 - BISSELL vacuum these items are available for purchase as accessories for your bissell vacuum: to purchase call 1-800-237-7691 or visit www.bissell.com. Item Part No. 203-2447 203-1063 203-1099 203-1084 203-1368 203-7529 w w w . b i s s e l l . c o m...

  • Page 19: Limited Three Year Warranty

    Subject to the *EXCEPTIONS AND EXCLUSIONS identified below, upon receipt of the product BISSELL Homecare, Inc. will repair or replace (with new or remanufactured components or products), at BISSELL’s option, free of charge from the date of purchase by the original purchaser, for three years any defective or malfunctioning part.
  • Page 20 For information about repairs or replacement parts, or questions about your warranty, call: bissell consumer services Or visit the BISSELL website - www.bissell.com When contacting BISSELL, have model number of cleaner available. Please record your Model Number: ___________________ Please record your Purchase Date: ___________________ note: please keep your original sales receipt.

This manual is also suitable for:

67f8Rewind premier® petRewind premium pet 44m3 seriesRewind premier pet 67f8 series
