NordicTrack

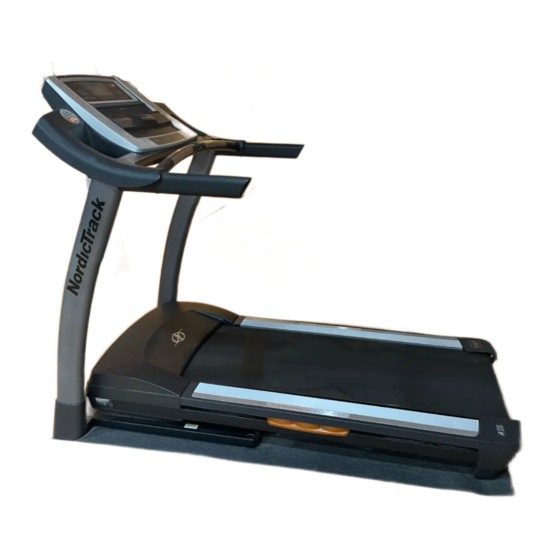

A2550 Pro Treadmill • Model No. 831.24967 • Revised 01/10/11
®
For detailed instructions, see the Userʼs Manual. Note: The underside of the walking belt is coated with high-
performance lubricant. If there is lubricant on top of the walking belt, simply wipe off the lubricant with a soft cloth
and a mild, non-abrasive cleaner.

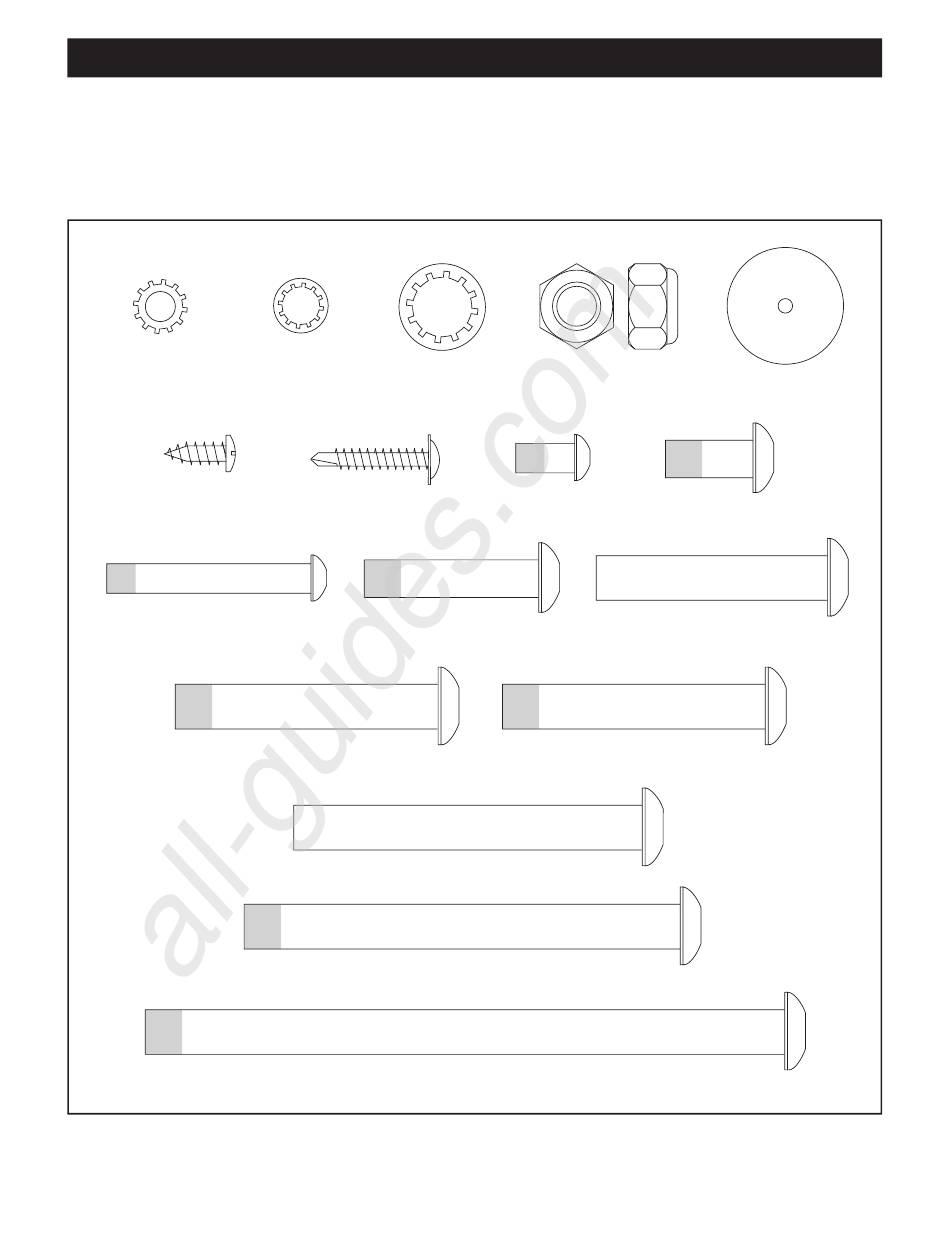

1/4" Star
Washer (12)–2
#8 x 1/2"
Screw (1)–14
1/4" x 1 3/4"
Patch Bolt (91)–2
3/8" x 2 1/4" Latch Patch Bolt (6)–1
G
All manuals and user guides at all-guides.com
UIDE
5/16" Star
3/8" Star
Washer (9)–8
Washer (11)–6
#8 x 1" Tek Screw
(2)–4
5/16" x 1 1/2"
Patch Bolt (4)–6
3/8" x 3" Bolt (67)–2
3/8" x 3 3/4" Patch Bolt (97)–2
3/8" x 5 1/2" Patch Bolt (7)–2
3/8" Nut (10)–4
1/4" x 1/2"
Patch Bolt (8)–2
Patch Bolt (5)–4
3/8" x 2" Bolt (3)–1
3/8" x 2 1/4" Patch Bolt (31)–2
Base Foot Spacer
(36)–2
5/16" x 3/4"
Advertisement
Related Manuals for NordicTrack A2550 Pro
Summary of Contents for NordicTrack A2550 Pro
- Page 1 SSEMBLY UIDE NordicTrack A2550 Pro Treadmill • Model No. 831.24967 • Revised 01/10/11 ® For detailed instructions, see the Userʼs Manual. Note: The underside of the walking belt is coated with high- performance lubricant. If there is lubricant on top of the walking belt, simply wipe off the lubricant with a soft cloth and a mild, non-abrasive cleaner.
- Page 2 All manuals and user guides at all-guides.com 1. Pull the Upright Wire (85) out of the indicated 3. Route the Upright Wire (85) through the Right hole. Attach the Base Feet (92). Upright (83). Hole Wire Tie 4. Attach the Right Upright (83). Repeat this step on the other side.
- Page 3 All manuals and user guides at all-guides.com 6. Attach the Frame Crossbar (107). 8. Connect the Upright Wire (85) to the console wire. Console Wire Remove Wire 7. Route the console wire through the Right Handrail (79). Attach the Right Handrail and the 9.
- Page 4 10. Attach the Left and Right Accessory Trays (101, 12. Attach the Storage Latch (51). 104). Large Barrel 11. Attach the Upright Covers (87, 90; 86, 88). NordicTrack is a registered trademark of ICON IP, Inc. Part No. 311574 R0111A Printed in USA © 2011 ICON IP, Inc.
