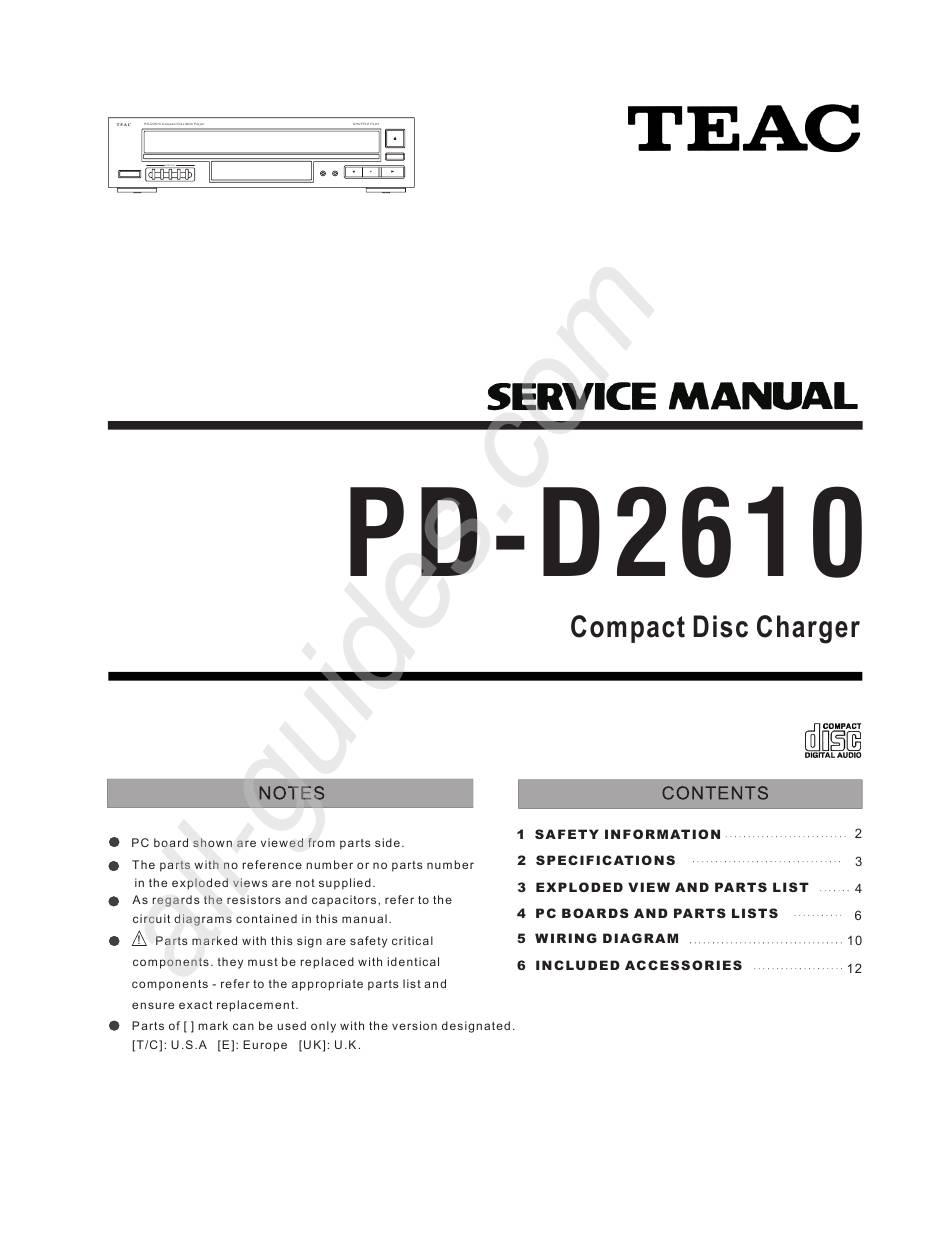

Teac PD-D2610 Service Manual

Teac PD-D2610 Service Manual

Compact disc charger
Hide thumbs Also See for PD-D2610:

Advertisement

Quick Links

All manuals and user guides at all-guides.com

Advertisement

loading

Summary of Contents for Teac PD-D2610

  • Page 1 All manuals and user guides at all-guides.com...
  • Page 2 All manuals and user guides at all-guides.com...
  • Page 3 All manuals and user guides at all-guides.com...
  • Page 4: Exploded Views And Parts List

    All manuals and user guides at all-guides.com PD-D2610 3. EXPLODED VIEWS AND PARTS LIST...
  • Page 5 All manuals and user guides at all-guides.com...
  • Page 6 All manuals and user guides at all-guides.com...
  • Page 7 All manuals and user guides at all-guides.com PD-D2610 MAIN PCB...
  • Page 8 All manuals and user guides at all-guides.com...
  • Page 9: Display Pcb

    All manuals and user guides at all-guides.com PD-2610 DISPLAY PCB POWER PCB SUB PCB KEY PCB...
  • Page 10: Wiring Diagram

    All manuals and user guides at all-guides.com PD-D2610 5 WIRING DIAGRAM MAIN PCB CN105 TO POWER PCB CN201 CN103 TO DISPLAY PCB CN301 CN102 CN101 TO TRAY MOTOR TO SUB PCB CN605...
  • Page 11 All manuals and user guides at all-guides.com PD-2610 TO CD MECHAN. TO CD MECHAN. SUB PCB CN602 TO TURNTABLE SENSOR PCB CN603 CN604 CN601 TO CD PICK UP TO TRANSFORMER TO AC LINECODE TO AC LINECODE POWER PCB EC201 EC202 CN202 KEY PCB CN303...
  • Page 12 All manuals and user guides at all-guides.com...
  • Page 13 All manuals and user guides at all-guides.com...
  • Page 14 200P AC4.4V U407 U408 AC4.4V C457 7808 C458 7805 JP122 220/10 220/10 D407 1N4001 AC10.4V U104 LB1836M D408 1N4001 AC10.4V C403 C402 C451 C456 FROM POWER C159 4700/25 C162 A-GND CPU-GND D-GND PD-D2610 C160 M-GND M-GND 47/16 Compact Disc Changer...
  • Page 15 S310 DISC3 C305 100/10 R309 S302 PAUSE S306 OP/CL R304 R305 R317 CN301 R316 S303 F SKIP S307 B SKIP -32V C307 C306 S304 D SKIP DAT O R314 DAT IN REMOCON R312 R313 PH11 R315 PD-D2610 Compact Disc Changer...
  • Page 16 SPINDLE MOTOR FC31 SENSE DWNSW UPSW SENSE CN603 PUINSW PUINSW PUINSW SLED- PUINSW DRIVE MECHA DA11T3CN SLED+ SLED- SPINDLE- SLED+ SPINDLE+ SPINDLE- SPINDLE+ TO PCB MAIN CN102 CN604 FPC-31P FFC16 FOCUS COIL TRACKING COIL PU SF-P101NXR PD-D2610 Compact Disc Changer...
  • Page 17 All manuals and user guides at all-guides.com POWER PCB SW201 SW-POWER F202 T201 LIVE POWERCORD EC202 W501 CN201 EC-TERMINAL CONNECTOR 5P ASSY TO PCB MAIN C201 0.01uF CN202 F201 CN105 120V NEUTRAL EC201 230V EC-TERMINAL 4L50006630 PD-D2610 Compact Disc Changer...
