FT2-500-ELEC-PTL

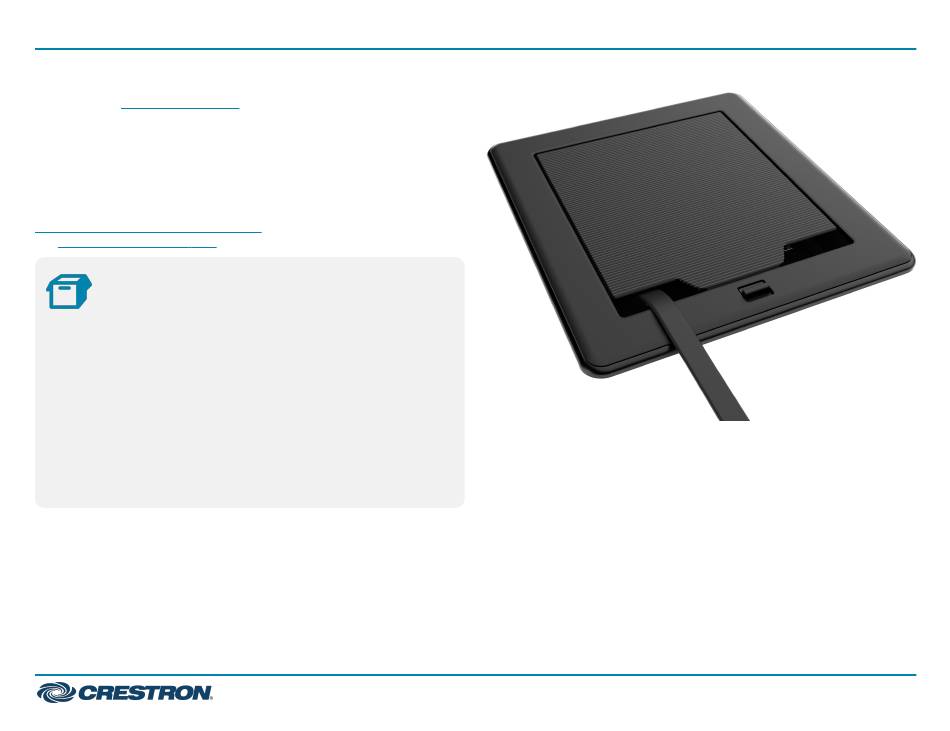

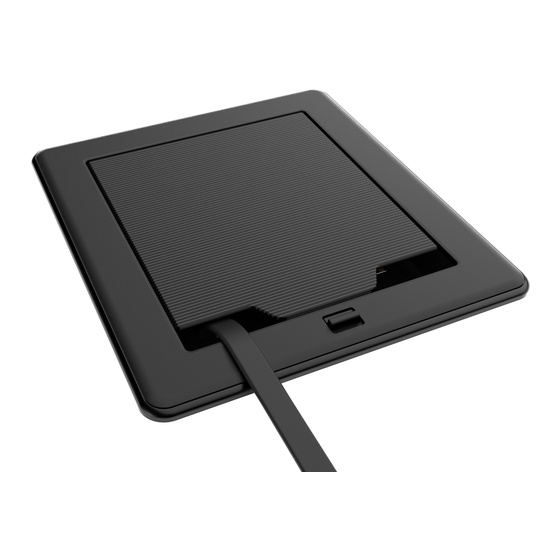

FlipTop™ FT2 Series Cable Management System, 500 Size, Electrical, Pass-Through Lid
The Crestron®
FT2-500-ELEC-PTL
installs into a table or other horizontal surface to provide modular
connectivity. It features a retracting lid that disappears within the
enclosure. When the lid is retracted, eight module slots are arranged in
two rows of four. The flexible modular design may also be customized
with an assortment of Crestron accessories, and the pass-through lid
style allows cables to be fully extended while the lid is closed.
For more information about the accessories, please visit
www.crestron.com/Crestron-FlipTops. To configure your FlipTop, launch
the
FlipTop Configuration
Tool.
In the Box
FT2-500-ELEC-PTL
1
Additional Items
3
Locking Bars with screws and gaskets (4532634)
1
Cable, DC Power Splitter (2050094)
1
Connector, Plug (2003575)
1
Holder, Power Supply (2048887)
1
Power Cord, 5 ft 10 in. (1.78 m) (2042043)
1
Power Pack, 24VDC, 2.5 A, 100-240VAC (2045873)
Cutout Template (4528039)
1
FlipTop™ cable management system
Quick Start
1
