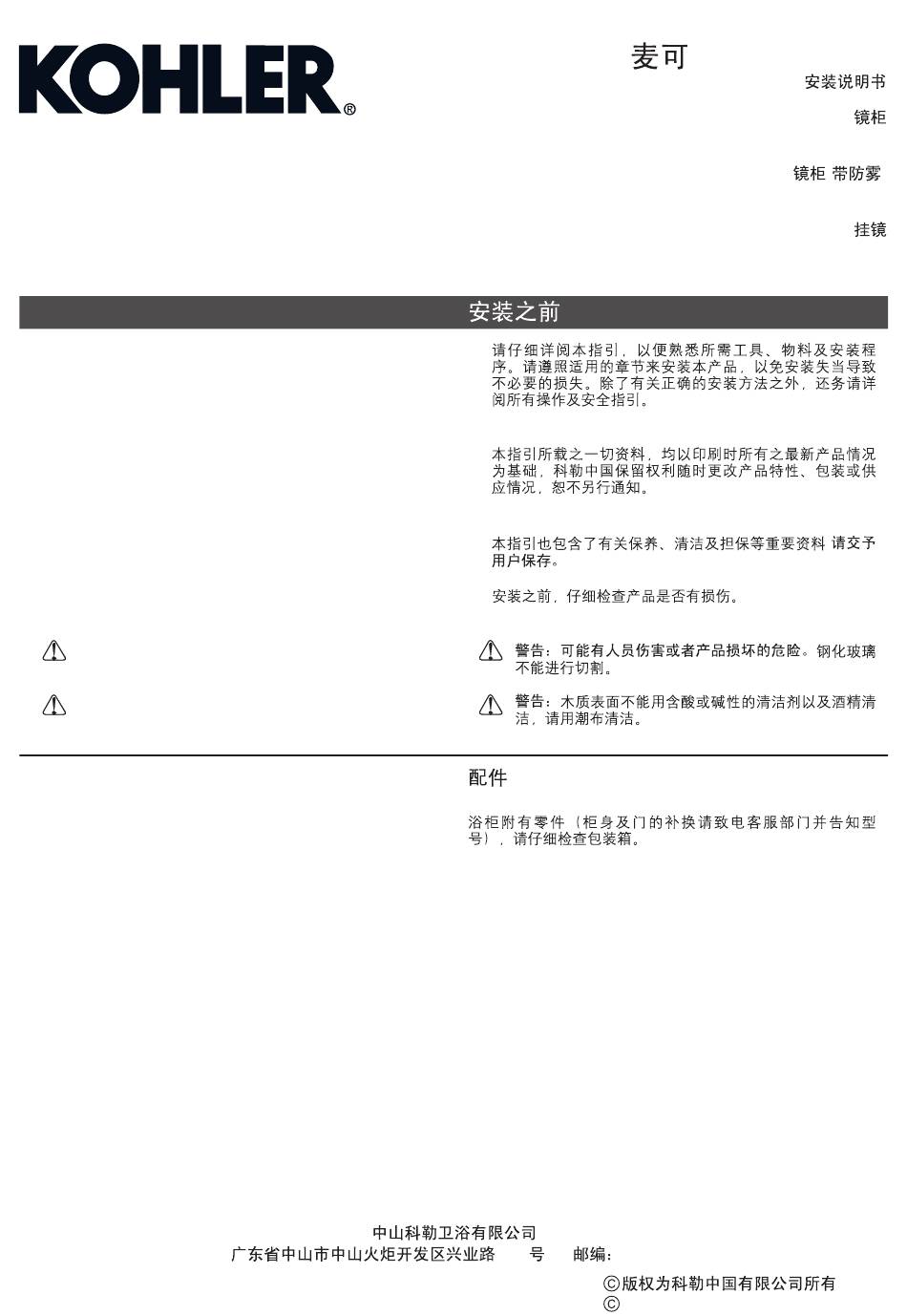

BEFORE YOU BEGIN
BEFORE YOU BEGIN
·
Please read these instructions carefully to familiarize
yourself with the required tools, materials, and installation
sequences. Follow the sections that pertain to your
particular installation . This will help you avoid costly
mistakes. In addition to proper installation, read all
operating and safety instructions.
·
All information in these instructions is based upon the
latest product information available at the time of
publication. Kohler China. reserves the right to make
changes in product characteristics, packaging, or
availability at any time without notice.
·
These instructions contain important care, cleaning, and
warranty information-
consumer.
·
Before installation carefully inspect the new fixture for any
signs of damage.
WARNING: Risk of injury or product damage.
Tempered glass cannot be cut.
WARNING:
Don't use acidic or alkalic cleaners or
alcohol to clean the wooden surface. Use a dampened
cloth to clean.
PARTS
Parts supplied with your cabinet. (For cabinet body and door
replacement, call customer service with model number.) Be
sure to check the cardboard supports in the carton, glass
parts are packed in them.
1132363-T01-B
please leave instructions for the
MIRRORED CABINET W/DEFOGGER
·
·
·
·
13-1
-1-
METALLIQUE
INSTALLATION INSTRUCTIONS
MIRRORED CABINET
528437
Copyright Kohler China Ltd., 2010
K-13073T
(
)
K-13073T-D
MIRROR
K-13079T
-
, 2010
Advertisement
Related Manuals for Kohler K-13073T
Summary of Contents for Kohler K-13073T
- Page 1 · · All information in these instructions is based upon the latest product information available at the time of publication. Kohler China. reserves the right to make changes in product characteristics, packaging, or availability at any time without notice. ·...
-
Page 2: Accessories List
Screws ST3.5 35 M4 12 ST3.5 35 Half Sink-Screw S/S M3.5X10 Caps of Screw Top Clips Hole Plugs Foam Tape 431mm Mounting Bar Glass Shelves M3.5X10 Mirror Screws ST3.5 35 Wall Anchors ST3.5 35 ROUGHING-IN UNIT : mm Mirrored Cabinet K-13073T/K-13073T-D 1132363-T01-B... -
Page 3: Installation
Mirror K-13079T INSTALLATION NOTE The cabinet has two ways of installation: · · Recessing mounting. · · Surface mounting. Refer to the following instruction for mirror installation. RECESSING THE MIRRORED CABINET INTO THE WALL The Vertical installation changes the width of the roughout. Please refer to the picture below. 468mm for Models 468mm Screws ST3.5 35... - Page 4 Install screws through holes in mirrored cabinet as shown in Fig.1, 2 Note: DO NOT OVER- TIGHTEN! Use s crews ST3.5 35 ST3.5 35 Top View Stud and wall surface Mirrored cabinet flange fits flush against wall Install dome caps over screws Fig.
- Page 5 Sit the mirrored cabinet on the mounting bar, then lower and tighten the Top clip for screws into place, as shown in Fig.4. surface mount 2 per cabinet 2 Top clips Top of cabinet frame member Top clips slide into this screw channel from center opening.
- Page 6 Attach the side kit brackets to the cabinet as shown in Fig.6. Align top of side kit with top of flange Test fit the side kits, then clean the back of the side kits with rubbing alcohol. Peel the release tape from the brackets and apply the side kits, push firmly to set.
- Page 7 Push/twist the pins into place & Fill the remaining holes with the plugs & Push one side of the shelf into the left or right clips. Snap the shelf down into the opposite side. If the shelf is too tight, repeat the process from the other side. Fig.
-
Page 8: User Maintenance
Try to open the door and windows of the bathroom and maintain good ventilation. Kohler mirrored cabinet are dealt with strict procedures for damp-proof, whose good damp-proof function ensures good performance even in bathroom of huge humidity. Yet do not splash and pour water directly on the mirrored cabinet.
