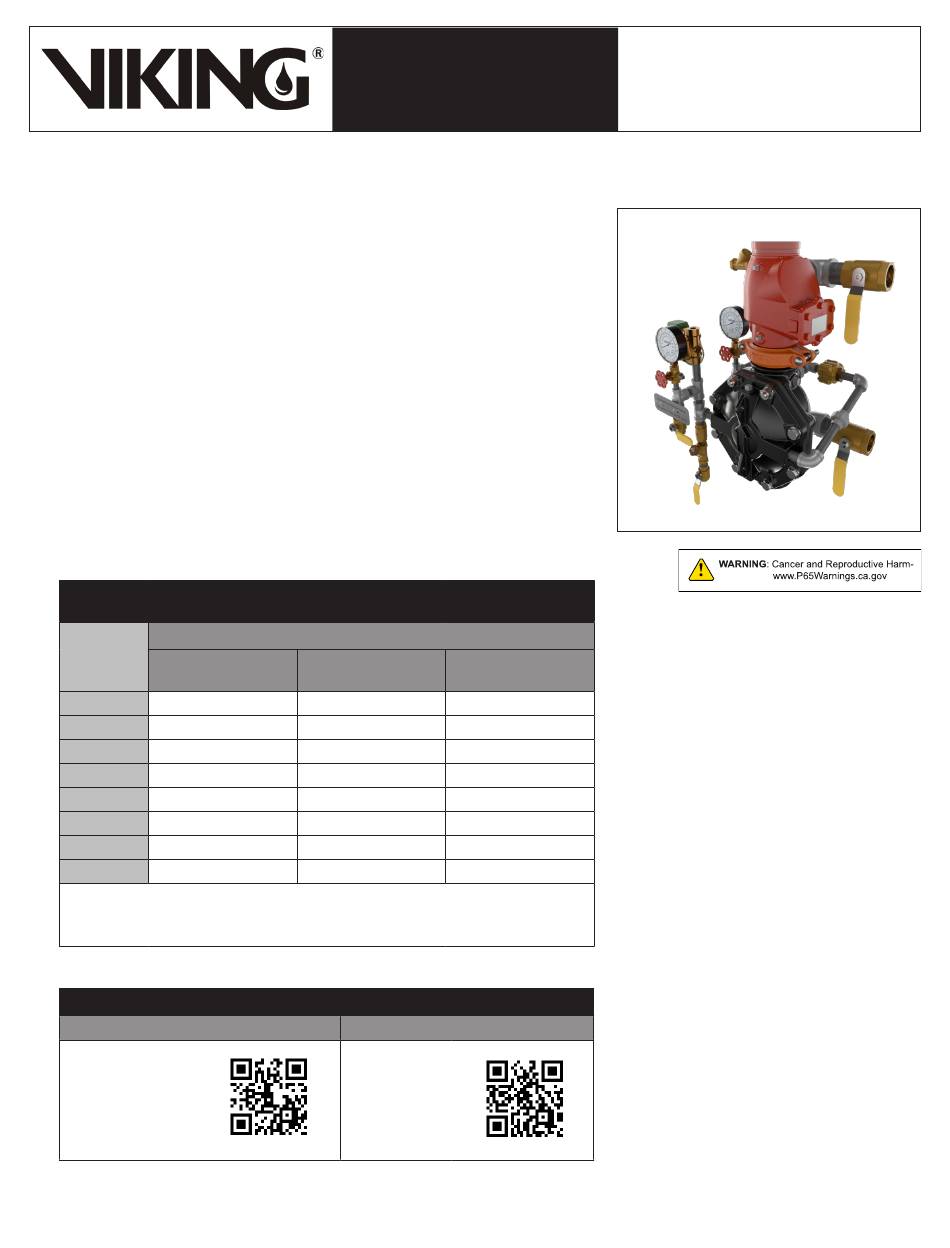

1. INTRODUCTION
Viking supervised VXD Single-Interlocked Preaction Systems utilize a Viking
Model VXD Deluge Valve and a pneumatically pressurized automatic sprinkler
system. This feature helps prevent undetected leaks. Single-Interlocked Preaction
Systems are commonly used where the sprinkler system piping and/or sprinkler
may be subject to damage. If the system piping or a sprinkler is damaged,
supervisory pressure is reduced and a "low air" supervisory is activated. The
electrically controlled preaction systems include an electric solenoid valve
controlled by an approved release control panel (sold separately) with compatible
detection system (sold separately). In fire conditions, when the detection system
operates, the system release control panel energizes the solenoid valve open,
causing the deluge valve to open. The sprinkler system fills with water. If any
sprinklers have opened, water will flow from the system. If sprinklers have not
opened, water will be in the sprinkler system piping when the sprinkler operates.
A sprinkler must open before water flows from the system.
2. LISTINGS AND APPROVALS
cULus Listed - Categories VLFT and VLFT7
FM Approved
3. ORDERING INFORMATION
Table 1: Available Sizes for Model VXD Single-Interlock Preaction
System with Electric Release (Vertical)
Nominal
Loose trim
Size
Galvanized
1-1/2 23562-1
2 23583-1
21/2 23604-1
3 23625-1
4 23646-1
6 23668-1
8 23689-1
10 23750-1
1. Loose trim packages do not include the deluge valve. Refer to the Model VXD Deluge Valve
Technical Data Page for available options.
2. Pre-trimmed packages are only available with galvanized pipe and groove/groove valves.
Table 2: Additional System Component Information
Component Scan, click or tap
Pressure Operated
Relief Valve
(PORV)
Form No. F_051820 21.01.01
TECHNICAL DATA
The Viking Corporation, 210 N Industrial Park Drive, Hastings MI 49058
Part Number
1 1
Loose trim
Brass
23562-2
23583-2
23604-2
23625-2
23646-2
23668-2
23689-2
23750-2
Component
Solenoid Valve
Rev 21.1
2
Pre-trimmed
Galvanized
23563
23584
23605
23626
23647
23669
23690
23751
Scan, click or tap
Page 1 of 13
MODEL VXD SINGLE-
INTERLOCKED PREACTION
SYSTEM WITH ELECTRIC
RELEASE
New form.
