Summary of Contents for PEUGEOT 107 2009
- Page 1 FAMILIARISATION Remote control key Manual central control Starting...

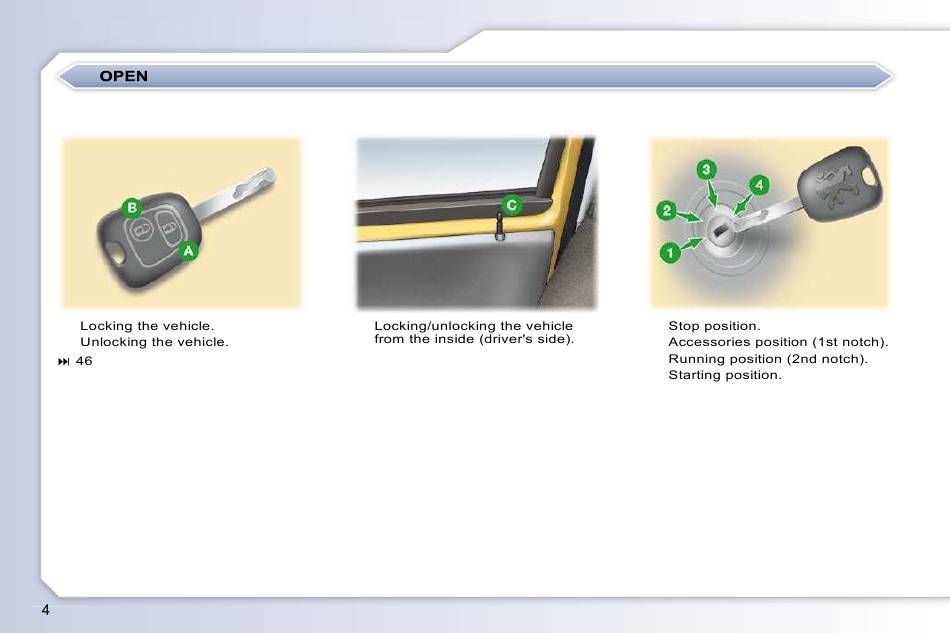

- Page 2 OPEN Fuel tank Bonnet Low fuel level...
- Page 3 FAMILIARISATION INTERIOR Auxiliary socket for portable equipment Manual air conditioning 2 Tronic gearbox...
-
Page 4: Instruments And Controls
INSTRUMENTS AND CONTROLS... - Page 5 FAMILIARISATION INSTRUMENTS AND CONTROLS...
- Page 6 Front seats...
- Page 7 FAMILIARISATION SIT COMFORTABLY Front electric windows Mirrors Steering wheel adjustment (with power steering)
- Page 8 Lighting stalk Wiper stalk Front and rear lamps Rear foglamp Windscreen wipers MIST Ring A Ring B Rear wiper and wash-wipe Ring C...
- Page 9 FAMILIARISATION Heating Air conditioning...
- Page 10 Recommended interior settings Heating or Manual air conditioning I require... Air recirculation/Intake Air distribution Temperature Manual AC of exterior air COLD DEMISTING DEFROSTING...
- Page 11 FAMILIARISATION Instrument panel Warning lamps ASR/ESP option...
- Page 12 Passenger air bag "ISOFIX" mountings deactivation The ISOFIX child seats "OFF" Driver's seat belt not fastened warning lamp Passenger air bag deactivated...
- Page 13 FAMILIARISATION "2 Tronic" gearbox EASY mode (automatic mode) Manual gearbox Starting the engine Manual mode Reverse "+" Reverse gear can only be engaged when the vehicle is stationary, "-" engine at idle.
-
Page 14: Rev Counter
INSTRUMENTS and CONTROLS REV COUNTER 10. "... -
Page 15: Warning Lamps And Indicators
INSTRUMENTS and CONTROLS WARNING LAMPS AND INDICATORS Central STOP warning lamp Stop immediately Stop immediately. Stop immediately this lamp comes on with the engine running. Anti-lock braking system (ABS) warning lamp Engine oil pressure warning lamp Stop immediately. Parking brake, low Electric power brake fluid level steering warning lamp... - Page 16 INSTRUMENTS and CONTROLS Battery charge Passenger airbag deactivated Note: warning lamp Dynamic stability Diesel engine pre-heat control system warning lamp (ASR/ESP) activation warning lamp Driver’s seat belt not fastened warning lamp * Water in diesel filter Dynamic stability warning lamp ** control system (ASR/ ESP) fault warning lamp...
-
Page 17: Display Screen
INSTRUMENTS and CONTROLS DISPLAY SCREEN "2 Tronic" gearbox indicator Lever in EASY mode Total/trip distance recorder (automatic mode) "E" Lever in manual mode "M" "ODO" "TRIP" "Neutral" "Reverse"... - Page 18 INSTRUMENTS and CONTROLS DISPLAY SCREEN "2 Tronic" gearbox indicator Lever in EASY mode Total/trip distance recorder (automatic mode) "E" Lever in manual mode "M" "ODO" "TRIP" "Neutral" "Reverse"...
- Page 19 INSTRUMENTS and CONTROLS Operating mode: Running out of diesel fuel 1st gear 2nd gear 3rd gear Fuel gauge 4th gear 5th gear Low fuel level "!" warning lamp " 2 Tronic " You have approximately 5 litres remaining. you have approximately 3 litres remaining...
-
Page 20: Audio Equipment
AUDIO EQUIPMENT GENERAL NOTES/ADJUSTMENTS/AUXILIARY SOCKET... - Page 21 AUDIO EQUIPMENT GENERAL FUNCTIONS VOLUME ADJUSTMENT AUXILIARY SOCKET On/off "AUX" After the engine has been switched off, audio equipment only operate approximately 30 minutes, to prevent discharging of the battery. CLOCK ADJUSTMENT AUDIO SETTINGS AM/FM When using an MP3 player: (BASS) (TREB) (FAD)
- Page 22 AUDIO EQUIPMENT RADIO...
- Page 23 AUDIO EQUIPMENT Stereo reception Automatic station search Manual station search "ST" "ST" Selection of the radio source Manual station storing Selection of a waveband "1" "6"...
- Page 24 AUDIO EQUIPMENT Automatic storing of FM Recalling stored stations Notes on radio reception stations (autostore) "1" "6"...
- Page 25 AUDIO EQUIPMENT Search by type of programme EON system (PTY) Using the AF (alternative frequency) function on the FM waveband The RDS (Radio Data System) When FM "no pty" Notes: Traffic information programme (TA) "AF" "AF REG" "AF" "TP" "TP EON" Regional mode (REG) "TA"...
- Page 26 AUDIO EQUIPMENT CD PLAYER OR CD CHANGER...
-
Page 27: Cd Player Functions
AUDIO EQUIPMENT CD PLAYER AND CD CD PLAYER FUNCTIONS Repeating of a track on the CHANGER FUNCTIONS CD (RPT) Selection of the CD player Selection of a track on a CD CD eject Fast play Random playing of the CD (RAND) Introscan (SCAN) - Page 28 AUDIO EQUIPMENT CD PLAYER OR CD CHANGER...
- Page 29 AUDIO EQUIPMENT CD PLAYER AND CD CD PLAYER FUNCTIONS Repeating of a track on the CHANGER FUNCTIONS CD (RPT) Selection of the CD player Selection of a track on a CD CD eject Fast play Random playing of the CD (RAND) Introscan (SCAN)
-
Page 30: Cd Changer Functions
AUDIO EQUIPMENT CD CHANGER FUNCTIONS Random playing of a CD Repeating of a CD (RPT) (RAND) Selection of the CD changer Selection of a CD... - Page 31 COMFORT Recommendations for use VENTILATION...
- Page 32 COMFORT 4. Rear screen demisting HEATING 1. Temperature adjustment 3. Air distribution adjustment Demisting and defrosting...
-
Page 33: Air Conditioning
COMFORT 1. Air conditioning On/Off The air conditioning will not operate is in position 0. 2. Temperature adjustment AIR CONDITIONING... - Page 34 COMFORT 4. Air recirculation/Air intake 5. Air distribution adjustment 6. Rear screen demisting Demisting and defrosting...
-
Page 35: Steering Wheel Height Adjustment
COMFORT MIRRORS STEERING WHEEL HEIGHT ADJUSTMENT Exterior mirrors Manual interior mirror (WITH POWER STEERING) When stationary , Folding/Unfolding... -
Page 36: Front Seats
COMFORT FRONT SEATS 1. Forwards-backwards adjustment 2. Seat back angle adjustment 3. Access to the rear seats (3-door) -
Page 37: Rear Head Restraints
COMFORT REAR HEAD RESTRAINTS * Folding the back of the bench Returning the back of the seat: bench seat to its initial position: Take care not to trap the seat belts, in particular between the seat back and the mounting B. - Page 38 9 kg must travel in the "rearwards- facing" position both in the front and in the rear. PEUGEOT recommends rear seats "rearwards-facing" "forwards-facing" Intermediate longitudinal position...
- Page 39 COMFORT CHILD SEATS RECOMMENDED BY PEUGEOT secured using a three point seat belt Group 0: from birth to 10 kg Group 0+: from birth to 13 kg Groups 1, 2 and 3: from 9 to 36 kg Passenger air bag OFF...
- Page 40 COMFORT ADVICE ON CHILD SEATS keeping the slack to a minimum Installing a booster seat...
- Page 41 COMFORT CHILD SEATS RECOMMENDED BY PEUGEOT secured using a three point seat belt Group 0: from birth to 10 kg Group 0+: from birth to 13 kg Groups 1, 2 and 3: from 9 to 36 kg Passenger air bag OFF...
- Page 42 COMFORT LOCATION OF CHILD SEATS ATTACHED USING THE SEAT BELT Weight of the child and indicative age From 22 to 36 kg Under 13 kg From 9 to 18 kg From 15 to 25 kg Seat L2, L3, L4 L2, L3, L4 L1 to L4:...
- Page 43 COMFORT ADVICE ON CHILD SEATS keeping the slack to a minimum Installing a booster seat...
-
Page 44: "Isofix" Mountings
COMFORT "ISOFIX" MOUNTINGS The ISOFIX child seats regulation upper strap TETHER... - Page 45 COMFORT ISOFIX CHILD SEAT RECOMMENDED BY PEUGEOT AND APPROVED FOR YOUR VEHICLE RÖMER Duo Plus ISOFIX Group 1: from 9 to 18 kg...
- Page 46 COMFORT Weight of the child Less than 10 kg (group 0) Less than 10 kg From 9 to 18 kg (group 1) (group 0) Less than 13 kg (group 0+) Type of ISOFIX child seat Infant car seat * "rear facing" "rear facing"...
-
Page 47: Interior Fittings
COMFORT INTERIOR FITTINGS 1. Sun visor 2. Storage compartments 3. Storage box 4. Storage compartments in the front doors 5. Cup holder 6. 12 volt accessories socket (120 W max) 7. Storage compartments in the rear doors 3-door 5-door... -
Page 48: Remote Control
ACCESS KEYS/ Locating the vehicle REMOTE CONTROL Remote control Locking Keys Unlocking Central locking and unlocking Note:... -
Page 49: Electronic Engine Immobiliser
ACCESS Reinitialising the remote control Changing the remote control battery ELECTRONIC ENGINE IMMOBILISER... - Page 50 ACCESS Reinitialising the remote control Changing the remote control battery ELECTRONIC ENGINE IMMOBILISER...
-
Page 51: Electric Windows
ACCESS Simultaneous central locking/ unlocking of the doors and boot. Driver's door open ELECTRIC WINDOWS Locking/unlocking a door from the inside Normal locking/unlocking: the doors lock/unlock independently. Note:... -
Page 52: Rear Windows
ACCESS REAR WINDOWS (5-DOOR) LOCKING/UNLOCKING THE LOCKING/UNLOCKING THE BOOT USING THE KEY* BOOT USING THE REMOTE CONTROL * Note: CHILD LOCK... - Page 53 ACCESS REAR WINDOWS (5-DOOR) LOCKING/UNLOCKING THE LOCKING/UNLOCKING THE BOOT USING THE KEY* BOOT USING THE REMOTE CONTROL * Note: CHILD LOCK...
- Page 54 ACCESS 2. Spare wheel/Additional storage compartments BOOT 1. Rear shelf...
-
Page 55: Filling The Fuel Tank
ACCESS FILLING THE FUEL TANK Low fuel level have approximately 5 litres remaining. you have approximately 3 litres remaining Note: The capacity of the fuel tank is with the engine switched off approximately 35 litres. Remove the key. - Page 56 VISIBILITY Rear foglamp Note: LIGHTING STALK S Front and rear lamps Dipped headlamps/main beam headlamps Dipped headlamps: Main beam headlamps: Direction indicators (flashers) Headlamp flash Left: Right: Lamps on buzzer...
-
Page 57: Windscreen Wiper Stalk
VISIBILITY Windscreen wash WINDSCREEN WIPER STALK Rear wash "OFF" Windscreen wipers MIST Rear wiper and wash-wipe "ON"... -
Page 58: Headlamp Adjustment
VISIBILITY HEADLAMP COURTESY LAMP ADJUSTMENT "0"... -
Page 59: Parking Brake
SAFETY PARKING BRAKE ANTI-LOCK BRAKING SYSTEM (ABS) AND EBFD AND CSC * BRAKING Applying SYSTEMS Releasing HORN When parking on a slope, direct your wheels towards the pavement and pull the parking brake . Note: HAZARD WARNING LAMPS... - Page 60 SAFETY PARKING BRAKE ANTI-LOCK BRAKING SYSTEM (ABS) AND EBFD AND CSC * BRAKING Applying SYSTEMS Releasing HORN When parking on a slope, direct your wheels towards the pavement and pull the parking brake . Note: HAZARD WARNING LAMPS...
- Page 61 SAFETY TRACTION CONTROL (ASR) Operating check AND DYNAMIC STABILITY CONTROL (ESP) Stop immediately. Operation of the ASR and ESP systems emergency braking, releasing the pressure.
- Page 62 SAFETY TRACTION CONTROL (ASR) Operating check AND DYNAMIC STABILITY CONTROL (ESP) Stop immediately. Operation of the ASR and ESP systems emergency braking, releasing the pressure.
-
Page 63: Seat Belts
SAFETY SEAT BELTS Pretensioning Rear seat belts front seat belts with force limiter Fastening/Unfastening the seat belts 3-door 5-door... - Page 64 SAFETY Recommendations for children: Depending on the nature and se- riousness of the impacts,...
-
Page 65: Front Airbags
SAFETY AIRBAGS Airbags only operate when the ig- nition is switched on. When they FRONT AIRBAGS are triggered, a noise is heard dur- Front airbag malfunction Impact detection zones Note:... - Page 66 SAFETY Deactivation (check) SIDE AIRBAGS * AND CURTAIN AIRBAGS * Airbag malfunction Deactivating the passenger airbag To ensure the safety of your child, it is essential to deactivate the passenger airbag when you install a "rear-facing" child seat on the front passenger seat.
- Page 67 SAFETY For the front, side and Front airbags Curtain airbags curtain airbags to be fully effective, observe the fol- lowing safety rules: Side airbags...
- Page 68 SAFETY Deactivation (check) SIDE AIRBAGS * AND CURTAIN AIRBAGS * Airbag malfunction Deactivating the passenger airbag To ensure the safety of your child, it is essential to deactivate the passenger airbag when you install a "rear-facing" child seat on the front passenger seat.
- Page 69 SAFETY For the front, side and Front airbags Curtain airbags curtain airbags to be fully effective, observe the fol- lowing safety rules: Side airbags...
-
Page 70: Tronic Gearbox
DRIVING 2 TRONIC GEARBOX " 2 Tronic " automatic operation manual gear changing Driver information R N E Driving mode Starting the engine start the engine Notes:... - Page 71 DRIVING EASY mode (automatic mode) Stopping the engine Operating fault Manual mode "+" "-"...
-
Page 72: Opening The Bonnet
CHECKS OPENING THE BONNET On the outside: On the inside: Bonnet strut To close... - Page 73 CHECKS 1.0 LITRE PETROL ENGINE 1.4 LITRE TURBO DIESEL HDI ENGINE...
-
Page 74: Checking The Levels
CHECKS CHECKING THE LEVELS Changing the brake fluid Windscreen wash level Oil level Cooling system Used oil Dipstick Oil change Oil viscosity grade... -
Page 75: Running Out Of Fuel
CHECKS CHECKS Oil filter Battery Air filter and passenger Manual gearbox compartment filter If you drive in dusty conditions, change them twice as often. RUNNING OUT OF FUEL (DIESEL) Brake pads Disc and drum wear Parking brake Notes:... -
Page 76: Practical Information
PRACTICAL INFORMATION Tools CHANGING A WHEEL Parking the vehicle Access to the spare wheel and Tyre pressures the jack in the boot... - Page 77 PRACTICAL INFORMATION Removing the wheel normal...
-
Page 78: Changing A Bulb
PRACTICAL INFORMATION 1. Sidelamps (W 5 W) CHANGING A BULB Front lamps 1. Sidelamps 2. Direction indicators 2. Direction indicators 3. Dipped headlamps/Main beam (PY 21 W amber) headlamps Note: presence of condensation on the internal face of the headlamps is normal... - Page 79 PRACTICAL INFORMATION 1. Sidelamps (W 5 W) CHANGING A BULB Front lamps 1. Sidelamps 2. Direction indicators 2. Direction indicators 3. Dipped headlamps/Main beam (PY 21 W amber) headlamps Note: presence of condensation on the internal face of the headlamps is normal...
- Page 80 PRACTICAL INFORMATION 3. Dipped headlamps/Main beam headlamps (H4 - 60/55 W) Rear lamps 1. Brake/side lamps (P 21/5 W) 2. Direction indicators (P 21 W) 3. Reversing lamp (P 21 W), left-hand side Foglamp (P 21 W), right-hand side...
- Page 81 PRACTICAL INFORMATION 3. Dipped headlamps/Main beam headlamps (H4 - 60/55 W) Rear lamps 1. Brake/side lamps (P 21/5 W) 2. Direction indicators (P 21 W) 3. Reversing lamp (P 21 W), left-hand side Foglamp (P 21 W), right-hand side...
- Page 82 PRACTICAL INFORMATION Number plate lamps (W 5 W) Third brake lamp (Four W 5 W bulbs) Note:...
-
Page 83: Changing A Fuse
PRACTICAL INFORMATION CHANGING A FUSE Removing and fitting a fuse Instrument panel fuse boxes DIRECTION INDICATOR SIDE REPEATERS (WY 5 W AMBER) Correct Incorrect Pliers A... - Page 84 PRACTICAL INFORMATION CHANGING A FUSE Removing and fitting a fuse Instrument panel fuse boxes DIRECTION INDICATOR SIDE REPEATERS (WY 5 W AMBER) Correct Incorrect Pliers A...
- Page 85 PRACTICAL INFORMATION CHANGING A FUSE Removing and fitting a fuse Instrument panel fuse boxes DIRECTION INDICATOR SIDE REPEATERS (WY 5 W AMBER) Correct Incorrect Pliers A...
- Page 86 PRACTICAL INFORMATION...
- Page 87 PRACTICAL INFORMATION Fuse N° Rating Functions 10 A 25 A 20 A 7.5 A 7.5 A 7.5 A 7.5 A 10 A 20 A 15 A 7.5 A 15 A 7.5 A 15 * 40 A 16 * 30 A 17 * 40 A...
- Page 88 PRACTICAL INFORMATION Engine compartment fuse box...
- Page 89 PRACTICAL INFORMATION Fuse N° Rating Functions 50 A 10 A 20 A 30 A 30 A 10 A 10 A 15 A 15 A/25 A 10 A 30 A 50 A ABS/ESP 50 A...
- Page 90 PRACTICAL INFORMATION BATTERY To start the vehicle from another battery: To charge the battery using a battery charger:...
- Page 91 PRACTICAL INFORMATION FITTING AUDIO EQUIPMENT Making the connections FITTING/REMOVING THE MAT * FITTING SPEAKERS...
-
Page 92: Fitting Roof Bars
PRACTICAL INFORMATION Lifting FITTING ROOF BARS (2 wheels only on the road) Never use the radiator crossmember. Maximum weight authorised on the bars, for a loading height not exceeding 40 cm (except bicycle TOWING YOUR VEHICLE carrier): 50 kg. height exceeds 40 cm, Your vehicle can only be towed at... - Page 93 PRACTICAL INFORMATION ACCESSORIES FOR YOUR 107 "Touring": "Universal": "In-Car Technology": "Protection": "Styling":...
-
Page 94: Technical Data
TECHNICAL DATA 10 10 PETROL ENGINES AND GEARBOXES Model codes PM, PN CFAC CFAC/P Engines Gearbox... - Page 95 TECHNICAL DATA 10 10 DIESEL ENGINES AND GEARBOXES Model codes PM, PN 8HTC Engines hp ) 1 398 Gearbox Manual (5-speed)
-
Page 96: 10 Technical Data
TECHNICAL DATA 10 10 FUEL CONSUMPTION - PETROL In accordance with EC Directive 80/1268 (as amended) litres/100 km (mpg) Emission of Model codes Engines Gearbox Urban Extra-urban Mixed by weight PM, PN (g/km) 1.0 litre Manual CFAC 1.0 litre " 2 Tronic " CFAC/P Quality of the fuel used for petrol engines WEIGHTS (IN KG) - PETROL... - Page 97 TECHNICAL DATA 10 10 FUEL CONSUMPTION - DIESEL In accordance with EC Directive 80/1268 (as amended) litres/100 km ( mpg ) Emission of Model codes Engines Gearbox Urban Extra -urban Mixed by weight PM, PN g/km 1.4 litre Manual 8HTC Turbo HDI Quality of the fuel used for Diesel engines WEIGHTS (IN KG) - DIESEL...
- Page 98 TECHNICAL DATA 10 10 DIMENSIONS (IN MM)
- Page 99 TECHNICAL DATA 10 10 IDENTIFICATION MARKINGS OF YOUR VEHICLE A. Manufacturer's plate. 3-door 5-door C. Tyres.
