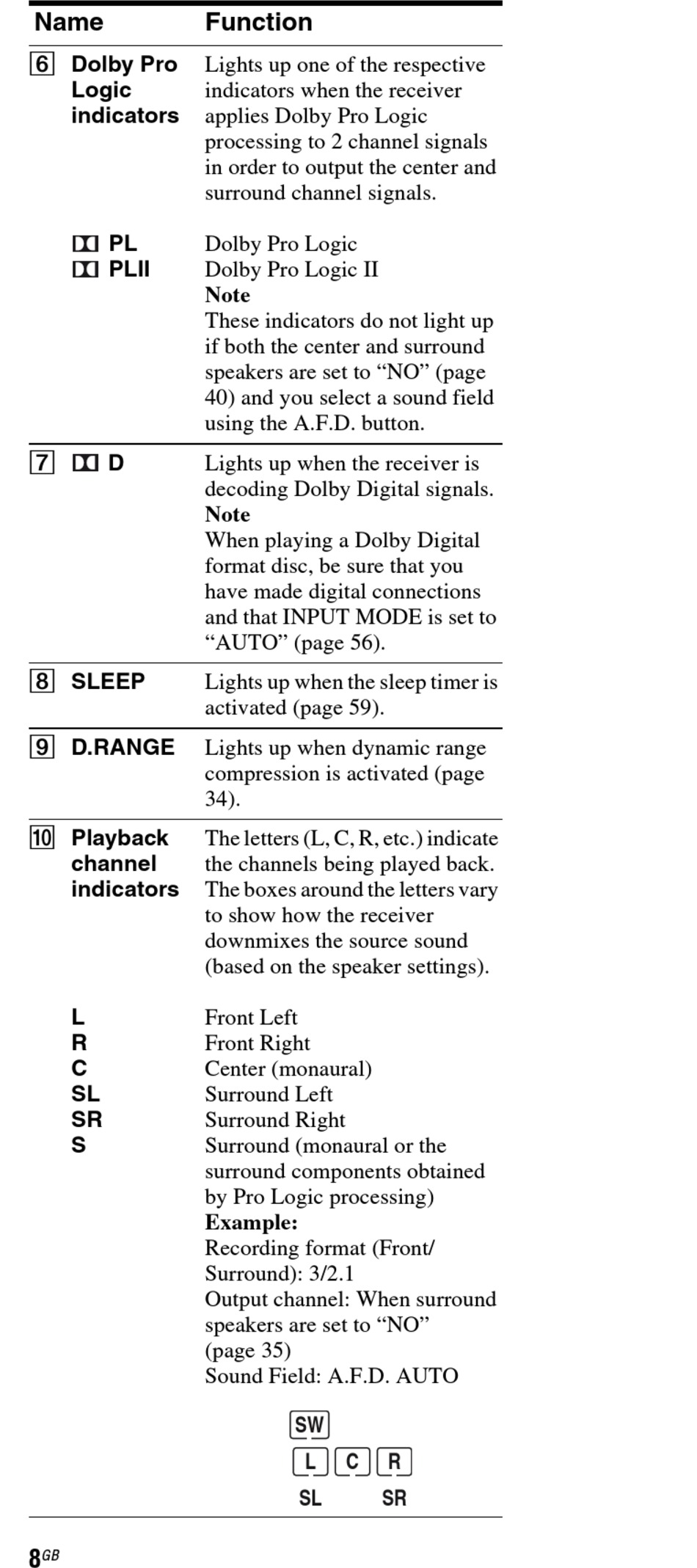

Sony STR-DH500 Operating Instructions Manual page 8

Name Function
F Dolby Pro
Lights up one of the respective
Logic
indicators when the receiver
indicators applies Dolby Pro Logic
processing to 2 channel signals
in order to output the center and
surround channel signals.
PL Dolby Pro Logic
PLII Dolby Pro Logic II
Note
These indicators do not light up
if both the center and surround
speakers are set to "NO" (page
40) and you select a sound field
using the A.F.D. button.
G
D Lights up when the receiver is
decoding Dolby Digital signals.
Note
When playing a Dolby Digital
format disc, be sure that you
have made digital connections
and that INPUT MODE is set to
"AUTO" (page 56).
H SLEEP
Lights up when the sleep timer is
activated (page 59).
I D.RANGE
Lights up when dynamic range
compression is activated (page
34).
J Playback
The letters (L, C, R, etc.) indicate
channel the channels being played back.
indicators The boxes around the letters vary
to show how the receiver
downmixes the source sound
(based on the speaker settings).
L Front Left
R
Front Right
C Center (monaural)
SL Surround Left
SR
Surround Right
S Surround (monaural or the
surround components obtained
by Pro Logic processing)
Example:
Recording format (Front/
Surround): 3/2.1
Output channel: When surround
speakers are set to "NO"
(page 35)
Sound Field: A.F.D. AUTO
8
GB
SW
L C R
SL SR
