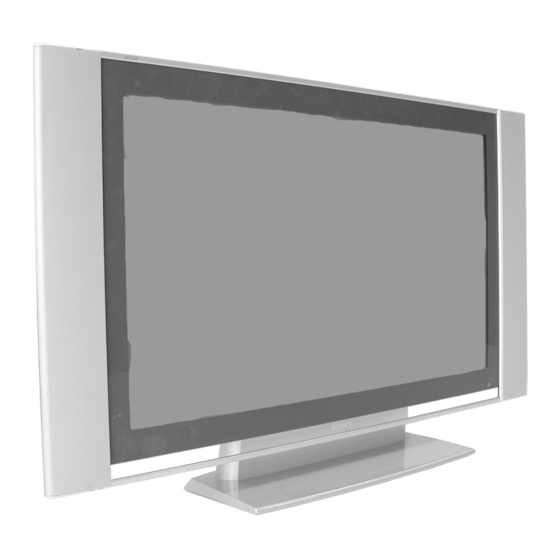

Sony KE-P37XS1 Quick Start Manual

Checking the
KE-P37XS1
KE-P42XS1
Accessories Supplied
Thank you for purchasing this Sony 1 Remote control (RM-Y1010):
product.
After following this step by step guide
2 Anchor attachments:
you will be able to:
Insert Batteries into the Remote
Control.
1 Main Lead (Type C-4):
Connect the AC Cable, Aerial and
VCR to your TV.
Do not remove ferrite cores.
Stabilize the TV set.
Select the language of the menu
screens.
1 Clump Belt:
Select the country in which you wish
to operate the set.
Tune your TV.
1 "Notes on Plasma" book.
Change the broadcast channels into
a different order.
Inserting Batteries into
View TV Programmes.
the Remote Control
GB
4-102-917-11 (1)
©2004 by Sony Corporation Printed in Spain
Ecological Paper - Totally Chlorine Free
1
2 Batteries (AA size): 1 Coaxial Cable:
1 Cleaning Cloth: 1 AV Mouse:
1 Main Lead (Type BF): 1 Main Lead (Type C-5):
Do not remove ferrite cores. Do not remove ferrite cores.
Use these mains leads • Use these mains leads (with
• Use these mains leads
(with safety earth) if safety earth) if you use the
(with safety earth) if you
you use the set set in the Swiss
use the set in the United
outside the United Kingdom. Confederation.
Kingdom and Ireland. • See "NOTICE FOR • These mains leads may not
CUSTOMERS IN THE be supplied depending on
UNITED KINGDOM the country.
and IRELAND" on
page 2 GB of the
instruction manual when
using these mains leads.
• These mains leads may not
be supplied depending on
the country.
2
Make sure you insert the supplied batteries using the correct polarities.
Always remember to dispose of used batteries in an environmentally friendly way.
3
Connecting the AC
Cable, Aerial and VCR
• Use the supplied mains lead (Type C-4, Type BF or Type C-5, see step 1).
• Use the supplied coaxial cable for aerial connection.
Connecting an aerial
Do not connect
to the mains
or
before all
connections
are complete.
Connecting a VCR with an aerial
OUT IN
For more details regarding VCR connection, refer to Do not connect
"Connecting Optional Equipment to the TV" on page 38 to the mains
of the instruction manual. before all
connections
are complete.
• The Scart lead is optional, however if you use a Scart lead to connect your VCR it can improve
picture and sound quality when using it.
• For more details of VCR connection, please refer to the section "Connecting Optional
Equipment" on page 38 of the instruction manual.
If you do not have a Scart lead, after automatically tuning the TV, tune in the VCR test signal to
the TV programme number "0" by using the "Manual Programme Preset" option. (for details of
how to manually programme these presets, see page 28, step A of the instruction manual).
Refer to your VCR instruction manual to find out how to find the output channel of your VCR.
4
Stabilizing the TV set
After setting up, secure the TV set to a wall, pillar, etc, using the supplied anchor
attachments, for a safety purposes.
1
Remove the two screws attached to the upper rear side of te TV set.
2
Replace the two screws with the two supplied anchor attachments.
3
Secure a wall anchor bracket (not supplied) to a solid wall or a pillar.
4
Pass a strong cord or chain trough both holes of the anchor attachments and then secure to a wall
or pillar, etc.
