2030 Camera/Mic Combo Board - Lenovo ThinkPad P15v Gen 2 Hardware Maintenance Manual

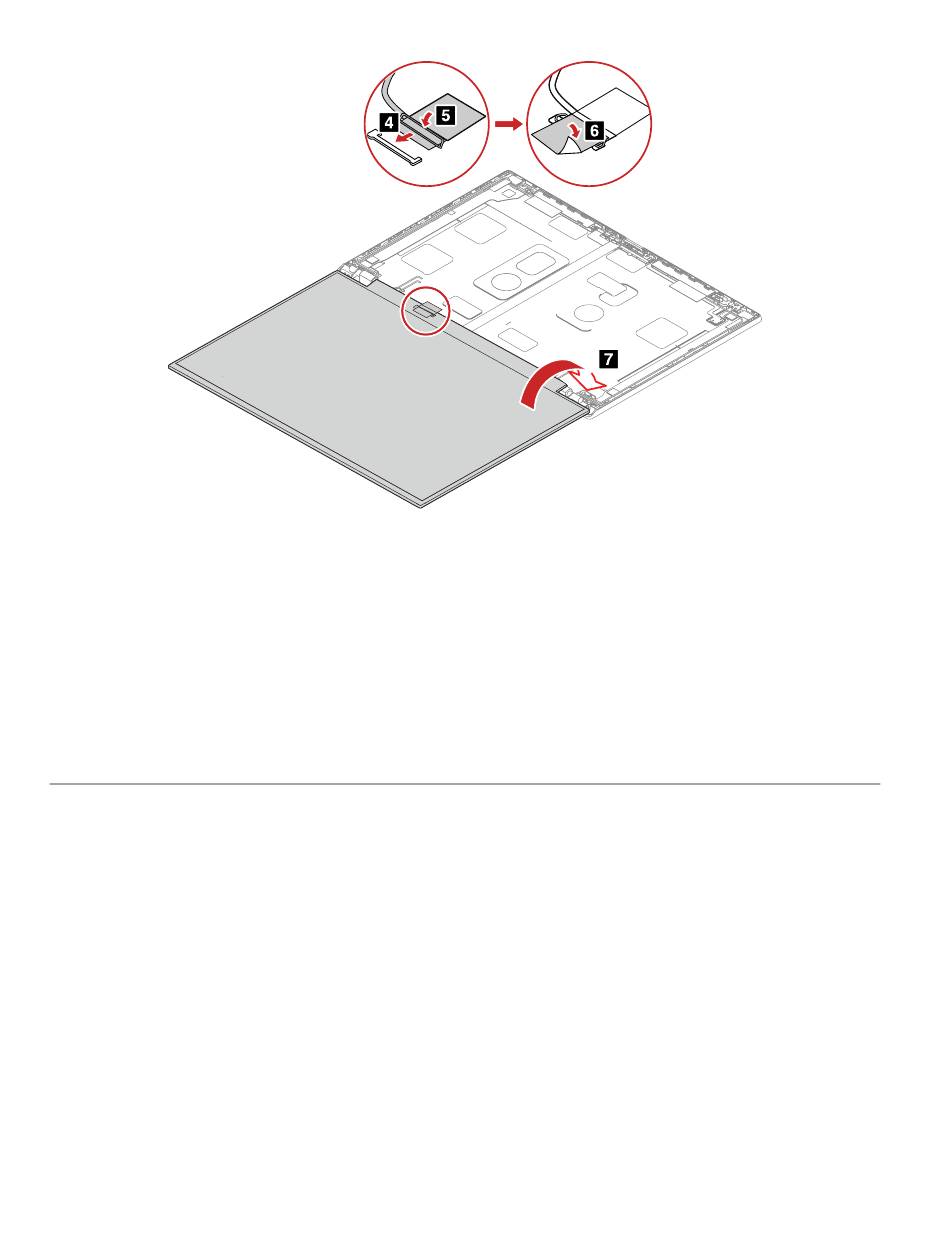

When installing: Ensure that the connector is attached firmly.
Notes: For LCD panel with the factory color calibration feature, do the following to install new color profiles:
1. Connect your computer to a network and close the X-Rite Color Assistant program.
2. Go to C:\Program files (x86)\X-Rite Color Assistant and locate the
ProfileUpdaterForDisplayReplacement exe file.
3. Double-click the EXE file. Follow the on-screen instructions to input the display serial number and click
Submit. You can find the display serial number and instructions on a sticker affixed to the front of the
new LCD part. When the new color profiles are installed successfully, a prompted window will be
displayed.

2030 Camera/mic combo board

For access, remove these FRUs in order:
• "1150 LCD unit" on page 77
• "2010 LCD bezel assembly" on page 79
• "2020 LCD panel" on page 80
82
ThinkPad P15v Gen 2 and T15p Gen 2 Hardware Maintenance Manual
