Tools And Materials Required; Remove The Packaging - Monogram ZV925 Installation Instructions Manual

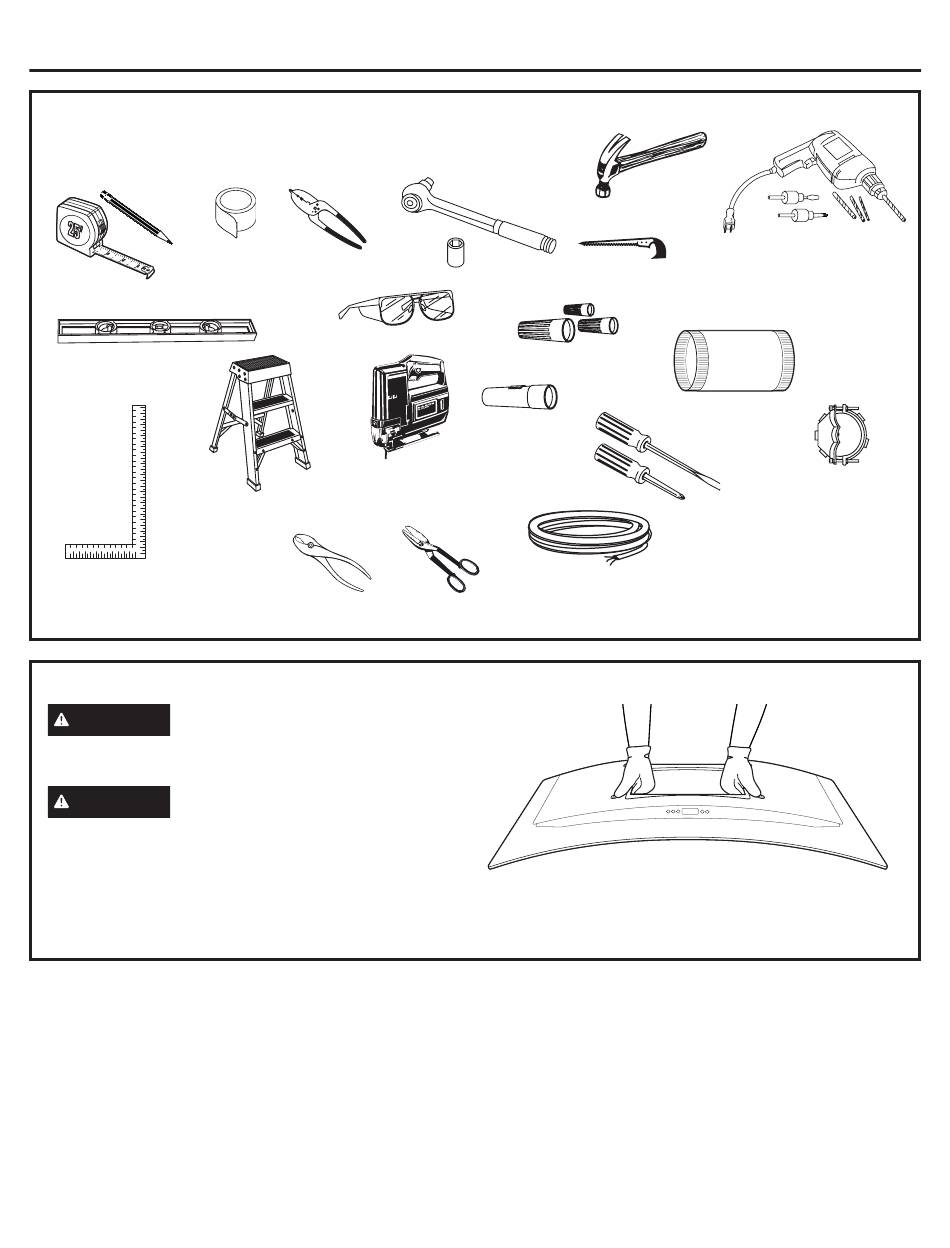

TOOLS AND MATERIALS REQUIRED

(NOT SUPPLIED)
Duct tape
Pencil and tape measure
Spirit level
Carpenter's square

REMOVE THE PACKAGING

CAUTION
LIFT THE HOOD OUT OF THE BOX
BY THE CENTER METAL PORTION. DO NOT LIFT BY
THE GLASS SIDES.
CAUTION
Wear gloves to protect against
sharp edges.
■ G rasp the hood by the metal insert in the center and
lift straight up and out of the box.
■ R emove and properly discard the plastic wrapping.
■ R emove parts box, duct covers and other packaging.
6
Installation Preparation
Wire cutter/stripper
Safety glasses
Saber saw
or sawsall
Step ladder
Pliers
Metal snips
3/8" swivel
socket or pivoting
hex socket with 6"
Hammer
extensions
Key hole saw
Wire nuts
Flashlight
Electric or battery-operated drill
and 3/16" bits, Phillips and flat
blade screwdriver bits.
8" round metal
duct, length to
suit installation.
Phillips and
flat blade
screwdrivers
Strain relief for
junction cover.
120V 60Hz. 15 or 20 Amp,
2-wire with ground. properly
grounded branch circuit.
1" = 2.5 cm; 1' = 0.3 m
