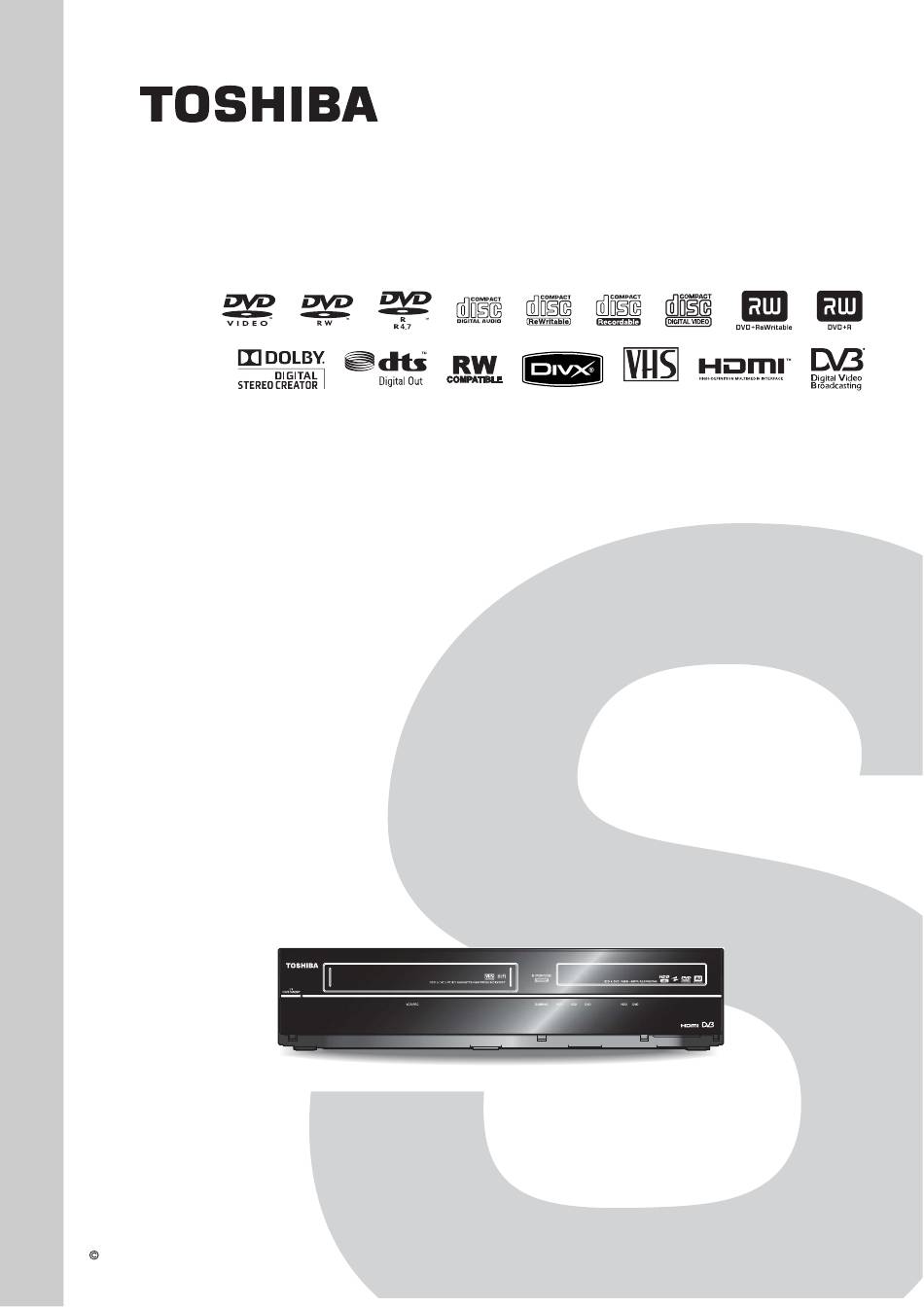

FILE NO. 810-200923GR
REVISED: 01
SERVICE MANUAL
PAL
SECAM
HDD & DVD
/ Video Cassette Recorder
RDXV49DTKF
The above model is classified as a green product (*1), as indicated by the underlined serial
number. This Service Manual describes replacement parts for the green product. When
repairing this green product, use the part(s) described in this manual and lead-free solder (*2).
For (*1) and (*2), see the next page.
TOSHIBA CORPORATION 2009
Published in Japan, May 2009 GREEN
