Summary of Contents for Toshiba W-422

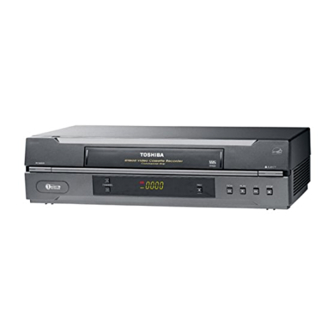

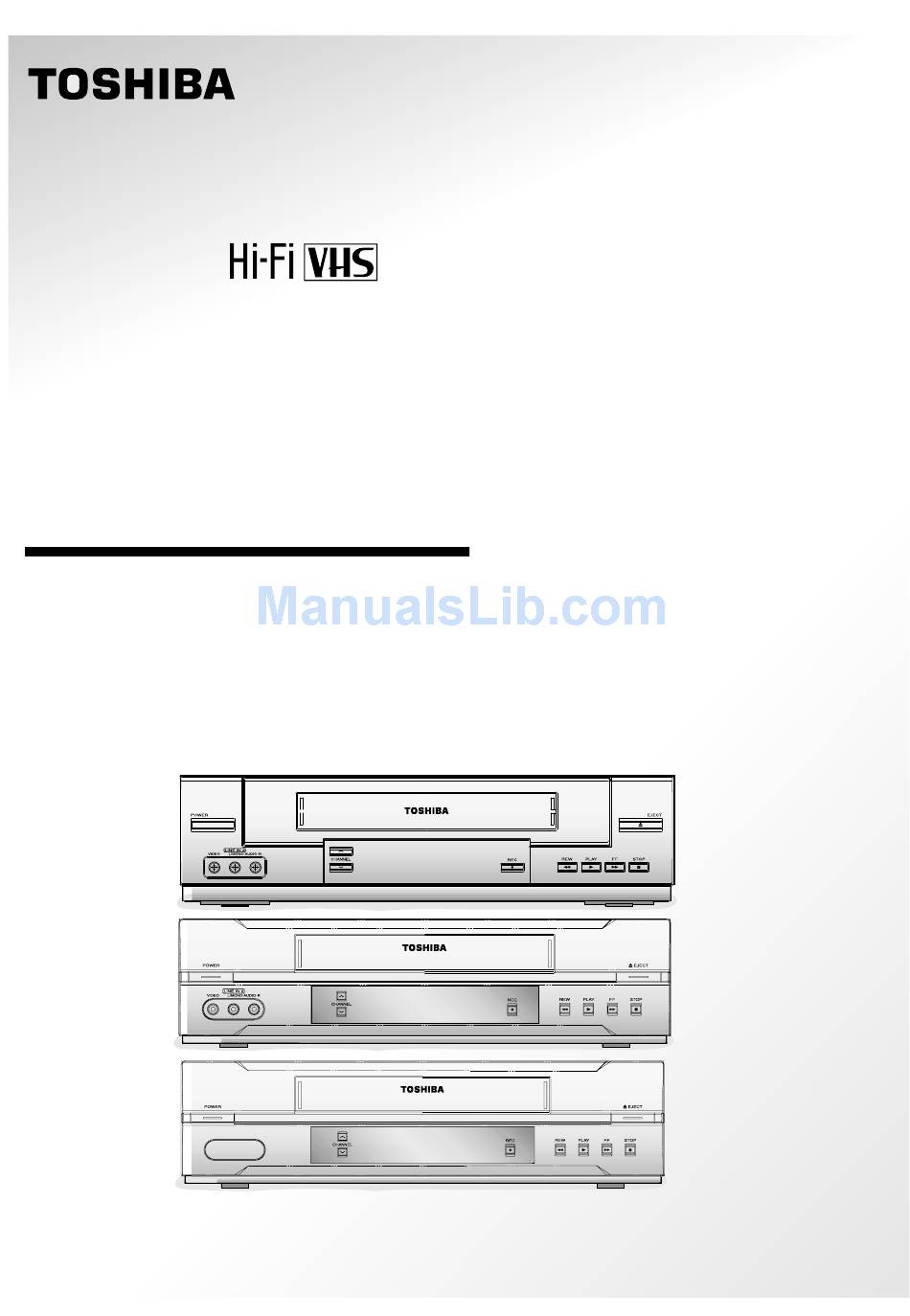

- Page 1 SQPB Video Cassette Recorder W-528 W-522 W-422 OWNER’S MANUAL...
-
Page 2: Safety Precautions
Address: 1420 Toshiba Drive, Lebanon, TN 37087 Telephone: 615-449-2360 User Installer Caution: Changes or modification made to this equipment not expressly approved by Toshiba Corporation or parties authorized by Toshiba Corporation could void the user’s authority to operate the equipment. Note to CATV system installer: This reminder is provided to call the CATV system installer’s attention to Article 820-40 of the NEC... -
Page 3: Important Precautions
HQ VHS equipment is also compatible with existing, non-HQ VHS equipment. As an E NERGY product model meets the E Save Original Packing Materials Avoid Volatile Liquid Moisture Condensation Compatibility ® Partner, TOSHIBA has determined that this product or ® guidelines for energy efficiency NERGY... -
Page 4: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS CAUTION: PLEASE READ AND OBSERVE ALL WARNINGS AND INSTRUCTIONS GIVEN IN THIS OWNER’S MANUAL AND THOSE MARKED ON THE UNIT. RETAIN THIS BOOKLET FOR FUTURE REFERENCE. This set has been designed and manufactured to assure personal safety. Improper use can result in electric shock or fire hazard. - Page 5 6. Water and Moisture Do not use this product near water - for example, near a bath tub, wash bowl, kitchen sink, or laundry tub; in a wet basement; or near a swimming pool and the like. 7. Cleaning Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners.
- Page 6 IMPORTANT SAFETY INSTRUCTIONS 12. Lightning For added protection for this product during storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the product due to lightning and power-line surges.
-
Page 7: Table Of Contents
• Recording off time setting Timer Program Recording ... 26 MTS Broadcast Compatibility ... 29 ADDITIONAL INFORMATION Remote Control for TOSHIBA TVs ... 30 Before Calling Service Personnel ... 31 Specifications ... 33 Accessories ... 33 Memo... 34 LIMITED WARRANTY ... -
Page 8: Identification Of Controls
(L/MONO, R) jacks LINE IN 2 VIDEO jack Front Panel model W-522 POWER Cassette compartment LINE IN 2 AUDIO (L/MONO, R) jacks LINE IN 2 VIDEO jack Front Panel model W-422 Cassette compartment POWER CHANNEL Remote Sensor Remote Sensor CHANNEL... -
Page 9: Remote Control
Remote Control To operate your TV. To operate this VCR. Number buttons A.SELECT (only for model W-528/W-522 ) PLAY * EJECT REW * SLOW DISPLAY REMAIN/COUNTER I.SELECT TV VOL VCR Display Cassette indicator VCR indicator Multifunctional indicator POWER CM SKIP A.SELECT EJECT PLAY... - Page 10 If the connected equipment is monaural (has one audio output jack), connect the L (MONO) side, the same sound is recorded on both L and R on the Hi-Fi track. Rear Panel model W-422 LINE OUT VIDEO jack To wall outlet...
-
Page 11: Rear Panel
PREPARATION How to Use the Remote Control This section explains how to get ready for remote control operation. Setting up the Remote Control Open the battery compartment lid on the rear panel. Install 2 batteries (“AA” size) following the polarity diagrams. Close the battery compartment lid. -
Page 12: Connections
VHF/UHF combination antenna Model:W-528 W-522 Model:W-422 Setting the VCR Output Channel When the VCR is connected in this way, the VCR sends the output signals to channel 3 or 4 on your TV. Set the output channel selector (CH selector) of the VCR to “3” or “4”, whichever is vacant in your area. - Page 13 – watch or record a channel through the cable box via the LINE IN 1 (AUDIO/VIDEO) jacks for W-528/W-522, LINE IN (AUDIO/VIDEO) jacks for W-422. You will need to: • press I.SELECT so that the VCR display shows “L1” for W-528/W-522,“L” for W-422.
-
Page 14: Auto Set Up
PREPARATION Auto Set Up The VCR’s clock and tuner channels are set automatically when the VCR is plugged into the AC outlet. POWER CM SKIP A.SELECT EJECT PLAY ENTER STOP SLOW PAUSE/STILL REMAIN/ COUNT DISPLAY SP/ SLP COUNTER RESET TIMER I.SELECT TV VOL PROG. -
Page 15: Initial Settings Using On-Screen Display
PREPARATION Initial Settings Using On-screen Display The language selection and clock setting must be set first when VCR is first plugged in or after it encounters a power failure. Preparation • Turn on the TV, and select the video channel (3 or 4), or the video input mode if you made the Audio/Video connection (page 12). -
Page 16: Setting The Clock
Setting the Clock Example: To set the clock to 2:30 p.m. on August 25 (summer time) 2002. Press PROG. . The MENU screen appears on the TV. Select “PRESET” using FF or REW , and press ENTER . Press ENTER to select “CLOCK SET”. Select “AUTO”... -
Page 17: Storing Channels On The Vcr
• Turn on the TV, and select the video channel (3 or 4), or the video input mode if you made the Audio/Video connection (page 12). • Press I.SELECT so that the channel number will appear if “L1 / L2”( For W-528/W-522 only ) or ”L”( For W-422 only) is displayed in the VCR display. POWER Number... - Page 18 Adding or erasing channels Adding channels If a desired channel cannot be scanned automatically because of a weak signal, it can be added to the memory. Erasing channels You can erase a stored channel from the memory if it is unnecessary. 1) Follow steps 1 to 3 of “Incoming Antenna/ CATV Signals”.
-
Page 19: Video Cassette Use
PREPARATION Video Cassette Use Video Cassette Use Loading a cassette Push the cassette into the cassette compartment with the window side facing up and the label side towards the front. The VCR is automatically turned on. The appear in the VCR display. Ejecting a cassette Press EJECT. -
Page 20: Playback
PLAYBACK Playback This section explains the basic playback operation. Preparation • Select the video channel (3 or 4) or video input mode on the TV. • Press VCR to set the remote control operating the VCR. POWER CH/TRK CM SKIP A.SELECT EJECT PLAY... -
Page 21: Variable Speed Playback
PLAYBACK Variable Speed Playback You can play back a tape at various tape speeds. Picture Search A tape runs at 5 times or 7 times the normal playback speed so POWER that you can quickly locate a particular scene. CM SKIP CM SKIP A.SELECT PLAY... -
Page 22: Frame Advance
Frame Advance A picture advances frame by frame. Press PLAY during still playback. Each time you press PLAY , the picture advances one frame. To resume normal playback Press PAUSE/STILL . Slow-motion Picture The tape runs at 1/7th or 1/15th the normal playback speed. Press SLOW during playback. -
Page 23: Useful Functions In Tape Operation
PLAYBACK Useful Functions in Tape Operation These functions will help your playback. Counter Function You can view the clock, linear time counter or tape remaining POWER time in the VCR display or on the TV screen. Each time you press REMAIN/COUNTER , the VCR display CM SKIP A.SELECT changes in sequence as follows:... -
Page 24: Memory Stop Feature
POWER CM SKIP A.SELECT ENTER EJECT PLAY PLAY ENTER STOP SLOW PAUSE/STILL STOP REMAIN/ COUNT DISPLAY COUNTER RESET SP/ SLP TIMER I.SELECT COUNT RESET TV VOL PROG. CANCEL PROG. REMAIN/ COUNTER DISPLAY Memory Stop Feature (Zero Return) On the SET UP screen, select “COUNTER MEM.”... -
Page 25: Recording
If you see “L1/ L2” (For W-528/W-522 only), or “L” (For W-422 only) in the VCR display, press ISELECT so that the channel number appears. • If you record cable channels via the cable box, make the output channel number of the cable box or “L1”(For W-528/W-522 only),... -
Page 26: Timer Program Recording
25 by pressing number buttons 2 and 5, PLAY or STOP. • You can make “L1/L2”(For W-528/W-522 only) or “ L” (For W-422 only) appear on the channel number position by pressing I.SELECT depending on your connection (See pages 13). - Page 27 Timer Program Recording (continued) Auto Speed Select If you are not sure the tape is long enough for timer program recording in the SP tape speed, set the recording tape speed to “AUTO”. Recording starts in the SP tape speed and the VCR automatically selects the tape speed to record the program to the end.
- Page 28 Confirming the timer programs Press PROG. during timer recording mode. The screen for confirming will appear. Press PROG .again to exit from confirmation page. Changing/cancelling the timer programs 1) If the TIMER indicator is lit, press both TIMER to turn it off, and then turn the VCR on by pressing VCR POWER .
-
Page 29: Mts Broadcast Compatibility
RECORDING MTS Broadcast Compatibility This VCR can receive or record MTS (Multichannel TV Sound) broadcasts. By connecting the VCR to your stereo system or stereo TV, you will experience the SAP or stereo sound. Preparation Connect a stereo TV or stereo system to the AUDIO OUT jacks of the VCR. POWER CM SKIP A.SELECT... -
Page 30: Additional Information
ADDITIONAL INFORMATION Remote Control for TOSHIBA TVs The remote control can control TOSHIBA TVs. POWER POWER CH/TRK CM SKIP A.SELECT Number buttons EJECT PLAY ENTER ENTER STOP SLOW PAUSE/STILL REMAIN/ COUNT DISPLAY RESET SP/ SLP COUNTER DISPLAY TIMER I.SELECT TV VOL PROG. -
Page 31: Before Calling Service Personnel
ADDITIONAL INFORMATION Before Calling Service Personnel Check the following symptoms before requesting servicing. No power. • The power cord is not plugged in. – Plug the power cord into the outlet firmly. Although the power is on, the VCR will not work. •... -
Page 32: The Remote Control Does Not Work
The remote control does not work properly. • The batteries are exhausted. – Replace all batteries. (page 11) • The remote control is operated beyond the operating range. – Make sure the remote control is within 30 of the remote sensor on the VCR. (page 11) •... -
Page 33: Specifications
Batteries (AA) ... 2 Designs and specifications are subject to change without notice. 120 V AC, 60 Hz 18 W (for W-528/W-522 only) 16 W (for W-422 only) 360 x 94 x 252mm (W.H.D.) 3.0 kg VHF: Channels 2–13 UHF: Channels 14–69... -
Page 34: Memo
TOSHIBA VIDEO CASSETTE RECORDER Toshiba America Consumer Products, Inc. (“TACP”) and Toshiba Hawaii Inc. (“THI”) make the following limited warranties. These limited warranties extend to the original consumer purchaser or any person receiving this set as a gift from the original consumer purchaser and to no other purchaser or transferee. -
Page 35: How To Obtain Warranty Service
Canadian consumers are requested to complete the special Canadian “Warranty Registration Form” enclosed and forward this completed form with a copy of bill of sale to TOSHIBA OF CANADA to “Register and Validate” their warranty. Product must be purchased from an Authorized Canadian Dealer.
