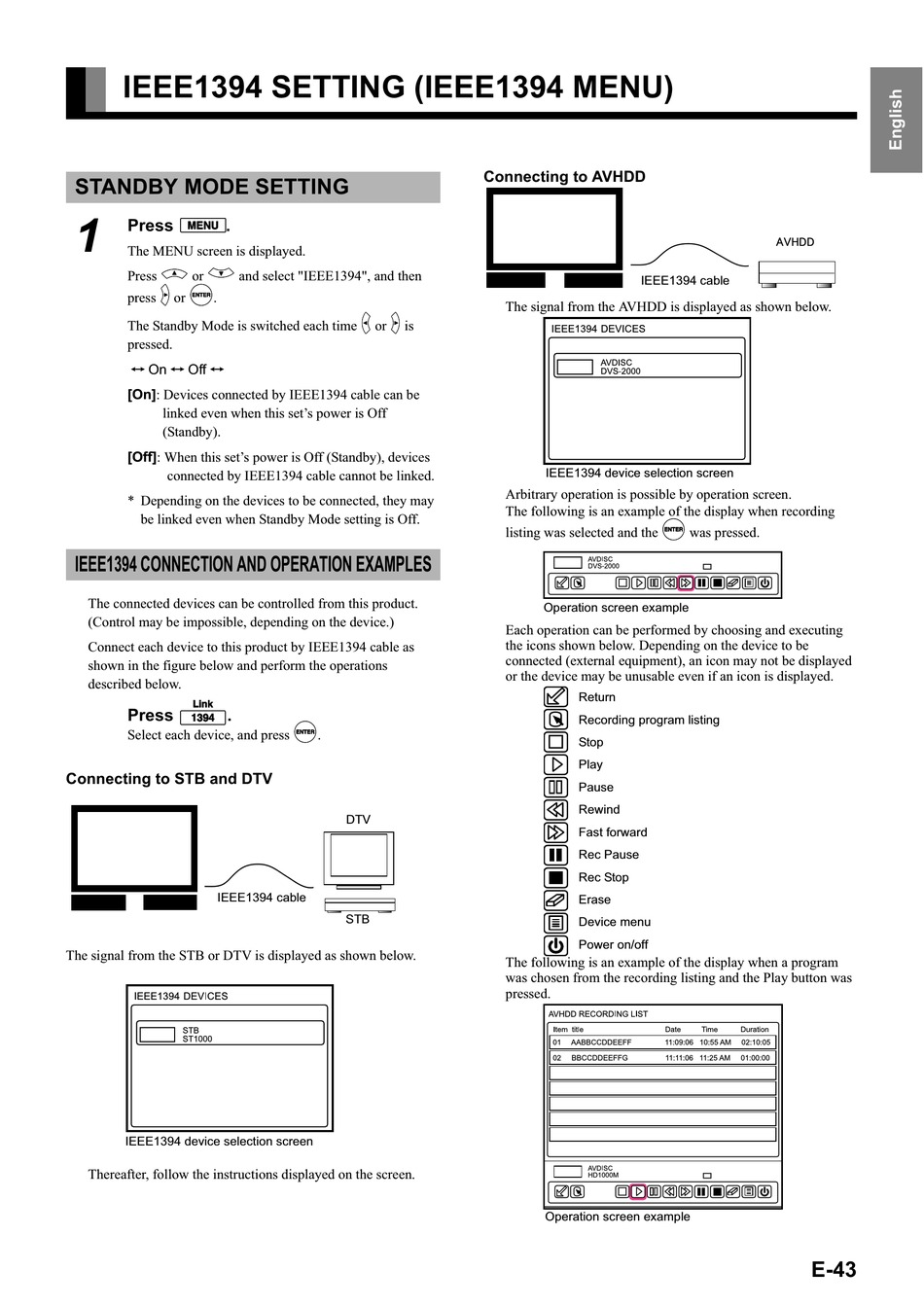

IEEE1394 SETTING (IEEE1394 MENU)

STANDBY MODE SETTING

1
Press .
The MENU screen is displayed.
Press or and select "IEEE1394", and then
press or .
The Standby Mode is switched each time
pressed.
On Off
[On]: Devices connected by IEEE1394 cable can be
linked even when this set's power is Off
(Standby).
[Off]: When this set's power is Off (Standby), devices
connected by IEEE1394 cable cannot be linked.
* Depending on the devices to be connected, they may
be linked even when Standby Mode setting is Off.

IEEE1394 CONNECTION AND OPERATION EXAMPLES

The connected devices can be controlled from this product.
(Control may be impossible, depending on the device.)
Connect each device to this product by IEEE1394 cable as
shown in the figure below and perform the operations
described below.
Press .
Select each device, and press
Connecting to STB and DTV
IEEE1394 cable
The signal from the STB or DTV is displayed as shown below.
IEEE1394 device selection screen
Thereafter, follow the instructions displayed on the screen.
Connecting to AVHDD
or is
.
DTV
STB
IEEE1394 cable
The signal from the AVHDD is displayed as shown below.
IEEE1394 device selection screen
Arbitrary operation is possible by operation screen.
The following is an example of the display when recording
listing was selected and the
Operation screen example
Each operation can be performed by choosing and executing
the icons shown below. Depending on the device to be
connected (external equipment), an icon may not be displayed
or the device may be unusable even if an icon is displayed.
Return
Recording program listing
Stop
Play
Pause
Rewind
Fast forward
Rec Pause
Rec Stop
Erase
Device menu
Power on/off
The following is an example of the display when a program
was chosen from the recording listing and the Play button was
pressed.
Operation screen example
was pressed.
E-43
