PRODUCT NO.
BASE MODEL NO.
GLGT1142CS0
GLGT1142C
WIRING DIAGRAM - 134217800
OWNER'S GUIDE - 131781700
INSTALLATION INSTRUCTIONS - 131661700
WASHER OPERATING INSTRUCTIONS - 134284800
DRYER OPERATING INSTRUCTIONS - 134284900
ELECTROLUX HOME PRODUCTS, INC.
P.O BOX 212378, AUGUSTA , GA 30917
FACTORY PARTS CATALOG
LAUNDRY CENTER
SERIES
MARKET
Frig Gallery
North America
Publication No.
5995396560
030925
-EN/SERVICE /KC
361
COLOR
white

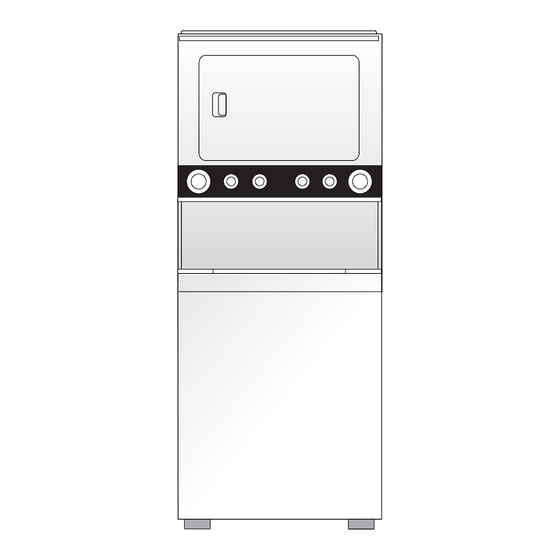

LAUNDRY CENTER
Model number
GLGT1142C
©2003 Electrolux Home Products, Inc.
All rights reserved
Advertisement
Related Manuals for Frigidaire GLGT1142C
Summary of Contents for Frigidaire GLGT1142C
- Page 1 PRODUCT NO. BASE MODEL NO. GLGT1142CS0 GLGT1142C WIRING DIAGRAM - 134217800 OWNER’S GUIDE - 131781700 INSTALLATION INSTRUCTIONS - 131661700 WASHER OPERATING INSTRUCTIONS - 134284800 DRYER OPERATING INSTRUCTIONS - 134284900 ELECTROLUX HOME PRODUCTS, INC. P.O BOX 212378, AUGUSTA , GA 30917...
- Page 2 Publication No. GLGT1142CS0 5995396560 UPPER CABINET / DRUM / HEATER 09/03...
- Page 3 POS. NO 26 # 33 # 54 # 59 # # = Functional Parts * = Non-Illustrated Parts GLGT1142CS0 UPPER CABINET / DRUM / HEATER PART NO DESCRIPTION 131084700 Panel,left side ,white 131168200 Screw,pan head ,8-18B x 0.31 131883301 Panel,top 131752302 Panel,rear ,steel ,galvanized 5303281019...
- Page 4 Publication No. GLGT1142CS0 5995396560 MOTOR / BLOWER / BELT 09/03...
- Page 5 Clamp,motor mtg. 134196600 Motor,dryer drive ,with pulley 134099900 Power Cord,electric svce 131731410 Shield,access area ,cover 134154100 Screw,hex washer head ,10-32 x 0.375,ground 3204320 Elbow,exhaust duct 131205100 Screw,#8 pan head ,10-10B x 0.500, cr/sq drive 3204324 Bracket,marriage ,interior 131751500 Screw,hex head ,12-24T 0.63...
-
Page 6: Control Panel
Publication No. GLGT1142CS0 5995396560 CONTROL PANEL 09/03... - Page 7 134136800 Wiring Harness,dryer control 134034950 Knob,rotary ,white 134200000 Switch,pressure ,infinite 131209800 Clamp,hose ,pressure switch 134217600 Wiring Harness,washer control, w/temp switch 134237200 Timer,washer 131447500 Switch,start ,turn type 5303283289 Screw,cr pan head ,8-32 x 0.250, thread forming 134040800 Switch,on/off ,white ,round 131621100...
- Page 8 Publication No. GLGT1142CS0 5995396560 LOWER CABINET / TOP 09/03...
- Page 9 Pin,panel locator ,front 134046600 Cabinet Assy,white ,back and sides 131106701 Bracket,marriage ,RH 131091001 Bracket,marriage ,LH 134101800 Lock,lid ,w/ext switch 131452510 Panel,washer top ,white 3204394 Dispenser,bleach 5303212876 Spring,lid assist 131243700 Screw,pan head ,8-18AB x 0.375, cr/sq drive 131744202 Damper,vibration Publication No.
- Page 10 5995396560 09/03 MOTOR / TUB 35 36 P17T0053...
- Page 11 Bushing,snap-in ,drain hose 131462500 Clip,drain hose ,base 131663500 Cushion,drain hose ,base 131306234 Clamp,pump to trap 131494800 Hose,pump to tub 134164400 Screw,hex washer head ,5/16-18 x 0.625 5304401845 Tube,pressure ,vinyl 131266800 Cap,dispenser 131206100 Cup,dispenser 131468900 Screw,agitator mtg ,5/16-18 x 1.250 131339600...
- Page 12 Publication No. GLGT1142CS0 5995396560 TRANSMISSION 09/03...
- Page 13 * = Non-Illustrated Parts GLGT1142CS0 TRANSMISSION PART NO DESCRIPTION 131475100 Hub,drive ,agitator 131878401 Transmission Assy,H+-helical gear 134197900 Screw,hex washer head ,1/4-20 x 0.437 5303279394 Seal Assy,tub ,transmission 131784300 Washer,bearing block ,transmission 131784400 Spacer,bearing block ,transmission 134284700 Energy Guide Publication No.
-
Page 14: Wiring Diagram
Publication No. GLGT1142CS0 5995396560 WIRING DIAGRAM 09/03...
