Ioline CrystalPress-II Manual

Sorter Bowl Alignment with the C-Stick
Before You Begin...
There are TWO (2) ways to align the CrystalPress C-Stick tip with the Sorter Bowl pockets; Side to Side (Carriage
Y Axis) and Front to Back (Sheet X Axis). The most common alignment process is Side to Side so those steps are
shown first. Front to Back alignment is very uncommon and Ioline recommends NOT performing it unless abso-
lutely necessary and only if Ioline Customer Service instructs you to do so.
IMPORTANT: Only perform these steps if directed by
Ioline Customer Service. Alignment is usually required if:
• Sorter Bowl is replaced
• Carriage is replaced
• Carriage Transmission is replaced
• Frequently dropped stones
• Stones frequently placed in sheet margin
• C-Stick will not pick up a stone
• Sorter Wheel is not lined up with the C-Stick
• Sorter Wheel continuously resets
• Frequent error lights on the machine
Initial Setup

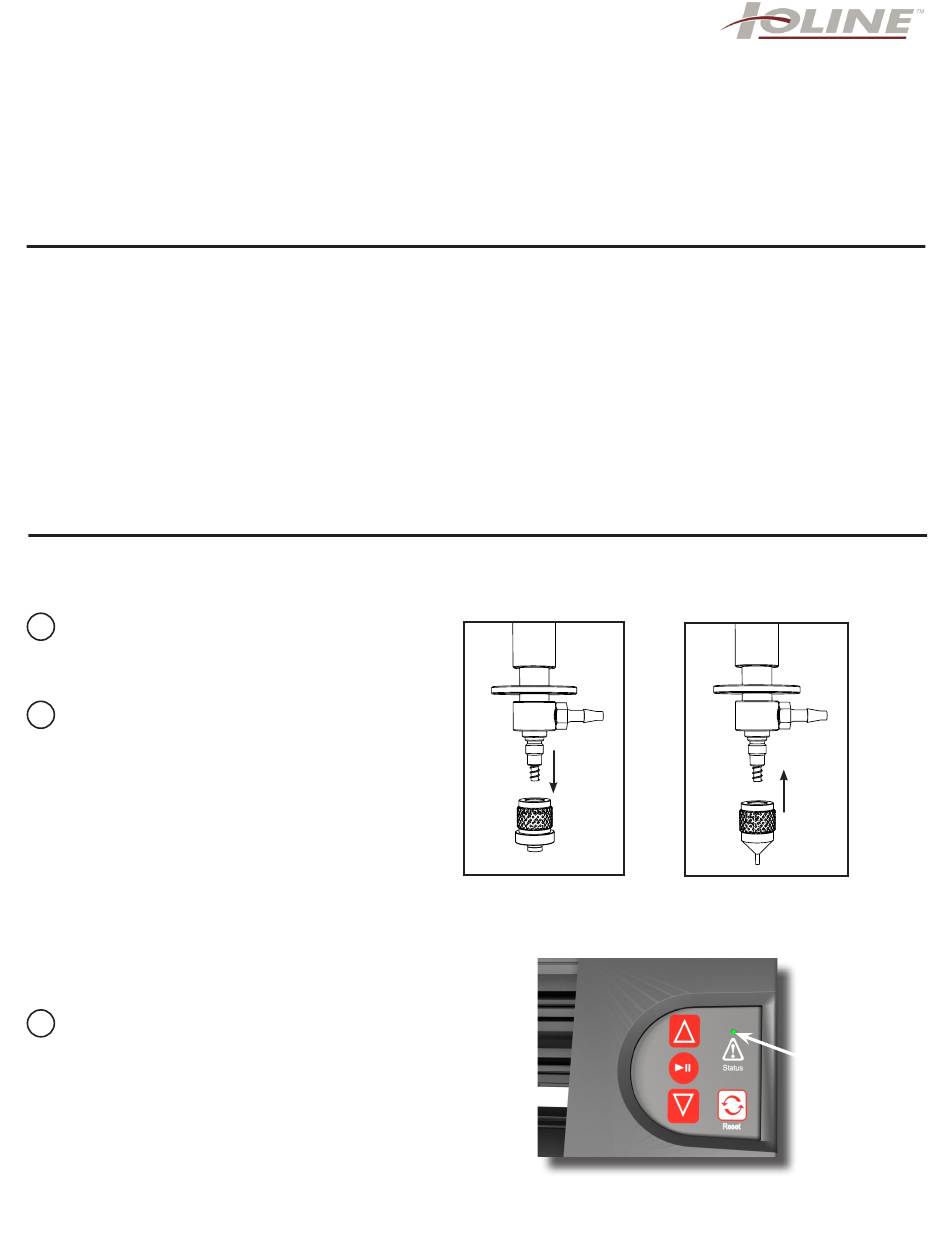

1 Power off the CrystalPress. Remove
the standard tip from the C-Stick
and install the Alignment Tip.
2
This process requires the smallest
Sorter Wheel you have (6ss wheel
is preferred). NOTE: check that you
can see light through all the small
holes in the pockets of the wheel
before proceeding. Clear any block-
age with a paperclip.
HINT: If you only have one small
wheel, perform these steps one
bowl at a time and re-use the wheel
in the other bowl after the first one
is aligned.
3
Install the Sorter Wheel(s) into the
Sorter Bowl(s) then power on the
CrystalPress. Wait for the start-up
process to finish. The LED on the
keypad will turn Green.
Machine: CrystalPress-II
P/N: 111063 R0
Required Tools and Materials:
• #2 Phillips Screwdriver
• 11/32" Socket and Ratchet Socket Wrench
• Alignment Tip, Ioline PN 111064-80
• 6ss or 10ss sorter wheel like Ioline PN:
- 110712 or 110952 (6ss)
- 110713, 110717 or 110951 (10ss)
• Rhinestones to use for testing
1
14140 NE 200th St.
Woodinville, WA 98072
1.425.398.8282
www.ioline.com
Green LED
