Page 1: Table Of Contents
Adjusting Oven Temperature ... 22 Questions? 1-800-944-904 (United States) Before You Call 1-800-668-4606 Solutions to Common Problems ... (Canada) Visit the Frigidaire Web Site at: http://www.frigidaire.com Warranty ... Back Page READ AND SAVE THESE INSTRUCTIONS p/n 316417112 rev C (0512)
Page 2: Welcome
Your satisfaction is our number one priority. We know you’ll enjoy your new range and Thank You for choosing our product. We hope you consider us for future purchases.
Page 3: Important Safety Instructions
Ask your dealer to recommend a qualified technician and an authorized repair service. Know how to disconnect the power to the range at the circuit breaker or fuse box in case of an emergency. • User servicing—Do not repair or replace any part of the appliance unless specifically recommended in the manuals.
Page 4 • Do Not Heat Unopened Food Containers—Buildup of pressure may cause container to burst and result in injury. • Remove the oven door from any unused range if it is to be stored or discarded. IMPORTANT—ELECTRIC IGNITION MODELS ONLY: Do not attempt to operate the oven during a power failure.
Page 5 See the INSTALLATION INSTRUCTIONS packaged with this range for complete installation and grounding instructions. Conversion to Liquefied Petroleum Gas (or L.P. Gas) PLEASE NOTE: This natural gas range is NOT designed for conversion to Liquefied Petroleum (L.P.) Gas. GROUNDING INSTRUCTIONS (electric ignition models only) Avoid fire hazard or electrical shock.
Page 6: Features At A Glance
28. Broil Pan Insert (some models). 29. Leveling Legs & Anti-tip Bracket (included). Burner Drip pans (some models). NOTE: The features of your range may vary according to model type & color. Features At A Glance Control & Indicator Light.
Page 7: Before Setting Oven Controls
Shelf Fig. 2 Oven Racks Your range is equipped with one or more Flat Oven Rack(s). Place the rack(s) into the positions shown in Fig. 2. See the Recommended Rack Positions in the chart above. Baking Layer Cakes with 1 or 2 Oven Racks For best results when baking cakes using 2 oven racks, place cookware on rack positions 1 &...
Page 8: Setting Surface Controls
Setting Surface Controls Setting Surface Controls Your range may be equipped with different sized surface burners. The ability to heat food quicker and in larger volumes increases as the burner size increases. The SIMMER burner (some models) is best used for simmering delicate sauces, etc.
Page 9: Oven Control Functions
READ THE INSTRUCTIONS CAREFULLY BEFORE USING THE OVEN. For satisfactory use of your oven, become familiar with the various pad functions of the oven as described below. CLOCK BAKE TIME PAD— Used PAD— Used to to set the enter the length of time of day.
Page 10: Setting Oven Controls
Note: The time of day must first be set in order to operate the oven. To Set the Clock When the range is first plugged in, or when the power supply to the range has been interrupted, the display will flash "12:00".
Page 11 To Set or Change the Temperature for Baking The oven can be programmed to bake at any temperature from 170°F to 550°F (77°C to 287°C). To Set the Controls for Baking: 1. Press . "— — —" appears in the display. 2.
Page 12 To Set the Timed Bake and Delay Start (Delayed Timed Bake) Features BAKE TIME and START TIME pads operate the features that will turn the oven ON and OFF at the times you select in advance. The oven can be programmed to start immediately and shut off automatically (Timed Bake) or to begin baking at a later time with a delayed start time (Delay Start).
Page 13 Speed Bake™ Cooking System Benefits of Speed Bake™ Cooking System: —Foods cook up to 25 to 30% faster, saving time and energy. —Multiple rack baking. —No special pans or bakeware needed. Fig. 1 General Cooking Instructions: For Baking: 1. For optimum cooking results it is recommended to preheat the oven when baking foods such as cookies, biscuits and breads. 2.
Page 14: Setting Oven Controls
To Set for Broiling: 1. Arrange the oven rack while oven is still cool. Position the rack as suggested in the Broil Rack Position Table below. 2. Press . " — — "will appear in display. 3. Press and hold the the display.
Page 15: Bake-N-Warm™ Double Oven
Bake-n-Warm™ Double Oven Dual Features of the Bake-n-Warm™ Double Oven The Bake-n-Warm™ Double Oven is designed to provide two unique food preparation features. The features provide a Mini Oven and a Warmer Drawer using the same lower oven cavity, drawer and control. The Mini Oven feature is ideal for cooking foods such as pizza, casseroles, baked potatoes and frozen convenience foods.
Page 16 Bake-n-Warm™ Double Oven Fig. 1 Fig. 2 Always use oven mitts when removing food from the Bake-n- Warm™ Double Oven. The drawer rack, drawer compartment, cookware and plates may be hot. Warmer Drawer Temperature Selection Recommended Warmer Drawer food settings are show in Fig. 3. If a particular food is not listed, start with the MED (medium) setting.
Page 17: Bake-N-Warm™ Double Oven
6. Replace the lower oven light with a 40 Watt Appliance light bulb (Refer to Fig.5). Be sure the range is unplugged and all parts are COOL before replacing oven light. Wear a leather-faced glove for protection against possible broken glass.
Page 18: Self Cleaning
During the Self-Cleaning cycle, the outside of the range can become very hot to the touch. DO NOT leave small children unattended near the appliance. The health of some birds is extremely sensitive to the fumes given off during the Self-Cleaning cycle of any range.
Page 19: Self Cleaning
Choose a Self-Clean Cycle Time Determine which Self-Clean Cycle time as required. Your appliance comes with two choices; hour Self-Clean cycle (for lighter soils) or instructions provided below. PLEASE NOTE: The kitchen area should be well ventilated using an open window, ventitlation fan or exhaust hood during the 1st Self-Clean cycle.
Page 20 Self-Cleaning models, which is essential for a good seal. Care should be taken not to rub, damage or remove this gasket. Your range finish is may be made with Easy Care™ Stainless Steel (some models). Clean the Easy Care™ Stainless stainless with warm soapy water using a clean sponge or cloth.
Page 21 4. Replace glass shield over bulb and snap wire holder into place. 5. Turn power back on again at the main source (or plug the range back in). 6. The clock will then need to be reset. To reset, see Setting the Clock and oven light.
Page 22: Adjusting Oven Temperature
Cleaning the Contoured Well Areas, Burner Cap, Burner Head and Burner Drip Pans he contoured well areas, burner cap, burner head and burner drip pans (some models) should be routinely cleaned. Keeping the burner ports clean will prevent improper ignition and an uneven flame. Refer to the following instructions: Note: The burner grate style shown above may be a different depending on your model.
Page 23: General Care & Cleaning
Place a level on the oven rack. Adjust leveling legs at base of range until the oven rack is level. (2) Be sure floor is level, strong & stable enough to adequately support range. (3) If floor is sagging or sloping, contact a carpenter to correct the situation.
Page 24: Warranty
Major Appliance Warranty Information Your appliance is covered by a one year limited warranty. For one year from your original date of purchase, Electrolux will pay all costs for repairing or replacing any parts of this appliance that prove to be defective in materials or workmanship when such appliance is installed, used and maintained in accordance with the provided instructions.

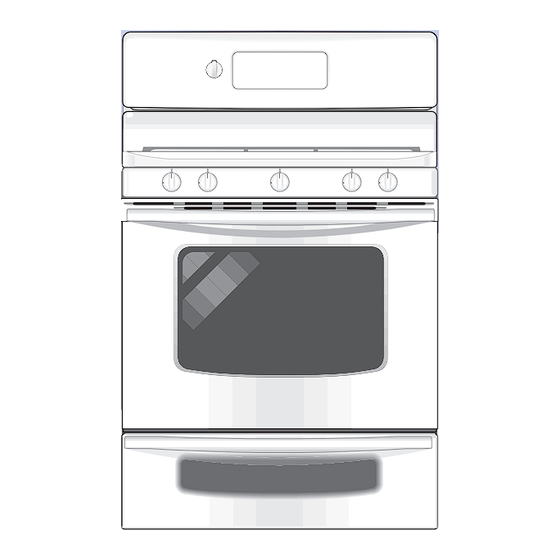

Frigidaire FGFLMC55ECA Use & Care Manual
