  • Page 1 PA-220R Next-Gen Firewall Hardware Reference docs.paloaltonetworks.com...
  • Page 2 Alto Networks. A list of our trademarks can be found at www.paloaltonetworks.com/company/ trademarks.html. All other marks menoned herein may be trademarks of their respecve companies. Last Revised October 28, 2020 PA-220R Next-Gen Firewall Hardware Reference 2021 Palo Alto Networks, Inc. ©...

  • Page 3: Table Of Contents

    Install the PA-220R Firewall on a Wall................22 Install the PA-220R Firewall in a 19-inch Equipment Rack..........24 Connect Power to a PA-220R Firewall............27 Prepare to Connect DC Power to a PA-220R Firewall............ 28 Connect DC Power to a PA-220R Firewall.................29 PA-220R Firewall Specificaons..............31 PA-220R Physical Specificaons...................
  • Page 4 Table of Contents PA-220R Next-Gen Firewall Hardware Reference 2021 Palo Alto Networks, Inc. ©...

  • Page 5: Before You Begin

    Before You Begin Read the following topics before you install or service a Palo Alto Networks next- ® generaon firewall or appliance. The following topics apply to all Palo Alto Networks firewalls and appliances except where noted. > Upgrade/Downgrade Consideraons for Firewalls and Appliances >...

  • Page 6: Upgrade/Downgrade ConsideraOns For Firewalls And Appliances

    20, then proceed with the upgrade. If the value the downgrade. If the is less than 20, then value is less than 20, contact support for then contact support for assistance. assistance. PA-220R Next-Gen Firewall Hardware Reference 2021 Palo Alto Networks, Inc. ©...

  • Page 7: Tamper Proof Statement

    • The integrity of the warranty label on the firewall or appliance is not compromised. (PA-7000 Series firewalls only) PA-7000 Series firewalls are modular systems and therefore do not include a warranty label on the firewall. PA-220R Next-Gen Firewall Hardware Reference 2021 Palo Alto Networks, Inc. ©...

  • Page 8: Third-Party Component Support

    Before You Begin Third-Party Component Support Before you consider installing third-party hardware, read the Palo Alto Networks Third-Party Component Support statement. PA-220R Next-Gen Firewall Hardware Reference 2021 Palo Alto Networks, Inc. ©...

  • Page 9: Product Safety Warnings

    Meez au rebut les baeries usagées conformément aux instrucons. • I/O ports are intended for intra-building connecons only and not intended for OSP (Outside Plant) connecons or any network connecons subject to external voltage surge events. PA-220R Next-Gen Firewall Hardware Reference 2021 Palo Alto Networks, Inc. ©...
  • Page 10 Toutefois, vous devez le faire dans les 45 secondes et vous ne pouvez remplacer qu’un roir à la fois, sinon le circuit de protecon thermique arrêtera le pare-feu. PA-220R Next-Gen Firewall Hardware Reference 2021 Palo Alto Networks, Inc. ©...
  • Page 11 (de service) qu'à l'aide d'un oul spécial, cadenas ou clé, ou autre disposif de sécurité, et qui est contrôlée par l'autorité responsable du site. PA-220R Next-Gen Firewall Hardware Reference 2021 Palo Alto Networks, Inc. ©...
  • Page 12 • A suitably-rated DC mains disconnect device must be provided as part of the building installaon. French Translaon: Un interrupteur d'isolement suffisant doit être fourni pendant l'installaon du bâment. PA-220R Next-Gen Firewall Hardware Reference 2021 Palo Alto Networks, Inc. ©...

  • Page 13: Pa-220R Firewall Overview

    First Supported Soware Release: PAN-OS ® The following topics describe the hardware features and the status LEDs of the PA-220R firewall. To view or compare performance and capacity informaon, refer to Product Selecon tool. > PA-220R Front Panel >...

  • Page 14: Pa-220R Front Panel

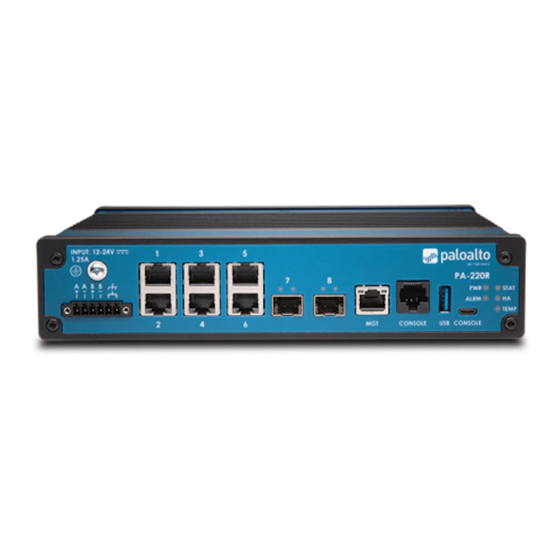

    PA-220R Firewall Overview PA-220R Front Panel The following image shows the front panel of the PA-220R firewall and the table describes each front-panel component. Item Component Descripon Screw-on ground point Use this ground point to connect the firewall to earth ground (ground cable not included).
  • Page 15 Windows driver or to learn how to connect from a Mac computer. LED status indicators Five LEDs that indicate the status of the firewall hardware components (see PA-220R Status LEDs). PA-220R Next-Gen Firewall Hardware Reference 2021 Palo Alto Networks, Inc. ©...

  • Page 16: Pa-220R Back Panel

    PA-220R Firewall Overview PA-220R Back Panel The following image shows the back panel of the PA-220R firewall. The only usable components on the back panel are the two screw holes used to Install the PA-220R Firewall on a DIN Rail.

  • Page 17: Pa-220R Status Leds

    PA-220R Firewall Overview PA-220R Status LEDs The following table describes how to interpret the status LEDs on the PA-220R firewall. Descripon • Green—The firewall is powered on. PWR (Power) • Off—The firewall is not powered on or an error occurred with the internal power system (for example, power is not within tolerance levels).
  • Page 18 LEDs • Right LED—Blinking green indicates network acvity. SFP LEDs These ports have one green LED: • Solid green indicates a network link. • Blinking green indicates network acvity. PA-220R Next-Gen Firewall Hardware Reference 2021 Palo Alto Networks, Inc. ©...

  • Page 19: Install The Pa-220R Firewall

    Install the PA-220R Firewall The PA-220R next-generaon firewall ships with the hardware required to install the firewall on a flat surface or on a DIN rail. You can also order a wall-mount kit to install the firewall on a wall or a rack-mount kit to install the firewall in a 19” equipment rack.

  • Page 20: Install The Pa-220R Firewall On A Flat Surface

    Install the PA-220R Firewall Install the PA-220R Firewall on a Flat Surface Aach the rubber pads to the recessed circles on the boom of the firewall and then place the firewall right-side up on a flat stable surface. PA-220R Next-Gen Firewall Hardware Reference 2021 Palo Alto Networks, Inc.

  • Page 21: Install The Pa-220R Firewall On A Din Rail

    Install the PA-220R Firewall on a DIN Rail The following procedure describes how to install the PA-220R firewall using the DIN rail kit that is provided with the firewall. You can aach the DIN bracket to either the back or to the boom surface of the firewall (choose the opon that best fits the installaon site).

  • Page 22: Install The Pa-220R Firewall On A Wall

    Install the PA-220R Firewall Install the PA-220R Firewall on a Wall The following procedure describes how to install the PA-220R firewall on a wall using the wall- mount kit. You can purchase the wall-mount kit separately from the Palo Alto Networks Sales Department an authorized reseller.
  • Page 23 • Plywood—Hold the firewall up to the wall where you will install it and then use a Phillips- head screwdriver to mount the bracket to the wall using four 3/4” plywood screws. PA-220R Next-Gen Firewall Hardware Reference 2021 Palo Alto Networks, Inc.

  • Page 24: Install The Pa-220R Firewall In A 19-Inch Equipment Rack

    Install the PA-220R Firewall in a 19-inch Equipment Rack The following procedure describes how to install the PA-220R firewall in a two-post or four-post equipment rack using the 19-inch rack-mount kit. You can purchase the 19-inch rack-mount kit separately from the...
  • Page 25 3/4” or #12-24 x 1/2”) for your rack and torque to 25 in-lbs. Use cage nuts (not provided) to secure the screws if the rack has square holes. The weight of the product is not enough to require mounng to the rear posts of the four-post rack. PA-220R Next-Gen Firewall Hardware Reference 2021 Palo Alto Networks, Inc. ©...
  • Page 26 Install the PA-220R Firewall PA-220R Next-Gen Firewall Hardware Reference 2021 Palo Alto Networks, Inc. ©...

  • Page 27: Connect Power To A Pa-220R Firewall

    Connect Power to a PA-220R Firewall The following topics describe how to prepare the hardware that is required to connect power to a PA-220R firewall and how to connect ground and DC power to the firewall. > Prepare to Connect DC Power to a PA-220R Firewall >...

  • Page 28: Prepare To Connect Dc Power To A Pa-220R Firewall

    Connect Power to a PA-220R Firewall Prepare to Connect DC Power to a PA-220R Firewall Use the following informaon to gather and prepare the hardware that is required to Connect DC Power to a PA-220R Firewall. Due to the various cable lengths required for a given installaon site, DC power and ground cables are not included with the firewall.

  • Page 29: Connect Dc Power To A Pa-220R Firewall

    Connect Power to a PA-220R Firewall Connect DC Power to a PA-220R Firewall The following procedure describes how to connect DC power to a PA-220R firewall. Before you connect power, read the PA-220R Electrical Specificaons Prepare to Connect DC Power to a PA-220R Firewall.
  • Page 30 Connect Power to a PA-220R Firewall STEP 3 | Insert the posive DC cable into terminal A+ and secure the cable by turning the flat-head terminal screw clockwise unl ght. Insert the negave cable into terminal A- and secure the cable using the terminal screw.

  • Page 31: Pa-220R Firewall SpecificaOns

    PA-220R Firewall Specificaons The following topics describe the hardware specificaons for the PA-220R firewall. For feature, capacity, and performance informaon, refer to the PA-220R firewall datasheet. > PA-220R Physical Specificaons > PA-220R Electrical Specificaons > PA-220R Environmental Specificaons > PA-220R Miscellaneous Specificaons...

  • Page 32: Pa-220R Physical SpecificaOns

    PA-220R Firewall Specificaons PA-220R Physical Specificaons The following table describes PA-220R firewall physical specificaons. Specificaon Value Dimensions and Rack units (U) Firewall Dimensions 2.0” H x 8.66” D x 9.25” W (5.08cm H x 22cm D x 23.5cm W) The depth measurement includes hardware that protrudes from the front of the firewall.

  • Page 33: Pa-220R Electrical SpecificaOns

    Maximum input voltage range 10-60VDC Power consumpon 13-17W Maximum current consumpon 1.4A@12VDC Maximum inrush current 4.9A@12VDC If you want to power the PA-220R with AC power, you must order the PAN-PWR-60W-AC adapter. PA-220R Next-Gen Firewall Hardware Reference 2021 Palo Alto Networks, Inc. ©...

  • Page 34: Pa-220R Environmental SpecificaOns

    PA-220R Firewall Specificaons PA-220R Environmental Specificaons The following table describes PA-220R firewall environmental specificaons. Specificaon Value Operang temperature range -40°F to 158°F (-40° to 70°C) Non-operang temperature -40°F to 167°F (-40° to 75°C) Humidity tolerance 5% to 90% non-condensing Airflow The PA-220R firewall uses passive cooling and...

  • Page 35: Pa-220R Miscellaneous SpecificaOns

    PA-220R Firewall Specificaons PA-220R Miscellaneous Specificaons The following table describes PA-220R firewall miscellaneous specificaons. Specificaon Value Storage capacity One 32GB solid-state drive (SSD) for the PAN-OS system files, system logs, and network traffic logs. Mean me between failures (MTBF) 29 years PA-220R Next-Gen Firewall Hardware Reference 2021 Palo Alto Networks, Inc.
  • Page 36 PA-220R Firewall Specificaons PA-220R Next-Gen Firewall Hardware Reference 2021 Palo Alto Networks, Inc. ©...

  • Page 37: Pa-220R Firewall Hardware Compliance Statements Overview

    Our products meet standards for product safety and electromagnec compability when used for their intended purpose. To view compliance statements for the PA-220R firewall, see PA-220R Firewall Hardware Compliance...

  • Page 38: Pa-220R Firewall Hardware Compliance Statements

    PA-220R Firewall Hardware Compliance Statements Overview PA-220R Firewall Hardware Compliance Statements The following are the PA-220R firewall hardware compliance statements: • BSMI EMC Statement—User warning: This is a Class A product. When used in a residenal environment it may cause radio interference. In this case, the user will be required to take adequate measures.
  • Page 39 PA-220R Firewall Hardware Compliance Statements Overview • VCCI—This secon provides the compliance statement for the Voluntary Control Council for Interference by Informaon Technology Equipment (VCCI), which governs radio frequency emissions in Japan. The following informaon is in accordance to VCCI Class A requirements: Translaon: This is a Class A product.
  • Page 40 PA-220R Firewall Hardware Compliance Statements Overview PA-220R Next-Gen Firewall Hardware Reference 2021 Palo Alto Networks, Inc. ©...
