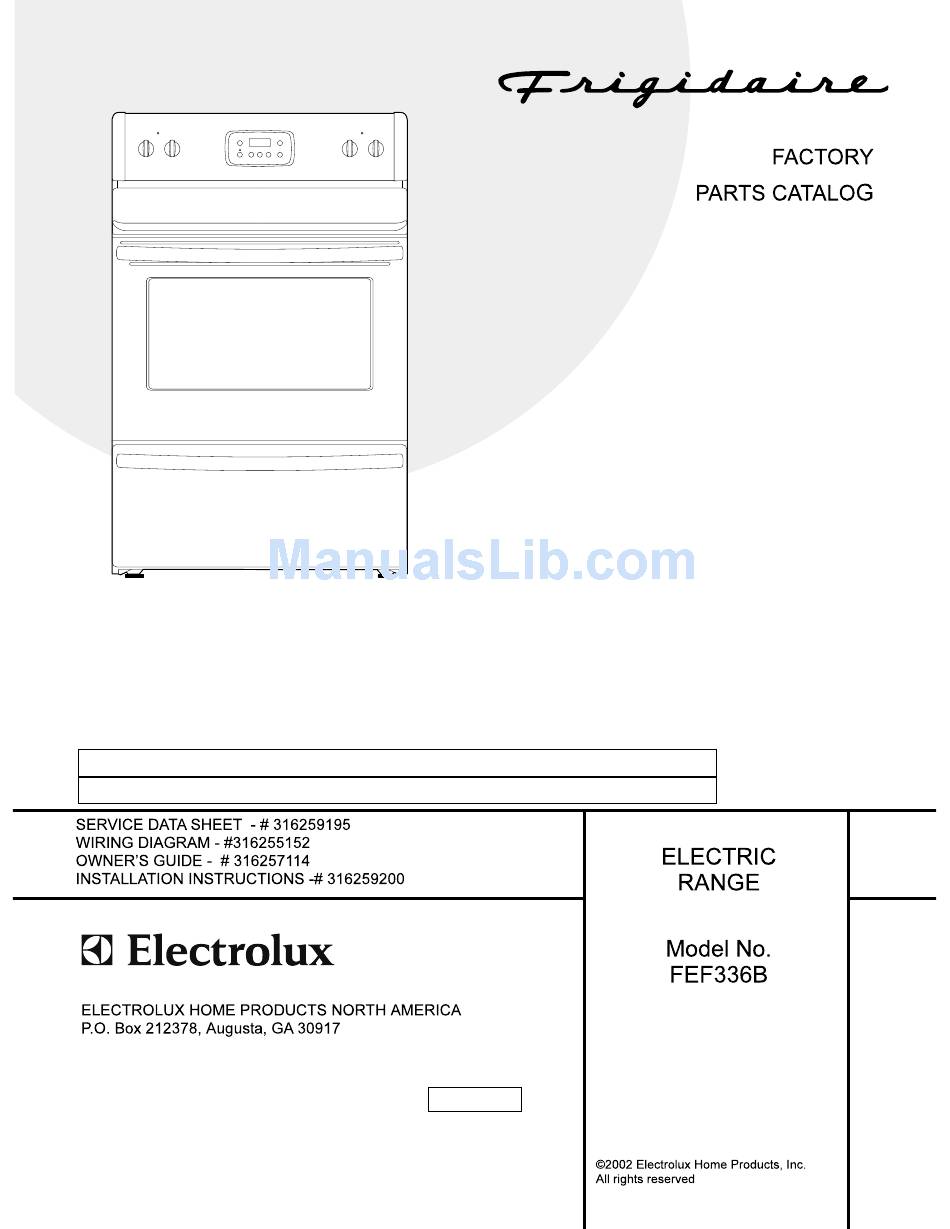

- Page 1 PRODUCT NO. BASE MODEL NO. FEF336BCA FEF366B COLOR MARKET stainless North America Publication No. 5995370383 020418 -EN/SERVICE /ECL...
- Page 2 BACKGUARD 04/02...
- Page 3 BACKGUARD POS. NO PART NO DESCRIPTION 316239900 Shield,backguard ,rear wall 316248900 Spacer,shield ,rear wall 316241000 Shield,end cap ,RH 316241001 Shield,end cap ,LH 316022500 Light/Lamp,warmer,indicator ,drawer/zone,125 V 316220216 Support,backguard ,black ,RH 316220217 Support,backguard ,black ,LH 316240905 End Cap,black ,RH 316240904 End Cap,black ,LH 316246621 Panel,backguard ,black 20 #...
- Page 4 BODY 04/02...
- Page 5 BODY POS. NO PART NO DESCRIPTION 316201300 Back,main 316230104 Panel,bodyside ,black ,RH 316230105 Panel,bodyside ,black ,LH 316129200 Screw,leveling ,plastic ,with stop 316067902 Rack,oven 316212906 Hinge,oven door ,RH 316212907 Hinge,oven door ,LH 3203540 Panel,oven bottom 316081900 Pan,broiler 316082000 Insert,broiler pan 316116400 Receptacle,oven light 5303013071 Bulb/Lamp,oven light...
- Page 6 TOP/DRAWER 04/02...
- Page 7 TOP/DRAWER POS. NO PART NO DESCRIPTION 316011503 Drawer 316231500 Liner,drawer 316248800 Panel,drawer ,stainless 3051163 Glide,drawer ,rear 15 # 316010206 Element,surface ,8" ,2200 W ,radiant 15A# 316010205 Element,surface ,6" ,1200 W ,radiant 15B# 316224200 Element,surface ,9" ,2500W ,radiant 316251903 Main Top Assy,glass/steel ,black 316235900 Hinge,main top ,RH 316235901...
- Page 8 DOOR 04/02...
- Page 9 DOOR POS. NO PART NO DESCRIPTION 316240000 Glass,oven door ,black ,outer 316222711 Shield,wool ,black ,oven door 316237100 Glass,oven door ,clear ,inner 316230605 Liner,oven door 316001015 Screw,waf hd sq ,10-24 x 1.25 ,(2) ,handle mtg 316001016 Screw,handle mtg ,10-12 X .750 316008401 Washer,3/4 OD x 1/4 ID ,steel 316239700...
-
Page 10: Wiring Schematic
WIRING SCHEMATIC 04/02... -
Page 11: Wiring Diagram
WIRING DIAGRAM...
