OWNER'S MANUAL
DVD Receiver System
Please read this manual carefully before operating
your set and retain it for future reference.
FOR THE WARRANTY TERMS & CONDITIONS,
PLEASE REFER TO BACK COVER OF THIS MANUAL.
MODEL

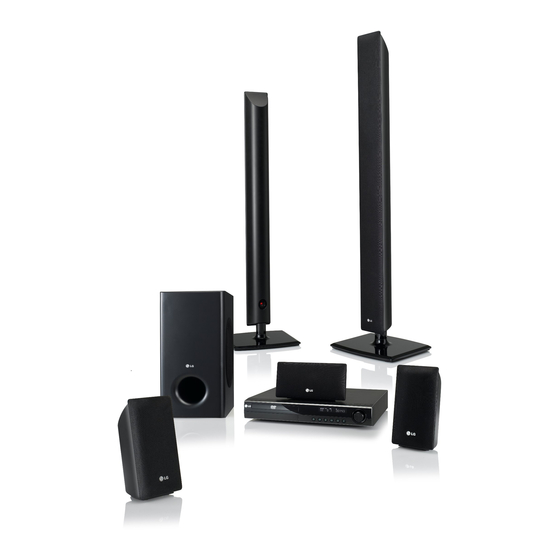

HT805PH (HT805PH, SH85PH-F/ S/ C/ W)
P/NO : MFL63284296
HT805PH-D0_BGBRLL_ENG_4296.indd 1
2010-03-02 ¿ÀÈÄ 3:48:10
Advertisement
Table of Contents
Related Manuals for LG HT805PH
Summary of Contents for LG HT805PH
- Page 1 Please read this manual carefully before operating your set and retain it for future reference. FOR THE WARRANTY TERMS & CONDITIONS, PLEASE REFER TO BACK COVER OF THIS MANUAL. MODEL HT805PH (HT805PH, SH85PH-F/ S/ C/ W) P/NO : MFL63284296 HT805PH-D0_BGBRLL_ENG_4296.indd 1 2010-03-02 ¿ÀÈÄ 3:48:10...
-
Page 2: Caution
To prevent direct exposure to laser beam, do not try to open the enclosure. Visible laser radiation when open. DO NOT STARE INTO BEAM. HT805PH-D0_BGBRLL_ENG_4296.indd 2 CAUTION: The apparatus shall not be exposed to water (dripping or splashing) and no objects filled with liquids, such as vases, shall be placed on the apparatus. -
Page 3: Safety Information
LG Electronics hereby declares that this/ these product(s) is/are in compliance with the essential requirements and other relevant provisions of Directive 2004/108/EC, 2006/95/EC, and 2009/125/EC. - Page 4 AND 625p UNIT, PLEASE CONTACT OUR CUSTOMER SERVICE CENTER. You have to set the disc format option to [Mastered] in order to make the discs compatible with the LG players when formatting rewritable discs. When setting the option to Live File System, you cannot use it on LG players.
- Page 5 N or coloured black. The wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red. HT805PH-D0_BGBRLL_ENG_4296.indd 5 2010-03-02 ¿ÀÈÄ 3:48:11...
-
Page 6: Table Of Contents
Attaching the speakers to the unit Positioning the system Connections to Your TV Component Video Connection HDMI Out Connection Video Connection SCART Connection HT805PH-D0_BGBRLL_ENG_4296.indd 6 Resolution Setting Video Output Resolution Optional Equipment Connection AUX IN Connection AUDIO (PORT. IN) In Connection... - Page 7 Improving poor FM reception Seeing information about a radio station Sound adjustment Setting the surround mode Advanced Operations Recording to USB Maintenance Notes on Discs Handling the Unit HT805PH-D0_BGBRLL_ENG_4296.indd 7 Troubleshooting Troubleshooting Appendix Language Codes Area Codes Trademarks and Licenses Specifications Warranty Warranty Contents 2010-03-02 ¿ÀÈÄ...
-
Page 8: Unique Features
Views Full HD picture quality with simple setup. Home Theater Speaker ez Setup listens sound form TV, DVD and Digital device with vivid 5.1 (2.1 or 2.0) ch mode. HT805PH-D0_BGBRLL_ENG_4296.indd 8 Accessories Please check and identify the supplied accessories. Remote control (1) -
Page 9: Introduction
” may appear on your TV display during operation and indicates that the function explained in this owner’s manual is not available on that disc. HT805PH-D0_BGBRLL_ENG_4296.indd 9 Symbol Used in this Manual All discs and file listed below MP3 files DVD and finalized DVD±R/RW... -
Page 10: Playable File Requirement
• File extensions: “.jpg” • CD-ROM file format : ISO9660/ JOLIET HT805PH-D0_BGBRLL_ENG_4296.indd 10 DivX file requirement DivX file compatibility with this unit is limited as follows : • Available resolution: within 720x576 (W x H) pixels. -
Page 11: Remote Control
• • • • • • • • • • a • • • • • • • • • t RADIO&INPUT: Changes input sources. MARKER : Marks play list. HT805PH-D0_BGBRLL_ENG_4296.indd 11 1 POWER : Switches the unit ON or OFF. Z OPEN/CLOSE : Opens and closes the disc Drawer. - Page 12 REPEAT : Selects a play mode. (Repeat/ Random) • • • • • • • • • • f • • • • • • • • • TV Control buttons : Controls the TV. (LG TV only) z REC : USB Direct Recording. : This button is not available.
-
Page 13: Front Panel
(SKIP) > Go to next or previous file/track/chapter. Searches backward or forward (Press and hold) Tunes in the desired radio station. HT805PH-D0_BGBRLL_ENG_4296.indd 13 i h g f e (STOP) Stops playback. (PLAY / PAUSE) Starts playback. Pause playback temporarily, press again to exit pause mode. -
Page 14: Rear Panel
FM- Connects the FM wired antenna e SCART connetcor f VIDEO OUT Connects to a TV with video inputs. HT805PH-D0_BGBRLL_ENG_4296.indd 14 g HDMI OUT (type A) Connects to TV with HDMI inputs. (Interface for digital audio and video) h OPTICAL IN Connects to optical audio equipment. -
Page 15: Installation
Before connecting the speakers, assemble the speakers. Please check the items for assembling the speakers. Pakage contents Speaker Stand HT805PH-D0_BGBRLL_ENG_4296.indd 15 Attach the speakers to the speaker stands by rotateing the screws. Installation 2010-03-02 ¿ÀÈÄ 3:48:14... -
Page 16: Attaching The Speakers To The Unit
-(minus) and the other end to the terminals marked + (plus). . Connect the wires to the speakers. Connect the other end of each wire to the correct speaker according to the color coding: HT805PH-D0_BGBRLL_ENG_4296.indd 16 Color Speaker Position Grey Rear... -
Page 17: Positioning The System
( A ). HT805PH-D0_BGBRLL_ENG_4296.indd 17 A Front left speaker (L)/ B Front right speaker (R): Place the front speakers to the sides of the monitor or screen and as flush with the screen surface as possible. -
Page 18: Connections To Your Tv
• Do not connect your unit via your VCR. The image could be distorted by the copy protection system. HT805PH-D0_BGBRLL_ENG_4296.indd 18 Component Video Connection Connect the COMPONENT VIDEO OUTPUT (PROGRESSIVE SCAN) jacks on the unit to the corresponding input jacks on the TV using component cables. -
Page 19: Hdmi Out Connection
• When you use HDMI connection, you can change the resolution for the HDMI output. (Refer to “Resolution Setting” on page 21.) HT805PH-D0_BGBRLL_ENG_4296.indd 19 NOTE • If a connected HDMI device does not accept the audio output of the unit, the HDMI device ’s audio sound may be distorted or may not... -
Page 20: Video Connection
TV using a video cable. You can hear the sound through the system’s speakers. Video Connection HT805PH-D0_BGBRLL_ENG_4296.indd 20 SCART Connection Connect the SCART jack on the unit to the SCART in jack on the TV using a SCART cable. -
Page 21: Resolution Setting
If your TV does not accept the resolution you have set on the player, you can set resolution to 480p (or 576p) as follows: Press x (STOP) for more than 5 seconds. HT805PH-D0_BGBRLL_ENG_4296.indd 21 Video Output Resolution Displayed resolution in display window and outputted resolution may different according to connection type. -
Page 22: Optional Equipment Connection
(TV, VCR, etc.) NOTE If your TV has only one output for audio (mono), connect it to the left (white) audio jack on the unit. HT805PH-D0_BGBRLL_ENG_4296.indd 22 AUDIO (PORT. IN) In Connection Connect an output of portable device (MP3 or PMP etc) to the AUDIO (PORT. IN) input connector. -
Page 23: Usb Connection
1. Choose a different function mode or press STOP (x) twice in a row. 2. Remove the USB device from the unit. HT805PH-D0_BGBRLL_ENG_4296.indd 23 Compatible USB Devices • MP3 Player : Flash type MP3 player. • USB Flash Drive : Devices that support USB2.0 or USB1.1. -
Page 24: Optical In Connection
3. Listen sound with 5.1(2.1 or 2)ch speaker. 4. To escape from AUX OPT by using the OPTICAL. Function is retuned to previous one. HT805PH-D0_BGBRLL_ENG_4296.indd 24 Antenna Connection Connect the supplied FM antenna for listening to the radio. Connect the FM Wire antenna to the FM antenna connector. -
Page 25: Adjust The Setup Settings
2. Use U u I i to select a language then press ENTER. The confirm menu will appear. 3. Use I i to select the [Enter] then press ENTER to finish the language setup. HT805PH-D0_BGBRLL_ENG_4296.indd 25 To display and exit the Setup menu 1. Press HOME. -
Page 26: Language
TV screen. [4:3] Select when a standard 4:3 TV is connected. [16:9] Select when a 16:9 wide TV is connected. HT805PH-D0_BGBRLL_ENG_4296.indd 26 Display Mode The Display Mode setting works only when the TV Aspect mode is set to 4:3. [Letterbox] Displays a wide picture with bands on the upper and lower portions of the screen. -
Page 27: Audio
3. Use I i to select the desired speaker. 4. Adjust options using U u I i buttons. 5. Returns to the previous menu by pressing O RETURN. HT805PH-D0_BGBRLL_ENG_4296.indd 27 Installation [Speaker selection] Select a speaker that you want to adjust. -
Page 28: Lock (Parental Control)
(on the remote control) to scroll up and down through the delay amount, which you can set at anything between 0 and 300m sec. HT805PH-D0_BGBRLL_ENG_4296.indd 28 Lock (Parental Control) Initial Setting the Area Code: When you use this unit for the first time, you have to set the Area Code. -
Page 29: Others
4. Press ENTER and select the second character using U u buttons. 5. Press ENTER to confirm your Area code selection. HT805PH-D0_BGBRLL_ENG_4296.indd 29 Others DivX VOD We provide you with the DivX® VOD (Video On Demand) registration code that allows you to rent and purchase videos using the DivX®... -
Page 30: Operation
You can not select the [Music], [Movie] or [Photo] option when the USB device is not connected or a disc is not inserted. HT805PH-D0_BGBRLL_ENG_4296.indd 30 Basic Operations 1. Insert the disc by using the Z OPEN/ CLOSE or Connect the USB device to the USB port. -
Page 31: Other Operations
Slowing down select the required speed. the playing (DVD, DivX only) The DivX speed file cannot be slow down reverse playback. HT805PH-D0_BGBRLL_ENG_4296.indd 31 Other Operations Do this Displaying Disc Information on-screen You can display various information about the disc loaded on-screen. -
Page 32: To Display The Dvd Menu
2. Press B (PLAY), MONO/STEREO again to exit. Screen Saver The screen saver appears when you leave the unit in Stop mode for about five minutes. HT805PH-D0_BGBRLL_ENG_4296.indd 32 Starting play from selected time DivX To start playing at any chosen time on the file or title. -
Page 33: Marked Playback
ENTER. [Mark Play] Marked playback. [Current Play] Normal playback HT805PH-D0_BGBRLL_ENG_4296.indd 33 NOTE If you want to select all files on the list, select [Select All] and press ENTER. To delete a Marker 1. Use U u to select the track that you wish to erase from the marked file. -
Page 34: Viewing A Photo File
STEREO vVbB U u I i Move Select ENTER O Close RETURN HT805PH-D0_BGBRLL_ENG_4296.indd 34 About help menu in the full screen. Menu Menu Prev./ Next next file list. O Close Options while viewing a photo You can use various options during viewing a photo in full screen. -
Page 35: Sleep Timer Setting
If you load a disc that has the scene memorized, the scene is automatically recalled. HT805PH-D0_BGBRLL_ENG_4296.indd 35 System Select - Optional You must select the appropriate system mode for your TV system. Press and hold X (PAUSE/ STEP) for more than five seconds to be able to select a system in the [Home] menu. -
Page 36: Radio Operations
3. Adjust the volume by rotating VOLUME on the front panel or by pressing VOL (+/- )on the remote control repeatedly. HT805PH-D0_BGBRLL_ENG_4296.indd 36 Presetting the Radio Stations You can preset 50 stations for FM. Before tuning, make sure that you have turned down the volume. -
Page 37: Seeing Information About A Radio Station
PTY in use. Press PTY one or more times to select your preferred programme type. Press I i . The tuner will search automatically, when a station is found the search will stop. HT805PH-D0_BGBRLL_ENG_4296.indd 37 Operation 2010-03-02 ¿ÀÈÄ 3:48:18... -
Page 38: Sound Adjustment
This program lends an enthusiastic atmosphere to CLASSIC the sound, giving you the JAZZ feeling you are at an actual ROCK rock pop, jazz or classic concert. HT805PH-D0_BGBRLL_ENG_4296.indd 38 On Display MP3 OPT BASS LOUDNESS VIRTUAL PLII MOVIE PLII MUSIC Description BYPASS •... -
Page 39: Advanced Operations
MP3/ WMA The other sources (Tuner, AUX, Portable) HT805PH-D0_BGBRLL_ENG_4296.indd 39 NOTE • You can check the recording percentage rate for the USB record on the screen during the recording. (Audio CD or MP3/ WMA CD only) • During recording MP3/WMA, there is no sound. -
Page 40: Maintenance
Do not use strong solvents such as alcohol, benzine, thinner, commercially available cleaners, or anti-static spray intended for older vinyl records. HT805PH-D0_BGBRLL_ENG_4296.indd 40 Handling the Unit When shipping the unit Please save the original shipping carton and packing materials. If you need to ship the unit, for maximum protection, re-pack the unit as it was originally packed at the factory. -
Page 41: Troubleshooting
There is an obstacle in the path between work well / at all the remote control and the unit. The battery in the remote control are flat. HT805PH-D0_BGBRLL_ENG_4296.indd 41 CAUSE Plug the power cord into the wall outlet securely. Select the appropriate video input mode on the TV so the picture from the unit appears on the TV screen. -
Page 42: Appendix
7282 Czech 6783 Danish 6865 Dutch 7876 English 6978 Esperanto 6979 Estonian 6984 Faroese 7079 Fiji 7074 Finnish 7073 HT805PH-D0_BGBRLL_ENG_4296.indd 42 Language Code Language French 7082 Lithuanian Frisian 7089 Macedonian Galician 7176 Malagasy Georgian 7565 Malay German 6869 Malayalam Greek... -
Page 43: Area Codes
Colombia Congo Costa Rica Croatia Czech Republic Denmark Ecuador Egypt El Salvador Ethiopia Fiji Finland France Germany Great Britain Greece HT805PH-D0_BGBRLL_ENG_4296.indd 43 Area Code Greenland Paraguay Hong Kong Philippines Hungary Poland India Portugal Indonesia Romania Israel Russian Federation Italy Saudi Arabia... -
Page 44: Trademarks And Licenses
Pause, Scan, Skip, Stop, Power Off, etc. • Refer to the TV owner’s manual for the details of SIMPLINK function. • LG TV with SIMPLINK function has the logo as shown above. • Use a higher version cable than 1.2 A HDMI cable. -
Page 45: Specifications
PORT. IN: 0.5 Vrms (3.5 mm stereo jack) Tuner FM Tuning Range: 87.5 to 108.0 MHz or 87.50 to 108.00 MHz HT805PH-D0_BGBRLL_ENG_4296.indd 45 Amplifier • Stereo mode: 136 W + 136 W (4 Ω at 1 KHz) • Surround mode: Front 136 W + 136 W (4 Ω... -
Page 46: Warranty
2. The dealer (or his service agent) who sold the product will be reimbursed for any labour provided in the repair of this LG equipment, for a period of 12 months from the original date of purchase. These claims must be made in accordance with the published scale of service charges and relevant claims procedure. - Page 47 HT805PH-D0_BGBRLL_ENG_4296.indd 47 2010-03-02 ¿ÀÈÄ 3:48:20...
