SETUP INSTRUCTIONS
2014
65 SX
Art. no. 3213088en

Advertisement

loading

Related Manuals for KTM 65 SX 2014

Summary of Contents for KTM 65 SX 2014

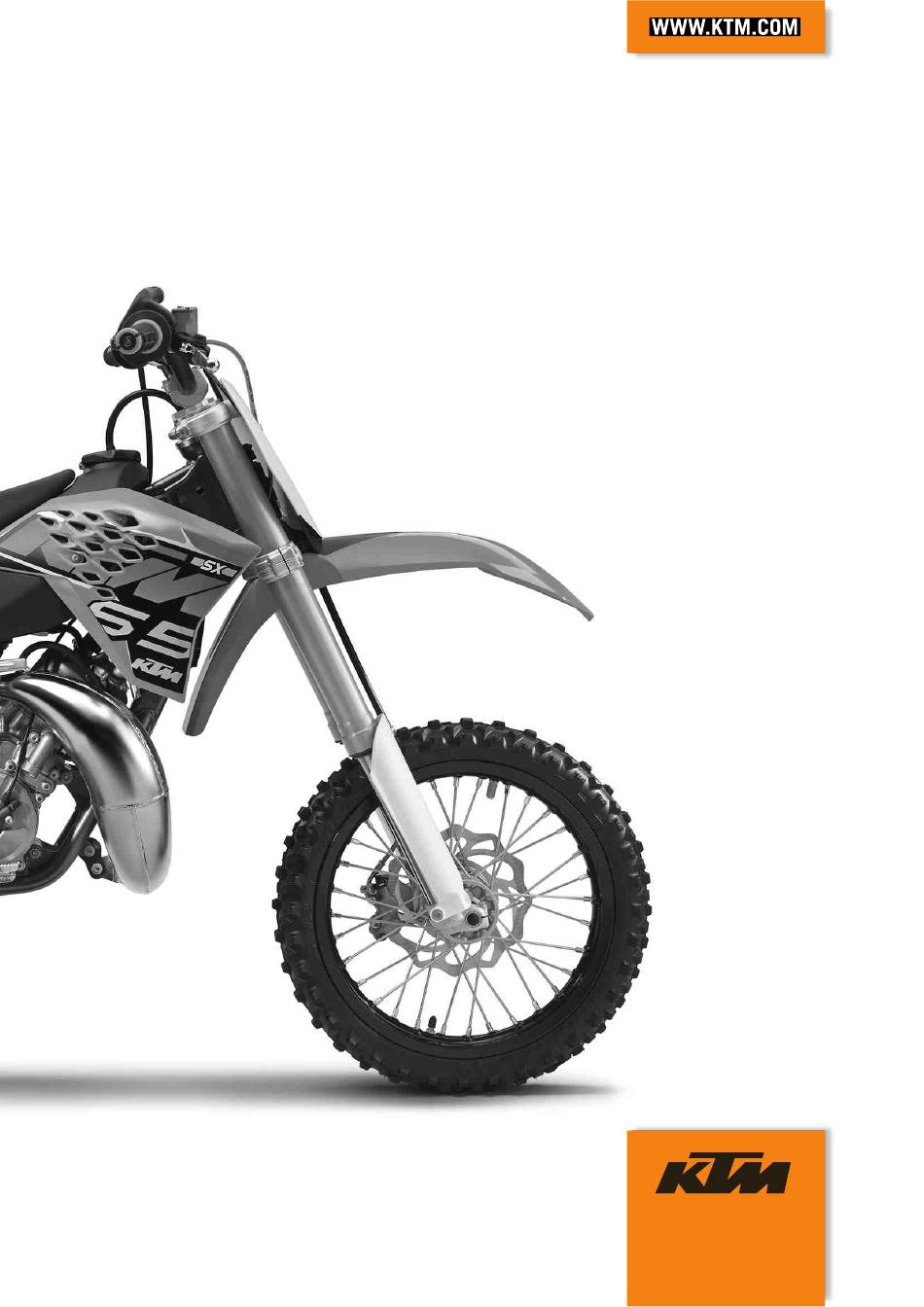

  • Page 1 SETUP INSTRUCTIONS 2014 65 SX Art. no. 3213088en...
  • Page 3 KTM accepts no liability for delivery options, deviations from illustrations and descriptions, as well as misprints and other errors.

  • Page 4: Means Of Representation

    MEANS OF REPRESENTATION Symbols used The meaning of specific symbols is described below. Indicates an expected reaction (e.g. of a work step or a function). Indicates an unexpected reaction (e.g. of a work step or a function). Indicates a page reference (more information is provided on the specified page). Indicates information with more details or tips.
  • Page 5 Mount the footrests with the springs and pins. Secure the pins using the washers and cotter pins. Pliers for footrest spring (58429083000) – Fill up with fuel. ( p. 6) – Print out the current PDI form found on KTM DEALER.NET and perform the delivery inspection. 800042-10...
  • Page 6 WORK Raising the motorcycle with a lift stand Note Danger of damage The parked vehicle may roll away or fall over. – Always place the vehicle on a firm and even surface. – Raise the motorcycle at the frame underneath the engine. Lift stand (59229055000) The tires should no longer be in contact with the ground.

  • Page 7: Adjusting Handlebar Position

    WORK – Operate the hand brake lever several times until the brake linings are in contact with the brake disc. – Loosen screws – Pull the front wheel brake and push down hard on the fork several times. This aligns the fork legs. –...
  • Page 8 WORK – Position the front fender. Mount and tighten screws Guideline Remaining screws, chassis 10 Nm (7.4 lbf ft) 602674-11 Refueling Danger Fire hazard Fuel is highly flammable. – Never refuel the vehicle near open flames or burning cigarettes, and always switch off the engine first. Be careful that no fuel is spilt, especially on hot vehicle components.
  • Page 9 WORK – Press release button , turn the filler cap counterclockwise, and lift it free. 602661-10 Closing the filler cap – Replace the filler cap and turn clockwise until the release button locks in place. Info Run the fuel tank breather hose without kinks.

  • Page 10: Technical Data - Tightening Torques For Chassis

    TECHNICAL DATA - TIGHTENING TORQUES FOR CHASSIS – Spoke nipple M3.5 3 Nm (2.2 lbf ft) – Remaining nuts, chassis 10 Nm (7.4 lbf ft) – Remaining screws, chassis 10 Nm (7.4 lbf ft) – Screw, ball joint of push rod on foot 10 Nm (7.4 lbf ft) brake cylinder –...
  • Page 11 SUBSTANCES 2-stroke engine oil According to – JASO FC ( p. 11) Guideline – Only use high quality 2-stroke engine oil of a well-known brand. KTM recommends Motorex ® products. Fully synthetic Supplier Motorex ® – Cross Power 2T Super unleaded (ROZ 95/RON 95/PON 91) According to –...

  • Page 12: Auxiliary Substances

    AUXILIARY SUBSTANCES Long-life grease Guideline – KTM recommends Motorex ® products. Supplier Motorex ® – Bike Grease 2000...
  • Page 13 STANDARDS JASO FC JASO FC is a classification for a 2-stroke engine oil that was specifically developed for the extreme demands of racing. Thanks to first rate synthetic esters and specially designed additives, superb combustion is achieved even under extreme operating conditions.
  • Page 14 *3213088en* 3213088en 08/2013 KTM-Sportmotorcycle AG 5230 Mattighofen/Austria Photo: Mitterbauer/KTM http://www.ktm.com...
