Installation Instructions

Please real ALL installations before installing. Two
or more people are recommended to install this
product. If a new electrical outlet is required, have
the outlet installed by a qualified electrician before
installing unit.

Preliminary Instructions

Do the following before starting to install unit. See
illustrations below.
1. Check window opening size - the mounting
parts furnished with this air conditioner are
made to install in a wooden sill double-hung
window. The standard parts are for a window
opening of 32''(812 mm) minimum to 43''(1092
mm) maximum width. Open sash to a minimum
of 20'' (508 mm). (FIG. 1)
2. Check condition of window - all wood parts
of window must be in good shape and able to
firmly hold the needed screws. If not, make
repairs before installing unit.
3. Check your storm windows - if your storm
window frame does not allow the clearance
required, correct by adding a piece of wood as
shown in FIG. 2, or by removing storm window
while room air conditioner is being installed.
(Continued)
1/2" MIN.
STORM WINDOW FRAME OR
OTHER OBSTRUCTION

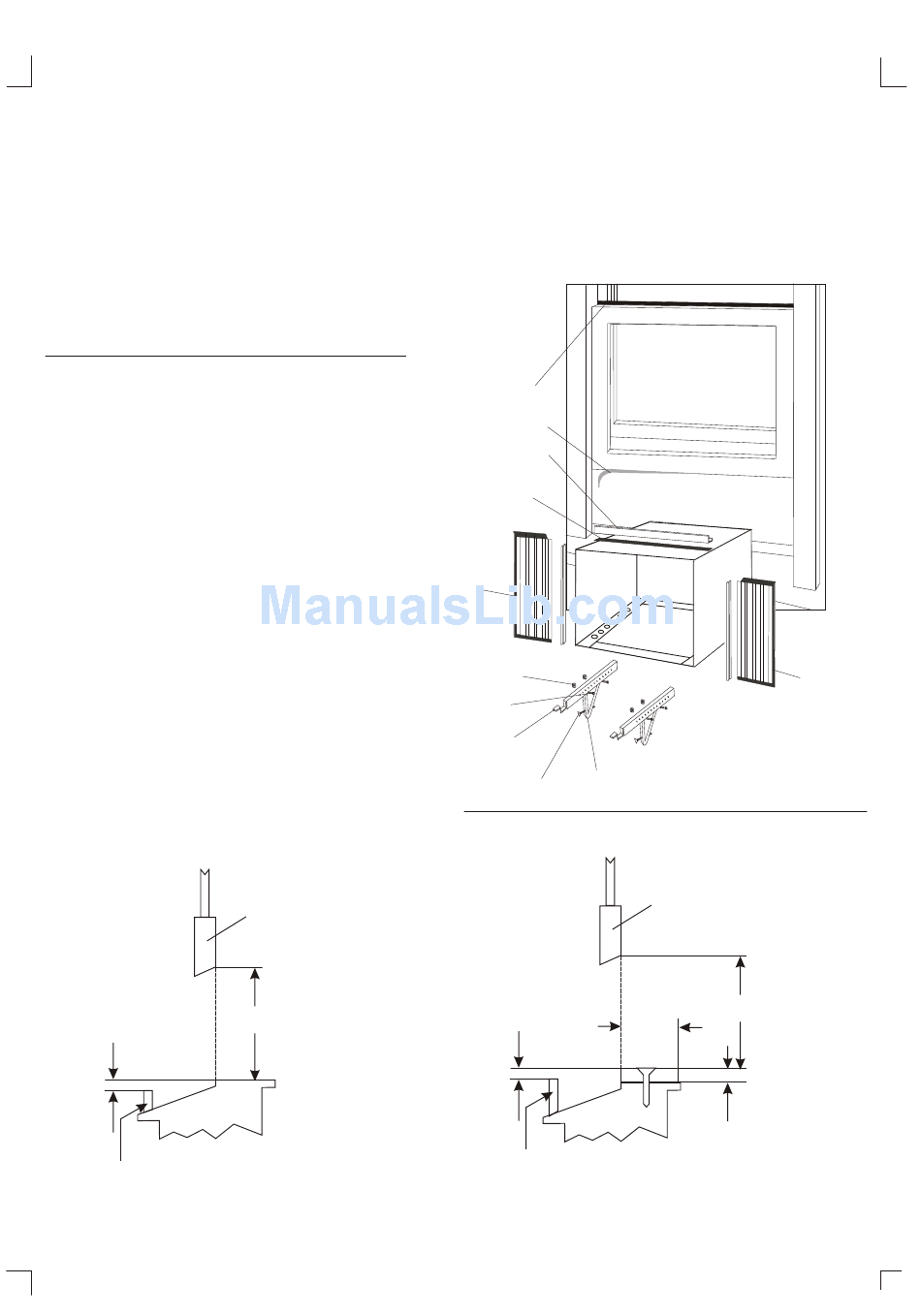

Fig. 1
for Heavy duty
SASH
20" MIN.
WINDOW
FOAM
SASH SEAL
TOP CHANNEL
DOUBLE
SIDED SEAL
SIDE
ACCORDION
(RIGHT)
1/4" NUT
1
/
1/4"X1
"
2
BOLT
MOUNTING
BRACKET
END CAP &
ANGLE
BRACKET
LEVELING LEGS
1/2" MIN.
STORM WINDOW FRAME OR
OTHER OBSTRUCTION
Fig. 2
SASH
1 1/2" MIN.
20" MIN.
BOARD THICKNESS AS
REQUIRED, ALONG
ENTIRE STOOL. FASTEN
WITH TWO NAILS OR
SCREWS.
P/N:819042102-01
SIDE
ACCORDION
(LEFT)
