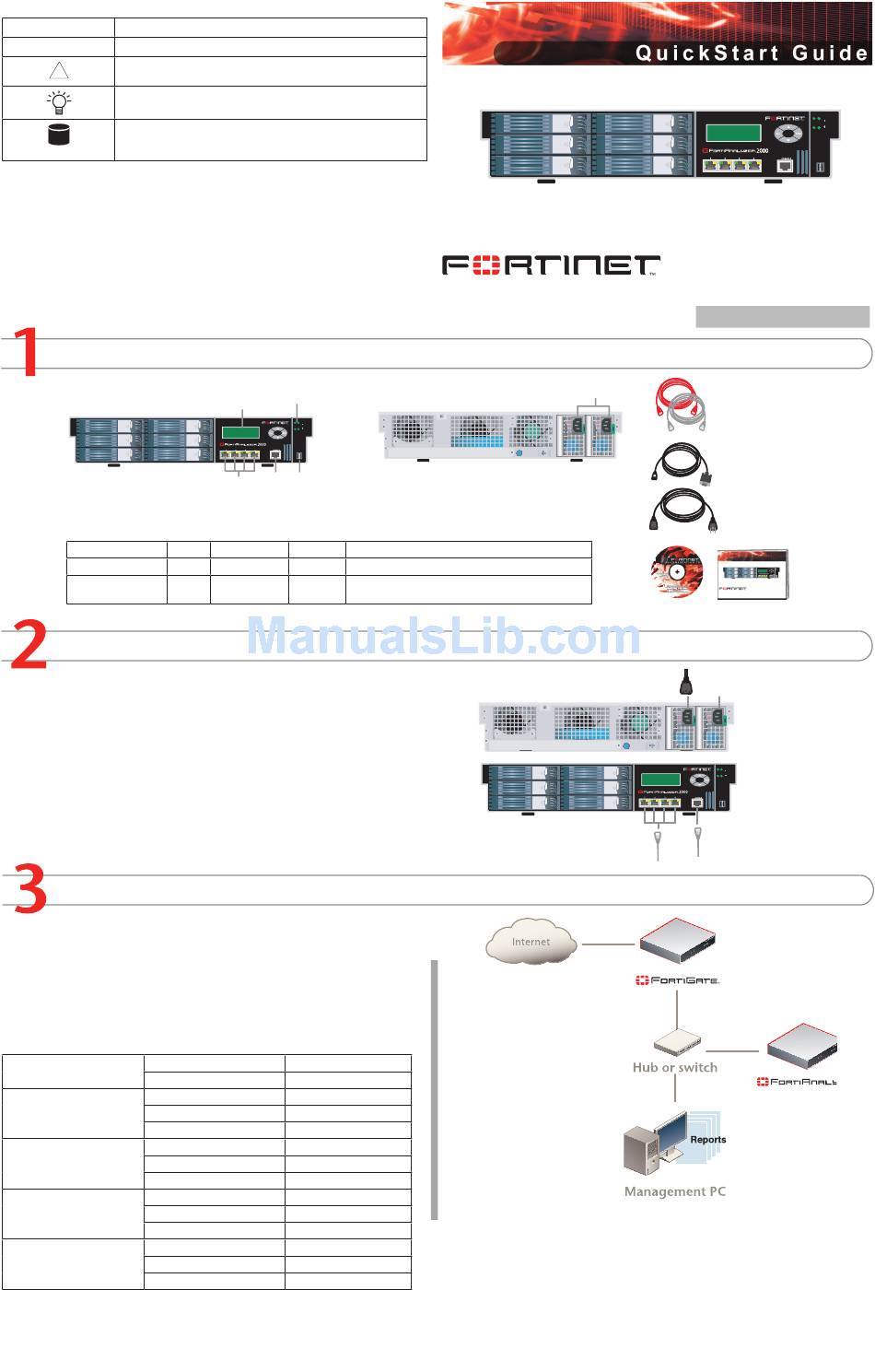

Fortinet FortiAnalyzer-2000 Quick Start Manual

FortiAnalyzer Unit LED Indicators
Light Icon Description
FortiAnalyzer system iD.
ID
!
System status. This light is on when a system or hardware is running
properly. The light blinks when a non-critical condition occurs.
Power indicator.
Hard disk activity. The light flashes as log packets are written to
the FortiAnalyzer hard disk, and when the FortiAnalyzer unit ac-
cesses the hard disk to generate reports.

Checking the Package Contents

Front
Connector
Ports 1, 2, 3, 4
CONSOLE
Connecting
Connect the FortiAnalyzer unit to a power outlet and to the network hub or switch.
• Place the FortiAnalyzer unit on a stable surface. It requires 1.5 inches (3.75 cm) clearance
on each side to allow for cooling.
• Make sure the power is not plugged into the wall before connecting the power cable.
• The Status light flashes while the unit is starting up and remains lit when the system is up
and running.

Planning the Configuration

You can add the FortiAnalyzer unit to your local FortiGate network to receive log messages
from your local FortiGate units, or connect the FortiAnalyzer unit to the FortiGate units re-
motely using FortiManager. To connect the FortiAnalyzer unit to the FortiGate units remotely,
you must configure the DNS server and the default gateway.
To manage the FortiAnalyzer unit, you can use a computer within the local network or over
the Internet.

Factory Defaults

User name:
Administrator Account
Password:
IP:
Port 1 Netmask:
Management Access:
IP:
Port 2 Netmask:
Management Access:
IP:
Port 3 Netmask:
Management Access:
IP:
Port 4 Netmask:
Management Access:
LED indicators:
LCD
Power, Error, Network Access
Panel
RJ-45
Ethernet USB ports
Connections Serial for future use
Connection
Type Speed Protocol
RJ-45 10/100Base-T Ethernet
RJ-45 9600 bps RS-232
admin
(none)
192.168.1.99
255.255.255.0
ping, https, http, ssh
192.168.2.99
255.255.255.0
ping, https, http, ssh
192.168.3.99
255.255.255.0
ping, https, http, ssh
192.168.4.99
255.255.255.0
ping, https, http, ssh
© Copyright 2006 Fortinet Incorporated. All rights reserved.
Products mentioned in this document are trademarks or registered trade-
marks of their respective holders.
Regulatory Compliance
FCC Class A Part 15 CSA/CUS
25 September 2006
Back
Description
Connection to the network
Connection to the management computer. Provides
access to the command line interface (CLI).
Straight-through Ethernet cable connects
FortiAnalyzer-2000
05-30003-0237-20060925
Power
Connections
Grey - Straight-through
Documentation
Power cable connects
Backup
to power outlet
power outlet
RJ-45 to DB-9 serial cable connects
to management computer
to hub or switch on the network
Ethernet Cables:
Orange - Crossover
RJ-45 to
DB-9 Serial Cable
Power Cable
Q u i c k S t a r t G u i d e
FortiAnalyzer-2000
Copyright 2006 Fortinet Incorporated. All rights reserved.
Trademarks
Products mentioned in this document are trademarks.
