PCI_E1~4: PCIe Expansion Slots

Important
If you install a large and heavy graphics card, you need to use a tool such as MSI
y
Gaming Series Graphics Card Bolster to support its weight and to prevent deformation
of the slot.
For a single PCIe x16 expansion card installation with optimum performance, using
y
the PCI_E1 slot is recommended.
When adding or removing expansion cards, always turn off the power supply and
y
unplug the power supply power cable from the power outlet. Read the expansion
card' s documentation to check for any necessary additional hardware or software
changes.

SATA3~6: SATA 6Gb/s Connectors

These connectors are SATA 6Gb/s interface ports. Each connector can connect to one
SATA device.
Important
Please do not fold the SATA cable at a 90-degree angle. Data loss may result during
y
transmission otherwise.
SATA cables have identical plugs on either sides of the cable. However, it is
y
recommended that the flat connector be connected to the motherboard for space
saving purposes.

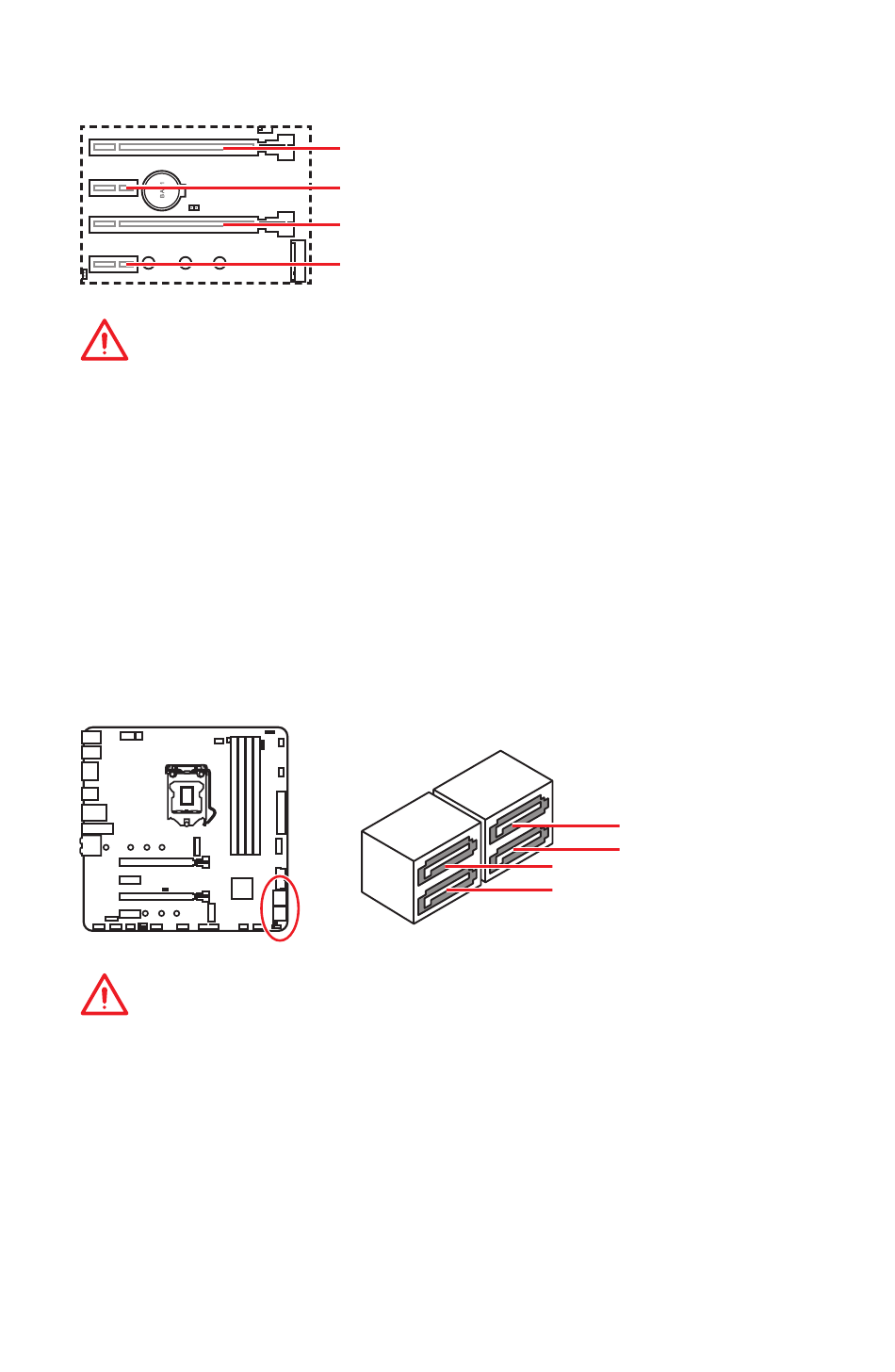

PCI_E1: PCIe 3.0 x16 (CPU lanes)
PCI_E2: PCIe 3.0 x1 (PCH lanes)
PCI_E3: PCIe 3.0 x8 (CPU lanes)
PCI_E4: PCIe 3.0 x1 (PCH lanes)
SATA4
SATA3
SATA6
SATA5
Overview of Components
