Videonics TM-3000 Instruction Manual

Video production tool
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Model TM-3000
Instruction Manual

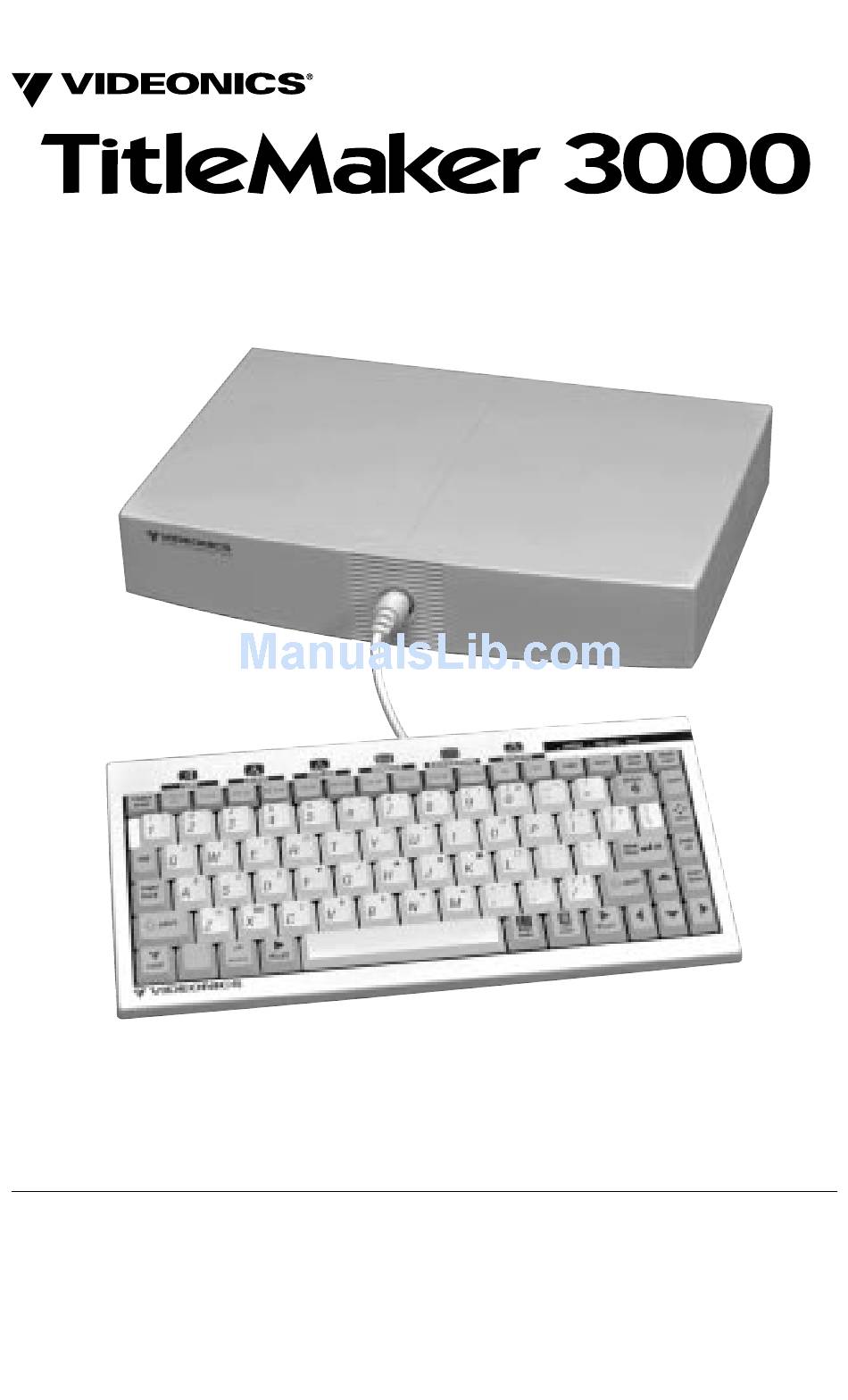

TM-3000 Video TitleMaker 3000 Instruction Manual • MANL-0612-02 • ©1996 Videonics, Inc.
The Videonics logo, Thumbs Up, and Videonics Video TitleMaker are registered trademarks of
Videonics, Inc. TM-3000, MX-1 Digital Video Mixer and Edit Suite are trademarks of Videonics,
Inc. Product and brand names may be trademarks or registered trademarks of their respective
companies and are hereby acknowledged. Television screens are simulated. Subject to change
without notice. This device is not to be used for the unauthorized copying of copyrighted material.
Videonics, Inc. • 1370 Dell Avenue • Campbell, CA 95008 USA • 408-866-8300
