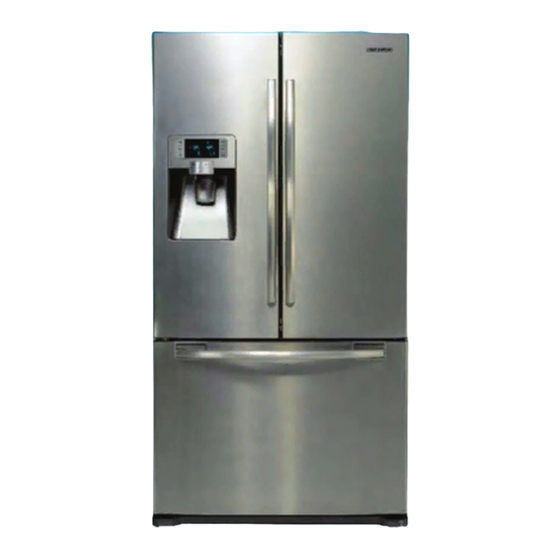

Samsung RFG298AA**/XAA Troubleshooting Manual

Models Covered:
RFG298AA**/XAA
NOTICE:
Parts Change: Refer to bulletin
2/2011 Door Handle Parts Change
NOTICE: Parts Change
The interior lighting changed
from incandescent lighting to
LED lighting. The new parts
are NOT interchangeable with
the old parts. See page 5
Self Diagnosis: Press both buttons (Energy
Saver– Alarm) simultaneously (No sound
when both buttons are pressed at the same
time) ‟til the display quits blinking and
beeps, 8-12 seconds, then release and read
Fault Codes.
This will also cancel the Fault Mode created
by self-diagnosis at power up.
3600RPM
Press Freezer button one
time at the Test Mode to
Force Compressor High
Speed Run, measure fan
and Compressor volt-
ages at main PCB
Sealed System
Sales Mode, No Compressor Operation: Press Energy Saver & Freezer temp buttons simultaneously for 3 sec
( you will hear a "Ding Dong") to remove or put into Sales Mode. When in the Sales Mode the Display will show
"OF" "OF" Removing power will not cancel this mode.
SUPPORT INFORMATION
Training — Plus One http://my.plus1solutions.net/clientPortals/samsung/
Help — GSPN http://service.samsungportal.com/
Samsung Product Support TV
Customer information videos and chat programs. Programs for Fridges, Laundry, Ranges & D/W
# tsRFG298AA RevC 03/30/2011
Fast Track Troubleshooting
Publication # tsRFG298AA Revision Date 03/30/2011
IMPORTANT SAFETY NOTICE – "For Technicians Only" This service data sheet is
intended for use by persons having electrical, electronic, and mechanical experience
and knowledge at a level generally considered acceptable in the appliance repair trade.
Any attempt to repair a major appliance may result in personal injury and property
damage. The manufacturer or seller cannot be responsible, nor assume any liability for
injury or damage of any kind arising from the use of this data sheet.
Forced Mode: Press both buttons (Energy Saver– Fridge) simul-
taneously (No sound when both buttons are pressed at the
same time) „til it beeps and goes blank, 8-12 seconds
2450RPM
Press Freezer button a
second time to Force
Mid Speed Run
Refrigerant Charge
R134a 5.64 oz.
http://support-us.samsung.com/spstv/howto.jsp
Wait 5 seconds between button pushes
2200RPM
Press Freezer button a
third time to Force Low
Speed Run
Component Value Chart
Component
Freezer Defrost Heater
Fridge Defrost Heater
French Mullion Heater
Ice Duct Heater
Dispenser Heater
Water Tank Heater
Fill Tube Heater FRZ
Sensors
Fans
Press Freezer button a
forth time to Force De-
frost of Fridge & Freezer,
measure defrost voltage
at main PCB
Resistance Wattage
60Ω 240
120Ω 120
1800Ω 8
3600Ω 4
9000Ω 1.6
72Ω 2
72Ω 2
2.5kΩ-89kΩ N/A 1~4.5vdc
N/A N/A
Voltage
120vac
120vac
120vac
120vac
120vac
12vdc
12vdc
7~12vdc
1
