quick start guide
Product features
Surround Multi Flow
A center-positioned fan and
ducts with multiple flow
effluences provide uniform
cooling for each shelf and fresh
food compartment corners.
Twin Cooling System
The refrigerator and the freezer
have two evaporators. Given this
independent system, the freezer
and the refrigerator are cooled
individually and more efficiently.
Food odor from the refrigerator
does not affect food in the
freezer due to separate air flow
circulation.
Electronic control from
outside of Pantry Cover
The Cool Select Pantry is a full
width drawer with an adjustable
temperature control to help keep
food fresh longer.
16" Pizza Corner
Can be used to store a 16" pizza
in the Tilting pocket.

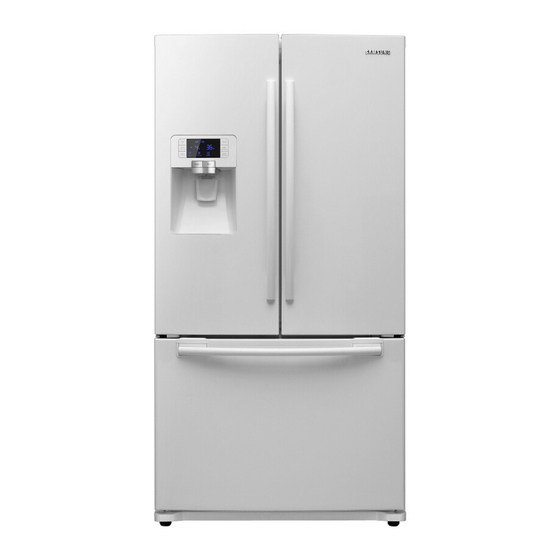

RFG298AA
Ice and Water Dispenser
The ice and water dispenser
provides ice and cold water at
any time.
Secure Auto Close Door
System
•
Secure Auto Close Door System
•
Cool tight doors
•
Energy saving
•
Prevents condensation on fridge
doors
Easy Handle System
•
Ez-open Freezer Door
•
Ergonomic Door Design
Auto Pull Out and Super
Extended Drawer
The upper drawer in the freezer
comes out automatically when
you open the freezer door and
can be pulled out all the way to
the Tilting Pocket.
Advertisement
Table of Contents
Related Manuals for Samsung RFG298AA
Summary of Contents for Samsung RFG298AA
-
Page 1: Product Features
16” Pizza Corner Can be used to store a 16” pizza in the Tilting pocket. RFG298AA Ice and Water Dispenser The ice and water dispenser provides ice and cold water at any time. -
Page 2: The Installation Space
First thing! Make sure that you can easily move your Refrigerator to its final location by measuring doorways (both width and height), thresholds, ceilings, stairways, etc. The following chart details the exact height and depth of Samsung French Door Refrigerator. Depth... -
Page 3: Operating Your French Door Refrigerator
Press and hold the Fridge / hold 3 sec for Power Cool button for 3 seconds to speed up the time Cool needed to cool products in the Refrigerator. It can be helpful if you need to quickly cool easily spoiled items or if the temperature in the fridge has warmed dramatically (For example, if the door was left open). -
Page 4: Using The Digital Display
Cooling Off Mode stops cooling in the freezer and refrigerator compartments, but does not shut off electrical power to the refrigerator. To use this feature, press Energy Saver Button and Freezer/ hold 3 sec for Power Freezer Button simultaneously for 3 seconds until an alarm sound is heard. To cancel this mode, press the same buttons again for 3 seconds and the refrigerator will return to cooling mode. -
Page 5: Controlling The Temperature
This icon will light up when you press the Freezer Ice Off button. In this case, the freezer ice will not be produced. • As this refrigerator has a dual Ice Maker, there is a possibility of using more energy. We recommend if you have enough ice, set Ice Off to save energy. -
Page 6: Name Of Each Component
8. Ice Bucket 15. Egg Container 9. Tilting Pocket 16. Door Bins 10. Interlocking switch 17. Quick-Space Glass Shelf 11. Door Closer 18. Cool Select Pantry 19. Light 20. Auto Pull Out Drawer 14. Tempered glass shelves 21. Freezer Drawer Bin (RFG298AA) -
Page 7: Troubleshooting
• Is the temperature in the room too low? • Did you store the food with high water content in the coldest part of the Refrigerator? Try You hear unusual noise or • Check that the Refrigerator is level and stable.
