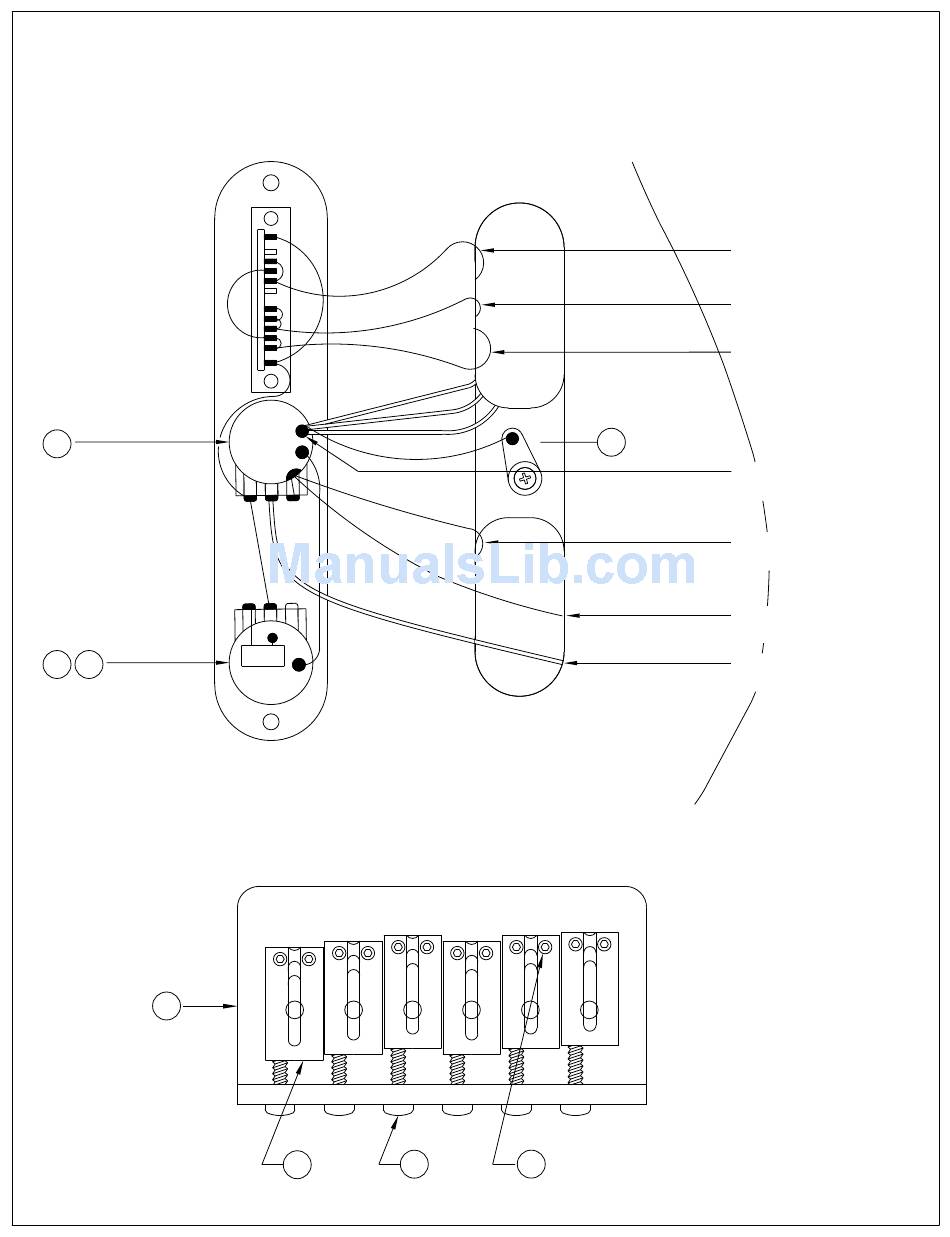

Fender James Burton Telecaster Diagram

JAMES BURTON TELECASTER 0108602
12
12 16
20
CONTROL ASSEMBLY
.022K

BRIDGE ASSEMBLY

21 22
25
23
ORANGE WIRE FROM
MIDDLE PICKUP
ORANGE WIRE FROM
BRIDGE PICKUP
ORANGE WIRE FROM
NECK PICKUP
WHITE WIRES FROM
PICKUPS
BLACK WIRE FROM
BRIDGE
BLACK WIRE FROM
OUTPUT JACK
WHITE WIRE FROM
OUTPUT JACK
Pg. 2 of 4
06-14-2000
