Fender American Deluxe Precision Parts List

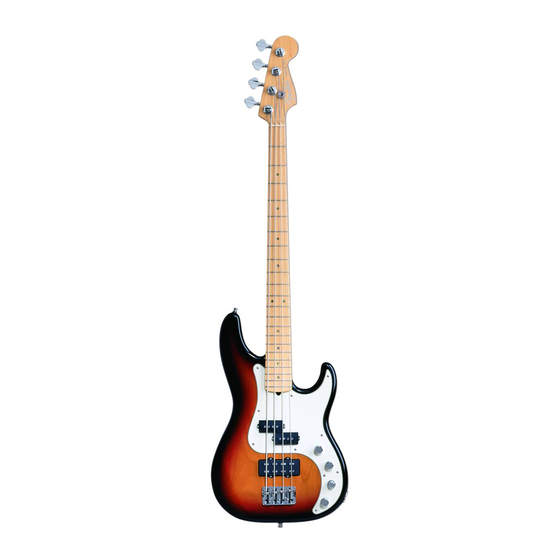

AMERICAN DELUXE PRECISION BASS 0195200/5202
REF.# P/N
1 0056093000 Neck, American Deluxe Precision Bass, R/W
0056094000 Neck, American Deluxe Precision Bass, M/N
2 0056087000 Tuning Key, (1) Set, W/Bushing
3 0048650000 Bone Nut
4 0021427000 String Retainer
0021407000
5 0048688000 Truss Rod Adjustment Nut
0048693000
6 0054093xxx Body, Am. Deluxe Precision Bass, Alder Paint
0054094xxx Body, Am. Deluxe Precision Bass, Ash
7 0054078000 Neck Mounting Plate
0021424000
8 0021453000 Strap Buttom
0021422000
0001905600
0020491000
9 0049455000 Pickguard, Am. Deluxe P-Bass, Shell
0049456000 Pickguard, Am. Deluxe P-Bass, Pearl
0054097000 Pickguard, Am. Deluxe P-Bass, Mint Green
0021407000
10 0049719000 Pickup, Neck, Am. Deluxe P-Bass
0021408000
0018556000
11 0049720000 Pickup, Middle, Am. Deluxe P-Bass
0021408000
0018556000
12 0049488000 Pickup, Bridge, Humbucker Dual Jazz Bass
0021408000
0017333000
13 0054137000 Printed Circuit Board
0049440003 Control, 25K, Audio
0016352000
0050161000
14 0056162000 Control, 250k, Pan Alpha
0016352000
0022384000
15 0053736000 Control, 100KB, Tocos
0016352000
0022384000
16 0049443000 Control, 100KB, CTS
0016352000
0022384000
17 0013359000 Knob, Knurled, Chrome (3)
0028897001
18 0049457000 Knob, Lower, Knurled, Chrome
19 0049458000 Knob, Upper, Knurled, Chrome
0050101000
20 0021956000 Output Jack
0016352000
0016436000
0031153000
21 0050100000 Jack Ferrule
0021407000
22 0012869000 Solder Lug
0015116000
23 0049438000 Bridge Assembly, Deluxe Bass
0021422000
DESCRIPTION
Mounting Screw
Truss Rod Adjusting Wrench
Mounting Screw
Mounting Screw
Felt Washer, Black
Felt Washer, White
Mounting Screw
Mounting Screw
Foam Block Weatherstrip
Mounting Screw
Foam Block Weatherstrip
Mounting Screw
Rubber Weatherstrip
Mounting Hex Nut
Lock Washer
Mounting Hex Nut
Lock Waher, Intl
Mounting Hex Nut
Lock Washer, Intl
Mounting Hex Nut
Lock Washer, Intl
Set Screw
Set Screw
Mounting Hex Nut
Washer, Lock Intl
Washer, Flat
Mounting Screw
Mounting Screw
Mounting Screw
REF.# P/N
24 0049437000 Bridge Plate, Deluxe Bass
25 0048598000 Bridge Section, (4)
26 0017571000 Intonation Screw, (4)
0018872000
27 0021093000 Height Adjustment Screw, (8)
0021109000
28 0048604000 Ferrule, String Retainer
29 0049705000 Battery Cover
0017405000
0030654000
0030688000
0018556000
Body Part Number
0054093500
0054093506
0054093538
0054094501
0054094521
0054094548
005409494
DESCRIPTION
Intonation Spring, (4)
Adjusting Wrench, Saddle Height
Battery, 9 Volt
Mounting Screw
Insert
Foam Block Wearthestrip
3 Color Sunburst
Black
Crimson Transparent
White Blonde
Natural
Teal Green Transparent
Purple Transparent
Pg. 3 of 4
01-11-2000
