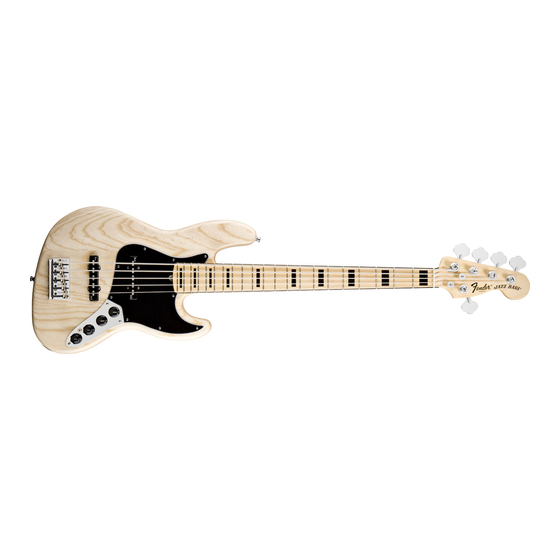

AMERICAN DELUXE JAZZ BASS FMT 0195870/72
REF.#
P/N
1
0058213000
Neck, American Jazz Bass, R/W
0058287000
Neck, American Jazz Bass, M/N
2
0058216000
Tuning Keys, (1) Set
3
0083675000
Bone Nut
4
0021958000
String Retainer
0018784000
5
0048688000
Truss Rod Adjustment Nut
0048693000
6
0058241xxx
Body, Deluxe Jazz Bass, Alder Paint
7
0058339000
Neck Plate
0018785000
8
0021950000
Strap Button
0018845000
0019056000
0020491000
9
0058244000
Pickup, Neck, Deluxe Jazz Bass
0036810000
0055195000
0017333000
10
0058310000
Pickup, Bridge, Deluxe Jazz Bass
0036810000
0055194000
0017333000
11
0058227000
Printed Circuit Board Ass'y
0056161000
Control, 25KB, Audio, #(1)
0018824000
0016436000
0018806000
12
0058338000
Control, 100KB, Tocos CN DTNT
0018824000
0018806000
13
0056160000
Control, 100KB, CNTR, CTS
0058793000
0058792000
14
0056162000
Control, 250K, Pan Alpha, #2
0018824000
0031153000
0018806000
15
0058337000
Knob, Lower, Knurled, Gold
0028897000
16
0058336000
Knob, Upper, Knurled, Gold
0058786000
17
0058335000
Knob, Small, Knurled, Gold
0028897000
18
0036811000
Knob, Knurled, Burton Gold, (2)
0028897000
19
0058251000
Output Jack
0018824000
0016436000
0018806000
20
0058256000
Ferrule, Jack
0018784000
21
0012869000
Solder Lug, (2)
0015116000
DESCRIPTION
Mounting Screw
Truss Rod Adjusting Wrench
Mounting Screw
Mounting Screw
Felt Washer, Black
Felt Washer, White
Mounting Screw
Cover, Pickup, W/Logo
Weatherstrip, Rubber
Mounting Screw
Cover, Pickup, W/Logo
Weatherstrip, Rubbber
Mounting Hex Nut
Lock Washer, Intl
Flat Washer
Mounting Hex Nut
Flat Washer
Mounting Hex Nut
Washer, Dress
Mounting Hex Nut
Flat Washer
Flat Washer
Set Screw
Set Screw
Set Screw
Set Screw
Mounting Hex Nut
Washer Lock, Intl
Washer, Flat
Mounting Screw
Mounting Screw
REF.#
P/N
22
0058252000
Bridge Assembly
0018845000
Mounting Screw
23
0058270000
Bridge Plate
24
0058362000
Bridge Section, (1&2)
25
0058253000
Bridge Section (3&4)
26
0017571000
Intonation Screw, (4)
27
0018872000
Intonation Spring, (4)
28
0021093000
Height Adjustment Screw, (8)
0021109000
Adjusting Wrench, Saddle Height
29
0049763000
Ferrule, String Retainer
30
0058206000
Battery Cover
0018113000
Mounting Screw
31
0058410000
Cover, Double Battery
0030654000
Mounting Screw
0030688000
Insertting Screw
0017405000
Battery, 9 Volt
Body Part Number
0058241531
0058241520
0058241538
0058241552
DESCRIPTION
Aged Cherry Sunburst
Amber
Crimson Transparent
Tobacco Burst
Pg. 3 of 4
06-21-2001 Rev. A
