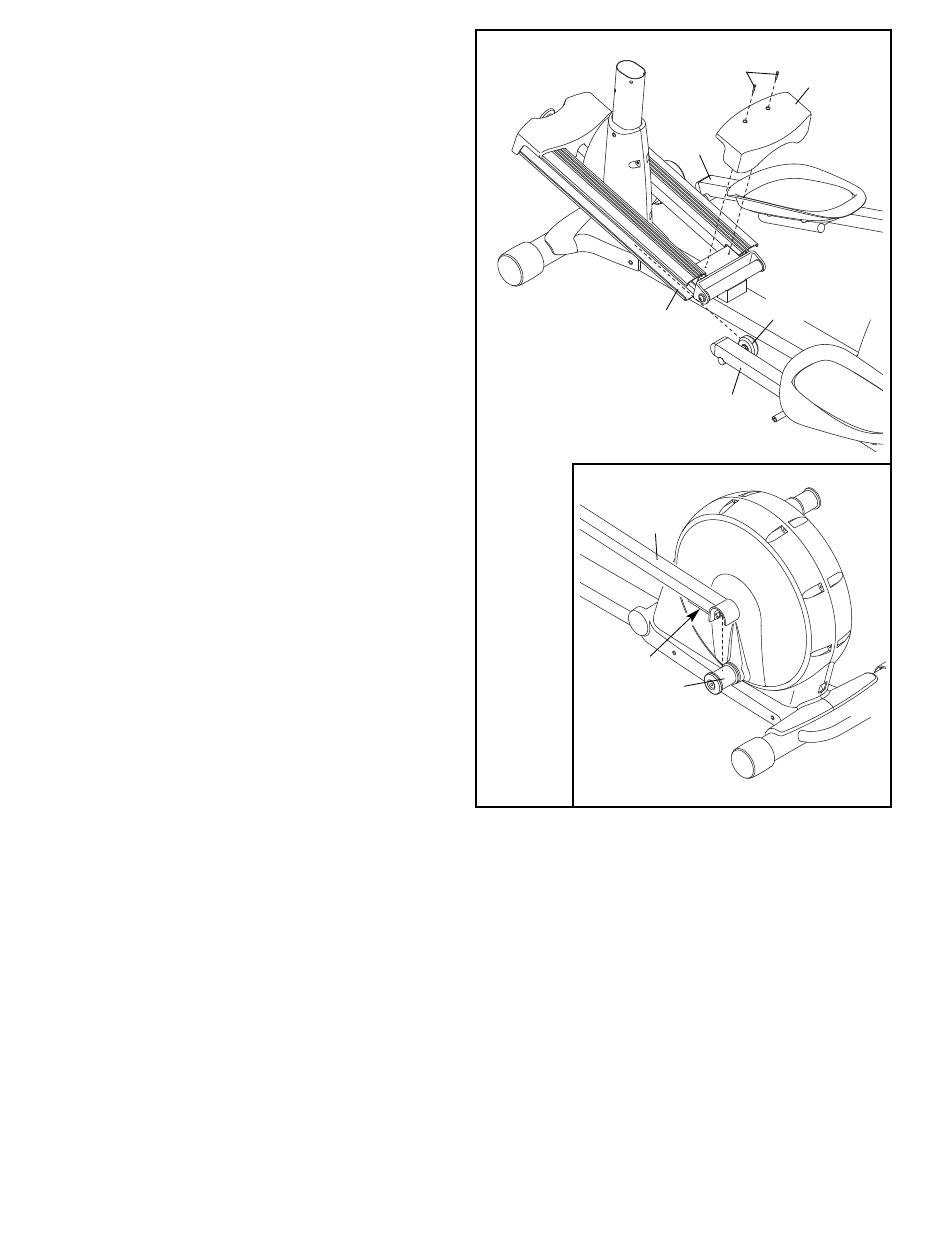

5. Insert the Roller (38) on the Left Pedal Arm (32)
5
and the Roller on the Right Pedal Arm (33) into
97
the sides of the Ramp (5).
7
Attach the Rear Ramp Cover (7) to the
Ramp (5) with two M4 x 16mm Screws (97).
33
See the inset drawing. Lift the Pedal Arm
Latch (41) on the Left Pedal Arm (32), and set
the end of the Left Pedal Arm on the left Crank
Bushing Sleeve (54). Release the Pedal Arm
Latch, and make sure that the Left Pedal Arm is
securely connected to the Crank Bushing
Sleeve.
38
5
Connect the Right Pedal Arm (not shown) to
the right Crank Bushing Sleeve (not shown)
in the same way.
