ASSEMBLY

To hire an authorized service technician to assemble the elliptical exerciser, call 1-800-445-2480.
Assembly requires two persons. Place all parts of the elliptical exerciser in a cleared area and remove the
packing materials. Do not dispose of the packing materials until assembly is completed. In addition to the
included hex keys, assembly requires a Phillips screwdriver
wrench , and a rubber mallet

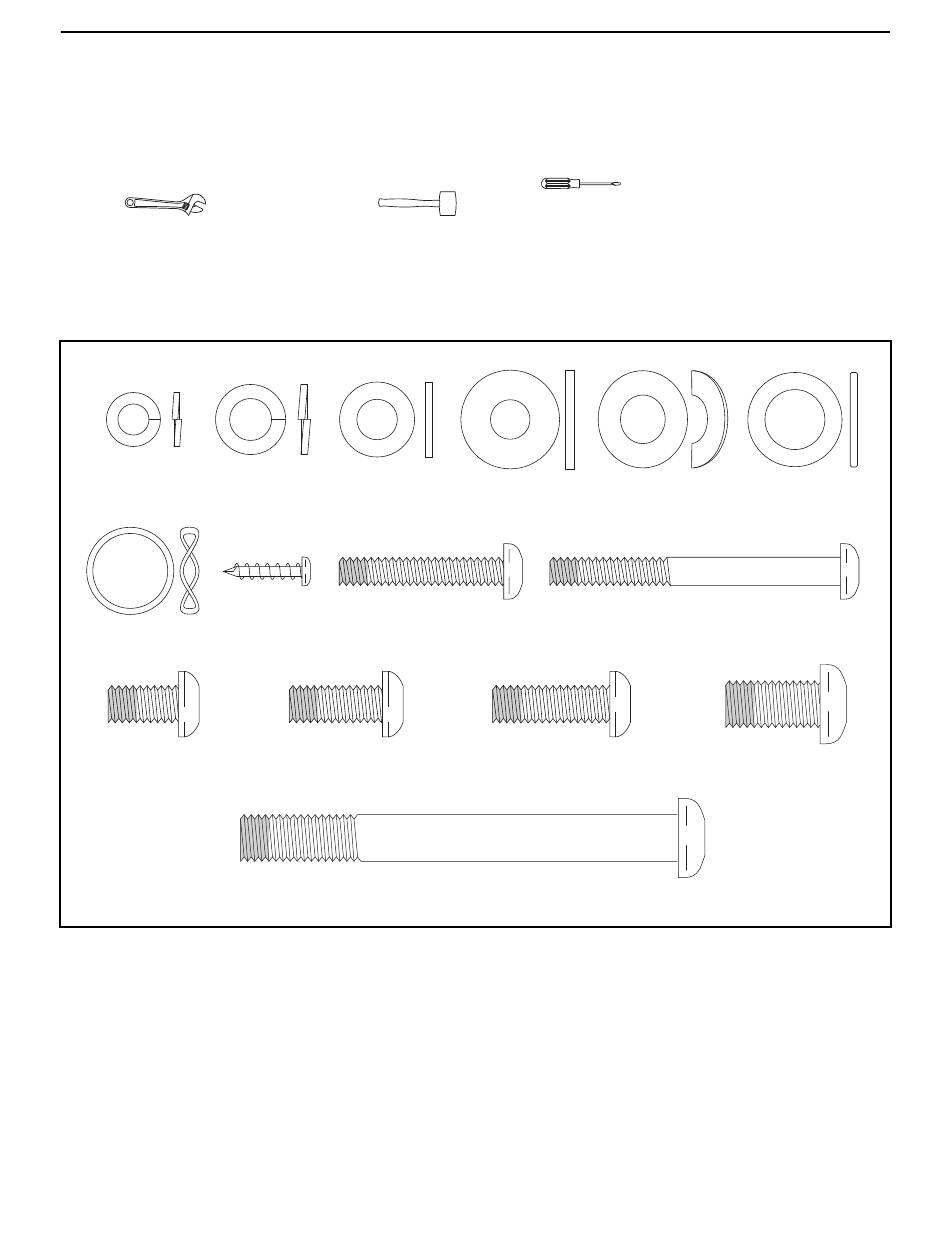

As you assemble the elliptical exerciser, use the drawings below to identify small parts. The number in parentheses
below each drawing is the key number of the part, from the PART LIST near the end of this manual. The number
following the parentheses is the quantity needed for assembly. Note: Some small parts may have been pre-
assembled. If a part is not in the hardware kit, check to see if it has been preassembled.
M6 Split Washer M8 Split
(102)–8
Washer (101)–4
M4 x 16mm
Screw (97)–16
Wave Washer
(100)–2
M8 x 15mm Patch
Screw (106)–10
.
M8.5 x 16mm x
1.5mm Washer
(103)–6
M6 x 35mm Patch
Screw (109)–4
M8 x 20mm Patch
Screw (107)–4
M10 x 93mm Patch Screw (82)–4
, an adjustable
M10 x 25mm M10 Curved
Washer (87)–2 Washer (99)–4
Patch Screw (108)–4
M8 x 25mm Patch
Screw (110)–2
5
Link Arm
Spacer (74)–4
M6 x 62mm
M10 x 20mm Patch
Screw (111)–2
