Operation of Your Treadmill

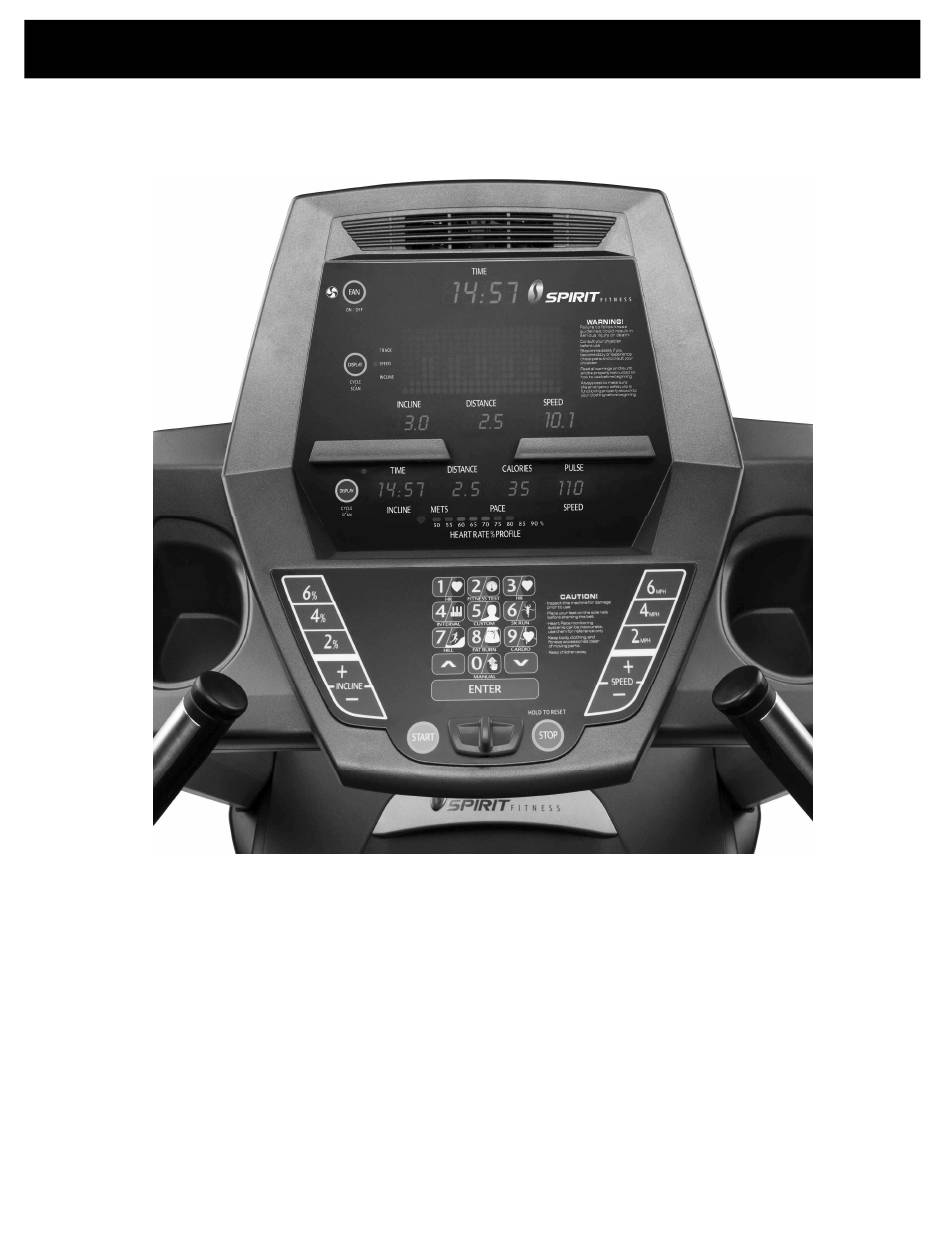

Getting familiar with the control panel
■
Console
Getting Started:
Power the treadmill on by plugging it into an appropriate wall outlet, then turn on the power switch
located at the front of the treadmill below the motor hood. Ensure that the safety key is installed,
as the treadmill will not power on without it.
When the power is turned on, all the lights on the display will light for a short time. Then the Time
and Distance windows will display Odometer readings for a short time. The Time window will show
how many hours the treadmill has been in use and the Distance window will show how many
Kilometers (or Miles if the treadmill is set to english readings; see maintenance for changing
settings) the treadmill has gone. A message will be displayed showing the current software version.
The treadmill will then enter idle mode, which is the starting point for operation.
