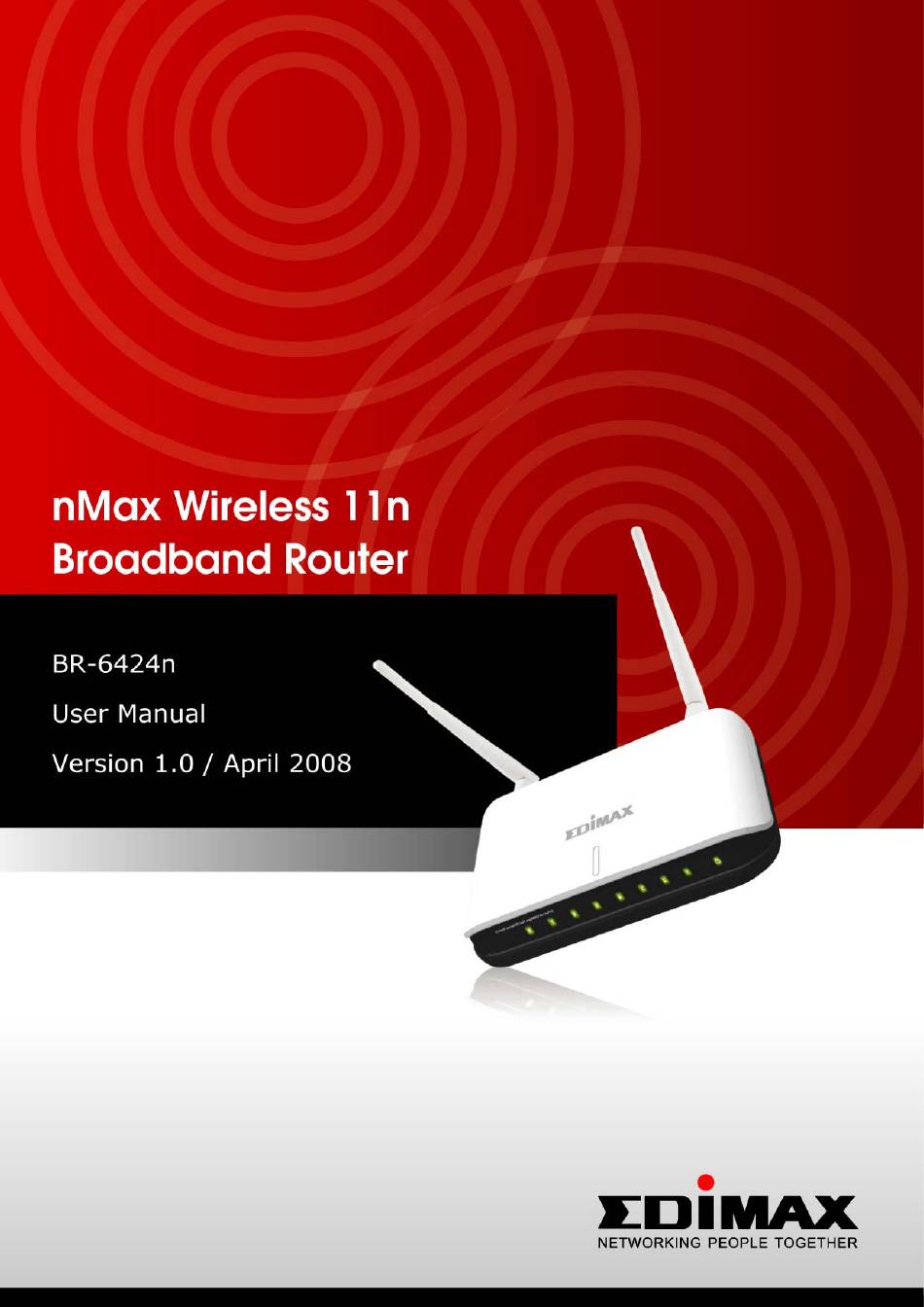

Edimax BR-6424n User Manual

Edimax nmax wireless 11n broadband router
Hide thumbs Also See for BR-6424n:
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading

Related Manuals for Edimax BR-6424n

Summary of Contents for Edimax BR-6424n

  • Page 2 English Copyright© by Edimax Technology Co, LTD. all rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission of this Company .

  • Page 3: Table Of Contents

    C A T A L O G Chapter I: Product Information..................6 1-1 Introduction and safety information ..............6 1-2 Safety Information...................8 1-3 System Requirements ..................9 1-4 Package Contents...................10 1-5 Familiar with your new wireless broadband router ........11 Chapter II: System and Network Setup................13 2-1 Establish network connection................13 2-2 Setup client computers to obtain IP address automatically ......15 2-2-1 Windows 95/98/Me IP address setup: ..........16...
  • Page 4 3-3-3 DHCP Server ..................71 3-3-4 Static DHCP Leases ................72 3-4 Wireless ......................74 3-4-1 Basic Settings ..................75 3-4-1-1 AP mode..................76 3-4-1-2 Station-Infrastructure ..............79 3-4-1-3 AP Bridge-Point to Point............82 3-4-1-4 AP Bridge-Point to Multi-Point ..........85 3-4-1-5 AP Bridge-WDS..............87 3-4-1-6 Universal Repeater..............90 3-4-1-7 Set Security ................94 3-4-2 Security Settings.................98 3-4-4 WPS....................105 3-5 Advance Settings* ..................107...

  • Page 6: Chapter I: Product Information

    Chapter I: Product Information 1-1 Introduction and safety information Thank you for purchasing Edimax BR-6424n wireless 11n broadband router! This high cost-efficiency router is the best choice for Small office / Home office users, all computers and network devices can share a single xDSL / cable modem internet connection at high speed.
  • Page 7 • Easy to use Web-based GUI for network configuration and management purposes • Remote management function allows configuration and upgrades from a remote computer (over the Internet) • Auto MDI / MDI-X function for all wired Ethernet ports.

  • Page 8: Safety Information

    1-2 Safety Information In order to keep the safety of users and your properties, please follow the following safety instructions: 1. This router is designed for indoor use only; DO NOT place this router outdoor. 2. DO NOT put this router at or near hot or humid places, like kitchen or bathroom.

  • Page 9: System Requirements

    1-3 System Requirements Internet connection, provided by xDSL or cable modem with a RJ-45 Ethernet port. Computer or network devices with wired or wireless network interface card. Web browser (Microsoft Internet Explorer 4.0 or above, Netscape Navigator 4.7 or above, Opera web browser, or Safari web browser). An available power socket...

  • Page 10: Package Contents

    1-4 Package Contents Before you starting to use this router, please check if there’s anything missing in the package, and contact your dealer of purchase to claim for missing items: Router with Antennas (main body, 1 pcs)………………………… 1 □ Quick installation guide (1 pcs) ………………………………… 2 □...

  • Page 11: Familiar With Your New Wireless Broadband Router

    1-5 Familiar with your new wireless broadband router Front Panel LED Name Light Status Description Router is switched on and correctly powered Wireless network is switched on WLAN Wireless network is switched off Flashing Wireless LAN activity (transferring data) or WPS mode is on.
  • Page 12 Back Panel Antenna A Antenna B BR-6424n Item Name Description Antennas Antenna A, B Enable / Disable wireless signal ON/OFF You can not connect the router via wireless adapter, when you disable the wireless signal, 12V (Power) Power connector, connects to power adapter...

  • Page 13: Chapter Ii: System And Network Setup

    Chapter II: System and Network Setup 2-1 Establish network connection Please follow the following instruction to build the network connection between your new Broadband router and your computers, network devices: 1. Connect your xDSL / cable modem to the WAN port of router by Ethernet cable.
  • Page 14 3. Connect the power adapter to the wall socket, and then connect it to the ‘Power’ socket of the router. 4. Please check all LEDs on the front panel. ‘PWR’ LED should be steadily on, WAN and LAN LEDs should be on if the computer / network device connected to the respective port of the router is powered on and correctly connected.

  • Page 15: Setup Client Computers To Obtain Ip Address Automatically

    2-2 Setup client computers to obtain IP address automatically After the network connection is established, the next step you should do is setup the router with proper network parameters, so it can work properly in your network environment. Before you can connect to the router and start configuration procedures, your computer must be able to get an IP address automatically (use dynamic IP address).

  • Page 16: Windows 95/98/Me Ip Address Setup

    2-2-1 Windows 95/98/Me IP address setup: 1. Click ‘Start’ button (it should be located at lower-left corner of your computer), then click control panel. Double-click Network icon, and Network window will appear. Select ‘TCP/IP’, then click ‘Properties’.
  • Page 17 2. Select ‘Obtain an IP address from a DHCP server’, then click ‘OK’.

  • Page 18: Windows 2000 Ip Address Setup

    2-2-2 Windows 2000 IP address setup: 1. Click ‘Start’ button (it should be located at lower-left corner of your computer), then click control panel. Double-click Network and Dial-up Connections icon, double click Local Area Connection, and Local Area Connection Properties window will appear. Select ‘Internet Protocol (TCP/IP)’, then click ‘Properties’...
  • Page 19 2. Select ‘Obtain an IP address automatically’ and ‘Obtain DNS server address automatically’, then click ‘OK’.

  • Page 20: Windows Xp Ip Address Setup

    2-2-3 Windows XP IP address setup: 1. Click ‘Start’ button (it should be located at lower-left corner of your computer), then click control panel. Double-click Network and Internet Connections icon, click Network Connections, then double-click Local Area Connection, Local Area Connection Status window will appear, and then click ‘Properties’...
  • Page 21 2. Select ‘Obtain an IP address automatically’ and ‘Obtain DNS server address automatically’, then click ‘OK’.

  • Page 22: Windows Vista Ip Address Setup

    2-2-4 Windows Vista IP address setup: 1. Click ‘Start’ button (it should be located at lower-left corner of your computer), then click control panel. Click View Network Status and Tasks, then click Manage Network Connections..Right-click Local Area Netwrok, then select ‘Properties’. Local Area Connection Properties window will appear, select ‘Internet Protocol Version 4 (TCP / IPv4), and then click ‘Properties’...
  • Page 23 2. Select ‘Obtain an IP address automatically’ and ‘Obtain DNS server address automatically’, then click ‘OK’.

  • Page 24: Connect To Broadband Router By Web Browser

    2-3 Connect to broadband router by web browser Default IP address of this broadband router is ‘192.168.2.1’, and you can connect to broadband router’s web-based configuration interface by any connected computer with web browser (Internet Explorer 5.x or above, Firefox, or Netscape). Please input ‘192.168.2.1’...
  • Page 25 Please input ‘admin’ in ‘User name’ field, and ‘1234’ in ‘Password’ field, and click ‘OK’ button to enter web configuration interface. TIPS: If you can’t establish connection with broadband router with web browser (got ‘The page cannot be displayed’ or similar error message), the IP address you inputted may be wrong.
  • Page 26 Please click ‘start’ -> ‘run’ at the bottom-lower corner of your desktop: Input ‘cmd’, then click ‘OK’...
  • Page 27 Input ‘ipconfig’, then press ‘Enter’ key. Please check the IP address followed by ‘Default Gateway’ (In this example, the IP address of router is 192.168.2.1, please note that this value may be different.) NOTE: If the IP address of Gateway is not displayed, or the address followed by ‘IP Address’...

  • Page 28: Using 'Quick Setup

    2-4 Using ‘Quick Setup’ This broadband router provides a ‘Quick Setup’ menu, and you can setup basic parameters of this broadband router. Please follow the following instructions to use ‘Quick Setup’ menu: 1. Click ‘Quick Setup’ after logged in.
  • Page 29 2. In the first step of quick setup, you can setup automatic time synchronization settings. The descriptions of every setting items are listed as follow: Item Name Description Time Zone Please select a time zone of the country or region of your residence here. If you can’t find the country / region of your residence here, please select a city / region which time zone is the same with the country / region of your...
  • Page 30 After you finish with time zone settings, please click ‘Next’ to proceed to next step of quick setup - broadband type: Please choose the broadband (Internet connection) type you’re using in this page. There are six types of Internet connection, they are: Cable Modem - Please go to section 2-4-1 Fixed-IP xDSL...
  • Page 31 If you want to go back to previous step, please press ‘Back’ button on the bottom of this page. NOTE: Some service providers use ‘DHCP’ (Dynamic Host Configuration Protocol) to assign IP address to you. In this case, you can choose ‘Cable Modem’ as Internet connection type, even you’re using another connection type, like xDSL.

  • Page 32: Using 'Cable Modem' As Broadband Connection Type

    2-4-1 Using ‘Cable Modem’ as broadband connection type If your Internet service provider uses cable modem to provide Internet service to you, you can select this connection type. You can also select this connection type if your ISP tells you that they will assign you the IP address by ’DHCP’...
  • Page 33 If you wish to select another connection type as broadband connection type, click ‘Back’; or you can click ‘OK’ to finish with quick setup. You’ll see the following messages: Please click ‘Apply’ to save changes you made and restart the broadband router, this requires about 30 seconds and the broadband router will stop responding (this is normal and is not malfunction).

  • Page 34: Using 'Fixed-Ip Xdsl' As Broadband Connection Type

    2-4-2 Using ‘Fixed-IP xDSL’ as broadband connection type If your ISP requires you to set a fixed IP address to establish connection, you can use this connection type to input the IP address information assigned by your ISP. Please note that not only xDSL connections (like ADSL, HDSL, VDSL) can use this connection type, you can select this connection type for all connections that requires you to input a fixed IP address.
  • Page 35 You must use the addresses provided by your Internet service provider, wrong setting value will cause connection problem. If you wish to select another connection type as broadband connection type, click ‘Back’; or you can click ‘OK’ to finish with quick setup. You’ll see the following messages: Please click ‘Apply’...

  • Page 36: Using 'Pppoe Xdsl' As Broadband Connection Type

    2-4-3 Using ‘PPPoE xDSL’ as broadband connection type If your ISP requires you to establish Internet connection by PPPoE (Point-to-Point Protocol over Ethernet), you can use this connection type to establish Internet connection. Here are descriptions of every setup items: Item Name Description User Name...
  • Page 37 Internet when there’s a connect attempt, Manual - only connects to Internet when ‘Connect’ button on this page is pressed, and disconnects when ‘Disconnect button is pressed. Idle Time Out Please specify the time to shutdown internet connect after no internet activity is detected in minute(s).

  • Page 38: Using 'Pptp Xdsl' As Broadband Connection Type

    2-4-4 Using ‘PPTP xDSL’ as broadband connection type If your ISP requires you to use PPTP (Point-to-Point Tunneling Protocol) to establish connection, you can select this connection type to establish Internet connection. PPTP xDSL requires two kinds of setting: WAN interface setting (setup IP address) and PPTP setting (PPTP user name and password).
  • Page 39 Now please go to PPTP settings section: Here are descriptions of every setup items: Item Name Description User ID Please input user ID (user name) assigned by your Internet service provider here. Password Please input the password assigned by your Internet service provider here.
  • Page 40 ‘Continuous’ - keep internet connection alive, do not disconnect. ’Connect on Demand’ - only connects to Internet when there’s a connect attempt, Manual - only connects to Internet when ‘Connect’ button on this page is pressed, and disconnects when ‘Disconnect button is pressed.

  • Page 41: Using 'L2Tp Xdsl' As Broadband Connection Type

    2-4-5 Using 'L2TP xDSL' as broadband connection type If your ISP requires you to use L2TP (Layer-2 Tunneling Protocol) to establish connection, you can select this connection type to establish Internet connection. L2TP is another popular connection method for xDSL and other Internet connection types, and all required setting items are the same with PPTP connection.
  • Page 42 Here are descriptions of every setup items: Item Name Description User ID Please input user ID (user name) assigned by your Internet service provider here. Password Please input the password assigned by your Internet service provider here. L2TP Gateway Please input the IP address of L2TP gateway assigned by your Internet service provider here.
  • Page 43 Idle Time Out Please specify the time to shutdown internet connect after no internet activity is detected in minute(s). This option is only available when connection type is ‘Connect on Demand’. If you wish to select another connection type as broadband connection type, click ‘Back’;...

  • Page 44: Using 'Telstra Big Pond' As Broadband Connection Type

    2-4-6 Using 'Telstra Big Pond' as broadband connection type This connection type only works for Telstra big pond network service in Australia. DO NOT select this connection type if you’re not using Telstra big pond network service. Here are descriptions of every setup items: Item Name Description User Name...
  • Page 45 Please click ‘Apply’ to save changes you made and restart the broadband router, this requires about 30 seconds and the broadband router will stop responding (this is normal and is not malfunction). You can reconnect to this broadband router and continue on other settings later.

  • Page 46: Chapter Iii: General Setup

    Chapter III: General Setup The ‘General Setup’ is for you to setup “System, WAN, LAN, Wireless, and others ( Advance settings ) “. Please follow the following instructions to use ‘General Setup’ menu: 1. Click ‘General Setup’ after logged in.
  • Page 47 2. Five submenus will appear: System - Basic system settings (please go to chapter 3-1) WAN - Setup WAN port manually (please go to chapter 3-2) LAN - Setup LAN port manually (please go to chapter 3-3) Wireless - Setup wireless interface manually (please go to chapter 3-4) Advance Settings - Setup advanced settings of this broadband router (Please go to chapter 3-5)

  • Page 48: System

    3-1 System You can setup basic system settings of this broadband router in ‘System’ menu: Please select the setting item you wish to set, then click ‘Apply’ button to proceed. You can also click ‘Previous’ button to back to ‘System’ menu. 3-1-1 Time Zone You can change the time zone settings of this broadband router.
  • Page 49 The descriptions of every setting item are listed as follow: Item Name Description Time Zone Please select a time zone of the country or region of your residence here. If you can’t find the country / region of your residence here, please select a city / region which time zone is the same with the country / region of your residence.

  • Page 50: Password Settings

    3-1-2 Password Settings You can change the web login password of this broadband router. If you keep using the default password ‘1234’, other people may access the configuration interface without your permission. Please change the password as soon as possible. The descriptions of every setting item are listed as follow: Item Name Description...

  • Page 51: Remote Management

    3-1-3 Remote Management If you need to manage this broadband router outside of your LAN (i.e. from Internet), you can use this function to assign a remote IP address which is permitted to connect to this broadband router’s web management interface from Internet.
  • Page 52 Please click ‘Apply’ to save changes in this page, or you can click ‘Cancel’ to discard all settings in this page. After you click ‘Apply’ button, you’ll see the following message: Please click ‘Apply’ to save changes you made and restart the broadband router, this requires about 30 seconds and the broadband router will stop responding (this is normal and is not malfunction).

  • Page 53: Wan

    3-2 WAN You can setup WAN (Wide Area Network, i.e. Internet) connections of this broadband router in ‘WAN’ menu: Please select the WAN connection type you wish to use, then click ‘Apply’ to continue. You can also click ‘Previous’ to back to previous page.
  • Page 54 3-2-1 Dynamic IP Dynamic IP means your ISP will assign an IP address to you automatically by ‘DHCP’ (Dynamic Host Configuration Protocol). Dynamic IP is often used by cable modem Internet connection. Here are descriptions of every setup items: Item Name Description Host Name Please input the host name of your computer,...
  • Page 55 If you wish to select another connection type as broadband connection type, click ‘Back’; or you can click ‘OK’ to finish with quick setup. You’ll see the following messages: Please click ‘Apply’ to save changes you made and restart the broadband router, this requires about 30 seconds and the broadband router will stop responding (this is normal and is not malfunction).

  • Page 56: Static Ip

    3-2-2 Static IP Some ISP will give you a fixed IP address, and ask you to use this IP address to establish Internet connection. In this case, you have to select this connection type to establish connection with your ISP. Please note that if your ISP is assigning a fixed IP address to you by DHCP or PPPoE, do not select this connection type.
  • Page 57 You must use the addresses provided by your Internet service provider, wrong setting value will cause connection problem. If you wish to select another connection type as broadband connection type, click ‘Back’; or you can click ‘OK’ to finish with quick setup. You’ll see the following messages: Please click ‘Apply’...

  • Page 58: Pppoe

    3-2-3 PPPoE If your ISP requires you to establish Internet connection by PPPoE (Point-to-Point Protocol over Ethernet), you can use this connection type to establish Internet connection. Here are descriptions of every setup items: Item Name Description User Name Please input user name assigned by your Internet service provider here.
  • Page 59 Internet when there’s a connect attempt, Manual - only connects to Internet when ‘Connect’ button on this page is pressed, and disconnects when ‘Disconnect button is pressed. Idle Time Out Please specify the time to shutdown internet connect after no internet activity is detected in minute(s).

  • Page 60: Pptp

    3-2-4 PPTP If your ISP requires you to use PPTP (Point-to-Point Tunneling Protocol) to establish connection, you can select this connection type to establish Internet connection. PPTP requires two kinds of setting: WAN interface setting (setup IP address) and PPTP setting (PPTP user name and password). Here we start from WAN interface setting first: Select the type of how you obtain IP address from your service provider here.
  • Page 61 Now please go to PPTP settings section: Here are descriptions of every setup items: Item Name Description User ID Please input user ID (user name) assigned by your Internet service provider here. Password Please input the password assigned by your Internet service provider here.
  • Page 62 ‘Continuous’ - keep internet connection alive, do not disconnect. ’Connect on Demand’ - only connects to Internet when there’s a connect attempt, Manual - only connects to Internet when ‘Connect’ button on this page is pressed, and disconnects when ‘Disconnect button is pressed.

  • Page 63: L2Tp

    3-2-5 L2TP If your ISP requires you to use L2TP (Layer-2 Tunneling Protocol) to establish connection, you can select this connection type to establish Internet connection. L2TP is another popular connection method for xDSL and other Internet connection types, and all required setting items are the same with PPTP connection.
  • Page 64 Here are descriptions of every setup items: Item Name Description User ID Please input user ID (user name) assigned by your Internet service provider here. Password Please input the password assigned by your Internet service provider here. L2TP Gateway Please input the IP address of L2TP gateway assigned by your Internet service provider here.
  • Page 65 connect after no internet activity is detected in minute(s). This option is only available when connection type is ‘Connect on Demand’. If you wish to select another connection type as broadband connection type, click ‘Back’; or you can click ‘OK’ to finish with quick setup. You’ll see the following messages: Please click ‘Apply’...

  • Page 66: Telstra Big Pond

    3-2-6 Telstra Big Pond This connection type only works for Telstra big pond network service in Australia. DO NOT select this connection type if you’re not using Telstra big pond network service. Here are descriptions of every setup items: Item Name Description User Name Please input the user name assigned by Telstra.
  • Page 67 Please click ‘Apply’ to save changes you made and restart the broadband router, this requires about 30 seconds and the broadband router will stop responding (this is normal and is not malfunction). You can reconnect to this broadband router and continue on other settings later.

  • Page 68: Lan (Wired)

    3-3 LAN (Wired) You can setup Wired LAN (Local Area Network) connections of this broadband router in ‘LAN’ menu. This broadband router has 4 LAN ports and they’ll all use the same LAN IP address settings. Please also note that both wired and wireless LAN uses the same LAN IP address settings, too.
  • Page 69 Suggestions on IP address numbering plan: If you have no idea on how to define an IP address plan for your network, here are some suggestions. 1. A valid IP address has 4 fields: a.b.c.d, for most of home and company users, it’s suggested to use 192.168.c.d, where c is an integer between 0 and 254, and d is an integer between 1 and 254.

  • Page 70: Lan Ip

    3-3-2 LAN IP You can use this setting to assign an IP address to the LAN interface of this broadband router. Here are descriptions of every setup items: Item Name Description IP address Please input the IP address of this broadband router’s LAN interface.

  • Page 71: Dhcp Server

    3-3-3 DHCP Server You can use this setting to decide the range of IP address leases. Here are descriptions of every setup items: Item Name Description Start IP Please input the start IP address of the IP leases range. End IP Please input the end IP address of the IP leases range.

  • Page 72: Static Dhcp Leases

    3-3-4 Static DHCP Leases If you wish to assign a fixed IP address to certain computers / devices by DHCP, you can use this function to establish a MAC-to-IP address table here, so you can assign a specific IP address to a specific computer / network device by its MAC address.
  • Page 73 All MAC-to-IP address entries will be listed in this page, and this broadband router supports up 16 static DHCP leases: To delete one or more entries listed here, please check the box of the mapping entry (under ‘Select’), and click ‘Delete Selected’ button. If you wish to delete all mapping entries, click ‘Delete All’...

  • Page 74: Wireless

    3-4 Wireless You can setup Wireless LAN connection parameters of this broadband router in ‘Wireless’ menu: Please select one setting in this menu, then click ‘Apply’ to proceed. If you wish to go back to previous page, click ‘Previous’.

  • Page 75: Basic Settings

    3-4-1 Basic Settings You can set basic settings of wireless LAN here. Please select the working mode of this broadband router from ‘Mode’ dropdown list first: a. AP: Standard wireless AP (access point). b. Station-Infrastructure: This broadband router acts as both wireless communication client and server - connects to another wireless access point as client, and serves other wireless clients as server.

  • Page 76: Ap Mode

    3-4-1-1 AP mode In AP mode, the following settings will appear: Here are descriptions of every setup items: Item Name Description Band Please select the radio band from one of following options: 2.4 GHz (B): 2.4GHz band, only allows 802.11b wireless network client to connect this router (maximum transfer rate 11Mbps).
  • Page 77 2.4 GHz (B+G+N): 2.4GHz Band, Allows 802.11b, 802.11g, and 802.11N wireless clients. It’s recommends to select this band to maximize compatibility. ESSID This is the name of broadband router. You can type any alphanumerical characters here, maximum 32 characters. ESSID is used to identify your own broadband router from others when there are other broadband routers in the same area.
  • Page 78 TIPS: You can try to change channel number to another one if you think the data transfer rate is too slow, or keep having problem while transferring the file over wireless network. There could be some other broadband routers using the same channel, which will disturb the radio communication between wireless client and the broadband When you finished with the settings in this page, you can click ‘Apply’...

  • Page 79: Station-Infrastructure

    3-4-1-2 Station-Infrastructure In Station-Infrastructure mode, you can select a wireless access point to become its wireless client, and also acts as wireless access point to serve other wireless clients. If you have the access privilege of other wireless access point nearby, and you wish to use that access point to access Internet, you can use this connection type: Here are descriptions of every setup items: Item Name...
  • Page 80 54Mbps for 802.11g clients). 2.4 GHz (G): 2.4GHz band, only allows 802.11g wireless network client to connect this router (maximum transfer rate 54Mbps). 2.4 GHz (B+G+N): 2.4GHz Band, Allows 802.11b, 802.11g, and 802.11N wireless clients. It’s recommends to select this band to maximize compatibility.
  • Page 81 computer (the one you used to connect to the web management interface currently). Auto MAC Clone If you wish to use the MAC address of wired LAN interface of this broadband router, select ‘Enable’, or select ‘Disable’ to not to use the MAC address of the wired LAN interface of this broadband router.

  • Page 82: Ap Bridge-Point To Point

    3-4-1-3 AP Bridge-Point to Point In this mode, you can use this broadband router as a wireless network bridge and let all computers connected to the LAN ports of both wireless access points to communicate with each other. This mode supports only one wireless access point peer.
  • Page 83 router (maximum transfer rate 300Mbps). 2.4 GHz (B+G): 2.4GHz band, only allows 802.11b and 802.11g wireless network client to connect this router (maximum transfer rate 11Mbps for 802.11b clients, and maximum 54Mbps for 802.11g clients). 2.4 GHz (G): 2.4GHz band, only allows 802.11g wireless network client to connect this router (maximum transfer rate 54Mbps).
  • Page 84 Please click ‘Apply’ to save changes you made and restart the broadband router, this requires about 30 seconds and the broadband router will stop responding (this is normal and is not malfunction). You can reconnect to this broadband router and continue on other settings later. You can click ‘Continue’...

  • Page 85: Ap Bridge-Point To Multi-Point

    3-4-1-4 AP Bridge-Point to Multi-Point In this mode, you can use this broadband router as a wireless network bridge and let all computers connected to the LAN ports of all wireless access points to communicate with each other. This mode supports up to four wireless access point peers.
  • Page 86 router (maximum transfer rate 54Mbps). 2.4 GHz (B+G+N): 2.4GHz Band, Allows 802.11b, 802.11g, and 802.11N wireless clients. It’s recommends to select this band to maximize compatibility. Channel Number Select the channel number you wish to use; all access points must use the same channel. MAC address 1 to 4 Input the MAC address of other wireless access points (the access points you wish to connect).

  • Page 87: Ap Bridge-Wds

    3-4-1-5 AP Bridge-WDS In this mode, this broadband router acts as both wireless communication bridge and wireless access point. This broadband router can establish communication with up to four WDS-compatible wireless access points, and let all computers connected to the LAN ports of every wireless access points communicate with each other.
  • Page 88 802.11n wireless network client to connect this router (maximum transfer rate 300Mbps). 2.4 GHz (B+G): 2.4GHz band, only allows 802.11b and 802.11g wireless network client to connect this router (maximum transfer rate 11Mbps for 802.11b clients, and maximum 54Mbps for 802.11g clients). 2.4 GHz (G): 2.4GHz band, only allows 802.11g wireless network client to connect this router (maximum transfer rate 54Mbps).
  • Page 89 wireless client list window. MAC address 1 to 4 Input the MAC address of other wireless access points (the access points you wish to connect). Set Security Click ‘Set Security’ button to set security functions of this wireless connection to improve security.

  • Page 90: Universal Repeater

    3-4-1-6 Universal Repeater In this mode, this broadband router acts as a wireless repeater. It will repeat the signal of the wireless access point you specified, to extend its wireless coverage. The broadband router will still accept wireless clients when in this mode. Modem BR-6574n BR-6574n...
  • Page 91 Here are descriptions of every setup items: Item Name Description Band Please select the radio band from one of following options (must be the same with the wireless access point you wish to connect): 2.4 GHz (B): 2.4GHz band, only allows 802.11b wireless network client to connect this router (maximum transfer rate 11Mbps).
  • Page 92 Channel Number Select the channel number you wish to use; all access points must use the same channel. Associated Clients Click ‘Show Active Clients’ button to show the list of all connected wireless clients. You can click ‘Refresh’ in new window to get latest list again, or click ‘Close’...
  • Page 93 Please click ‘Apply’ to save changes you made and restart the broadband router, this requires about 30 seconds and the broadband router will stop responding (this is normal and is not malfunction). You can reconnect to this broadband router and continue on other settings later. You can click ‘Continue’...

  • Page 94: Set Security

    3-4-1-7 Set Security In certain AP working modes, you can enable encryption to improve security level. When you click ‘Set Security’ button, the following window will appear: Please select an encryption method from ‘Encryption’ dropdown menu, and corresponding setting will appear: Disabled Encryption is disabled.
  • Page 95 Select WEP to enable WEP (Wired Equivalent Privacy) encryption: Here are descriptions of every setup items: Item Name Description Key Length There are two types of WEP key length: 64-bit and 128-bit. Using ‘128-bit’ is safer than ’64-bit’, but will reduce some data transfer performance.
  • Page 96 displayed at ‘Key Format’ field. You can use any alphanumerical characters (0-9, a-z, and A-Z) if you select ‘ASCII’ key format, and if you select ‘Hex’ as key format, you can use characters 0-9, a-f, and A-F. You must enter at least one encryption key here, and if you entered multiple WEP keys, they should not be same with each other.
  • Page 97 Here are descriptions of every setup items: Item Name Description WPA Unicast Cipher Please select a type of WPA cipher suite. Suite Available options are: WPA (TKIP), WPA2 (AES), and WPA2 Mixed. You can select one of them, but you have to make sure your wireless client support the cipher you selected.

  • Page 98: Security Settings

    3-4-2 Security Settings This wireless router supports two types of encryption: WEP (Wired Equivalent Privacy) and WPA (Wi-Fi Protected Access): Please select an encryption method from ‘Encryption’ dropdown menu, and corresponding setting will appear: Disabled Encryption is disabled. It’s not recommended to disable encryption because other people may use certain wireless scanner to copy the data transferred over air.
  • Page 99 Select WEP to enable WEP (Wired Equivalent Privacy) encryption: Here are descriptions of every setup items: Item Name Description Key Length There are two types of WEP key length: 64-bit and 128-bit. Using ‘128-bit’ is safer than ’64-bit’, but will reduce some data transfer performance.
  • Page 100 displayed at ‘Key Format’ field. You can use any alphanumerical characters (0-9, a-z, and A-Z) if you select ‘ASCII’ key format, and if you select ‘Hex’ as key format, you can use characters 0-9, a-f, and A-F. You must enter at least one encryption key here, and if you entered multiple WEP keys, they should not be same with each other.
  • Page 101 Here are descriptions of every setup items: Item Name Description WPA Unicast Cipher Please select a type of WPA cipher suite. Suite Available options are: WPA (TKIP), WPA2 (AES), and WPA2 Mixed. You can select one of them, but you have to make sure your wireless client support the cipher you selected.
  • Page 102 Here are descriptions of every setup items: Item Name Description WPA Unicast Cipher Please select a type of WPA cipher suite. Suite Available options are: WPA (TKIP), WPA2 (AES), and WPA2 Mixed. You can select one of them, but you have to make sure your wireless client support the cipher you selected.
  • Page 103 3-4-3 MAC Address Filtering This function will help you to prevent unauthorized users from connecting to your wireless router; only those wireless devices who have the MAC address you assigned here can gain access to your wireless router. You can use this function with other security measures described in previous section, to create a safer wireless environment.
  • Page 104 All MAC address entries will be listed in this page: To delete one or more entries listed here, please check the box of the mapping entry (under ‘Select’), and click ‘Delete Selected’ button. If you wish to delete all mapping entries, click ‘Delete All’ button. To deselect all checked boxes, click ‘Reset’...

  • Page 105: Wps

    3-4-4 WPS WPS (Wi-Fi Protected Setup) provides a convenient way to establish the connection between this broadband router and wireless clients. Any WPS-compatible wireless clients can establish secure connection with this broadband router with simple push-button type configuration or PinCode type configuration. Here are descriptions of every setup items: Item Name Description...
  • Page 106 displayed here. Authentication Mode The wireless security authentication mode of this wireless router will be displayed here. Passphrase Key The WPA passphrase will be displayed as asterisk here. Config Mode Select the WPS configuration role of this broadband router. Registrar: This broadband router will act as WPS registrar and wait for wireless clients to send WPS configuration request.

  • Page 107: Advance Settings

    3-5 Advance Settings* This router provides various network functionalities like QoS and NAT, and you can configure these functions in ‘Advanced Settings’ menu. Please select the function you wish to set, then click ‘Apply’ button. If you wish to go back to previous page, click ‘Previous’ button.

  • Page 108: Qos

    3-5-1 QoS Quality of service provides an efficient way for computers on the network to share the internet bandwidth with a promised quality of internet service. Without QoS, all computers and devices on the network will compete with each other to get internet bandwidth, and some applications which require guaranteed bandwidth (like video streaming and network telephone) will be affected, therefore an unpleasing result will occur, like the interruption of video / audio transfer.
  • Page 109 Edit If you want to modify the content of a specific rule, please check the ‘select’ box of the rule you want to edit, then click ‘Edit’ button. Only one rule should be selected a time! If you didn’t select a rule before clicking ‘Edit’ button, you’ll be prompted to add a new rule.

  • Page 110: Add A New Qos Entry

    3-5-1-2 Add a new QoS entry After you click ‘Add’ button in QoS menu, a new setting page will appear: Here are descriptions of every setup items: Item Name Description Rule Name Please give a name to this QoS rule (up to 15 alphanumerical characters).
  • Page 111 number that will be affected by this rule. If you want to apply this rule on port 80 to 90, please input ’80-90’; if you want to apply this rule on a single port, just input the port number, like ‘80’...

  • Page 112: Nat

    3-5-2 NAT Network address translations solve the problem if sharing a single IP address to multiple computers. Without NAT, all computers must be assigned with a valid Internet IP address to get connected to Internet, but Internet service providers only provide very few IP addresses to every user.
  • Page 113 Here are descriptions of every setup items: Item Name Description Enable Virtual Server Check this box to enable virtual server, and uncheck this box to disable virtual server. Private IP Input the IP address of the computer which provides Internet service. Computer name All computer names found by this broadband router on local network will be listed here.
  • Page 114 When you finished with the settings in this page, you can click ‘Apply’ button to save changes you made in this page, or you can click ‘Cancel’ to discard changes. After you click ‘Apply’ button, you’ll see the following messages: Please click ‘Apply’...

  • Page 115: Special Applications

    3-5-2-2 Special Applications Some applications require more than one connection a time; these applications won’t work with simple NAT rules. In order to make these applications work, you can use this function to let these applications work. Here are descriptions of every setup items: Item Name Description Enable...
  • Page 116 single value, or a range (like 20-50). If you need to input more than one port number and they’re not contiguous, list all port numbers here and separate them by comma ( , ). If the application does not use TCP port, leave it blank.
  • Page 117 When you finished with the settings in this page, you can click ‘Apply’ button to save changes you made in this page, or you can click ‘Cancel’ to discard changes. After you click ‘Apply’ button, you’ll see the following messages: Please click ‘Apply’...

  • Page 118: Firewall

    3-5-2-3 Firewall This broadband router supports several firewall functions which will help you to protect your network and computer. In this chapter, instructions for using these functions will be given, so you can utilize these functions to protect your network from hackers and malicious intruders. 3-5-2-3-1 Access Control By using access control, you can restrict your computers from accessing improper website, or using disallowed applications.
  • Page 119 network devices. Client PC MAC Please input the MAC address of computer or address network device here, dash ( - ) or colon ( : ) are not required. (i.e. If the MAC address label of your wireless device indicates ‘aa-bb-cc-dd-ee-ff’...
  • Page 120 All MAC address entries will be listed in this page: To delete one or more entries listed here, please check the box of the mapping entry (under ‘Select’), and click ‘Delete Selected’ button. If you wish to delete all mapping entries, click ‘Delete All’ button. To deselect all checked boxes, click ‘Reset’...
  • Page 121 Here are descriptions of every setup items: Item Name Description Client PC Description Please input any text to describe this IP address, up to 16 alphanumerical characters. Client PC IP address Please input the starting IP address in the left field, and input the end IP address in the right field to define a range of IP addresses, or just input the IP address in the left field to define a...
  • Page 122 If the service you wish to deny or allow is not listed, you can use ‘User Define Service’ table to add a new service of your own: Here are descriptions of every setup items: Item Name Description Protocol Please select the protocol type of this service: TCP or UDP, or ‘Both’.
  • Page 123 Please click ‘Apply’ to save changes you made and restart the broadband router, this requires about 30 seconds and the broadband router will stop responding (this is normal and is not malfunction). You can reconnect to this broadband router and continue on other settings later.

  • Page 124: Url Blocking

    3-5-2-3-2 URL Blocking If you want to prevent computers in local network from accessing certain website (like pornography, violence, or anything you want to block), you can use this function to stop computers in local network from accessing the site you defined here. This function is useful for parents and company managers.
  • Page 125 website, like http://www.blocked-site.com http://11.22.33.44), or the keyword which is contained in URL (like pornography, cartoon, stock, or anything). Click ‘Add’ button to add the URL / keyword to the URL / Keyword filtering table. Reset Click ‘Reset’ to remove the value you inputted in URL/Keyword field.
  • Page 126 responding (this is normal and is not malfunction). You can reconnect to this broadband router and continue on other settings later.

  • Page 127: Dos

    3-5-2-3-3 DoS Denial of Service (DoS) is a common attack measure, by transmitting a great amount of data or request to your Internet IP address and server, the Internet connection will become very slow, and server may stop responding because it is not capable to handle too much traffics. This router has a built-in DoS attack prevention mechanism;...
  • Page 128 ping your own router from internet, too. Port Scan Some malicious intruder will try to use a ‘port scanner’ to know how many ports of your Internet IP address are open, and they can collect a lot of valuable information by doing so.
  • Page 129 box of Ping of Death, and input the frequency of threshold (how many packets per second, minute, or hour), you can also input the ‘Burst’ value, which means when this number of ‘Ping of Death’ packet is received in very short time, this DoS prevention mechanism will be activated.

  • Page 130: Ddns

    3-5-2-4 DDNS DDNS (Dynamic DNS) is a IP-to-Hostname mapping service for those Internet users who don’t have a static (fixed) IP address. It will be a problem when such user wants to provide services to other users on Internet, because their IP address will vary every time when connected to Internet, and other user will not be able to know the IP address they’re using at a certain time.
  • Page 131 Here are descriptions of every setup items: Item Name Description Dynamic DNS If you want to enable DDNS function, please select ‘Enabled’; otherwise please select ‘Disabled’ Provider Select your DDNS service provider here. Domain Name Input the domain name you’ve obtained from DDNS service provider.
  • Page 132 authentication type is password). AuthP / AuthQ Please input the AuthP/AuthQ you applied during DHIS registration. (This field will appear only when authentication type is QRC). When you finished with the settings in this page, you can click ‘Apply’ button to save changes you made in this page, or you can click ‘Cancel’ to discard changes.

  • Page 133: Port Forwarding

    3-5-2-5 Port Forwarding This function allows you to redirect a single port or consecutive ports of Internet IP address to the same port of the IP address on local network. The port number(s) of Internet IP address and private IP address (the IP address on local network) must be the same.
  • Page 134 Type Select the type of connection, TCP or UDP. If you’re not sure, please select ‘Both’. Port Range Input the starting port number in the left field, and input the ending port number in the right field. If you only want to redirect a single port number, just fill the port number in the left field.
  • Page 135 Please click ‘Apply’ to save changes you made and restart the broadband router, this requires about 30 seconds and the broadband router will stop responding (this is normal and is not malfunction). You can reconnect to this broadband router and continue on other settings later.

  • Page 136: Dmz

    3-5-2-6 DMZ Demilitarized Zone (DMZ) is a special area in your local network. This area resides in local network, and all computers in this area uses private IP address, too. But these private IP addresses are mapped to a certain Internet IP address, so other people on Internet can fully access those computers in DMZ.
  • Page 137 you’re not sure, please select ‘Both’. Port Range Input the starting port number in the left field, and input the ending port number in the right field. If you only want to redirect a single port number, just fill the port number in the left field.
  • Page 138 Please click ‘Apply’ to save changes you made and restart the broadband router, this requires about 30 seconds and the broadband router will stop responding (this is normal and is not malfunction). You can reconnect to this broadband router and continue on other settings later.

  • Page 139: Chapter Iv Ez View

    Chapter IV EZ View Many network devices like printer, IP camera, and multi-media adapters support UPnP (Universal PnP) function. Those UPnP-compatible devices can communicate with each other, and make appropriate configurations. This broadband router is capable to scan the local network and find all UPnP-compatible devices out, you can get a list of all UPnP devices on network, and you can connect to the administration interface of these devices from web interface directly.
  • Page 140 2. A pop-up window (or new web browser tab) will appear to show that broadband router is scanning for UPnP devices on network, please wait for 30 seconds until ‘OK’ button appears. Click ‘OK’ button to continue.
  • Page 141 3. All UPnP-compatible devices found on the network will be listed here, with the category it belongs to and its name. (For network devices not manufactured by Edimax, or earlier non-PnP Edimax products, the category and name will not be able to displayed).
  • Page 142 You can click ‘ ’ button to connect to the web administration interface of the network device, as shown below. (The following picture is an example of connecting to an IP camera, you can input its username and password to login).
  • Page 143 If you want to rescan UPnP devices, click ‘Refresh’ button. If you need to set the detailed information of UPnP devices, please click ‘Advanced’ button, and the following settings will appear: You can click ‘?’ icon and a drop-down list will shown, then you can select an icon for the network device you selected.
  • Page 144 Here are descriptions of every setup items: Item Name Description Click this button to add a network device, and you can set detailed network information like name and IP address for it. Click ‘Apply’ button to save changes and new setting will take effect until next login.
  • Page 145 to access the network at certain time period. Click ‘Set’ button and a new window will appear with three time-selection options: No Block: Do not block this UPnP device. Time Interval: This UPnP device will be blocked during the time period you specified. Please input ‘from’...
  • Page 146 When you finished with the settings in this page, you can click ‘Apply’ button to save changes you made in this page, or you can click ‘Cancel’ to discard changes. After you click ‘Apply’ button, you’ll see the following messages: Please click ‘Apply’...

  • Page 147: Chapter V: Status

    Chapter V: Status In this menu, you can check the operation status of this broadband router. To view the status, follow the following instructions: 1. Click ‘Status’ button from main menu: 2. The basic system information will be shown:...
  • Page 148 You can check the system uptime and firmware version of this broadband router. If you need detailed information about Internet connection or system usage log, please choose one of them and click ‘Apply’. If you want to go back to previous page, please click ‘Previous’.

  • Page 149: Internet Connection

    5-1 Internet Connection This page shows the current status of Internet connection.

  • Page 150: Device Status

    5-2 Device Status This page shows current wireless LAN and wired LAN configuration.

  • Page 151: System Log

    5-3 System Log This page shows all logged system information. You can use scroll bar to view the logs, or click ‘Save’ to download the log file to your computer. You can also click ‘Clear’ to remove all logs, or click ‘Refresh’ to reload logs.

  • Page 152: Security Log

    5-4 Security Log This page shows all logged security-related information. You can use scroll bar to view the logs, or click ‘Save’ to download the log file to your computer. You can also click ‘Clear’ to remove all logs, or click ‘Refresh’ to reload logs.

  • Page 153: Active Dhcp Client

    5-5 Active DHCP Client This page shows all current DHCP clients. You can click ‘Refresh’ to reload the list.

  • Page 154: Statistics

    Statistics This page shows the statistical information of network interfaces of this broadband router, and the total system uptime.

  • Page 155: Chapter Vi : Tools

    Chapter VI : Tools This broadband router comes with several tools that will help you to manage the configuration of broadband router, upgrade the firmware, and restart the broadband router. To use these tools, follow the following instructions: 1. Click ‘Tools’ button from main menu:...
  • Page 156 2. The list of tools will appear: Please select the tool you wish to use, then click ‘Apply’ button. If you wish to go back to previous page, click ‘Previous’ button.

  • Page 157: Configuration Tools

    6-1 Configuration Tools In this page, you can backup and restore current system configuration, and reset all settings to factory default value. Here are descriptions of every setup items: Item Name Description Backup Settings Click ‘Save…’ button to download the current configuration as ‘config.bin’...

  • Page 158: Firmware Upgrade

    6-2 Firmware Upgrade New firmware releases will provide new functions to this broadband router, and you can use firmware upgrade function to upgrade the firmware to new version. NOTE: It’s recommended to use wired Ethernet connection to upload the firmware file, please refrain from using wireless connection to upload the firmware file.

  • Page 159: Restart

    6-3 Restart If you found that the broadband router is not functioning correctly, or responding slowly then usual, you can use this function to restart the broadband router, and this may correct the problem. Click ‘Apply’ button to restart the broadband router. You’ll be prompted to confirm the restart, click ‘OK’...

  • Page 160: Chapter Vii : Language

    This broadband router’s web-based user interface supports several languages in the future .We will release English version at first, and add others step by step. You can view website http://www.edimax.com check new firmware. You can change the display language by click ‘Language’ button in main menu.
