H11SSW-iN/NT
USER'S MANUAL
Revision 1.0a

Advertisement

Table of Contents
loading

Related Manuals for Supermicro H11SSW-iN

Summary of Contents for Supermicro H11SSW-iN

  • Page 1 H11SSW-iN/NT USER’S MANUAL Revision 1.0a...
  • Page 2 State of California, USA. The State of California, County of Santa Clara shall be the exclusive venue for the resolution of any such disputes. Supermicro's total liability for all claims will not exceed the price paid for the hardware product.
  • Page 3 About This Manual This manual is written for system integrators, IT technicians and knowledgeable end users. It provides information for the installation and use of the H11SSW-iN/NT motherboard. About This Motherboard Built upon the functionality and capability of the EPYC 7001/7002 processor, the H11SSW-iN/NT motherboard provides superior graphics capability and system performance while consuming little power.
  • Page 4 H11SSW-iN/NT User's Manual Contacting Supermicro Headquarters Address: Super Micro Computer, Inc. 980 Rock Ave. San Jose, CA 95131 U.S.A. Tel: +1 (408) 503-8000 Fax: +1 (408) 503-8008 Email: marketing@supermicro.com (General Information) support@supermicro.com (Technical Support) Website: www.supermicro.com Europe Address: Super Micro Computer B.V.

  • Page 5: Table Of Contents

    Preface Table of Contents Chapter 1 Introduction 1.1 Quick Reference .........................11 Quick Reference Table ......................12 Motherboard Features .......................14 1.2 Processor and Chipset Overview ..................17 1.3 Special Features ........................17 Recovery from AC Power Loss ..................17 1.4 System Health Monitoring ....................18 Onboard Voltage Monitors ....................18 Fan Status Monitor with Firmware Control ...............18 Environmental Temperature Control .................18 System Resource Alert......................18...
  • Page 6 H11SSW-iN/NT User's Manual 2.7 Connectors .........................42 2.8 Jumper Settings .........................48 How Jumpers Work ......................48 2.9 LED Indicators ........................50 Chapter 3 Troubleshooting 3.1 Troubleshooting Procedures ....................52 Before Power On ......................52 No Power ..........................52 No Video ...........................53 System Boot Failure ......................53 Memory Errors ........................53 The System Can't Retain the Setup Configuration? ............53...
  • Page 7 Preface A.2 Driver Installation ........................89 A.3 SuperDoctor 5 ........................90 ® A.4 IPMI ............................91 Appendix B Standardized Warning Statements B.1 Battery Handling .........................92 B.2 Product Disposal .........................94 Appendix C UEFI BIOS Recovery C.1 Overview ..........................95 C.2 Recovering the UEFI BIOS Image ..................95 C.3 Recovering the BIOS Block with a USB Device ..............95...

  • Page 8: Chapter 1 Introduction

    • Product safety info: https://www.supermicro.com/about/policies/safety_information.cfm • If you have any questions, please contact our support team at: support@supermicro.com This manual may be periodically updated without notice. Please check the Supermicro website for possible updates to the manual revision level.

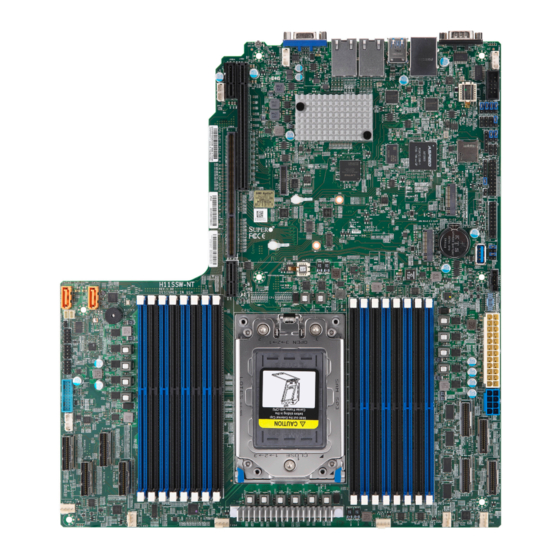

  • Page 9 Chapter 1: Introduction Figure 1-1. H11SSW-iN/NT Image Note: All graphics shown in this manual were based upon the latest PCB revision available at the time of publication of the manual. The motherboard you received may or may not look exactly the same as the graphics shown in this manual.
  • Page 10 CPU PCI_E 3.0 X2 M.2-C1 ACT M.2-C1 BATTERY LED10 MH15 JVRM1 MH17 BIOS JUSBA1 H11SSW-NT SATA0 SUPERDOM SATA1 SOC_DUAL_P1 REV:1.01 DESIGNED IN USA JBT1 1V8_DUAL_P1 BUZZER JSLIM2 JSLIM1 NVME14/15 JSLIM5 JSLIM3 NVME8/9 SATA0-7 MH10 FAN5 FAN2 FAN1 FAN3 FAN4 Figure 1-2. H11SSW-iN/NT Layout...

  • Page 11: Quick Reference

    Chapter 1: Introduction 1.1 Quick Reference USB 2/3 LAN 2 UID SW USB 0/1 COM1 LAN 1 JCOM1 1 2 3 UID-SW JVGA1 JUID1 UID-LED COM1 LED1 IPMI JUSBRJ45 JSXB1A JSXB2 IPMI LAN JSXB1A JUSB1 COM2 USB0/1 LED 1 (3.0) USB2/3 (3.0) IPMI_LAN...

  • Page 12: Quick Reference Table

    H11SSW-iN/NT User's Manual Quick Reference Table Jumper Description Default Setting UID SW Unit ID switch (push-button toggle switch ON/OFF) JBT1 Clear CMOS Open (Normal) JWD1 Watch Dog control Pins 1-2 (Reset) JDBG1 Debug Mode Pins 1-2 (Normal) JPL1 LAN Enable/Disable...
  • Page 13 Chapter 1: Introduction Connector Description LAN1, LAN2 Back panel LAN1, LAN2 connectors Back panel VGA port NVME 0~15 NVMe slots 1~15 Note: Jumpers, connectors, switches, and LED indicators that are not described in the preceding tables are for manufacturing testing purposes only, and are not covered in this manual.

  • Page 14: Motherboard Features

    M.2 Key: M-Key Network • ATEN IPMI from ASPEED AST 2500 BMC for gigabit RJ45 port • Dual RJ45 LAN ports (H11SSW-iN(1GbE Broadcom 5720L); H11SSW-NT(10GbE Broadcom 57416)) Graphics • ASPEED AST2500 BMC chip with one (1) VGA port I/O Devices •...
  • Page 15 Chapter 1: Introduction Features Power Management • ACPI power management (S5) • Power button override mechanism • Power-on mode for AC power recovery System Health Monitoring • Onboard voltage monitoring for +1.8V, 3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, HT, Memory •...
  • Page 16 H11SSW-iN/NT User's Manual H11SSW IPMI LAN RJ45 AMD SP3 Rev. 1.01 Rear USB 3.0 10Gb LAN 10Gb LAN RJ45 RJ45 Rear SXB1 SXB2 USB 3.0 COM1 RX 0-7 RX 15-8 COM2 ASM1042 ASM1042 TX 0-7 TX 15-8 USB controller USB controller...

  • Page 17: Processor And Chipset Overview

    • System Management Bus (SMBus) Specification Version 2.0 1.3 Special Features This section describes the health monitoring features of the H11SSW-iN/NT. The motherboard has an onboard System Hardware Monitor chip that supports system health monitoring. Recovery from AC Power Loss The Basic I/O System (BIOS) provides a setting that determines how the system will respond when AC power is lost and then restored to the system.

  • Page 18: System Health Monitoring

    H11SSW-iN/NT User's Manual 1.4 System Health Monitoring This section describes the health monitoring features of the H11SSW-iN/NT motherboard. The motherboard has an onboard Baseboard Management Controller (BMC) chip that supports system health monitoring. Once a voltage becomes unstable, a warning is given or an error message is sent to the screen.

  • Page 19: Acpi Features

    Chapter 1: Introduction 1.5 ACPI Features ACPI stands for Advanced Configuration and Power Interface. The ACPI specification defines a flexible and abstract hardware interface that provides a standard way to integrate power management features throughout a computer system including its hardware, operating system and application software.

  • Page 20: Chapter 2 Installation

    H11SSW-iN/NT User's Manual Chapter 2 Installation 2.1 Static-Sensitive Devices Electrostatic Discharge (ESD) can damage electronic com ponents. To prevent damage to your motherboard, it is important to handle it very carefully. The following measures are generally sufficient to protect your equipment from ESD.

  • Page 21: Motherboard Installation

    Chapter 2: Installation 2.2 Motherboard Installation All motherboards have standard mounting holes to fit different types of chassis. Make sure that the locations of all the mounting holes for both the motherboard and the chassis match. Although a chassis may have both plastic and metal mounting fasteners, metal ones are highly recommended because they ground the motherboard to the chassis.
  • Page 22 H11SSW-iN/NT User's Manual Figure 2-1. Motherboard Mounting Holes...

  • Page 23: Installing The Motherboard

    Chapter 2: Installation Installing the Motherboard 1. Install the I/O shield into the back of the chassis. 2. Locate the mounting holes on the motherboard. See the previous page for the locations. 3. Locate the matching mounting holes on the chassis. Align the mounting holes on the motherboard with the mounting holes on the chassis.

  • Page 24: Processor And Heatsink Installation

    CPU socket cap is in place and none of the socket pins are bent; otherwise, contact your retailer immediately. • Refer to the Supermicro website for updates on CPU support. Installing the Processor and Heatsink 1. Unscrew the screws holding down Force Frame in the sequence of 3-2-1. The screws are numbered on the force frame next to each screw hole.
  • Page 25 Chapter 2: Installation 2. The spring-loaded force frame will raise up after the last screw securing it (#1) is removed. Gently allow it to lift up to its stopping position. 3. Lift the rail frame up by gripping the lift tabs near the front end of the rail frame. While keeping a secure grip of the rail frame, lift it to a position so you can do the next step of removing the external cap.
  • Page 26 H11SSW-iN/NT User's Manual 4. Remove the external cap from the Rail Frame by pulling it upwards through the rail guides on the rail frame. External Cap PnP Cover Cap 5. The CPU package is shipped from the factory with the blue carrier frame pre-assembled.
  • Page 27 Chapter 2: Installation Note: You can only install the CPU inside the socket in one direction with the handle at the top. Make sure that it is properly inserted into the CPU socket before closing the rail frame plate. If it doesn't close properly, do not force it as it may damage your CPU. Instead, open the rail frame plate again, and double-check that the CPU is aligned properly.
  • Page 28 H11SSW-iN/NT User's Manual 9. Gently lower the force frame down onto the rail frame and hold it in place until it is seated in the Socket housing. Note that the force frame is spring loaded and has to be held in place before it is secured. Important: Use a torque screwdriver, set it at 16.1 kgf-cm (14.0 lbf-in) with a Torx T20 screw head bit, to prevent damage to the CPU.
  • Page 29 Chapter 2: Installation 11. After the force frame is secured and the CPU package is in place, now you must install the heatsink to the frame. Lower the heatsink down till it rests securely over the four screw holes on CPU package on the socket frame. 12.
  • Page 30 H11SSW-iN/NT User's Manual Un-installing the Processor and Heatsink 1. Remove the heatsink attached to the top of the CPU package by reversing the installation procedure. 2. Clean the Thermal grease left by the heatsink on the CPU package lid to limit the risk of it contaminating the CPU package land pads or contacts in the socket housing.

  • Page 31: Memory Support And Installation

    Important: Exercise extreme care when installing or removing DIMM modules to prevent any possible damage. Memory Support The H11SSW-iN/NT supports Up to 2 TB of ECC DDR4 2666 MHz speed, RDIMM/ LRDIMM/3DS/NVDIMM memory in sixteen (16) slots. Refer to the table below for additional memory information.
  • Page 32 H11SSW-iN/NT User's Manual Populating RDIMM/RDIMM 3DS/LRDIMM/LRDIMM 3DS DDR4 Memory Modules (with 7002 Processor) Maximum DIMM DIMM Population Capacity (GB) Type Maximum Frequency (MHz) DIMM1 DIMM2 1 Channel 8 Channel 32GB 256GB 3200 64GB 512GB 2933 RDIMM 2R or 2DR 64GB...

  • Page 33: Dimm Module Population

    JCOM1 1 2 3 UID-SW JVGA1 JUID1 UID-LED COM1 LED1 Chapter 2: Installation JUSBRJ45 JSXB2 JSXB1A JUSB1 USB0/1 (3.0) USB2/3 (3.0) IPMI_LAN JM2_1 JM2_2 JPG1 JPB1 DIMM Module Population JUART3 JUART2 JUART1 JPL1 JSXB1B There is no specific order or sequence required when installing memory modules. However JCPLD1 JDBG1 JWD1...
  • Page 34 H11SSW-iN/NT User's Manual DIMM Population Guide (with 7001 Processor) Channel DIMM DIMM DIMM DIMM DIMM DIMM DIMM DIMM DIMM DIMM DIMM DIMM DIMM DIMM DIMM DIMM 4 DIMMS (*see NOTE below) ü ü ü ü 6 DIMMS Unbalanced, not recommended 8 DIMMS ü...

  • Page 35: Dimm Installation

    Chapter 2: Installation DIMM Installation 1. Insert the desired number of DIMMs into the memory slots, there is no specific sequence or order required Receptive 2. Push the release tabs outwards on both Point ends of the DIMM slot to unlock it. 3.

  • Page 36: Rear I/O Ports

    H11SSW-iN/NT User's Manual 2.5 Rear I/O Ports See Figure 2-1 below for the locations and descriptions of the various I/O ports on the rear of the motherboard. JCOM1 1 2 3 UID-SW UID-LED JVGA1 JUID1 COM1 LED1 JUSBRJ45 JSXB1A JSXB2...
  • Page 37 See page 36 for the front panel UID LED header location on JF1. Note: UID can also be triggered via IPMI on the serverboard. For more information on IPMI, please refer to the IPMI User's Guide posted on our website @ http://www.supermicro.com...

  • Page 38: Front Control Panel

    JF1 contains header pins for various buttons and indicators that are normally located on a control panel at the front of the chassis. These connectors are designed specifically for use with Supermicro chassis. See the figure below for the location of JF1.. JCOM1...

  • Page 39: Front Control Panel Pin Definitions

    Chapter 2: Installation Front Control Panel Pin Definitions NMI Button The non-maskable interrupt button header is located on pins 19 and 20 of JF1. Refer to the table below for pin definitions. NMI Button Pin Definitions (JF1) Pin# Definition Control Ground Power LED The Power LED connection is located on pins 15 and 16 of JF1.
  • Page 40 H11SSW-iN/NT User's Manual NIC1/NIC2 Link LED The NIC (Network Interface Controller) LED connection for LAN port 1 is located on pins 11 and 12 of JF1, and the LED connection for LAN Port 2 is on Pins 9 and 10. Attach the NIC LED cables to display network activity.
  • Page 41 Chapter 2: Installation Reset Button The Reset Button connection is located on pins 3 and 4 of JF1. Attach the hardware reset switch from the computer case to this header to reset the system. Refer to the table below for pin definitions. Reset Button Pin Definitions (JF1) Pin#...

  • Page 42: Connectors

    DOM Power Pin Definitions Pin# Definition Ground Ground SATA (SATA0, SATA1) The H11SSW-iN/NT has two (2) available SATA 3.0 ports (SATA0 and SATA1) on the motherboard. These are standard SATA 3.0 ports. SATA Connectors Pin Definitions Pin# Signal Ground SATA_TXP...
  • Page 43 Chapter 2: Installation NVMe Ports ( NVMe 0~7, 10, 11, 14, 15) The H11SSW-iN/NT has tweleve (12) NVMe ports (2 ports per 1 Slim SAS connector) on the motherboard. These ports provide high-speed, low-latency PCI-E 3.0 x4 connections directly from the CPU to NVMe Solid State (SSD) drives. This greatly increases SSD data- throughput performance and significantly reduces PCI-E latency by simplifying driver/software requirements resulting from direct PCI-E interface from the CPU to the NVMe SSD drives.
  • Page 44 H11SSW-iN/NT User's Manual USB Ports (USB0~USB4, USB 6/7) There are a total of seven (7) USB ports supported on the motherboard. Four are located on the back panel , USB 0/1, and USB 2/3 (both are USB 3.0 compliant). There are also three ports located on the motherboard, two are on one header, USB 6/7 (3.0) and and the...
  • Page 45 Sensor Header (JSEN1) This header (JSEN1) allows BMC to monitor thermal inlet temperature. A special module is required. Please contact Supermicro at www.supermicro.com to purchase the module for thisheader. Refer to the table below for pin definitions Intel Sensor Header...
  • Page 46 H11SSW-iN/NT User's Manual Main Power Supply Connector (JPWR2) The primary power supply connector (JPWR2) is an ATX power connector that the power supply plugs into directly. ATX Power 24-pin Connector Pin Definitions Pin# Definition Pin # Definition +3.3V +3.3V -12V +3.3V...
  • Page 47 Chapter 2: Installation SGPIO Headers (SGPIO1, SGPIO2, SGPIO3) Serial General Purpose Input/Output (SGPIO) headers are used to communicate with the enclosure management chip on the motherboard. SGPIO Headers Header Pin Definitions Pin# Definition Pin# Definition Ground Data Out Load Ground Clock Serial Port (COM2) There is one serial (COM) port header on the motherboard.

  • Page 48: Jumper Settings

    H11SSW-iN/NT User's Manual 2.8 Jumper Settings How Jumpers Work To modify the operation of the motherboard, jumpers can be used to choose between optional settings. Jumpers create shorts between two pins to change the function of the connector. Pin #1 is identified with a thicker border line on the printed circuit board. See the diagram below for an example of jumping pins 1 and 2.
  • Page 49 Chapter 2: Installation Watch Dog (JWD1) JWD1 controls the Watch Dog function. Watch Dog is a monitor that can reboot the system when a software application hangs. Jumping pins 1-2 will cause Watch Dog to reset the system if an application hangs. Jumping pins 2-3 will generate a non-maskable interrupt signal for the application that hangs.

  • Page 50: Led Indicators

    H11SSW-iN/NT User's Manual 2.9 LED Indicators LAN Port LEDs The motherboard's Ethernet ports has two LED indicators. The Activity LED is green and indicates connection and activity. The Link LED may be green, orange/amber, or off to indicate the speed of the connection. Refer to the tables below for more information.
  • Page 51 Chapter 2: Installation Onboard Power OK LED (LED6) LED6 is an onboard power OK LED. When this LED6 is lit, it means the system is turned on, and all the system power rails are ready. When the system is turned off, or any one of the system power rails fail, this LED will turn off.

  • Page 52: Chapter 3 Troubleshooting

    H11SSW-iN/NT User's Manual Chapter 3 Troubleshooting 3.1 Troubleshooting Procedures Use the following procedures to troubleshoot your system. If you have followed all of the procedures below and still need assistance, refer to the ‘Technical Support Procedures’ and/ or ‘Returning Merchandise for Service’ section(s) in this chapter. Always disconnect the AC power cord before adding, changing or installing any non hot-swap hardware components.

  • Page 53: No Video

    Chapter 3: Troubleshooting No Video 1. If the power is on but you have no video, remove all the add-on cards and cables. 2. Set JPG1 to [1-2] and check if you follow the guidelines to install the memory module (see DIMM Module Population in chapter 2 3.

  • Page 54: When The System Becomes Unstable

    2. Memory support: Make sure that the memory modules are supported by testing the modules using memtest86 or a similar utility. Note: Refer to the product page on our website at http:\\www.supermicro.com for memory and CPU support and updates. 3. HDD support: Make sure that all hard disk drives (HDDs) work properly. Replace the bad HDDs with good ones.

  • Page 55: Technical Support Procedures

    Chapter 3: Troubleshooting 4. Identifying bad components by isolating them: If necessary, remove a component in question from the chassis, and test it in isolation to make sure that it works properly. Replace a bad component with a good one. 5.

  • Page 56: Frequently Asked Questions

    3.3 Frequently Asked Questions Question: What type of memory does my motherboard support? Answer: The H11SSW-iN/NT motherboard supports up to 2TB of ECC DDR4 2400/2666 MHz speed, RDIMM/LRDIMM/3DS/NVDIMM memory in sixteen (16) slots. See Section 2.4 for details on installing memory.

  • Page 57: Returning Merchandise For Service

    Shipping and handling charges will be applied for all orders that must be mailed when service is complete. For faster service, RMA authorizations may be requested online (http://www.supermicro.com/ support/rma/). This warranty only covers normal consumer use and does not cover damages incurred in shipping or from failure due to the alteration, misuse, abuse or improper maintenance of products.

  • Page 58: Battery Removal

    H11SSW-iN/NT User's Manual Battery Removal To remove the onboard battery, follow the steps below: 1. Power off your system and unplug your power cable. 2. Locate the onboard battery as shown below. 3. Using a tool such as a pen or a small screwdriver, push the battery lock outwards to unlock it.

  • Page 59: Chapter 4 Bios

    BIOS 4.1 Introduction This chapter describes the AMIBIOS™ Setup utility for the H11SSW-iN/NT motherboard. The BIOS is stored on a chip and can be easily upgraded using a flash program. Note: Due to periodic changes to the BIOS, some settings may have been added or deleted and might not yet be recorded in this manual.

  • Page 60: Main Setup

    H11SSW-iN/NT User's Manual 4.2 Main Setup When you first enter the AMI BIOS setup utility, you will enter the Main setup screen. You can always return to the Main setup screen by selecting the Main tab on the top of the screen. The Main BIOS setup screen is shown below.
  • Page 61 Chapter 4: BIOS CPLD Version This item displays the CPLD version of the BIOS ROM used in the system. Memory Information Total Memory This item displays the total size of memory available in the system.

  • Page 62: Advanced

    H11SSW-iN/NT User's Manual 4.3 Advanced Use the arrow keys to select Boot Setup and press <Enter> to access the submenu items. Warning: Take caution when changing the Advanced settings. An incorrect value, a very high DRAM frequency, or an incorrect DRAM timing setting may make the system unstable.
  • Page 63 Chapter 4: BIOS Bootup NumLock State Use this feature to set the Power on state for the <Numlock> key. The options are Off and On. Wait For "F1" If Error Use this feature to force the system to wait until the 'F1' key is pressed if an error occurs. The options are Disabled and Enabled.
  • Page 64 H11SSW-iN/NT User's Manual PSP Firmware Versions  This section displays the Platform Security Processor (PSP) firmware versions. PSP Directory Level 1 (Fixed) • PSP Recovery BL Ver • SMU FW Version • ABL Version • APCB Version • APOB Version •...
  • Page 65 Chapter 4: BIOS CPU Configuration  SMT Mode Use this setting to specify Simultaneous Multithreading. Options include Off for 1T single thread and Auto for 2T two-thread if your system is capable of it. Core Performance Boost This setting is used to configure for Core Performance Boost. Options include Auto and Disabled.
  • Page 66 H11SSW-iN/NT User's Manual NB Configuration  Determinism Slider Use this setting to configure the Determinism Slider. Options include Auto, Power and Performance. cTDP Control Use this setting to configure the cTDP Control. Options include Manual and Auto. IOMMU Use this setting to enable/disable IOMMU. Options include Enabled, Disabled and Auto.
  • Page 67 Chapter 4: BIOS CPU1 Memory Information  These sections are for informational purposes. They will display some details about the detected memory according to each CPU on the motherboard, such as: • Detected Size (per slot, in MB) • Current Speed (MT/s) ACPI Settings ...
  • Page 68 H11SSW-iN/NT User's Manual Change SOL Settings This feature specifies the base I/O port address and the Interrupt Request address of a serial port specified by the user. Select Auto to allow the BIOS to automatically assign the base I/O and IRQ address. The options are Auto, (IO=2F8h; IRQ=3;); (IO=3F8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12;);...
  • Page 69 Chapter 4: BIOS Parity A parity bit can be sent along with regular data bits to detect data transmission errors. Select Even if the parity bit is set to 0, and the number of 1's in data bits is even. Select Odd if the parity bit is set to 0, and the number of 1's in data bits is odd.
  • Page 70 H11SSW-iN/NT User's Manual Console Redirection Settings Terminal Type This feature allows the user to select the target terminal emulation type for Console Redirection. Select VT100 to use the ASCII Character set. Select VT100+ to add color and function key support. Select ANSI to use the Extended ASCII Character Set. Select VT-UTF8 to use UTF8 encoding to map Unicode characters into one or more bytes.
  • Page 71 Chapter 4: BIOS Recorder Mode Select Enabled to capture the data displayed on a terminal and send it as text messages to a remote server. The options are Disabled and Enabled. Resolution 100x31 Select Enabled for extended-terminal resolution support. The options are Disabled and Enabled.
  • Page 72 H11SSW-iN/NT User's Manual  Console Redirection Settings Out-of-Band Mgmt Port The feature selects a serial port in a client server to be used by the Microsoft Windows Emergency Management Services (EMS) to communicate with a remote host server. The options are COM1, COM2 (Disabled), and AMT SOL.
  • Page 73 Chapter 4: BIOS SR-IOV Support If the system has SR-IOV capable PCI-E devices, this setting will Enable or Disable the Single Root IO Virtualization Support for the system. PCIe Spread Spectrum Use this setting to Enable or Disable PCI-E Spread Spectrum for your system. Target Link Speed If supported by hardware and set to Force to x.S GT/S (x being a value of 2.5, 5.0 or 8.0) for Downstream Ports, this sets an upper limit on Link Operational Speed by restricting the values...
  • Page 74 H11SSW-iN/NT User's Manual Onboard LAN2 Option ROM Use this setting to select which firmware function is to be loaded for onboard LAN2 on the system. Options include Disabled and Legacy. NVMe0~NVMe23 OPROM Use this setting to select which firmware is to be loaded for the specified NVMe OpROM on the system.
  • Page 75 Chapter 4: BIOS SATA Configuration This section displays the detected SATA devices installed on the system. ASMedia SATA Controller This setting enables or disables the on chip SATA controller. The options are Enabled, Disabled or Auto. Hot Plug This setting enables or disables the on chip SATA hot plug feature. The options are Enabled, Disabled.

  • Page 76: Ipmi

    H11SSW-iN/NT User's Manual 4.4 IPMI This tab allows you to configure the following IPMI settings for the system. Use this feature to configure Intelligent Platform Management Interface (IPMI) settings. BMC Firmware Revision This item indicates the IPMI firmware revision used in your system.
  • Page 77 Chapter 4: BIOS Erasing Settings Erase SEL Select Yes, On next reset to erase all system event logs upon next system reboot. Select Yes, On every reset to erase all system event logs upon each system reboot. Select No to keep all system event logs after each system reboot. The options are No, Yes, On next reset, and Yes, On every reset.
  • Page 78 H11SSW-iN/NT User's Manual Station IP Address This item displays the Station IP address for this computer. This should be in decimal and in dotted quad form. Subnet Mask This item displays the sub-network that this computer belongs to. The value of each three- digit number separated by dots should not exceed 255.

  • Page 79: Event Logs

    Chapter 4: BIOS 4.5 Event Logs This tab allows the user to configure the following event logs settings for the system. Change SMBIOS Event Log Settings  This feature allows the user to configure SMBIOS Event settings. Enabling/Disabling Options SMBIOS Event Log Select Enabled to enable SMBIOS (System Management BIOS) Event Logging during system boot.
  • Page 80 H11SSW-iN/NT User's Manual When Log is Full Select Erase Immediately to immediately erase all errors in the SMBIOS event log when the event log is full. Select Do Nothing for the system to do nothing when the SMBIOS event log is full. The options are Do Nothing and Erase Immediately.

  • Page 81: Security

    Chapter 4: BIOS 4.6 Security This tab allows you to configure the following security settings for the system. Administrator Password Press Enter to create a new, or change an existing Administrator password. Note that if the Administrator Password is erased, the User Password will be cleared as well. User Password Press Enter to create a new, or change an existing User password.
  • Page 82 H11SSW-iN/NT User's Manual Secure Boot This option allows you specify when the Platform Key (PK) is enrolled. When enabled, the System Mode is user deployed, and the CSM function is disabled. Options include Enabled and Disabled. Secure Boot Mode Use this item to select the secure boot mode. The options are Standard and Custom.
  • Page 83 Chapter 4: BIOS Append Key Select Yes to add the KEK from the manufacturer's defaults list to the existing KEK. Select No to load the KEK from a file. The options are Yes and No.  Authorized Signatures Set New Key Select Yes to load the database from the manufacturer's defaults.

  • Page 84: Boot

    H11SSW-iN/NT User's Manual 4.7 Boot Use this tab to configure Boot Settings: Boot Mode Select Use this item to select the type of device that the system is going to boot from. The options are LEGACY, UEFI, and DUAL. The default setting is DUAL.
  • Page 85 Chapter 4: BIOS  UEFI Application Boot Priorities This feature allows the user to specify which UEFI devices are boot devices. • UEFI Boot Order #1  NETWORK Drive BBS Priorities This feature allows the user to specify which UEFI network drive devices are boot devices.

  • Page 86: Save & Exit

    H11SSW-iN/NT User's Manual 4.8 Save & Exit Select the Save & Exit tab to enter the Save & Exit BIOS Setup screen. Discard Changes and Exit Select this option to quit the BIOS Setup without making any permanent changes to the system configuration, and reboot the computer.
  • Page 87 Chapter 4: BIOS Default Options Restore Defaults To set this feature, select Restore Defaults from the Save & Exit menu and press <Enter>. These are factory settings designed for maximum system stability, but not for maximum performance. Save as User Defaults To set this feature, select Save as User Defaults from the Exit menu and press <Enter>.

  • Page 88: Appendix A Software

    H11SSW-iN/NT User's Manual Appendix A Software After the hardware has been installed, you should install the Operating System (OS), configure RAID settings and install the drivers. Necessary drivers and utilities may be found at https:// www.supermicro.com/wftp/driver. A.1 OS Installation You must first configure RAID settings (if using RAID) before you install the Windows OS and the software drivers.

  • Page 89: Driver Installation

    The Supermicro website contains drivers and utilities for your system at https://www. supermicro.com/wftp/driver. Some of these must be installed, such as the chipset driver. After accessing the website, go into the CDR_Images (in the parent directory of the above link) and locate the ISO file for your motherboard. Download this file to create a DVD of the drivers and utilities it contains.

  • Page 90: Superdoctor ® 5

    A.3 SuperDoctor ® The Supermicro SuperDoctor 5 is a program that functions in a command-line or web-based interface for Windows and Linux operating systems. The program monitors such system health information as CPU temperature, system voltages, system power consumption, fan speed, and provides alerts via email or Simple Network Management Protocol (SNMP).

  • Page 91: Ipmi

    Appendix A: Software A.4 IPMI The H11SSW-iN/NT supports the Intelligent Platform Management Interface (IPMI). IPMI is used to provide remote access, monitoring and management. There are several BIOS settings that are related to IPMI. For general documentation and information on IPMI, please visit our website at:...

  • Page 92: Appendix B Standardized Warning Statements

    The following statements are industry standard warnings, provided to warn the user of situations which have the potential for bodily injury. Should you have questions or experience difficulty, contact Supermicro's Technical Support department for assistance. Only certified technicians should attempt to install or configure components.
  • Page 93 Appendix B: Warning Statements Attention Danger d'explosion si la pile n'est pas remplacée correctement. Ne la remplacer que par une pile de type semblable ou équivalent, recommandée par le fabricant. Jeter les piles usagées conformément aux instructions du fabricant. ¡Advertencia! Existe peligro de explosión si la batería se reemplaza de manera incorrecta.

  • Page 94: Product Disposal

    H11SSW-iN/NT User's Manual B.2 Product Disposal Warning! Ultimate disposal of this product should be handled according to all national laws and regulations. 製品の廃棄 この製品を廃棄処分する場合、 国の関係する全ての法律 ・ 条例に従い処理する必要があります。 警告 本产品的废弃处理应根据所有国家的法律和规章进行。 警告 本產品的廢棄處理應根據所有國家的法律和規章進行。 Warnung Die Entsorgung dieses Produkts sollte gemäß allen Bestimmungen und Gesetzen des Landes erfolgen.

  • Page 95: Appendix C Uefi Bios Recovery

    Warning: Do not upgrade the BIOS unless your system has a BIOS-related issue. Flashing the wrong BIOS can cause irreparable damage to the system. In no event shall Supermicro be liable for direct, indirect, special, incidental, or consequential damages arising from a BIOS update.
  • Page 96 USB flash drive with FAT16 or FAT32 format and rename the file to SUPER.ROM. Note: If you cannot locate the "SUPER.ROM" file in your driver disk, visit our website at www.supermicro.com to download the correct BIOS image into a USB flash device and rename it "SUPER.ROM".
  • Page 97 SUPERMICO BIOS Update: https://www.youtube.com/watch?v=S8z6iOEHGwY * If the BIOS flash recovery fails, contact our RMA Department to have the BIOS chip reprogrammed. This will require shipping the board to Supermicro for repair. Submit your RMA request at https://www.supermicro.com/support/rma Please make sure to follow all instructions when returning the motherboard.
