brel-motors MS35 Manual

Read the manual before you begin the installation. If these instructions are not followed,
this may lead to defects and injury in which warranty can't be claimed.
warning:
Children cannot recognize the dangers of electrical equipment and may therefore not work with it.
It is important to follow this instruction for your own safety.
1. Do not operate the motor in humid surroundings.
2. The motor must be installed correctly.
3. The motor must be protected from direct moisture influences.
4. The motor should be installed with the motor cable down in order to prevent moisture via the motor cable is running in the
motor . See Figure 1
5. It is prohibited to connect two motors on a switch without using a relay control.
_________________________________________________________________________
Technical data of the motor
• Motor Voltage:
• Power:
•
Torque:
•
Speed:
• Ampèrage:
• Moisture and dust:
• Working temperature of the motor:
o Normal use:
o
Heavy use:
BREL motors is part of:

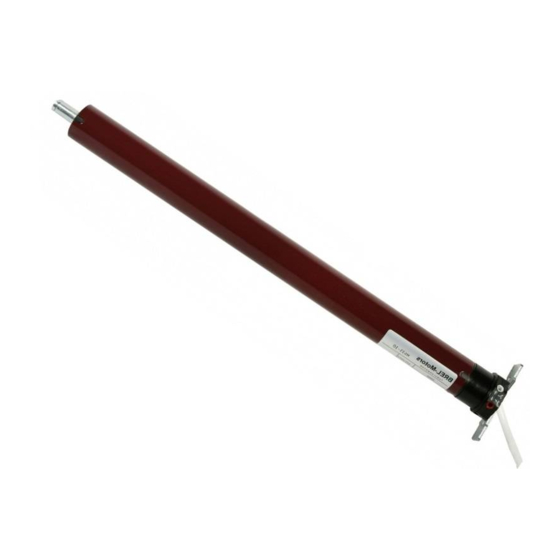

Manual Brel 35mm standard motor
Type MS35
Type MS35-3 Type MS35-6 Type MS35-10 Type MS35-13
AC 230V
98 Watt
3 Nm
28 rpm
0.43A
IP44
-10℃ tot +40℃
-20℃ tot +70℃
AC 230V AC 230V
121 Watt 121 Watt
6 Nm 10 Nm
28 rpm 17 rpm
0.53A 0.53A
IP44 IP44
Page 1
Figure 1
AC 230V
121 Watt
13 Nm
14 rpm
0.53A
IP44
