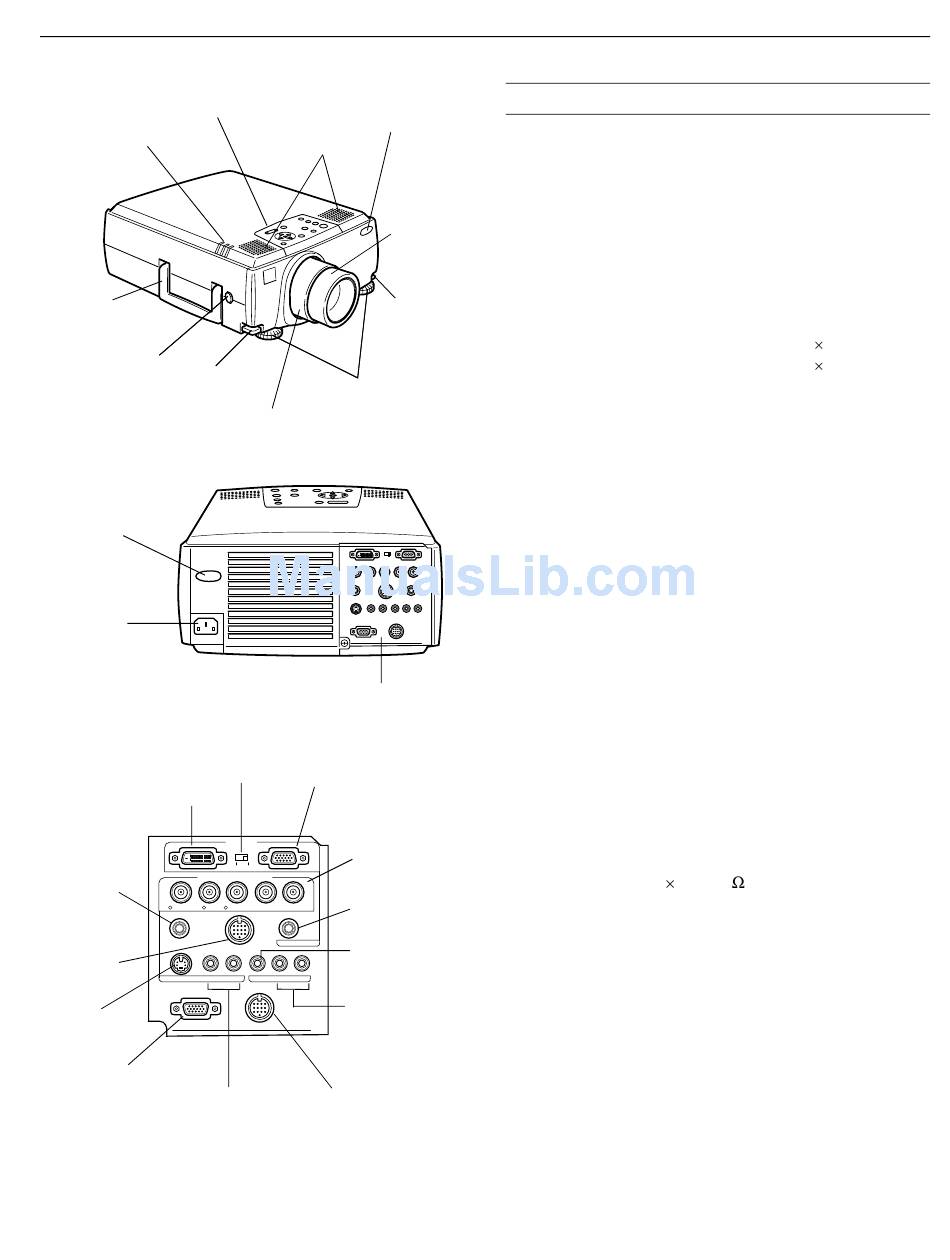

User Manual
control panel
status lights
handle
lens shift knob
foot adjust
lever
zoom ring
rear infrared
receiver
A/C power
inlet
DVI / VGA
switch
DVI connector
optional
remote
receiver
Computer 2 /
connector
R/Cr/Pr
G/Y
Mouse/Com
Remote
Mouse/Com
connector
S-Video
S-Audio/Audio2
S-Video
connector
Monitor Out
Monitor Out
connector
S-Audio/Audio 2
connector
front infrared
receiver
speakers
focus ring
foot adjust
lever
adjustable feet
see below
VGA (video in) connector
BNC connectors
(for Computer 2
or component
Computer 1
video source)
Component Video
Audio
connector
B/Cb/Pb
H/C Sync
V Sync
Audio
composite video
connector
Video
L-Audio-R
left and right
audio connectors
Stack Out
Stack Out connector
EPSON PowerLite 8100i/9100i Projector
Projector Specifications
General
Type of display:
Size of liquid
crystal panels:
Lens:
Resolution:
Color reproduction: 24 bit, 16.7 million colors
Brightness:
Contrast ratio:
Image size:
Projection distance: PowerLite 8100i: 3.1 to 48.1 feet
Projection methods: Front, rear, upside-down (ceiling mount)
Internal speaker
system:
Optical aspect ratio: 4 : 3 (horizontal : vertical)
Zoom ratio:
Manual lens shift:
Keystone correction
angle:
3/01
Poly-silicon Thin Film Transistor (TFT)
Diagonal: 1.3 inches (34 mm)
PowerLite 8100i: F=1.7 to 2.3,
f=49 to 63 mm
PowerLite 9100i: F=1.8 to 2.4,
f=49 to 69 mm
PowerLite 8100i: 1024 768 pixels
PowerLite 9100i: 1280 1024 pixels
PowerLite 8100i: 3200 lumens (ANSI)
PowerLite 9100i: 2400 lumens (ANSI)
PowerLite 8100i: 400 : 1
PowerLite 9100i: 300 : 1
PowerLite 8100i:
Wide angle: 28 to 300 inches
(at 3.3 to 37.3 feet distance)
Tele angle: 21 to 300 inches
(at 3.1 to 48.1 feet distance)
PowerLite 9100i:
Wide angle: 30 to 320 inches
(at 3.6 to 36.7 feet distance)
Tele angle: 20 to 300 inches
(at 4.6 to 51.8 feet distance)
(0.9 to 14.6 meters)
PowerLite 9100i: 3.6 to 51.8 feet
(1.1 to 15.8 meters)
2 3 W 8 ( ) speakers
PowerLite 8100i: 1 : 1.3
PowerLite 9100i: 1 : 1.4
0 to 10°
±30°; ratio: 10 : 5.5)
EPSON PowerLite 8100i/9100i - 1
