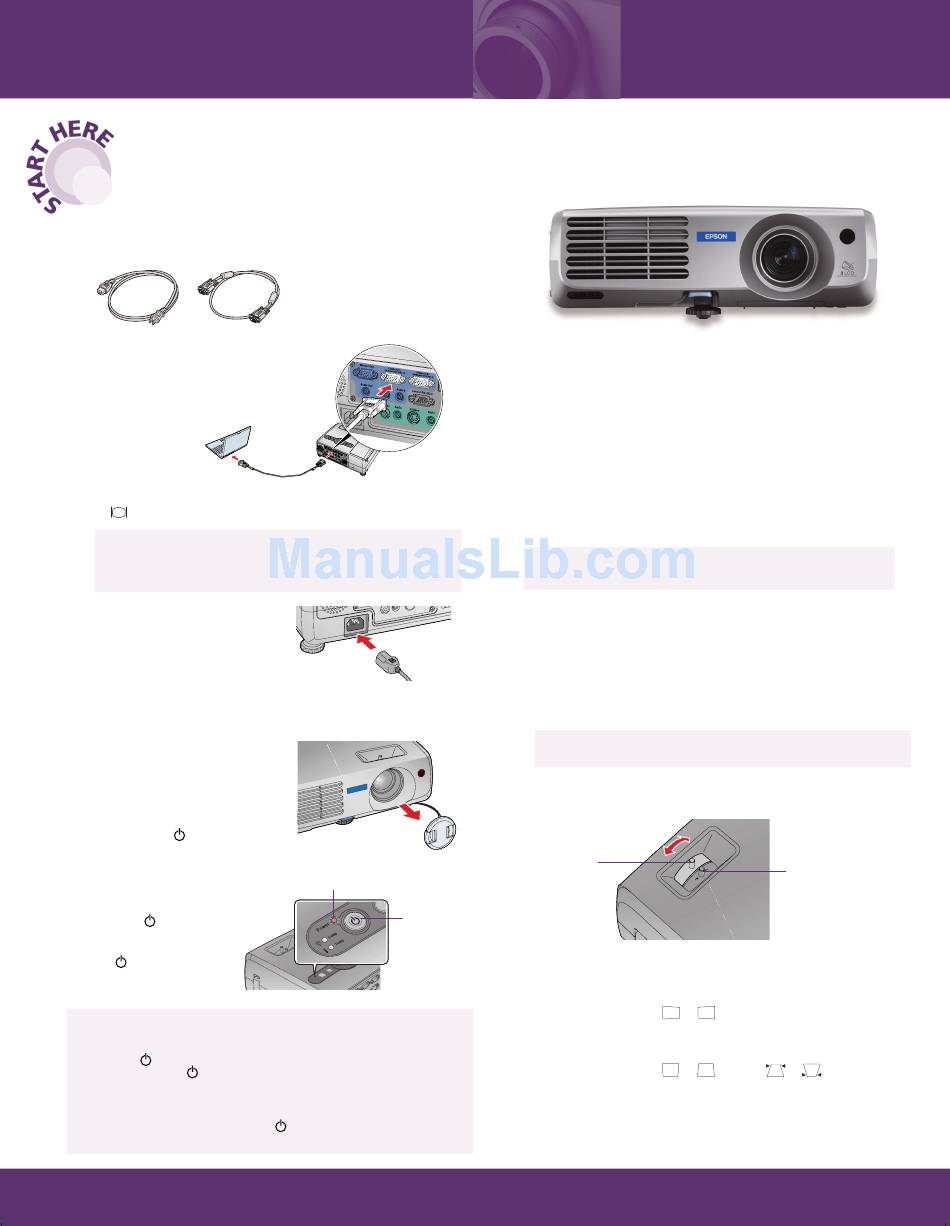

Epson PowerLite 61p Quick Setup Manual

C
onnect the projector
to your notebook
1
Locate the required cables:
Power cord Computer cable
2
Connect the computer cable to the
Computer 1/Component Video 1
port on the projector.
3
Connect the other end to your notebook's video-out
or monitor port.
NOTE: If your notebook has a DVI connector, you need to either
connect a DVI-to-VGA adapter to the included computer cable (see
your computer's documentation), or purchase an optional DVI to
VGA cable (for a higher-quality image). See your User's Guide.
4
Connect the power cord to the
projector, then plug the other end
into a grounded electrical outlet.
T
urn on your equipment
1
Turn on your notebook.
2
Remove the projector's lens cover.
3
Make sure the Power light
is orange and not flashing.
4
Press the Power button
to turn on the projector.
The projector beeps and
the Power light flashes
as the projector warms up.
CAUTION: Before unplugging the projector...
To shut down the projector properly:
1. Press the Power button twice. The projector beeps twice, the lamp
turns off, and the Power light flashes orange (about 60 seconds).
2. Once the light stops flashing and stays on, it's safe to unplug
the projector.
Never unplug the projector when the
flashing orange.
Power light is orange
and not flashing
Power button
Power light is green or
Epson
Follow these instructions to connect the projector to your
notebook. For other setup options, see your User's Guide.
A
djust the image
1
If you've turned on your notebook and you don't see an image, press
the Source Search button on the projector to select the image source.
NOTE: If you still see a blank screen or have other display problems,
see the troubleshooting tips on the back of this sheet.
2
Rotate the focus ring to sharpen the image.
Focus ring
to sharpen
the image
3
Rotate the zoom ring to reduce or enlarge the image. (You can also
move the projector closer to or farther from the screen.)
4
If your image looks like
one side of the screen at an angle. Place it directly in front of the
center of the screen, facing the screen squarely.
5
If your image looks like
square up the image.
® PowerLite ® 61p/81p

Quick Setup

Zoom ring
to adjust the
image size
or , you've placed the projector off to
or , use the or buttons to
